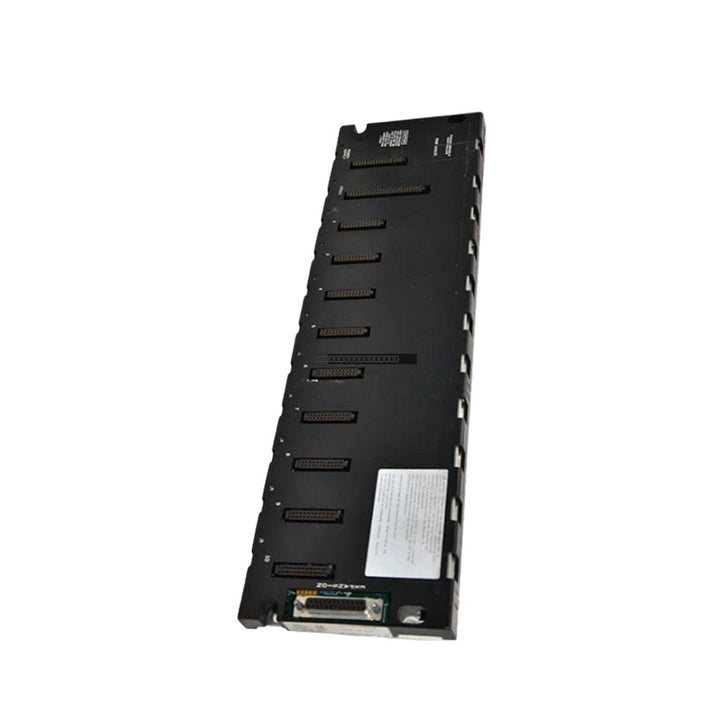

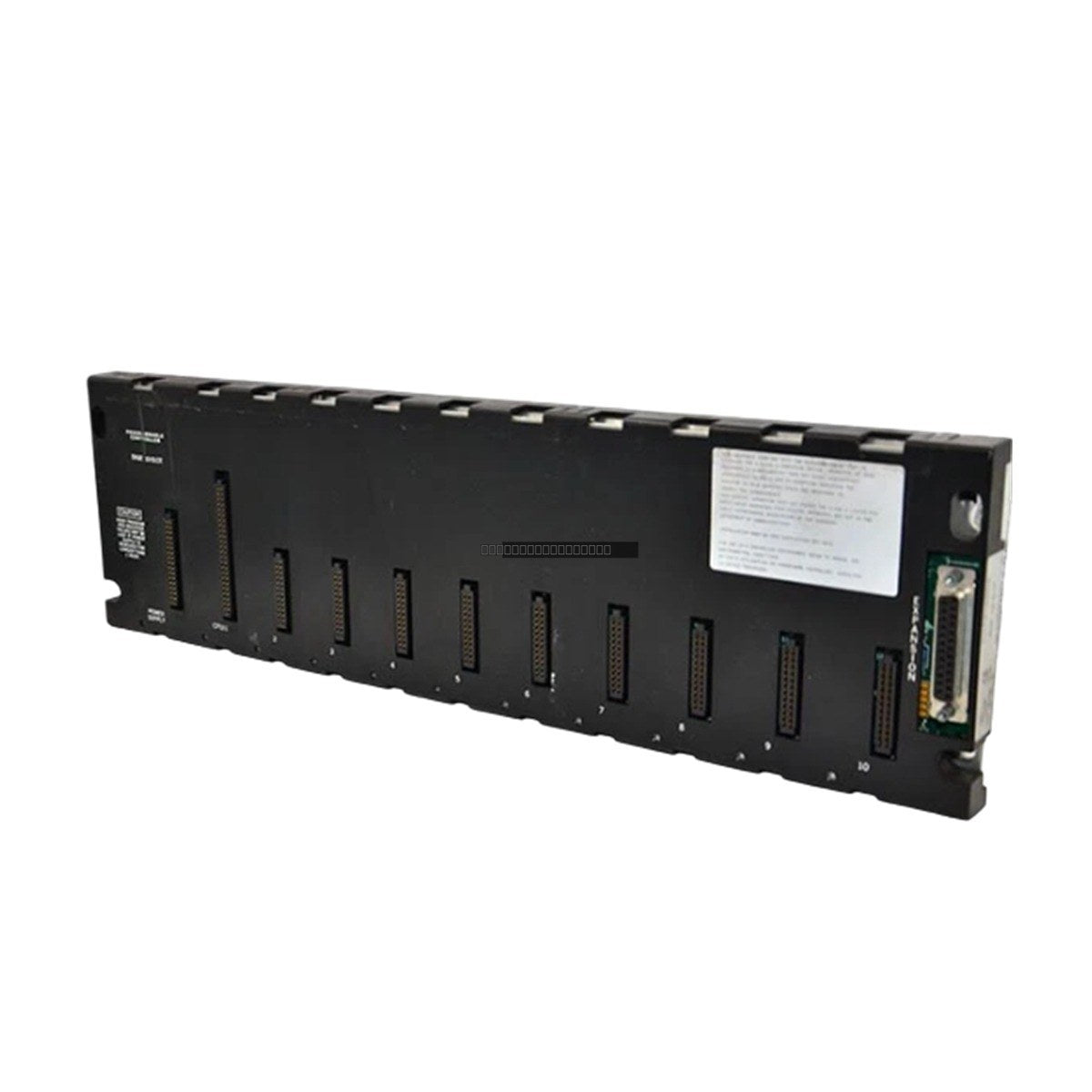

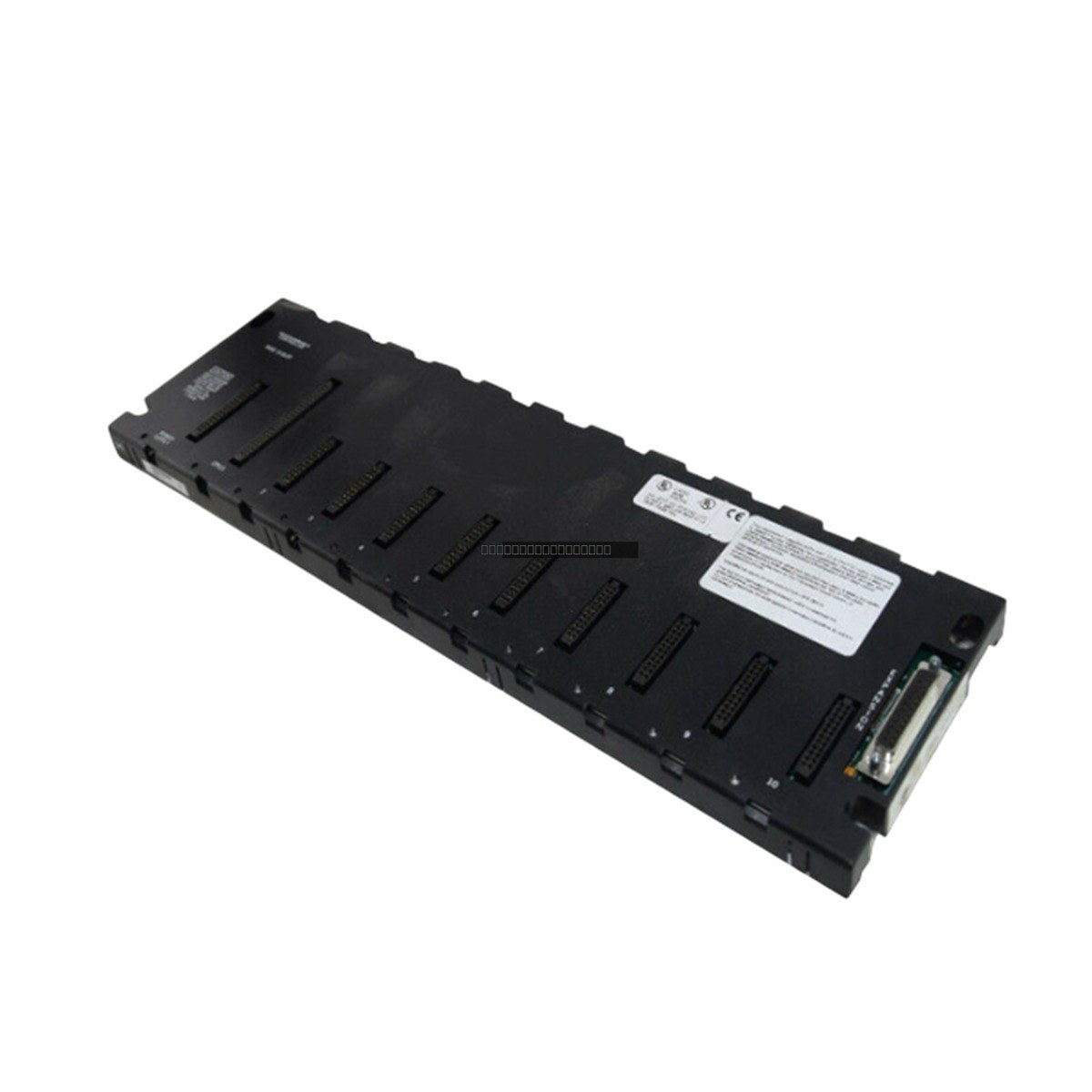

General Electric IC693CHS391D Series 90-30 10-Slot Expansion Baseplate

General Electric IC693CHS391D Series 90-30 10-Slot Expansion Baseplate

Description

The General Electric IC693CHS391D is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity...

26 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC693CHS391D
Vendor: General Electric
Category: PLC Expansion Baseplate
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC693CHS391D is a 10-slot expansion baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This modular baseplate provides the physical mounting and electrical backplane connectivity required for expanding I/O capacity in industrial automation applications. It is engineered to support a single CPU or specialty module in the first slot, with nine additional slots available for various I/O or option modules.

Features

  • Ten total slots for flexible system configuration.
  • Dedicated slot 1 for CPU or specialty module support.
  • Nine slots for I/O or option modules.
  • Integrated 25-pin female connector for expansion cable interface.
  • Compatible with standard GE Fanuc Series 90-30 rack-mount architectures.

Technical Specifications

Model Number IC693CHS391D
Series Series 90-30
Total Slots 10
CPU/Specialty Slots 1 (Slot 1)
I/O Slots 9
Operating Voltage 5V DC
Current Consumption 420 mA
Connector Type 25-Pin Female

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the baseplate or any modules.
  • Mount the baseplate securely on a flat, grounded metal surface to ensure proper chassis grounding.
  • Maintain adequate clearance around the baseplate to allow for proper airflow and cooling, preventing thermal degradation of the modules.
  • When inserting modules, ensure they are fully seated in the backplane connector before securing them with the module retention screws.
  • Use shielded cables for expansion connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Handle modules using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

What is the primary function of the IC693CHS391D?

This unit serves as an expansion baseplate for the GE Series 90-30 PLC system, allowing for the addition of extra I/O modules to an existing control rack configuration.

Can this baseplate hold a CPU?

Yes, the IC693CHS391D is designed with one dedicated slot (Slot 1) specifically for a CPU or a specialty module, while the remaining nine slots are reserved for I/O and other option modules.

What is the power requirement for this baseplate?

The baseplate operates on 5V DC and has a current consumption of 420 mA.
