General Electric IC693CHS397M 5-Slot PLC Baseplate

General Electric IC693CHS397M 5-Slot PLC Baseplate

Description

The General Electric IC693CHS397M is a 5-slot baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This baseplate serves as the primary mounting and communication backbone for the...

15 people are viewing this right now

Availability: Low stock: 7 left

SKU: IC693CHS397M
Vendor: General Electric
Category: PLC Baseplate
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

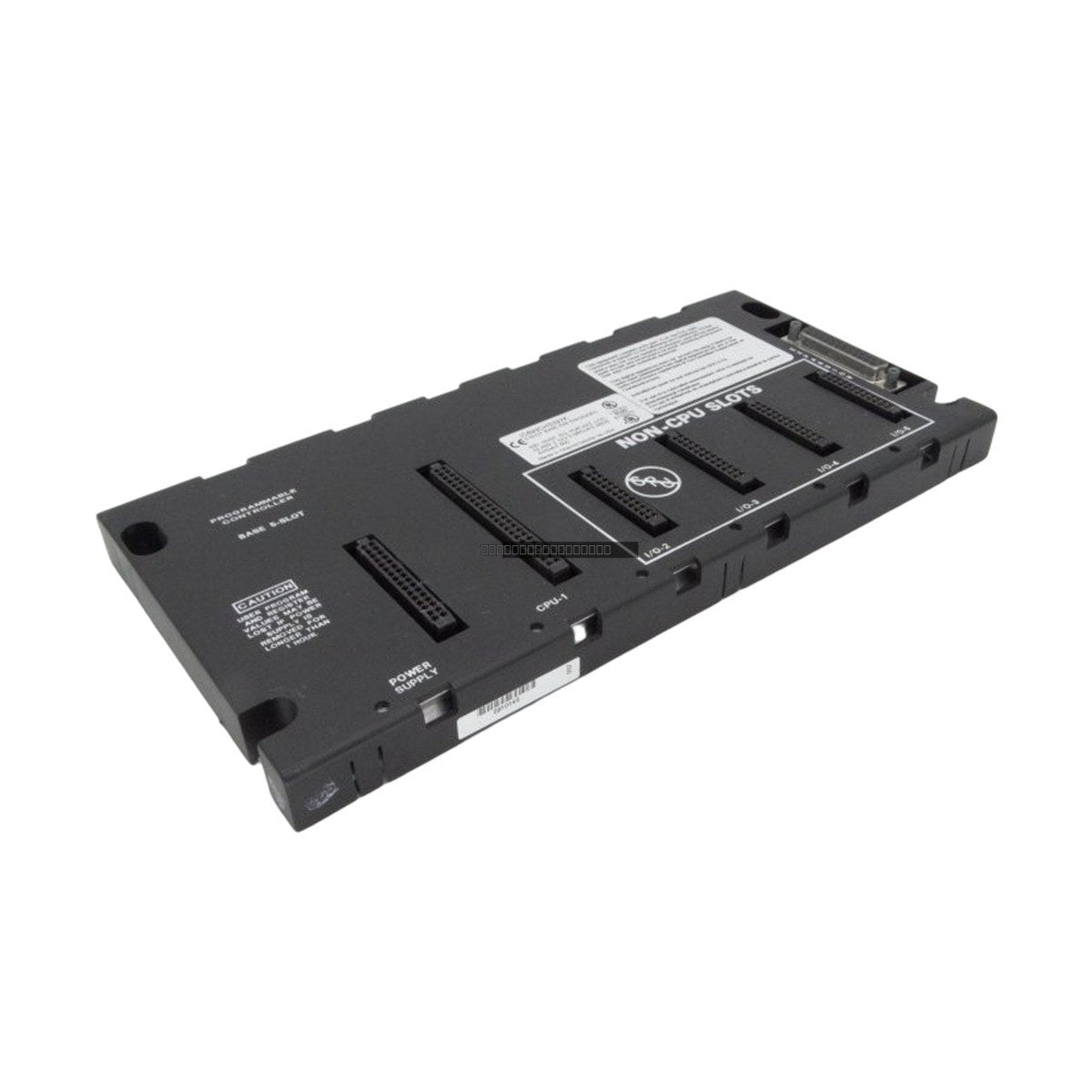

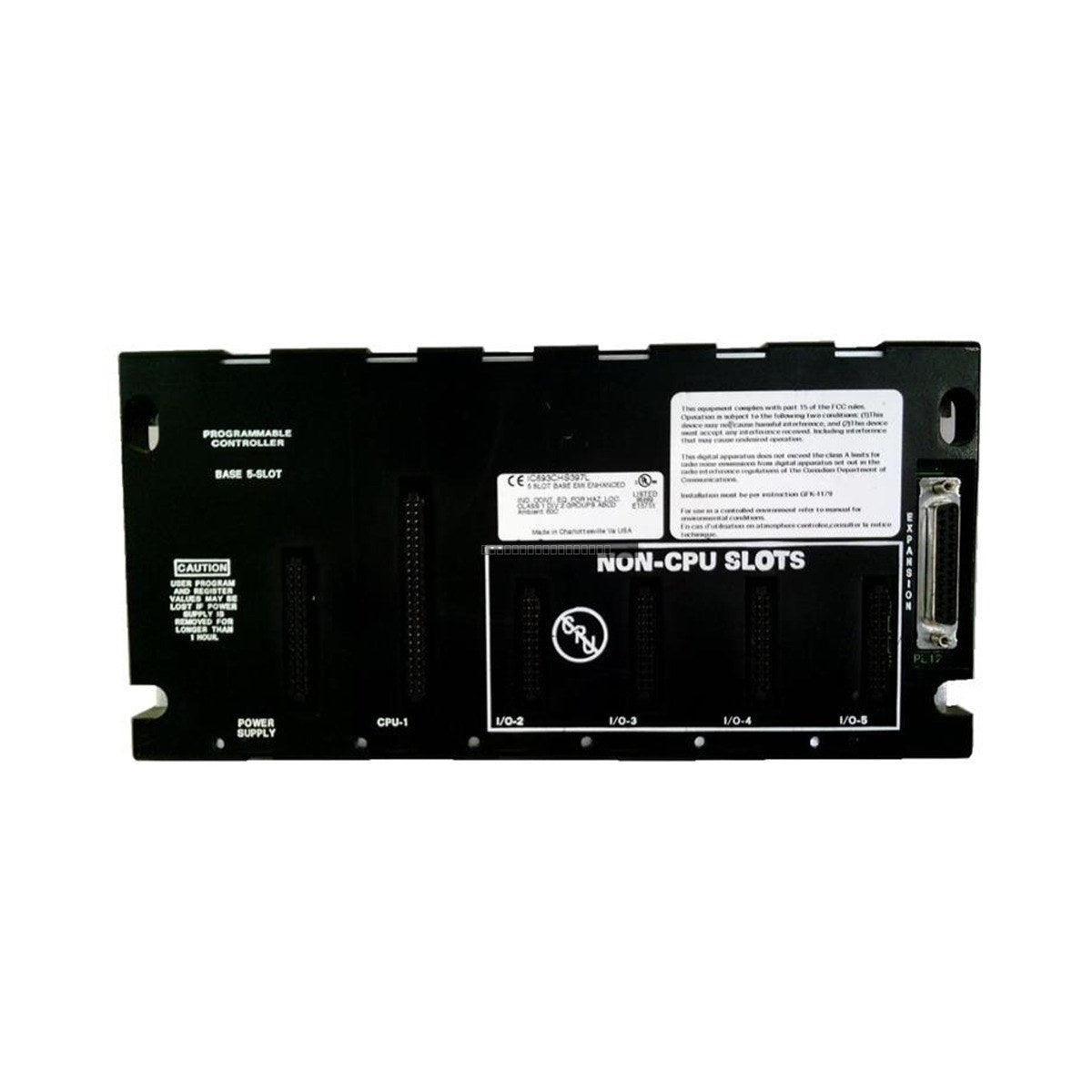

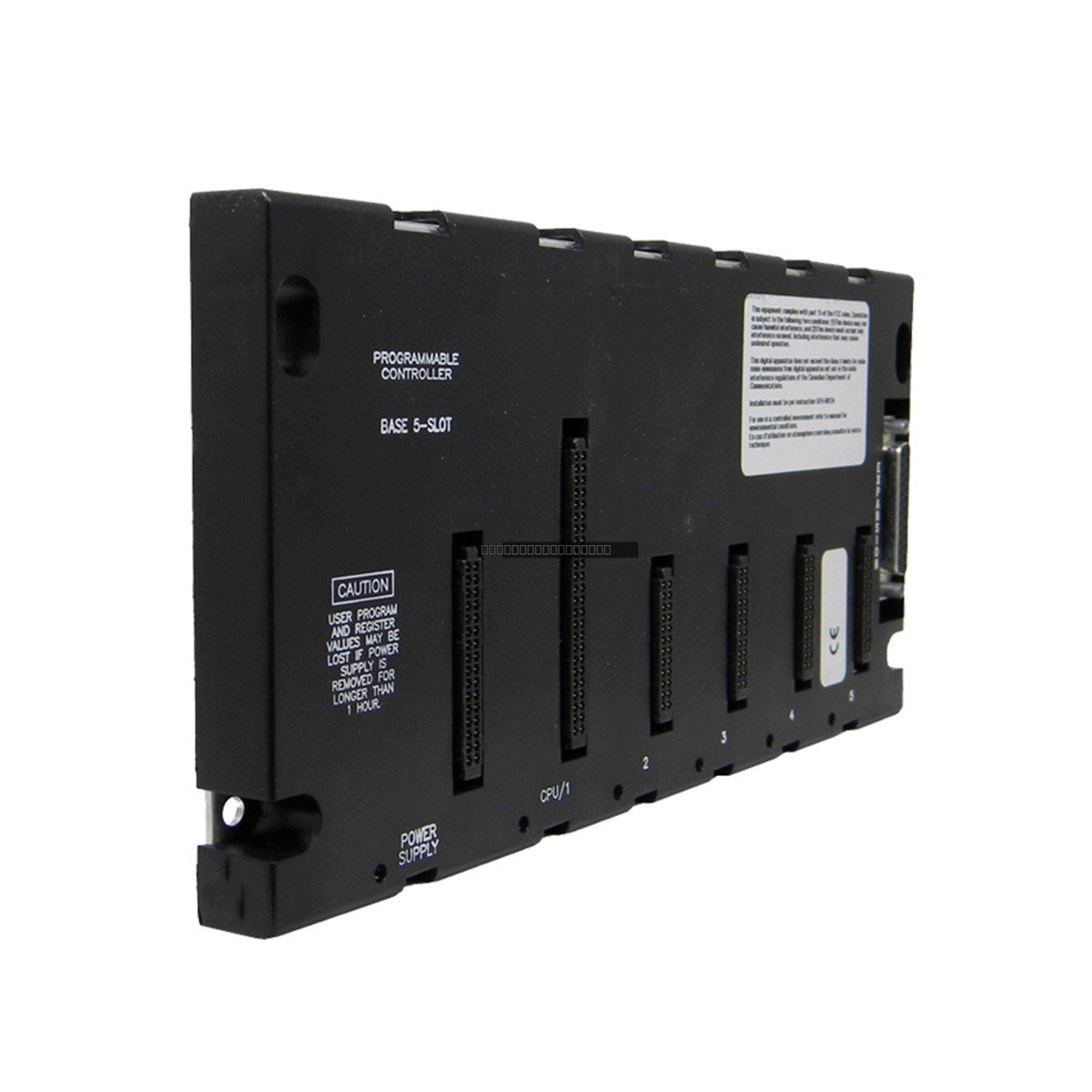

The General Electric IC693CHS397M is a 5-slot baseplate designed for the Series 90-30 Programmable Logic Controller (PLC) system. This baseplate serves as the primary mounting and communication backbone for the controller, providing the necessary electrical bus connections for the CPU, power supply, and various I/O or option modules. It is engineered to facilitate reliable data exchange and power distribution across the backplane for industrial automation applications.

Features

  • Designed specifically for the GE Series 90-30 PLC platform.
  • Provides five dedicated slots for I/O and option modules (Slots 2 through 5).
  • Integrated slot for the system power supply module.
  • Equipped with a 25-pin D-type female connector for expansion capabilities.
  • Supports system expansion up to a maximum cable length of 50 feet (15 meters).

Technical Specifications

Product Model IC693CHS397M
Baseplate Type 5-Slot
Bus Voltage +5VDC
Current Load 270 mA
Expansion Interface 25-pin D-shell connector
Max Expansion Length 15 meters (50 feet)
Manufacturer General Electric

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing any modules from the baseplate.
  • Mount the baseplate securely on a flat, grounded metal surface to ensure proper EMI shielding and structural integrity.
  • Maintain adequate clearance around the baseplate to allow for proper airflow and cooling of the installed modules.
  • When connecting expansion cables, ensure the 25-pin connector is fully seated and the locking screws are tightened to prevent intermittent communication errors.
  • Handle the baseplate with care to avoid bending the backplane pins or damaging the module guide rails.

FAQ

What is the primary function of the IC693CHS397M baseplate?

This baseplate acts as the physical chassis and electrical communication bus for the GE Series 90-30 PLC, allowing the CPU to interface with power supplies and option modules.

Can this baseplate be expanded?

Yes, the IC693CHS397M features a 25-pin D-type connector that supports system expansion. The maximum recommended length for the expansion cable is 15 meters (50 feet).
