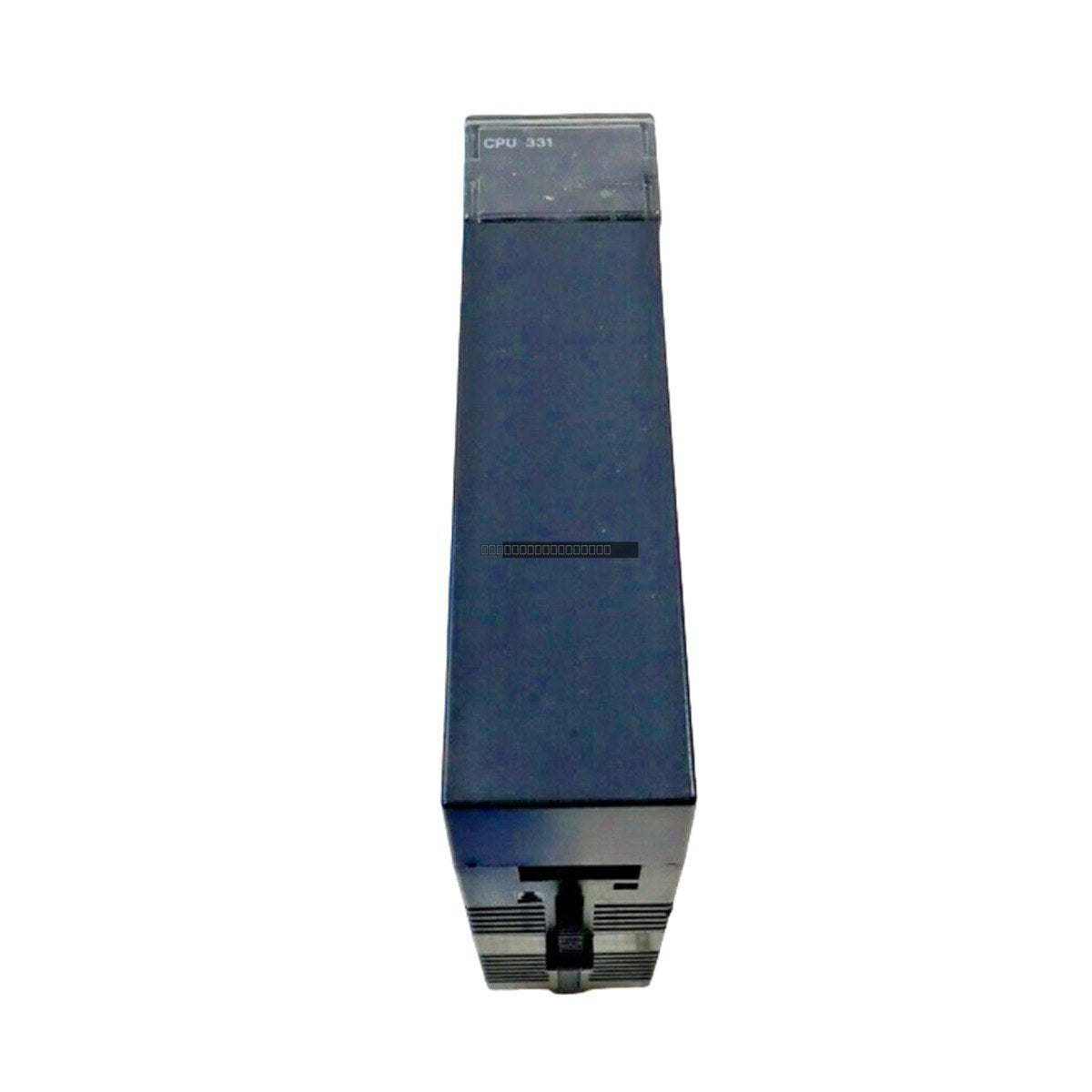

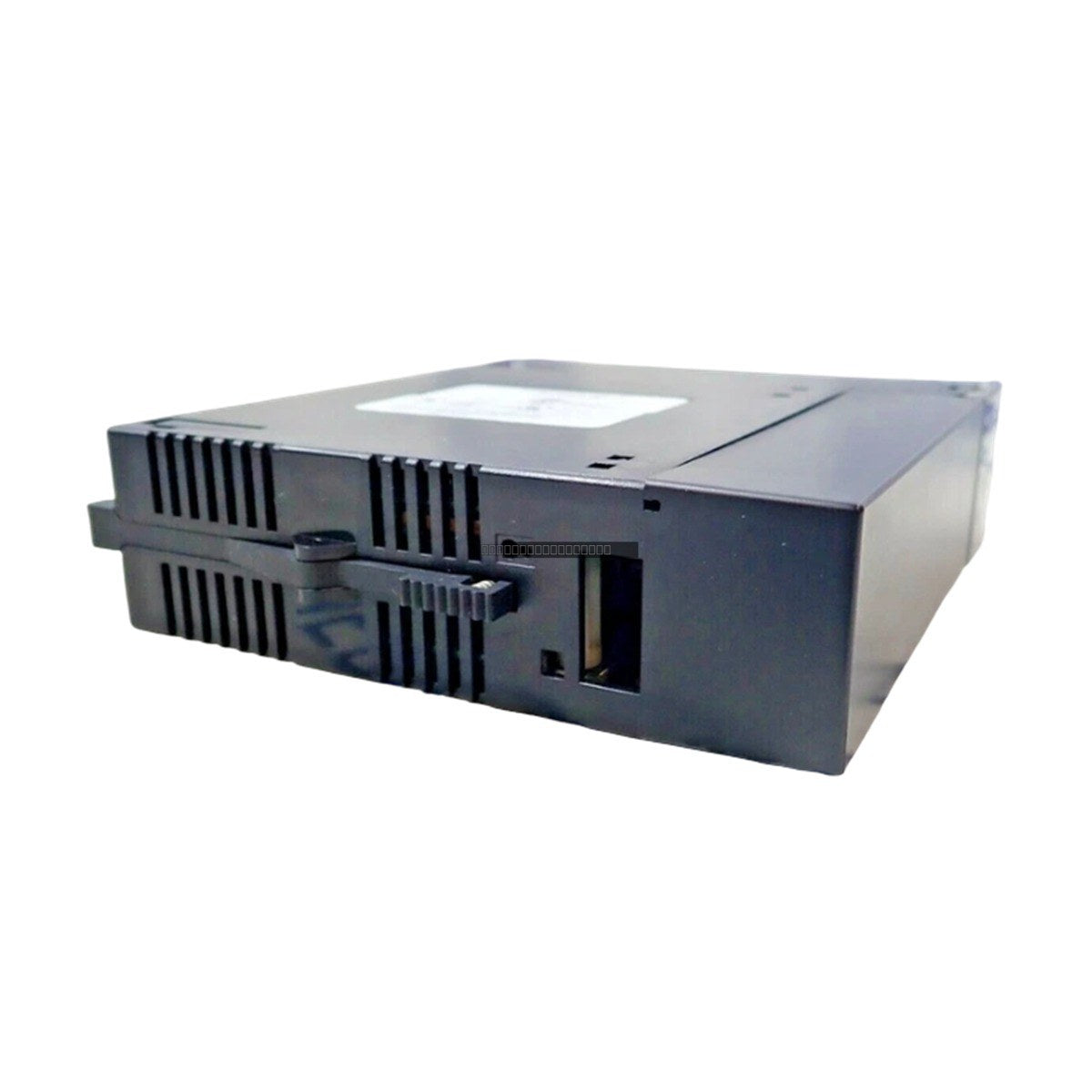

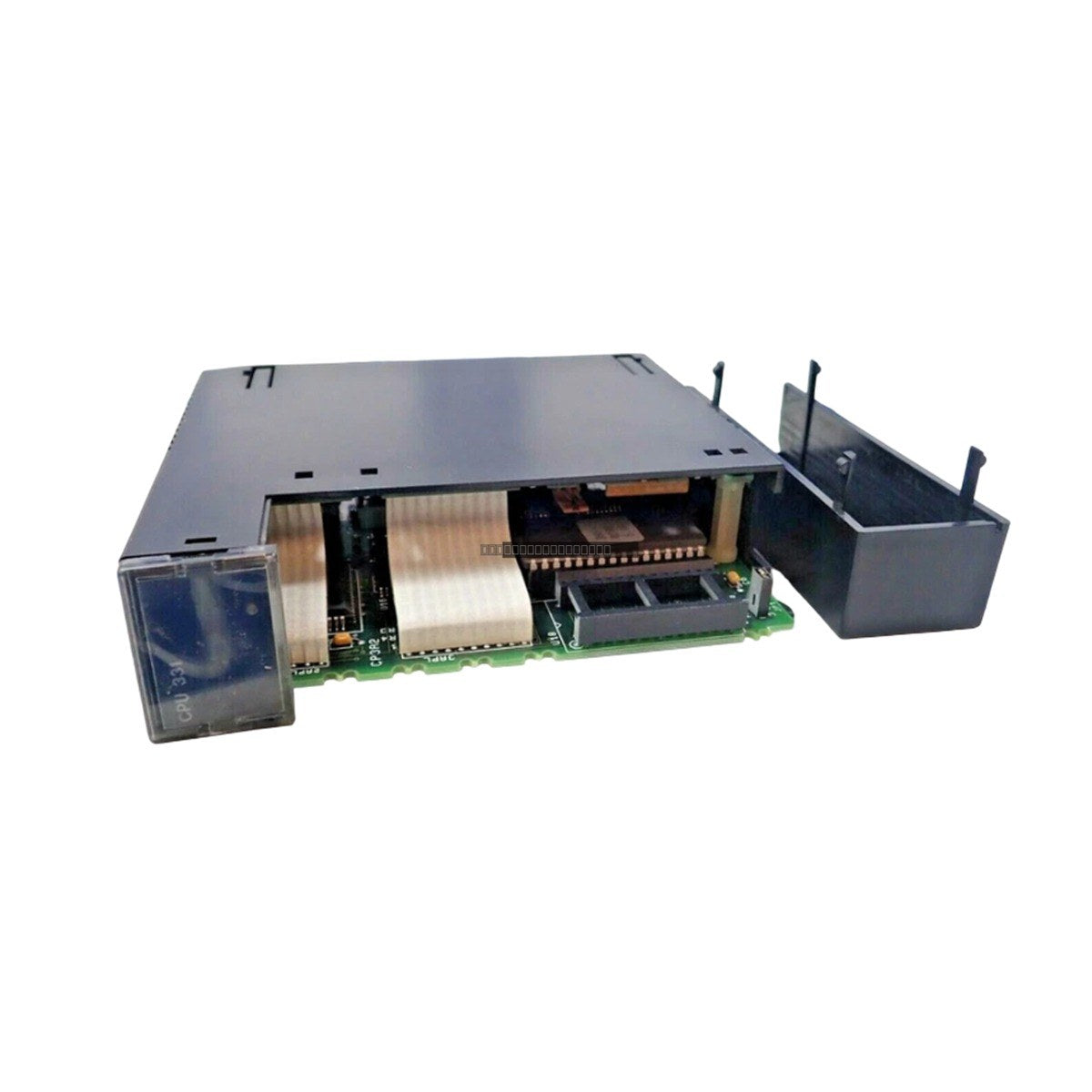

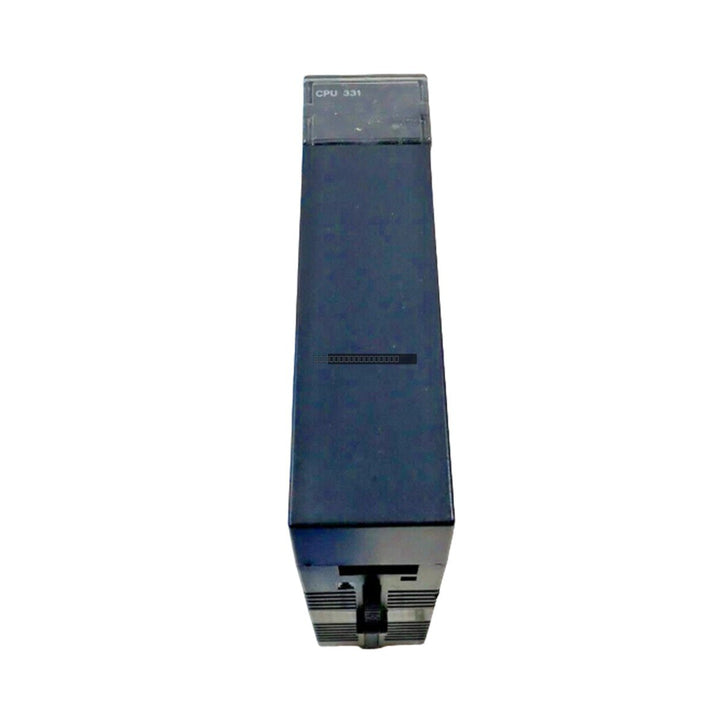

General Electric IC693CPU331S Series 90-30 CPU 331 Module

General Electric IC693CPU331S Series 90-30 CPU 331 Module

Description

The IC693CPU331S is a modular CPU module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This processor module serves as the central control unit for the...

25 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC693CPU331S
Vendor: General Electric
Category: PLC CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IC693CPU331S is a modular CPU module designed for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This processor module serves as the central control unit for the rack-based automation system, providing efficient logic execution and system management for industrial applications.

Features

  • Processor: 80188 microprocessor architecture.
  • Clock Speed: 10 MHz operation for reliable logic processing.
  • Scan Rate: Typical scan rate of 0.4 ms per 1K of Boolean logic.
  • Capacity: Supports up to 680 timers and counters.
  • Expansion Capability: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates for system scalability.
  • Power Requirements: Operates on a +5VDC bus voltage with a current draw of 350mA.

Technical Specifications

Model IC693CPU331S
Manufacturer General Electric (GE Fanuc)
Series Series 90-30
Processor Type 80188
Clock Speed 10 MHz
Current Load 350mA
Bus Voltage +5VDC
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage or data corruption.
  • Align the module carefully with the backplane connector before seating it into the designated CPU slot.
  • Secure the module using the built-in locking tabs to ensure a stable connection to the backplane.
  • Maintain proper ventilation in the control cabinet to keep the operating temperature within the specified 0 to 60 degC range.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

What is the primary function of the IC693CPU331S?

This module acts as the central processor for a GE Series 90-30 PLC rack, handling program execution, I/O scanning, and communication tasks.

How many expansion baseplates can this CPU support?

The IC693CPU331S supports up to four expansion baseplates and four remote I/O baseplates, allowing for significant system expansion.

What is the required input voltage for this module?

The module operates on a +5VDC bus voltage provided by the rack power supply.
