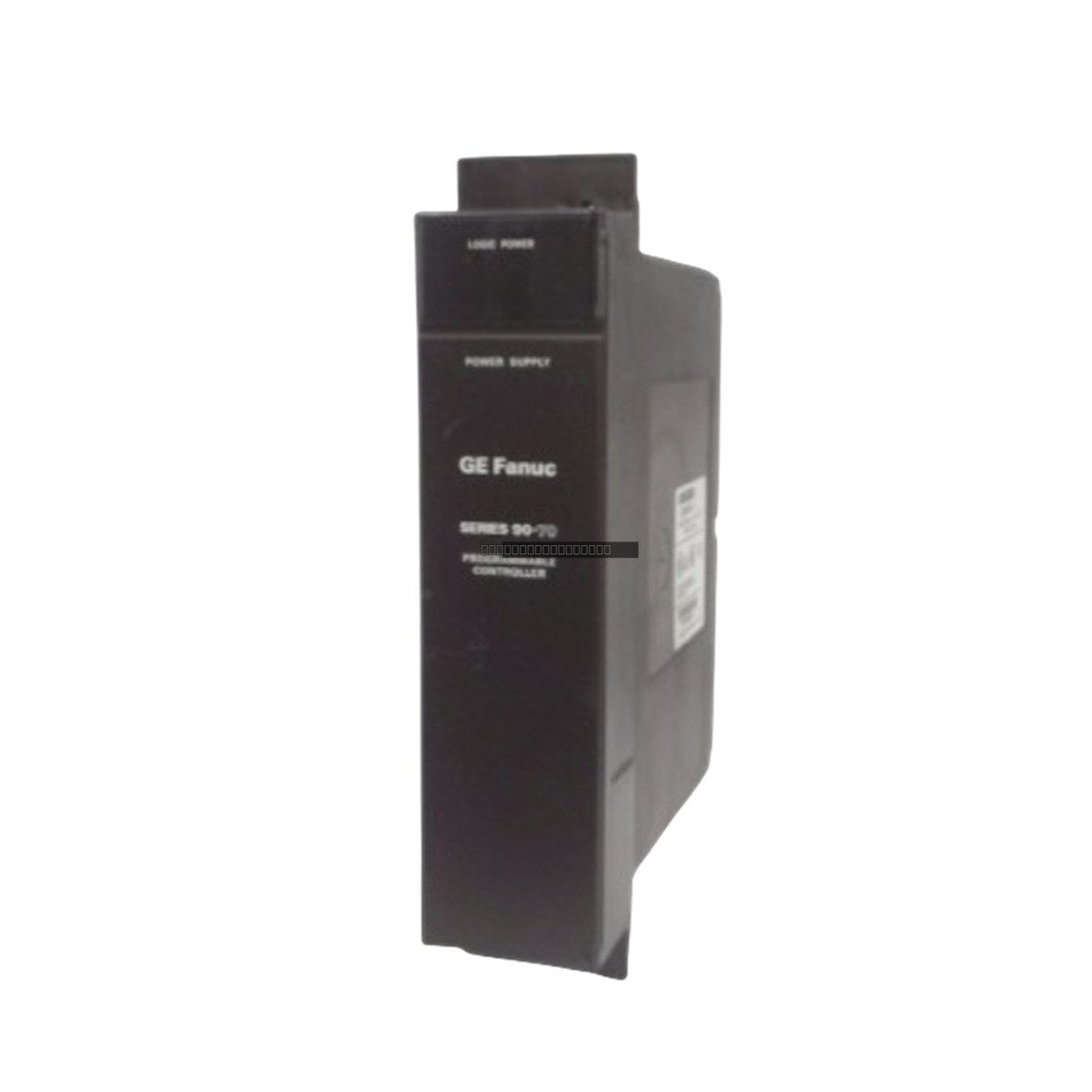

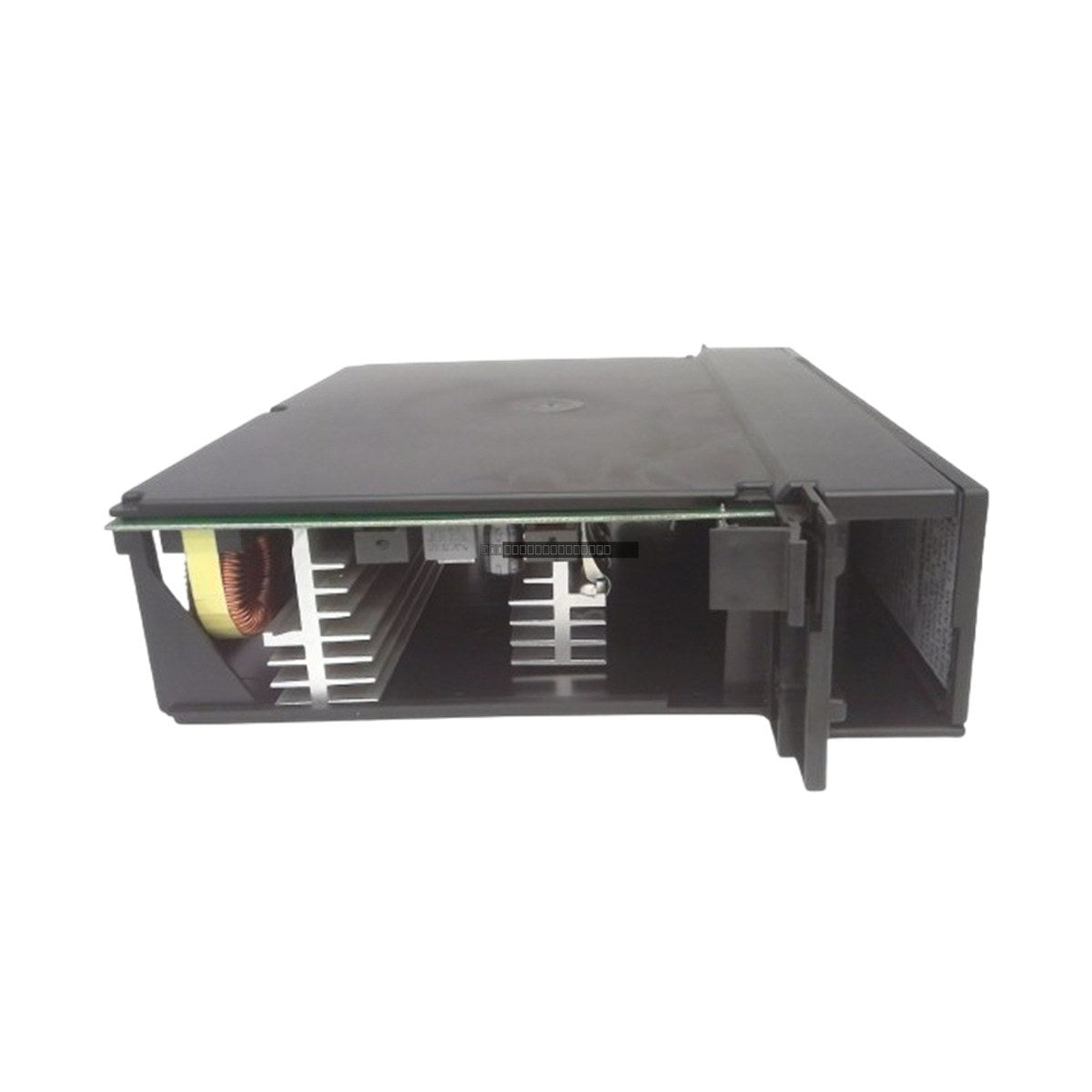

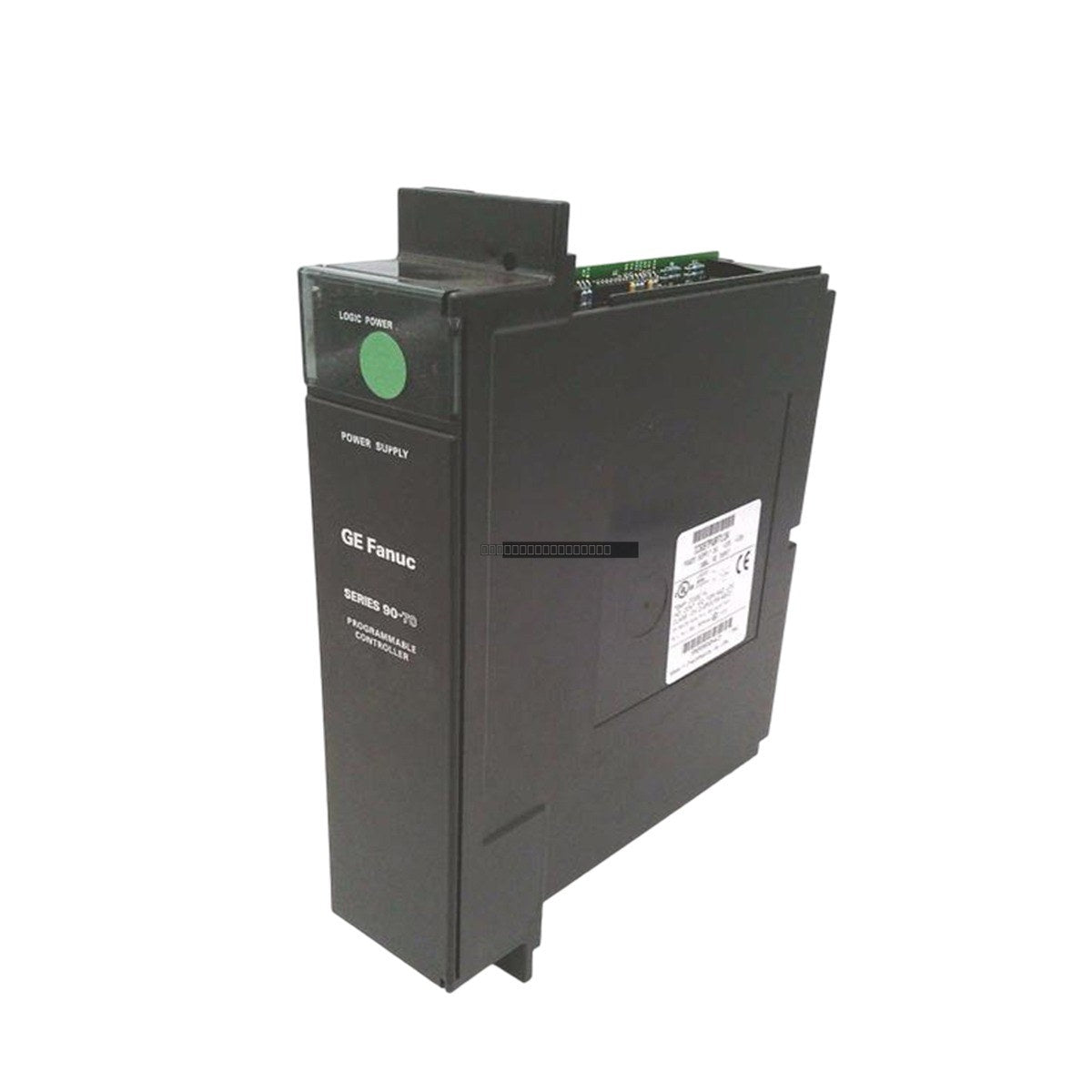

General Electric IC697PWR711K Series 90-70 Power Supply Module

General Electric IC697PWR711K Series 90-70 Power Supply Module

Description

The General Electric IC697PWR711K is a high-performance power supply module designed specifically for the Series 90-70 PLC platform. This module provides reliable power conversion and regulation, ensuring stable operation for...

20 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC697PWR711K
Vendor: General Electric
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC697PWR711K is a high-performance power supply module designed specifically for the Series 90-70 PLC platform. This module provides reliable power conversion and regulation, ensuring stable operation for rack-mounted control systems. It is engineered to handle a wide range of input voltages, making it suitable for diverse industrial power environments.

Features

  • Designed for seamless integration with GE Series 90-70 PLC backplanes.
  • Supports both AC and DC input power sources for flexible deployment.
  • Provides three regulated output voltages: +5 VDC, +12 VDC, and -12 VDC.
  • Integrated overvoltage protection on the +5 VDC output channel.
  • High efficiency with a 100 Watt load capacity.

Technical Specifications

Model IC697PWR711K
Input Voltage (AC) 90 to 264 VAC (Auto-ranging)
Input Voltage (DC) 100 to 150 VDC
Input Frequency 47 to 63 Hz
Max Input Power 160 Watts
Load Capacity 100 Watts
Output Voltages +5 VDC, +12 VDC, -12 VDC
Inrush Current 55A typical / 77A max
Overvoltage Limit (+5V) 5.7 to 6.7 VDC

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the power supply module.
  • Verify that the input voltage matches the module specifications before applying power.
  • Ensure proper grounding of the rack assembly to prevent electrical noise interference.
  • Maintain adequate clearance around the module to allow for proper thermal dissipation.
  • Check that the module is fully seated in the rack slot and that the retaining screws are tightened to ensure a secure electrical connection.

FAQ

What is the primary function of the IC697PWR711K?
This module serves as the primary power supply for the GE Series 90-70 PLC system, converting AC or DC input power into the regulated DC voltages required by the CPU and I/O modules.

Is this module compatible with other GE series?
No, the IC697PWR711K is specifically engineered for the Series 90-70 product line and is not interchangeable with other GE PLC series.
