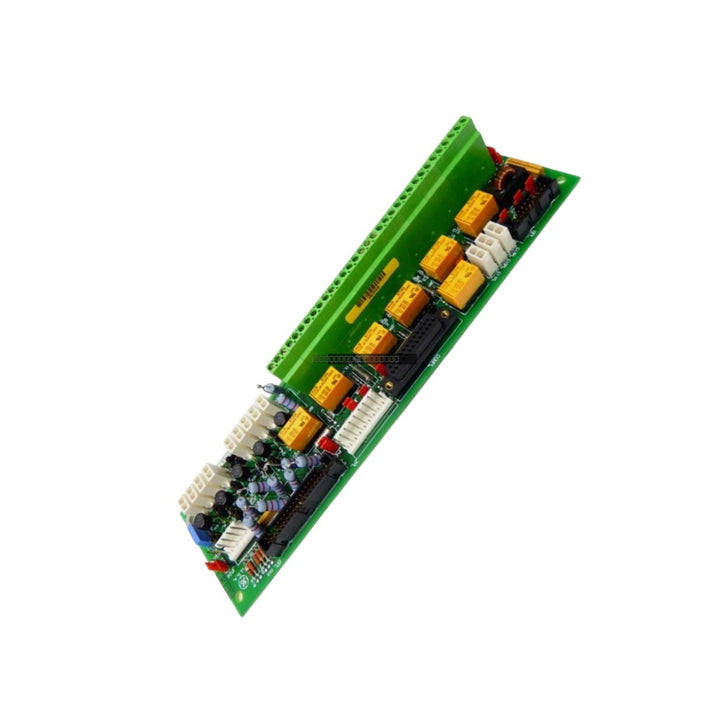

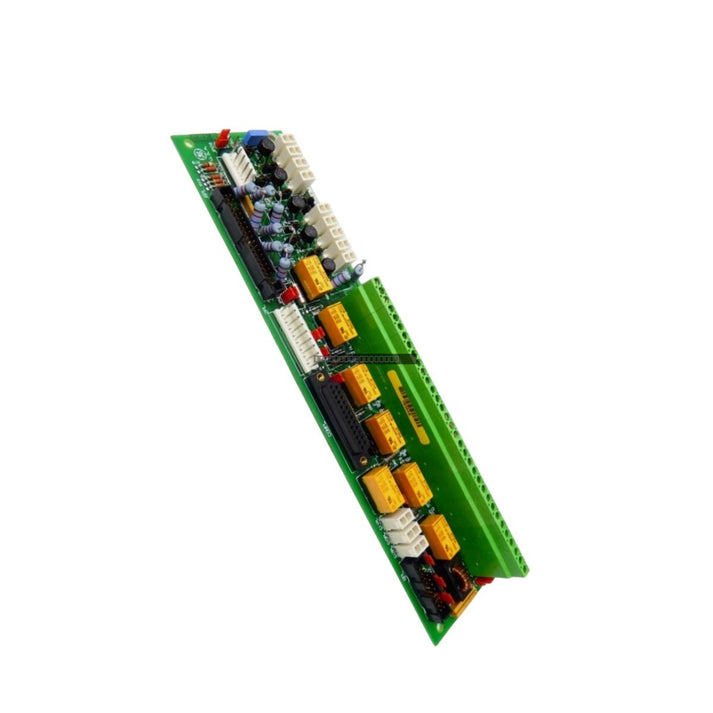

GE Fanuc DS200STBAG1A Drive Control Basic Drive Terminal Board

GE Fanuc DS200STBAG1A Drive Control Basic Drive Terminal Board

Description

The GE Fanuc DS200STBAG1A is a specialized drive terminal board designed for the Drive Control series. This board acts as a critical interface for signal routing and power distribution within...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: DS200STBAG1A
Vendor: GE FANUC
Category: Drive Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc DS200STBAG1A is a specialized drive terminal board designed for the Drive Control series. This board acts as a critical interface for signal routing and power distribution within industrial motor drive systems. It is engineered to maintain signal integrity in demanding environments such as steel processing facilities, large-scale pumping stations, and motor control centers, ensuring consistent performance and reduced maintenance requirements.

Features

  • High-density layout with 60 terminal points for comprehensive field wiring.
  • Multi-stage power output support including regulated +5 VDC and +15 VDC, unregulated 124 VDC, and 120 VAC auxiliary supply.
  • Integrated hardware jumpers for flexible distribution of encoder loads between supply rails.
  • Dedicated RS232C communication port for serial data exchange.
  • Eight discrete input channels (CI1-CI8) for control logic monitoring.

Technical Specifications

Model DS200STBAG1A
Terminal Points 60
Discrete Inputs 8 (CI1 to CI8)
Analog Inputs 4
Communication RS232C
Power Output 1 +5 VDC (250 mA)
Power Output 2 +15 VDC (250 mA)
Power Output 3 124 VDC (500 mA)
Power Output 4 120 VAC (0.4 A)
Connectors CP1PL, CP2PL, CP3PL, CP4PL

Installation Guidelines

  • Ensure all power is disconnected from the drive system before attempting to remove or install the terminal board.
  • Verify that all field wiring is properly secured to the 60-point terminal block to prevent intermittent signal loss.
  • Handle the board using ESD-safe procedures to prevent damage to sensitive internal circuitry.
  • Configure hardware jumpers according to the specific power requirements of your encoder setup before applying operational power.
  • Ensure the environment is free from excessive vibration and moisture to prolong the lifespan of the board components.

FAQ

What is the primary function of the DS200STBAG1A?
It serves as a basic drive terminal board for GE Fanuc Drive Control systems, managing signal routing, communication, and multi-level power distribution for peripheral devices.

Can I adjust the encoder load settings?
Yes, the board features integrated hardware jumpers that allow technicians to distribute encoder loads between the +5 VDC and +15 VDC supply rails.

What communication protocols are supported?
The board includes an RS232C serial communication port for interfacing with external control equipment.
