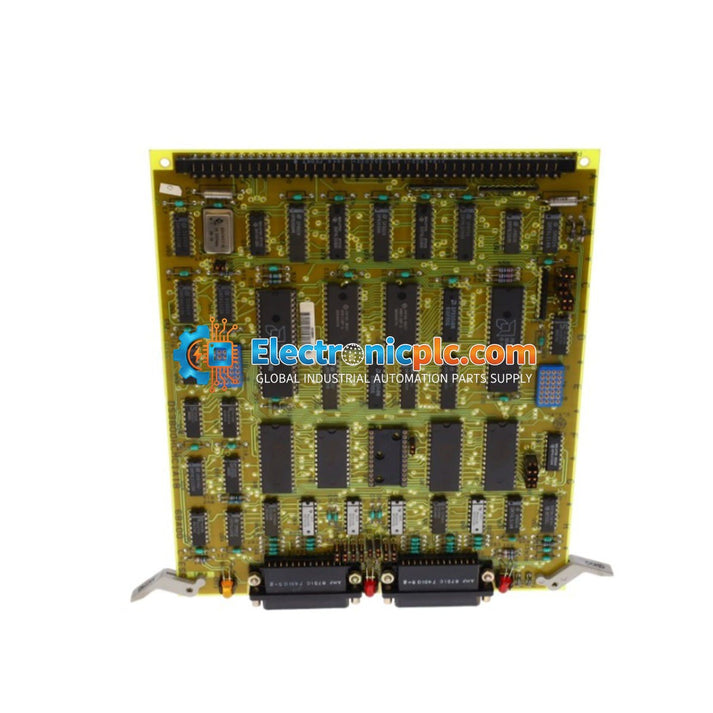

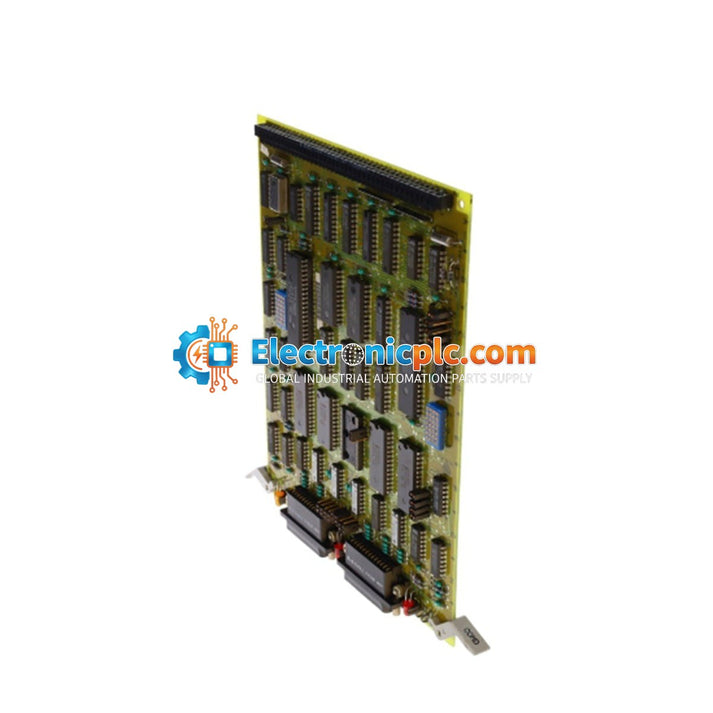

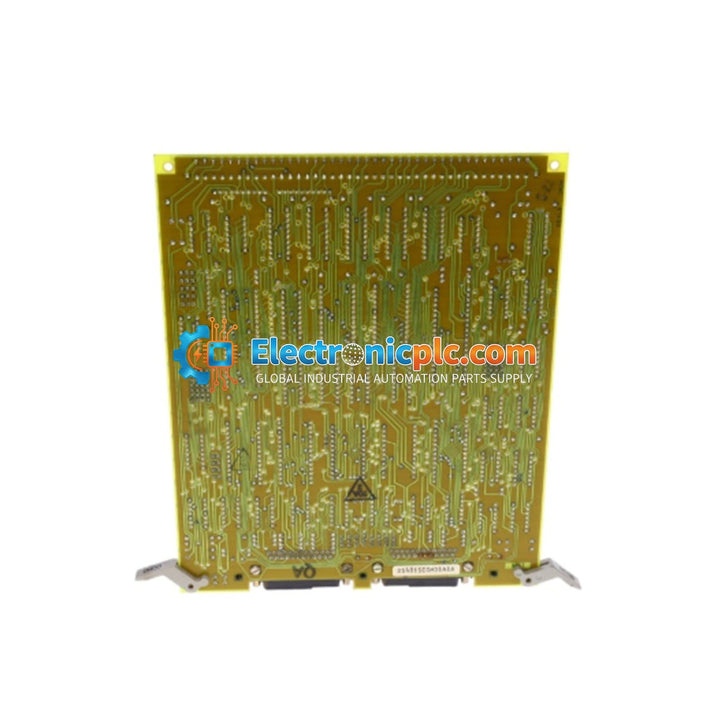

GE Fanuc DS3800HCMC1A1B Mark IV CAN Communication Card

GE Fanuc DS3800HCMC1A1B Mark IV CAN Communication Card

Description

The DS3800HCMC1A1B is a dual-port isolation CAN communication card designed for the General Electric Speedtronic Mark IV gas turbine control system. This module provides high-speed, reliable data exchange across...

25 people are viewing this right now

Availability: Low stock: 10 left

SKU: DS3800HCMC1A1B
Vendor: GE FANUC
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The DS3800HCMC1A1B is a dual-port isolation CAN communication card designed for the General Electric Speedtronic Mark IV gas turbine control system. This module provides high-speed, reliable data exchange across CAN networks in demanding industrial environments, such as power generation and petrochemical facilities. By utilizing high-tier galvanic isolation, the card protects sensitive control logic from voltage spikes, ground loops, and electromagnetic interference (EMI), ensuring system stability and minimizing downtime.

Features

  • Dual-port configuration for independent network interfacing.
  • Supports CAN 2.0A, CAN 2.0B, and CAN FD protocols.
  • High-level galvanic isolation (1500 V to 2500 V) for signal integrity.
  • Integrated 64-byte buffer memory to manage data flow and prevent overflow.
  • Versatile power requirements with 3.3 V or 5 V logic supply support.
  • Robust switching capability for field-side loads up to 250 VAC or 30 VDC.

Applications

This communication card is specifically engineered for use within the GE Mark IV turbine control architecture. It is suitable for critical control loops requiring noise-resistant communication between controllers, I/O nodes, and field instrumentation in heavy industrial settings.

Technical Specifications

Model DS3800HCMC1A1B
Series Speedtronic Mark IV
Protocol Support CAN 2.0A, 2.0B, CAN FD
Ports 2 (Dual independent)
Isolation Rating 1500 V - 2500 V
Buffer Memory 64-byte
Operating Voltage 3.3 V / 5 V
Switching Voltage 250 VAC / 30 VDC
Operating Temperature -20 to +70 deg C
Storage Temperature -40 to +85 deg C
Mounting DIN Rail or Rack Mount

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module to prevent electrical damage.
  • Handle the card using ESD-safe practices to protect sensitive internal components.
  • Ensure the module is securely seated in the rack or snapped firmly onto the DIN rail.
  • Route communication cabling away from high-voltage power lines and high-EMI sources to maintain signal integrity.
  • Verify that the logic supply voltage (3.3 V or 5 V) is correctly configured for the specific slot application.

FAQ

What is the primary function of the DS3800HCMC1A1B?
It acts as a dual-port CAN communication interface for the Mark IV control system, providing isolated, high-speed data transmission between control components.

Does this card support CAN FD?
Yes, the card is designed to support CAN 2.0A, 2.0B, and CAN FD protocols.

How is the card mounted?
The module is designed for flexible deployment and supports both standard DIN-rail mounting and rack-mount configurations within the control cabinet.
