Description

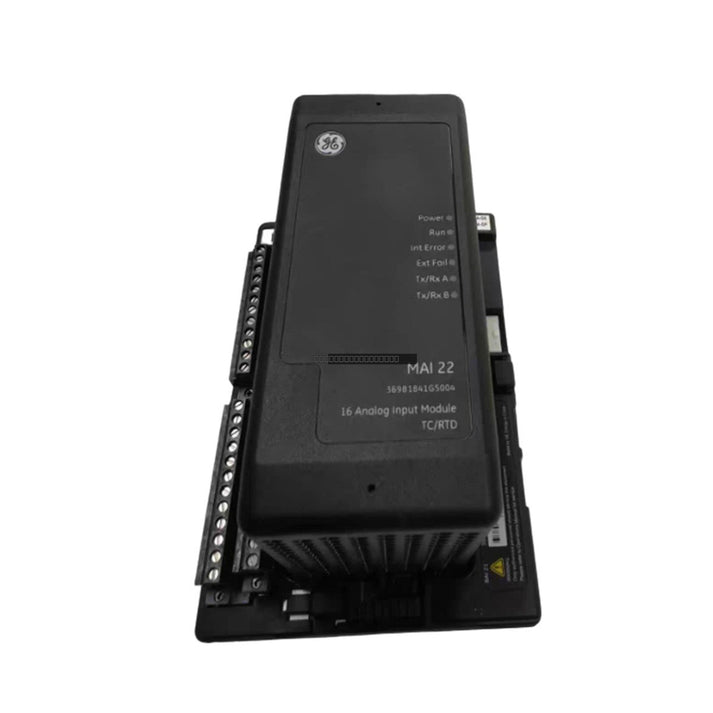

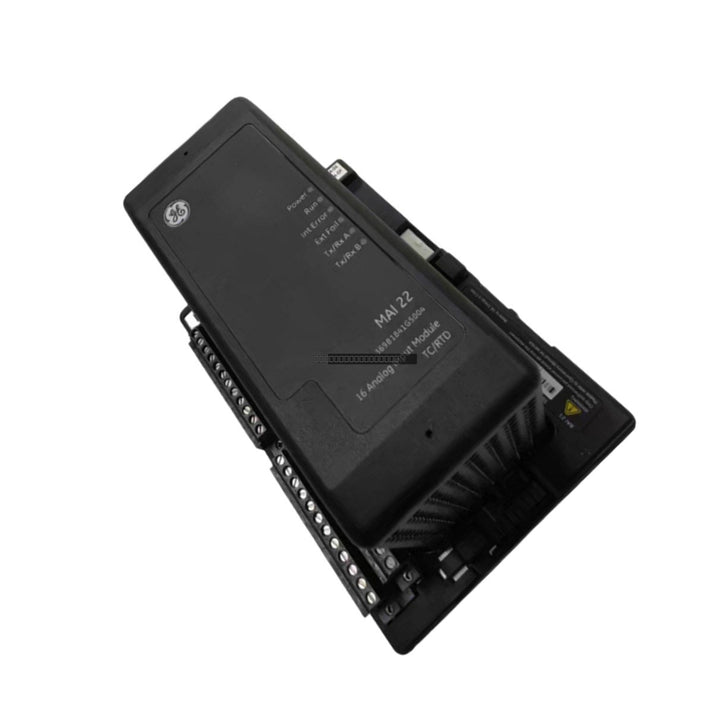

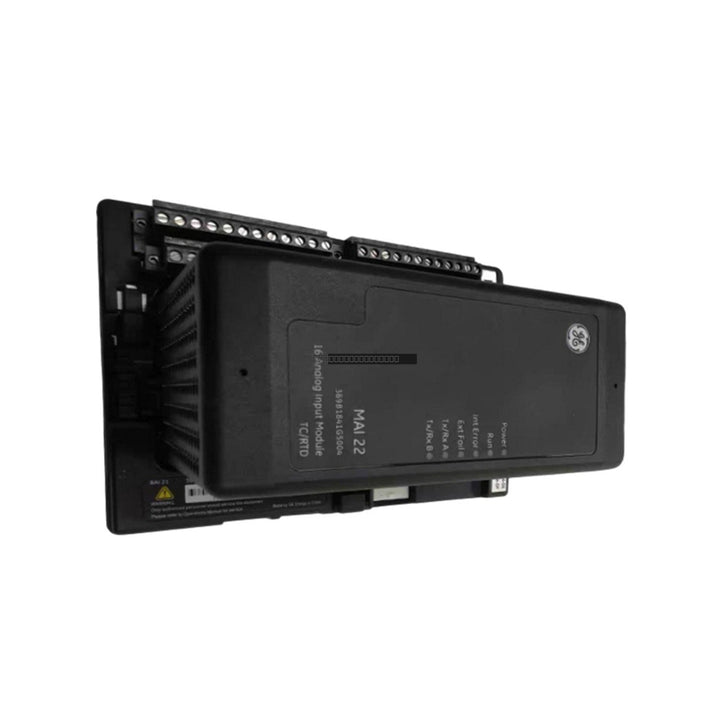

The General Electric MAI22 369B1841G5004 is a high-density analog input module designed for industrial automation and process control systems. This module provides 16 channels of analog signal processing, supporting a variety of voltage and current ranges to interface with field instrumentation such as sensors, transmitters, and transducers. Engineered for reliability in demanding environments, it operates effectively across a wide temperature range and maintains low power consumption.

Features

• 16 configurable analog input channels.
• Supports voltage inputs of 0–10 VDC and ±10 VDC.
• Supports standard 4–20 mA current loop signals.
• High-speed sampling rate of 500 Hz for real-time monitoring.
• Robust design with an operating temperature range of -40 degC to +70 degC.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the module to prevent electrical damage.
• Mount the module in a clean, dry environment with adequate ventilation to maintain the specified operating temperature range.
• Use shielded twisted-pair cabling for all analog signal inputs to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the module chassis to a common earth point to reduce noise and improve signal integrity.
• Verify that the 24 VDC power supply is within the 20.4 to 30 VDC range before powering up the unit.

FAQ

What is the primary function of the MAI22 369B1841G5004?
This is an analog input module used to convert field analog signals (voltage or current) into digital data for processing by a GE control system.

Can this module handle both voltage and current signals?
Yes, the module supports both 0–10 VDC/±10 VDC voltage signals and 4–20 mA current loops.

What is the sampling speed of this module?
The module features a sampling rate of 500 Hz, making it suitable for standard industrial process monitoring applications.
