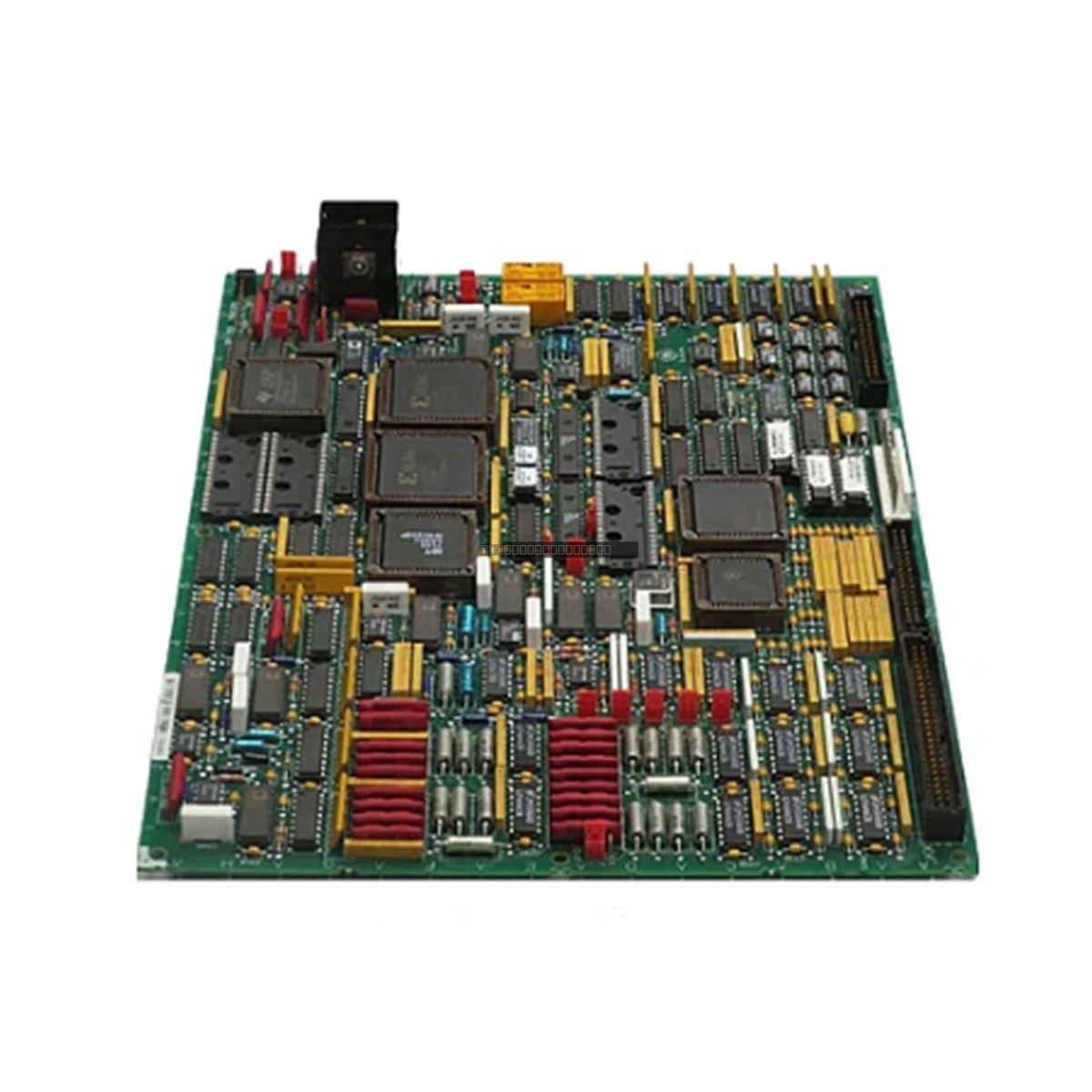

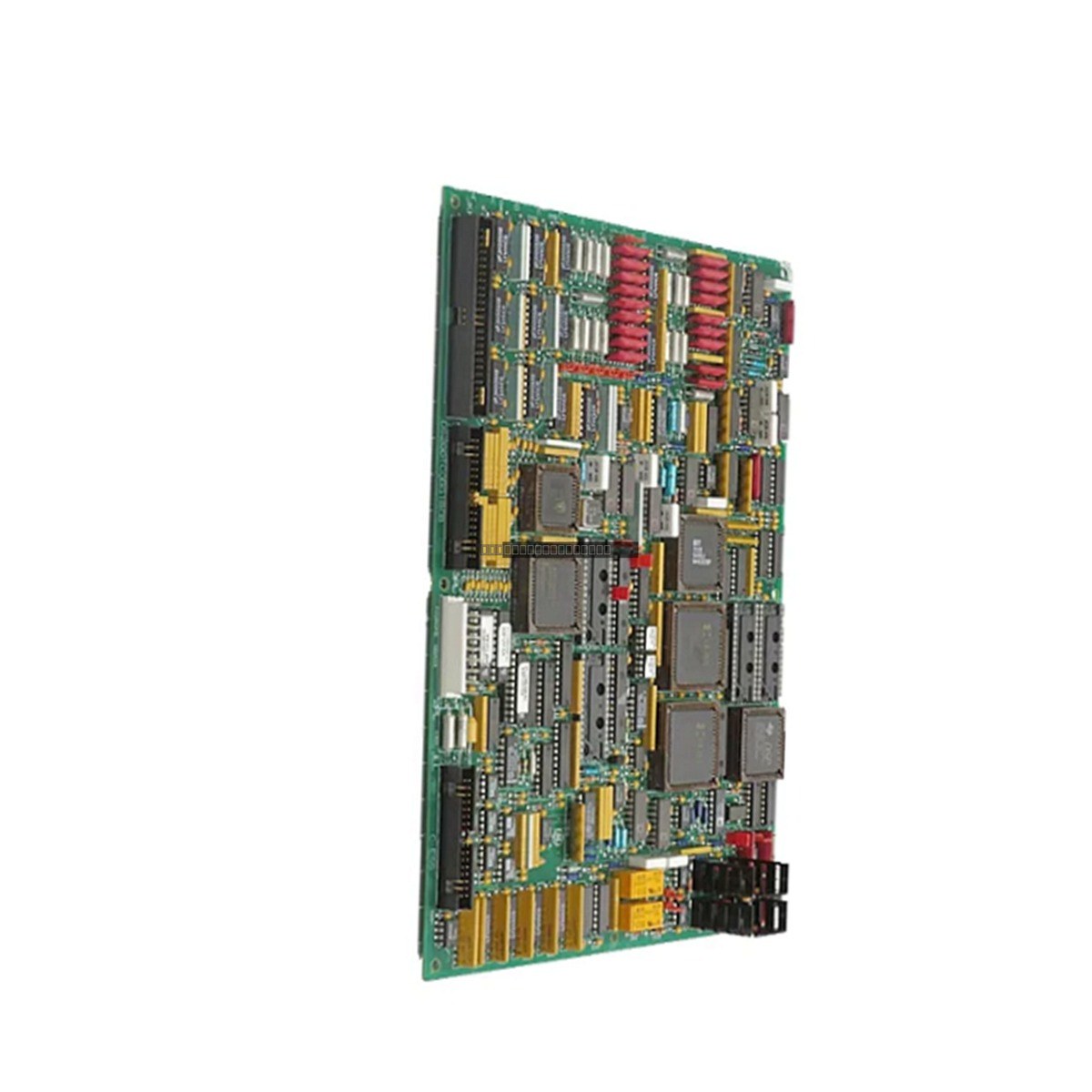

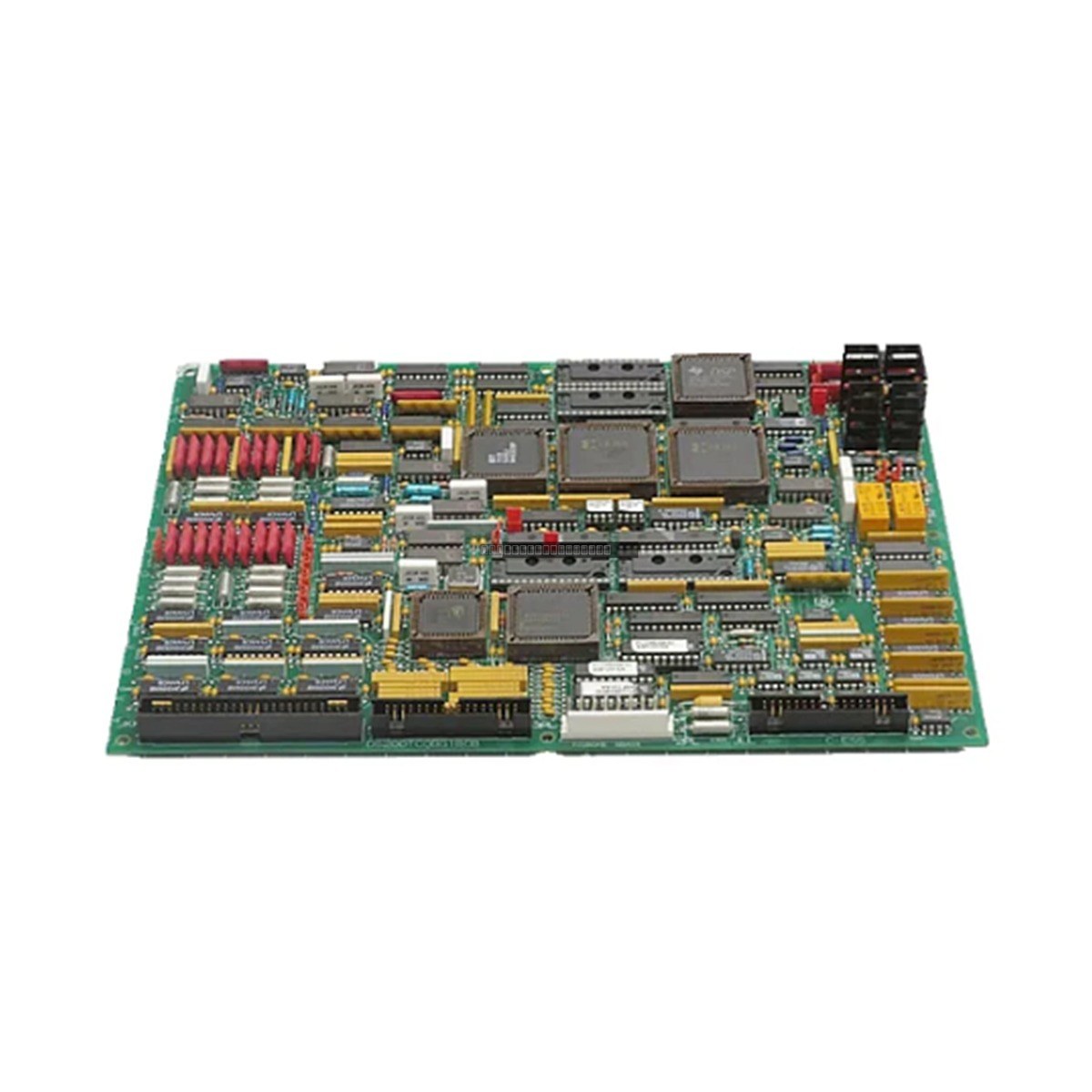

General Electric DS200TCQBG1BCB RST Extended Analog I/O Board

General Electric DS200TCQBG1BCB RST Extended Analog I/O Board

Description

The General Electric DS200TCQBG1BCB is an RST Extended Analog I/O board designed for use within the Mark VIe control system architecture. This module serves as a critical interface for processing...

29 people are viewing this right now

Availability: Low stock: 9 left

SKU: DS200TCQBG1BCB
Vendor: General Electric
Category: Analog I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric DS200TCQBG1BCB is an RST Extended Analog I/O board designed for use within the Mark VIe control system architecture. This module serves as a critical interface for processing multi-channel analog input and output signals, providing high-resolution data conversion and signal conditioning for industrial automation applications. The board features integrated on-board RAM to support local data processing and communication tasks within the control rack.

Features

  • Extended analog I/O functionality for Mark VIe systems.
  • Integrated on-board RAM for local data management.
  • Supports multiple analog input and output configurations.
  • High-precision 12-bit ADC and DAC resolution.
  • Designed for reliable operation in demanding industrial environments.

Technical Specifications

Product Model DS200TCQBG1BCB
Spare Model DS200TCQBG1B
Power Supply +5 V, +/- 15 V
Input Range +/- 10 V, 0-10 V
Resolution 12-bit ADC / DAC
Accuracy +/- 0.1 % FS
Output Drive 20 mA max
Operating Temperature -30 degC to +65 degC
Storage Temperature -40 degC to +85 degC
Humidity 5 - 95 % RH non-condensing

Installation Guidelines

  • Ensure the control system is powered down before inserting or removing the I/O board from the rack.
  • Handle the module using proper ESD (Electrostatic Discharge) protection measures to prevent damage to sensitive electronic components.
  • Verify that the board is securely seated in the designated slot to ensure proper backplane connectivity.
  • Ensure all field wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
  • Maintain adequate ventilation in the cabinet to ensure the operating temperature remains within the specified -30 degC to +65 degC range.

FAQ

What is the primary function of the DS200TCQBG1BCB?

This module acts as an extended analog I/O interface for General Electric Mark VIe systems, handling the conversion and conditioning of analog signals for control and monitoring.

Is this board compatible with the DS200TCQBG1B?

Yes, the DS200TCQBG1BCB is the functional equivalent and serves as the replacement model for the DS200TCQBG1B.

What are the power requirements for this board?

The module operates on a power supply of +5 V and +/- 15 V DC.
