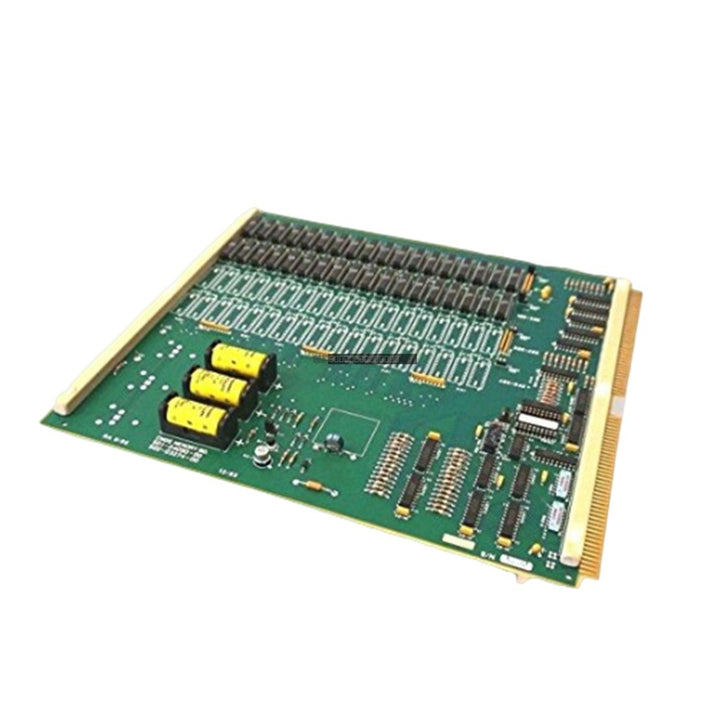

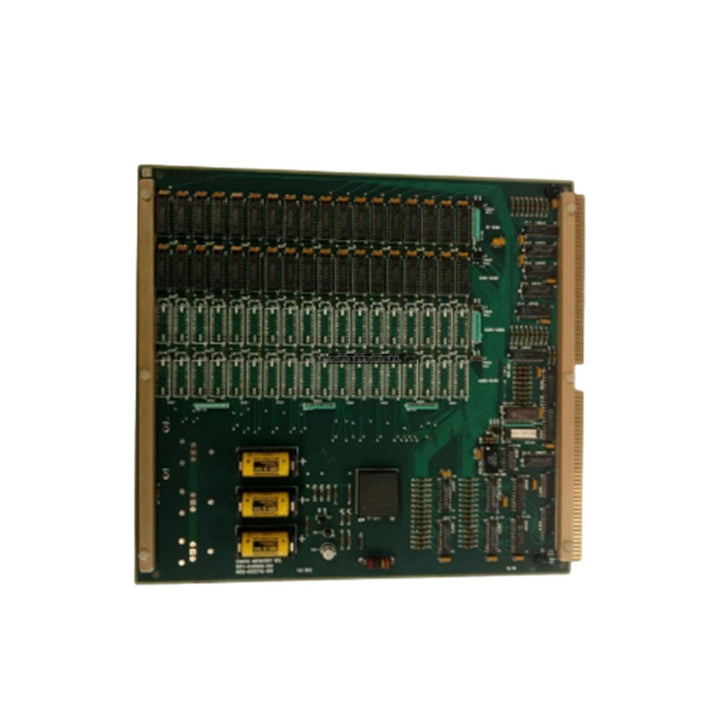

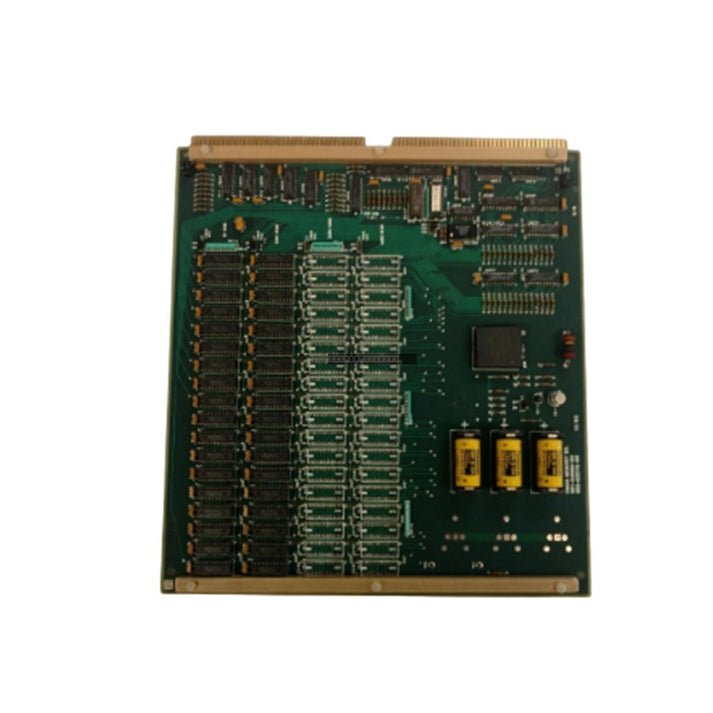

General Electric Mark VIe 502-03274-00 / 501-04090-00 CMOS Memory Board

General Electric Mark VIe 502-03274-00 / 501-04090-00 CMOS Memory Board

The General Electric 502-03274-00 / 501-04090-00 is a CMOS Memory Board designed for use within the Mark VIe control system architecture. This PC board assembly provides reliable volatile memory storage...

26 people are viewing this right now

Availability: Low stock: 5 left

SKU: 502-03274-00/501-04090-00
Vendor: General Electric
Category: Memory Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric 502-03274-00 / 501-04090-00 is a CMOS Memory Board designed for use within the Mark VIe control system architecture. This PC board assembly provides reliable volatile memory storage for critical control logic and operational data, ensuring high-speed access and stability within the Mark VIe environment.

Features

  • Designed specifically for compatibility with GE Mark VIe control systems.
  • Supports memory capacities ranging from 128KB to 1MB.
  • Standardized PC board assembly for direct integration into system racks.
  • Robust construction designed for industrial control environments.

Technical Specifications

Product Model 502-03274-00 / 501-04090-00
Component Type CMOS Memory Board
Operating Voltage +5V DC
Memory Capacity 128KB to 1MB
Operating Temperature 0 degC to 60 degC
Storage Temperature -40 degC to 85 degC
Humidity 5% to 95% non-condensing

Installation Guidelines

  • Ensure the control system power is fully disconnected before attempting to install or remove the memory board.
  • Handle the board using proper electrostatic discharge (ESD) prevention measures to avoid damaging sensitive CMOS components.
  • Verify that the board is correctly seated in the designated slot within the Mark VIe rack to ensure proper backplane connectivity.
  • Maintain adequate ventilation within the cabinet to ensure the operating temperature remains within the specified 0 degC to 60 degC range.
  • Check for secure connection of all board-to-backplane pins before restoring power to the system.

FAQ

What is the primary function of this board?
This is a CMOS memory board used in the GE Mark VIe system to store configuration or operational data required for control processing.

Is this board compatible with other Mark series systems?
This specific part is engineered for the Mark VIe series. Please verify your system's specific hardware requirements before installation.

What are the power requirements for this module?
The board operates on a standard +5V DC supply provided by the system backplane.
