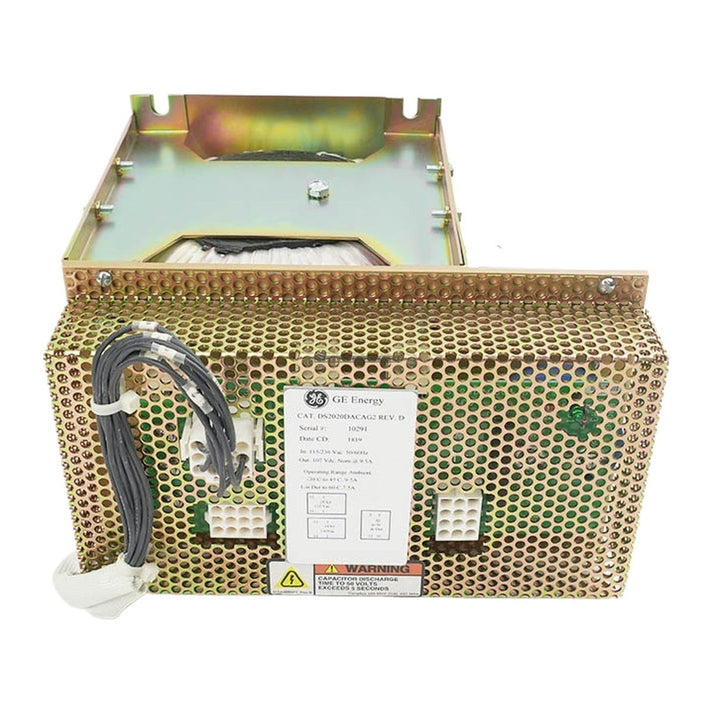

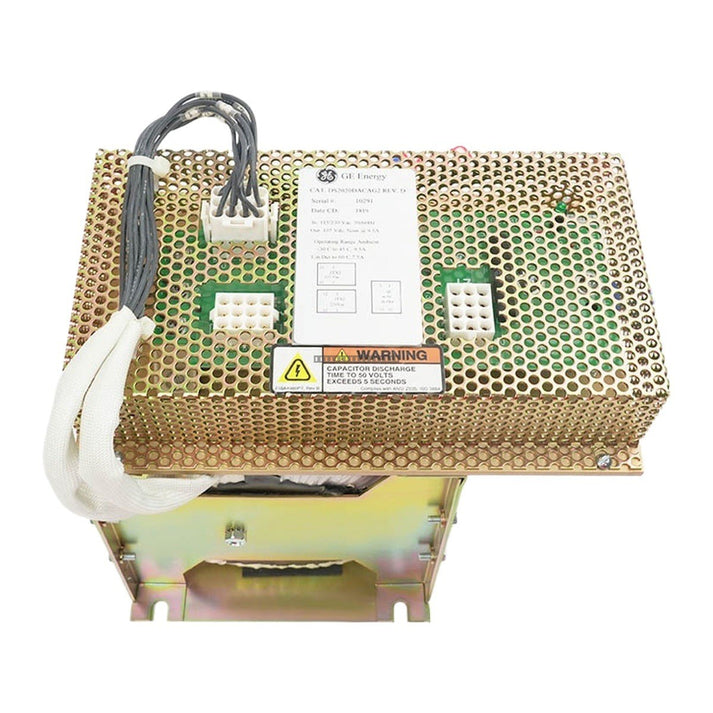

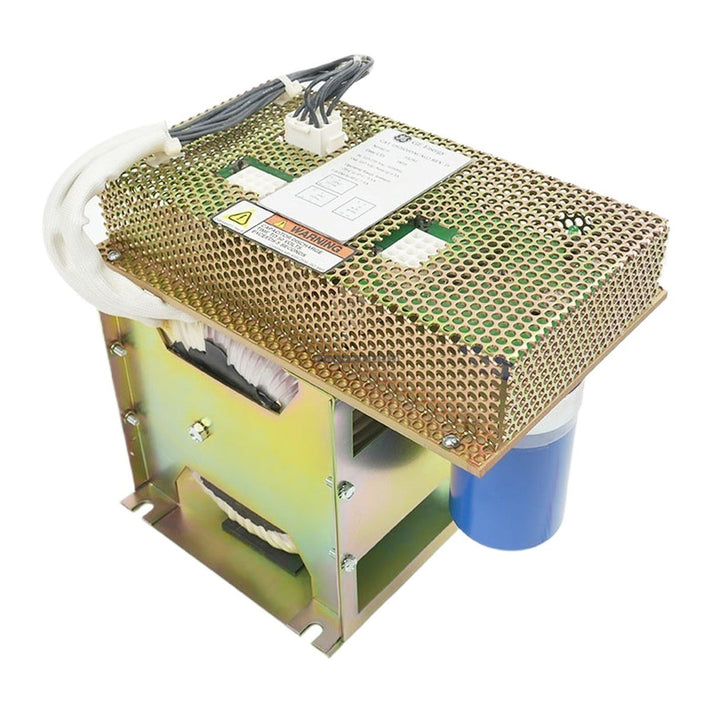

General Electric DS2020DACAG2 Power Conversion Module

General Electric DS2020DACAG2 Power Conversion Module

The General Electric DS2020DACAG2 is an AC/DC power conversion assembly designed for use within GE Speedtronic Mark VIe and EX2100 control systems. This module serves as a direct, backward-compatible replacement...

15 people are viewing this right now

Availability: Low stock: 9 left

SKU: DS2020DACAG2
Vendor: General Electric
Category: Power Conversion Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric DS2020DACAG2 is an AC/DC power conversion assembly designed for use within GE Speedtronic Mark VIe and EX2100 control systems. This module serves as a direct, backward-compatible replacement for the earlier DS2020DACAG1 model, providing reliable power conversion for critical turbine control applications.

Features

  • AC-to-DC power conversion assembly for industrial control systems.
  • Designed for compatibility with Mark VIe and EX2100 platforms.
  • Provides regulated 125 VDC output from 115/230 VAC input.
  • Supports local energy storage to extend ride-through time during control power loss.
  • Parallel operation capability allows for increased output current capacity up to 16.5 ADC.

Applications

  • Turbine control systems (Mark V, Mark VIe, EX2100).
  • Voltage regulation and power conversion for critical control infrastructure.
  • Powering solenoids, relays, flame sensors, and motor control components.
  • Systems requiring high-reliability power with ride-through capabilities.

Technical Specifications

Model DS2020DACAG2
Input Voltage 105-132 VAC or 210-265 VAC
Input Frequency 47 to 63 Hz
Output Voltage 90 to 145 VDC
Output Current 9.5 ADC (Single unit)
Output Ripple 4 V p-p
Operating Temperature -30 to 60 degC
Humidity 5 to 95% (non-condensing)

Installation Guidelines

  • The module is designed for floor-mounting within a drive cabinet.
  • Ensure the unit is secured using the designated brackets and bolts to maintain stability during operation.
  • Maintain adequate clearance for free convection cooling to ensure the module operates within the specified temperature range.
  • Ensure the environment is non-corrosive and non-flammable.
  • Always power down the system before installing or removing the module to prevent electrical hazards.

FAQ

What is the primary function of the DS2020DACAG2?

The DS2020DACAG2 is an AC-to-DC power conversion module that converts 115/230 VAC input into a regulated 125 VDC output, specifically engineered for GE Speedtronic control systems.

Can I use this to replace a DS2020DACAG1?

Yes, the DS2020DACAG2 is a fully backward-compatible, drop-in replacement for the DS2020DACAG1.

Is it possible to increase the output current?

Yes, multiple units can be connected in parallel to increase the total output current capacity to a maximum of 16.5 ADC.
