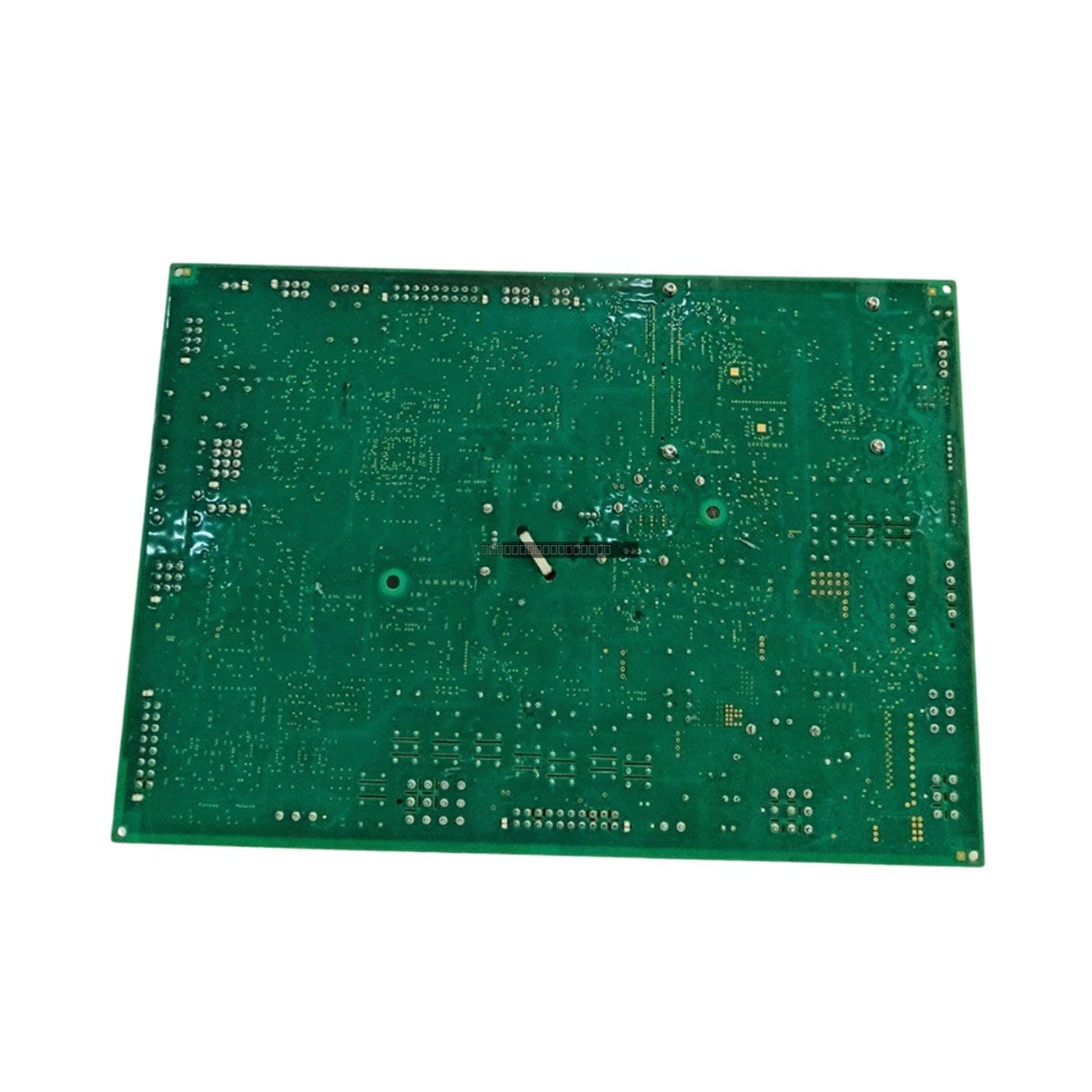

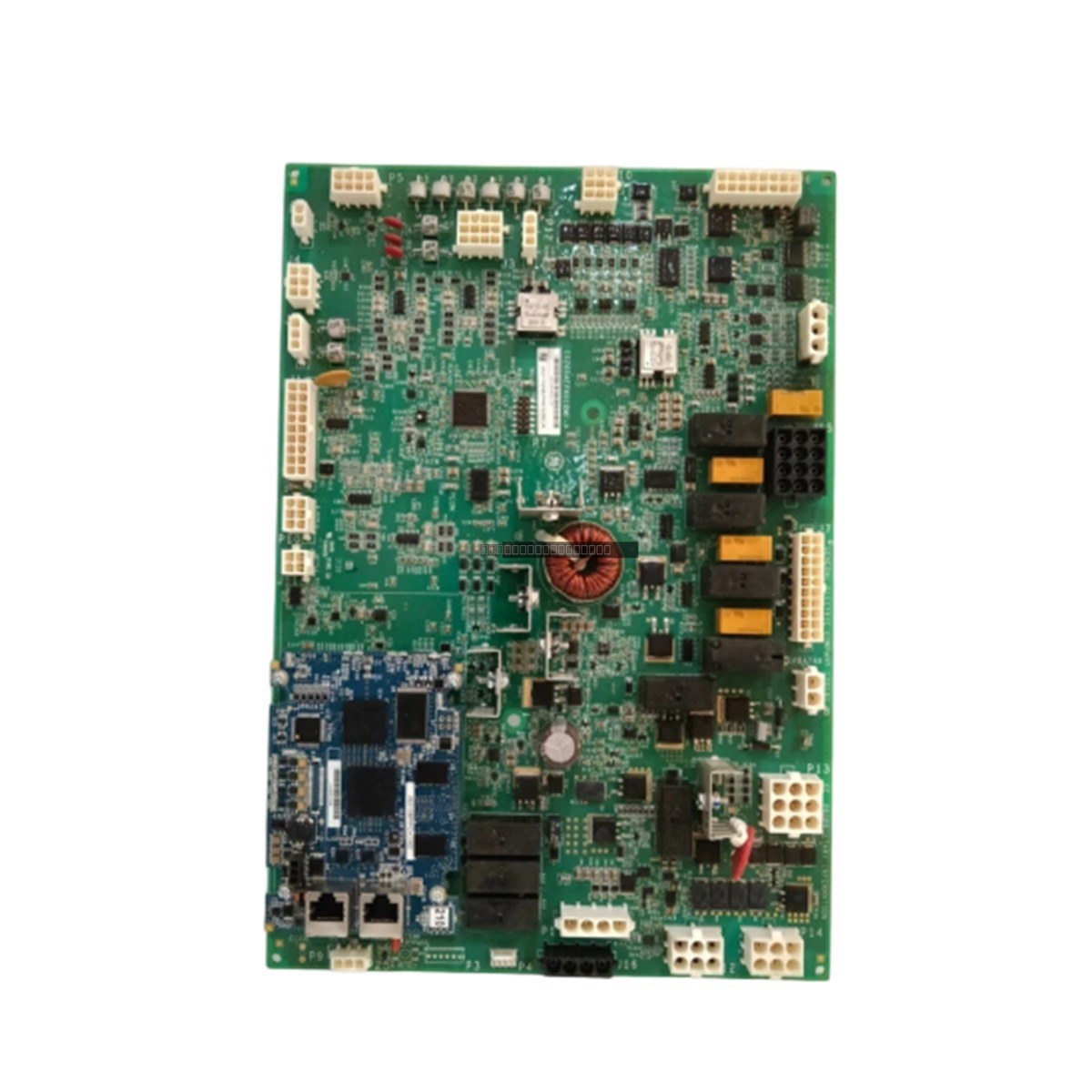

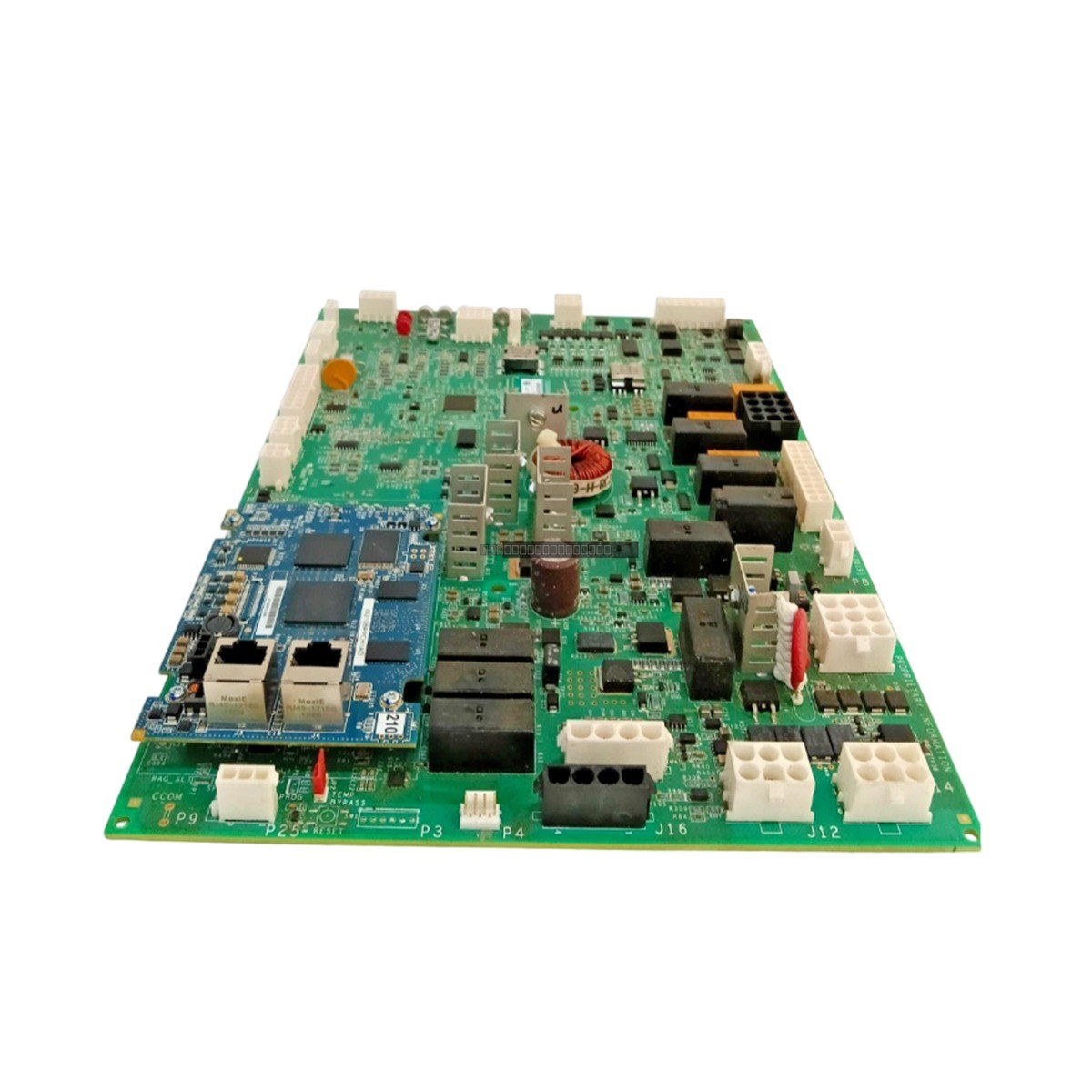

General Electric IS200AEPAH1BMF-P IS210BPPCH1AD I/O Pack Processor Board

General Electric IS200AEPAH1BMF-P IS210BPPCH1AD I/O Pack Processor Board

The General Electric IS200AEPAH1BMF-P (IS210BPPCH1AD) is a high-performance I/O Pack Processor Board designed for the Mark VIe turbine control system. This component serves as a critical interface for data acquisition...

20 people are viewing this right now

Availability: Low stock: 8 left

SKU: IS200AEPAH1BMF-P IS210BPPCH1AD
Vendor: General Electric
Category: I/O Pack Processor Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IS200AEPAH1BMF-P (IS210BPPCH1AD) is a high-performance I/O Pack Processor Board designed for the Mark VIe turbine control system. This component serves as a critical interface for data acquisition and signal processing, facilitating communication between field devices and the main control system in demanding industrial environments.

Features

  • Designed for the GE Mark VIe control platform.
  • Utilizes Surface Mount Technology (SMT) on a double-sided PCB for high component density and reliability.
  • Integrated dual Ethernet ports for robust network connectivity.
  • Supports communication protocols including Modbus TCP/IP and Ethernet/IP.
  • Factory-drilled mounting points for secure installation via standoffs.
  • Includes onboard diagnostic indicators and signal processing circuitry.

Applications

  • Power Generation: Integrated control for gas and steam turbine coordination in Combined Cycle Power Plants (CCPP).
  • Oil & Gas: Control and monitoring of large-scale natural gas compressors in pipeline stations.
  • Heavy Industry: Real-time distributed control for core refining processes and large-scale machinery drives, such as steel mill rolling systems.

Technical Specifications

Product Model IS200AEPAH1BMF-P / IS210BPPCH1AD
Input Voltage 24V DC (±20%)
Power Consumption < 10W
Signal Ranges 4-20mA, 0-10V, ±10V, Digital TTL
Isolation 1500V AC
Operating Temperature -20 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5-95% RH (non-condensing)
Vibration Rating 5g @ 10-500Hz

Installation Guidelines

  • Ensure the system power is completely disconnected before attempting to install or remove the board.
  • Handle the PCB by the edges to avoid electrostatic discharge (ESD) damage to sensitive integrated circuits.
  • Mount the board securely using the provided screw mounts and standoffs to ensure proper grounding and mechanical stability.
  • Verify that all Ethernet and I/O connections are seated correctly to prevent intermittent signal loss.
  • Maintain adequate airflow around the mounting area to ensure the board operates within its specified temperature range.

FAQ

What is the primary function of the IS210BPPCH1AD?

This board acts as an I/O pack processor, managing data acquisition, signal conversion, and communication between field instrumentation and the Mark VIe control system.

Does this board support redundant configurations?

Yes, the design supports communication redundancy to enhance system availability and fault tolerance in critical control applications.

What communication protocols are supported?

The module supports standard industrial protocols including Modbus TCP/IP and Ethernet/IP, as well as proprietary GE IONet and UDH protocols.
