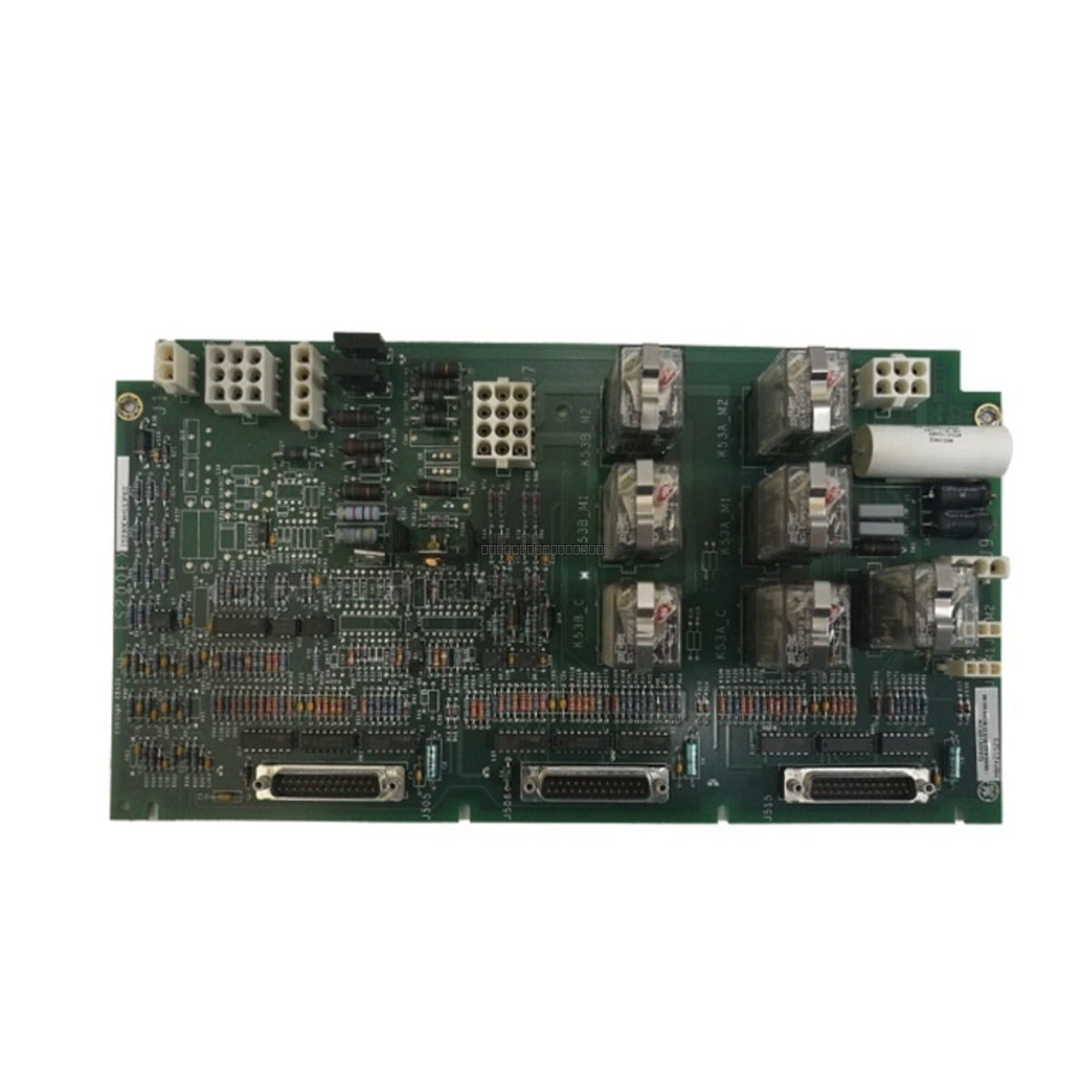

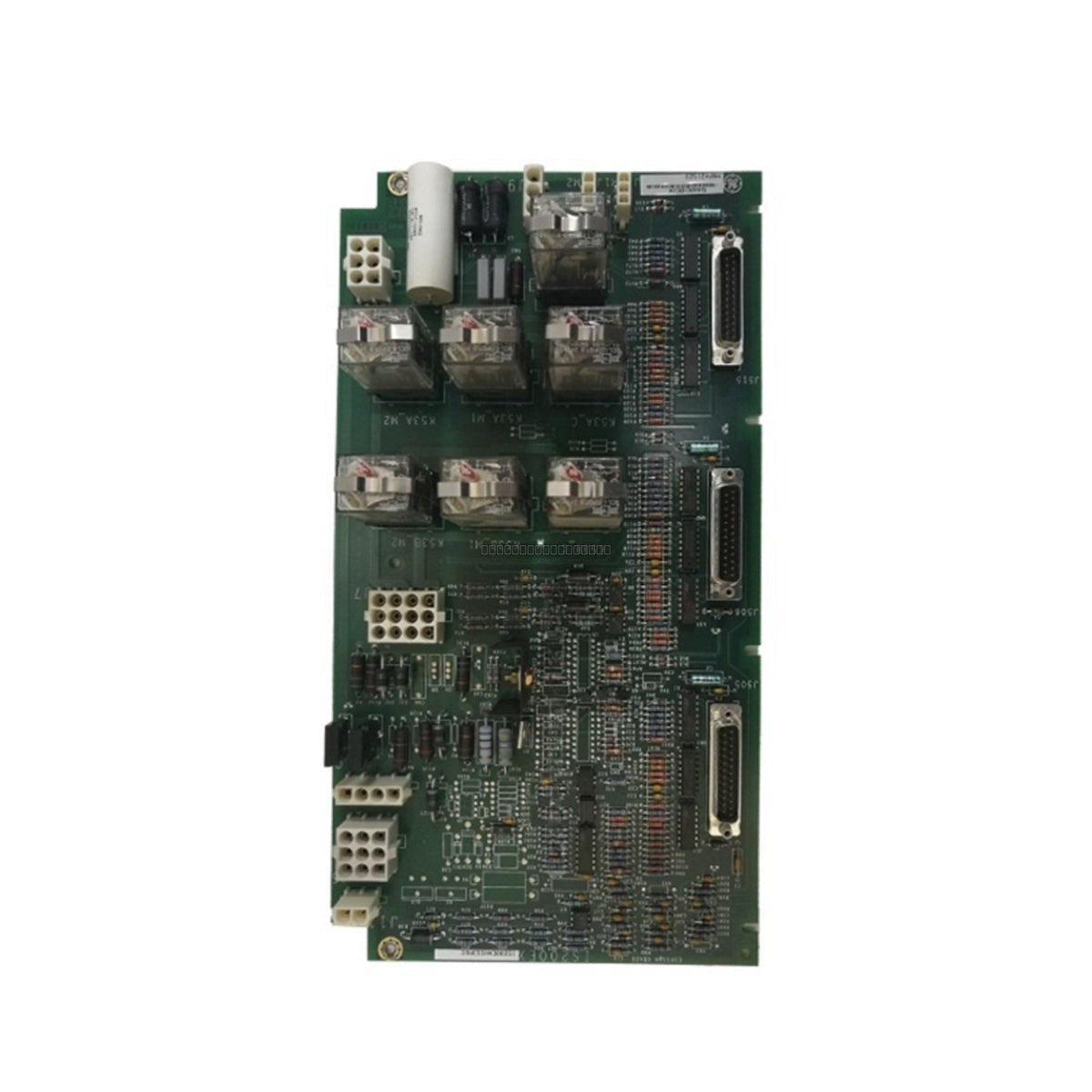

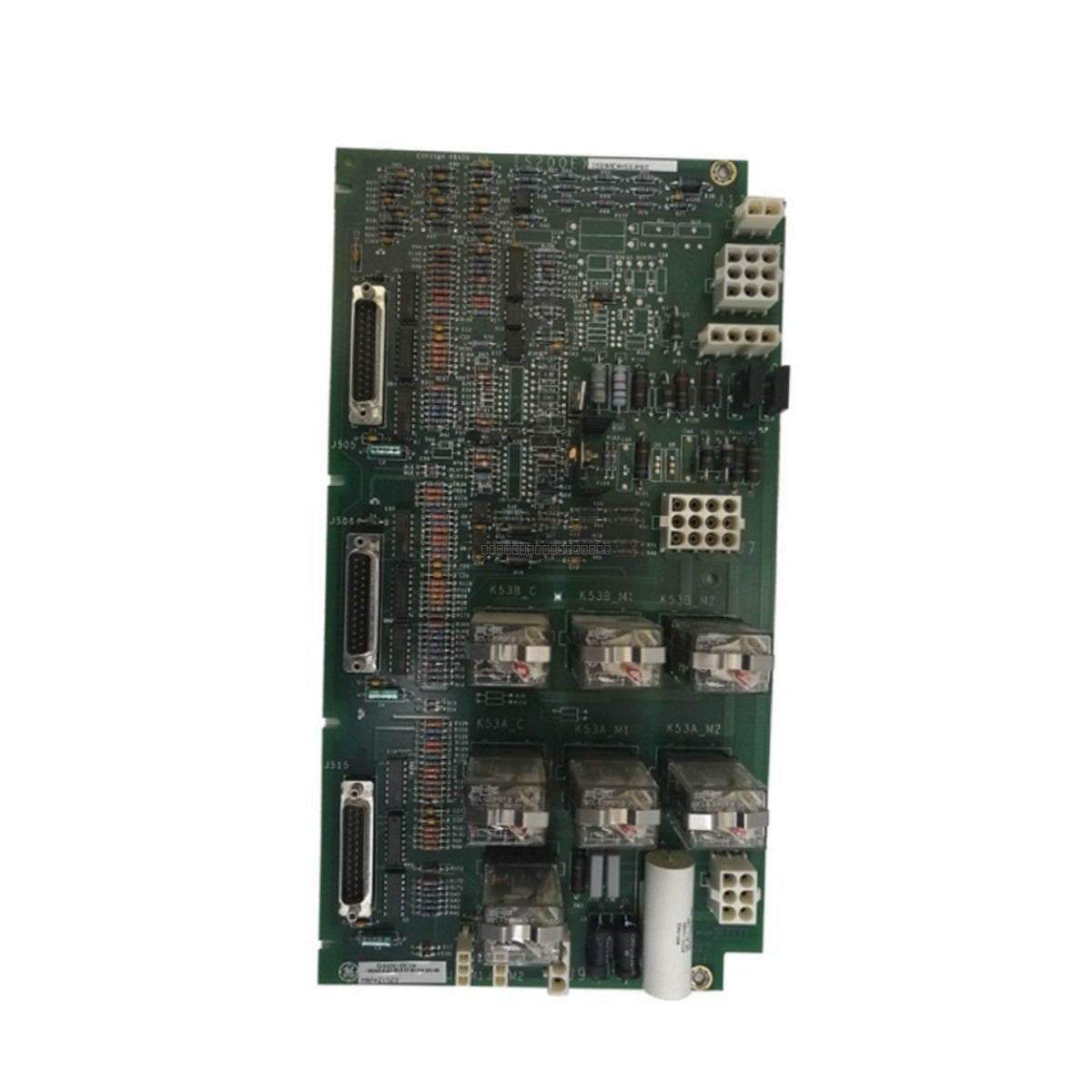

General Electric IS200EXHSG3AEC Exciter HS Relay Driver Board

General Electric IS200EXHSG3AEC Exciter HS Relay Driver Board

Description

The General Electric IS200EXHSG3AEC is an Exciter HS Relay Driver Board designed for use within the EX2100 excitation control system. This component serves as a critical interface for managing relay...

22 people are viewing this right now

Availability: Low stock: 7 left

SKU: IS200EXHSG3AEC
Vendor: General Electric
Category: Relay Driver Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS200EXHSG3AEC is an Exciter HS Relay Driver Board designed for use within the EX2100 excitation control system. This component serves as a critical interface for managing relay operations, ensuring reliable switching and control within high-performance industrial power generation environments. It is engineered to maintain operational integrity under demanding electrical conditions.

Features

  • Designed specifically for the GE EX2100 Exciter system architecture.
  • Supports high-speed relay driving capabilities for precise control.
  • Robust construction suitable for industrial control cabinets.
  • Designed for integration with Mark VIe control platforms.
  • High isolation voltage to protect sensitive control circuitry from field-side transients.

Technical Specifications

Product Model IS200EXHSG3AEC
Spare Model IS200EXHSG3A
Supply Voltage +24 V DC
Voltage Range 24–125 V DC
Current Rating Up to 5 A per channel
Power Consumption ≤15 W
Isolation Voltage 1500 V AC
Operating Temperature -40 degC to +70 degC
Storage Temperature -50 degC to +85 degC
Humidity 5–95% non-condensing

Installation Guidelines

  • Ensure all power to the EX2100 cabinet is disconnected before attempting to install or remove the board.
  • Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to prevent damage to internal components.
  • Verify that the board is securely seated in the designated rack slot to ensure proper backplane connection.
  • Ensure that all field wiring is routed away from high-EMI sources and properly shielded to prevent signal interference.
  • Confirm that the +24 V DC supply is stable and within the specified operating range before energizing the system.

FAQ

What is the primary function of the IS200EXHSG3AEC?
This board acts as a relay driver within the GE EX2100 excitation system, facilitating the reliable operation of field-side relays.

Is this board compatible with the Mark VIe system?
Yes, the IS200EXHSG3AEC is designed for compatibility within the Mark VIe and EX2100 control ecosystems.

What are the environmental storage requirements?
The board should be stored in a controlled environment between -50 degC and +85 degC with non-condensing humidity levels.
