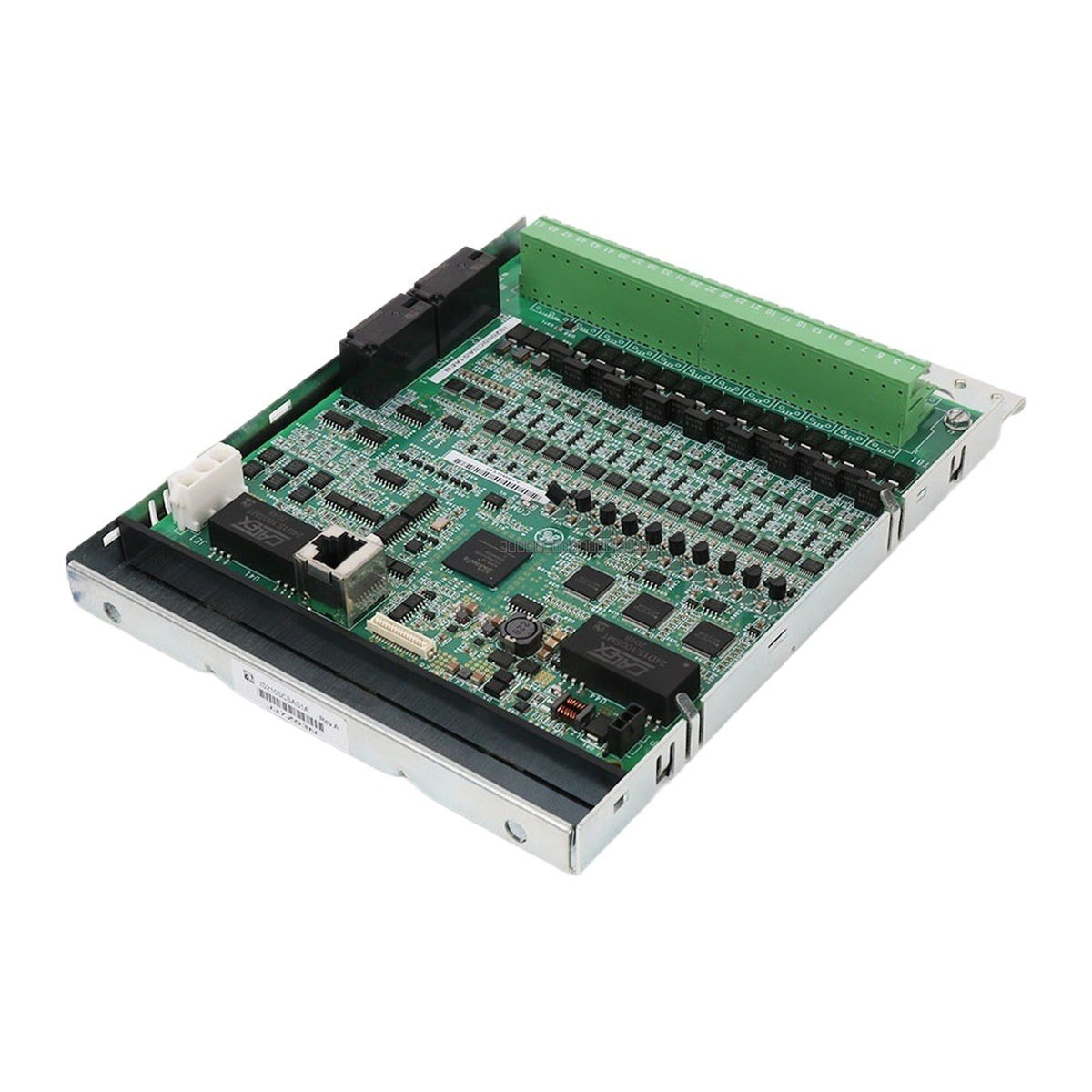

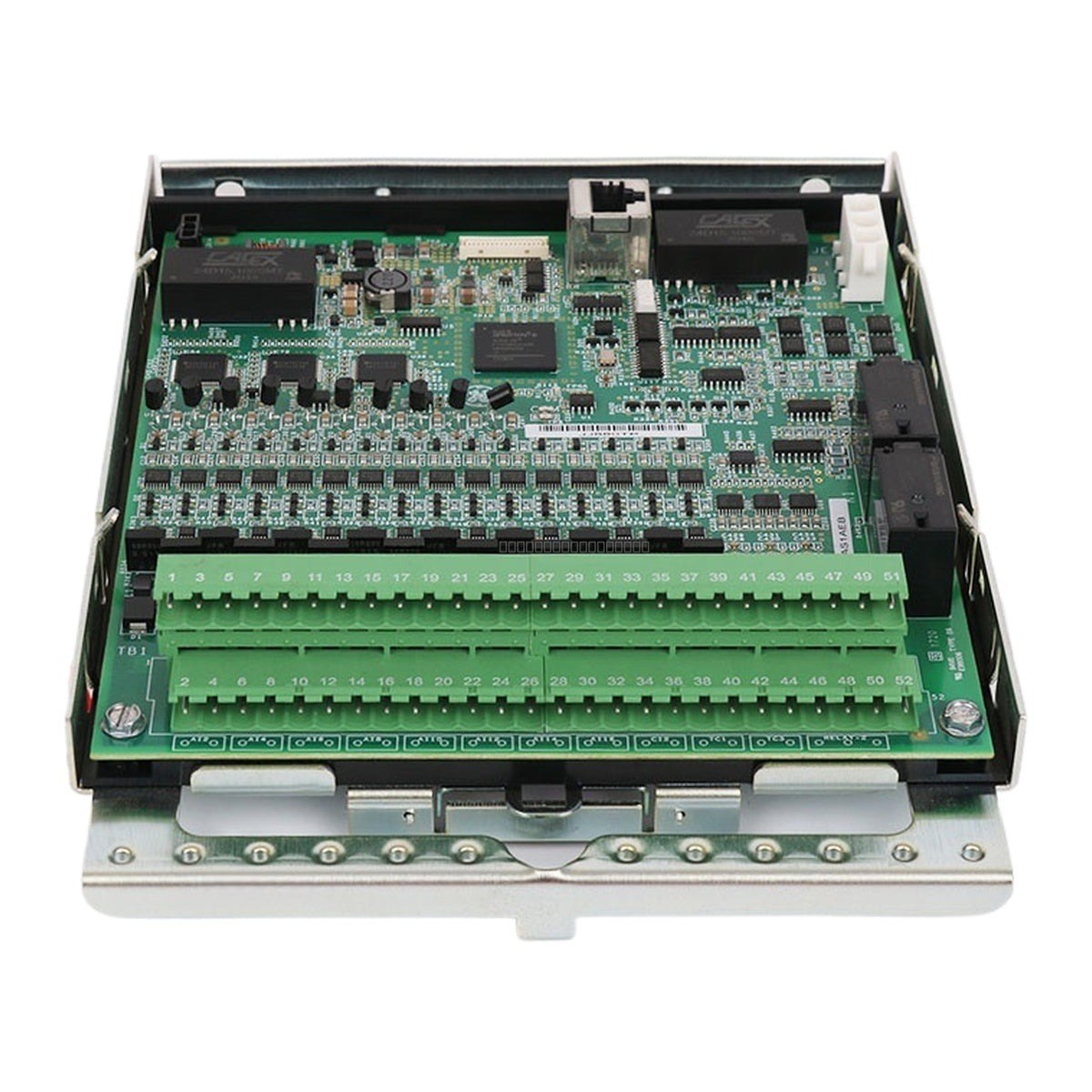

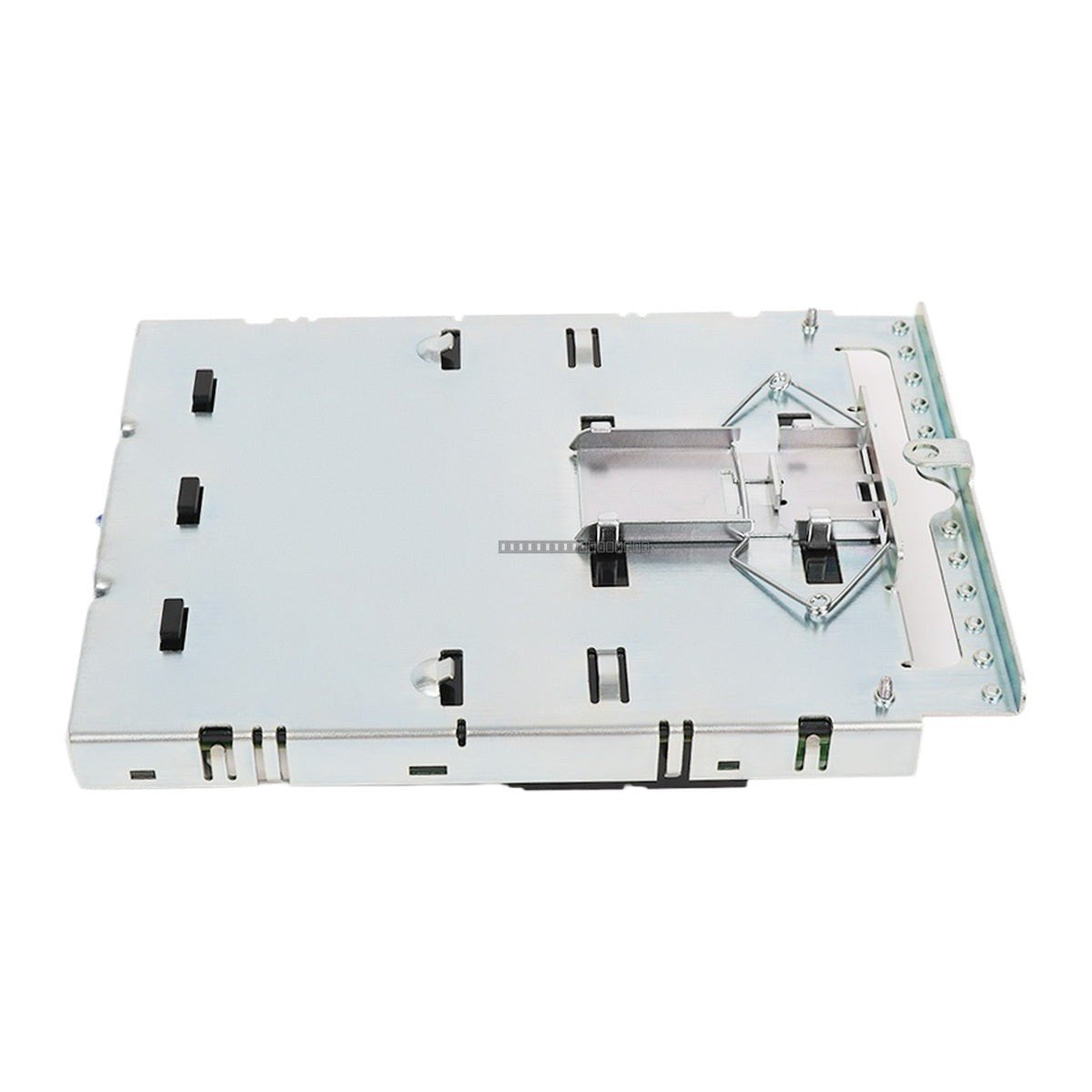

General Electric IS200SCSAS1AEB Mark VIe I/O Expansion Board

General Electric IS200SCSAS1AEB Mark VIe I/O Expansion Board

The General Electric IS200SCSAS1AEB is an I/O expansion board designed for the Mark VIe control system. This module provides enhanced input/output capabilities for industrial automation environments, facilitating reliable data acquisition...

21 people are viewing this right now

Availability: Low stock: 10 left

SKU: IS200SCSAS1AEB
Vendor: General Electric
Category: I/O Expansion Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IS200SCSAS1AEB is an I/O expansion board designed for the Mark VIe control system. This module provides enhanced input/output capabilities for industrial automation environments, facilitating reliable data acquisition and signal processing.

Features

  • Supports 16 analog input channels and 4 analog output channels.
  • Includes 32 digital I/O channels for versatile control applications.
  • Features 1500V AC channel-to-system isolation to ensure signal integrity and protection.
  • Configurable via hardware dip-switches for addressing.
  • High-speed data transfer rate of 100 Mbps.
  • Designed for operation in extreme temperatures ranging from -40 degC to +70 degC.

Technical Specifications

Product Model IS200SCSAS1AEB
Spare Model IS210SCSAS1A
Power Supply +5V DC via backplane
Power Consumption 3.5W typical
Analog Input Range ±10V, 0-10V
Analog Current Range 0-20mA, 4-20mA
Accuracy ±0.05% of reading ±0.01% of range
Update Rate 10 ms per channel
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Relative Humidity 5-95% non-condensing

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module from the backplane.
  • Handle the board by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the hardware dip-switches are correctly configured for the specific system address before installation.
  • Ensure proper ventilation within the cabinet to maintain operating temperatures within the specified range.
  • Use shielded cabling for analog signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.

FAQ

Is the IS200SCSAS1AEB compatible with the IS210SCSAS1A?

Yes, the IS210SCSAS1A is the designated spare model for the IS200SCSAS1AEB.

What is the primary function of this board?

This board serves as an I/O expansion module for the GE Mark VIe system, providing additional analog and digital I/O capacity for monitoring and control tasks.
