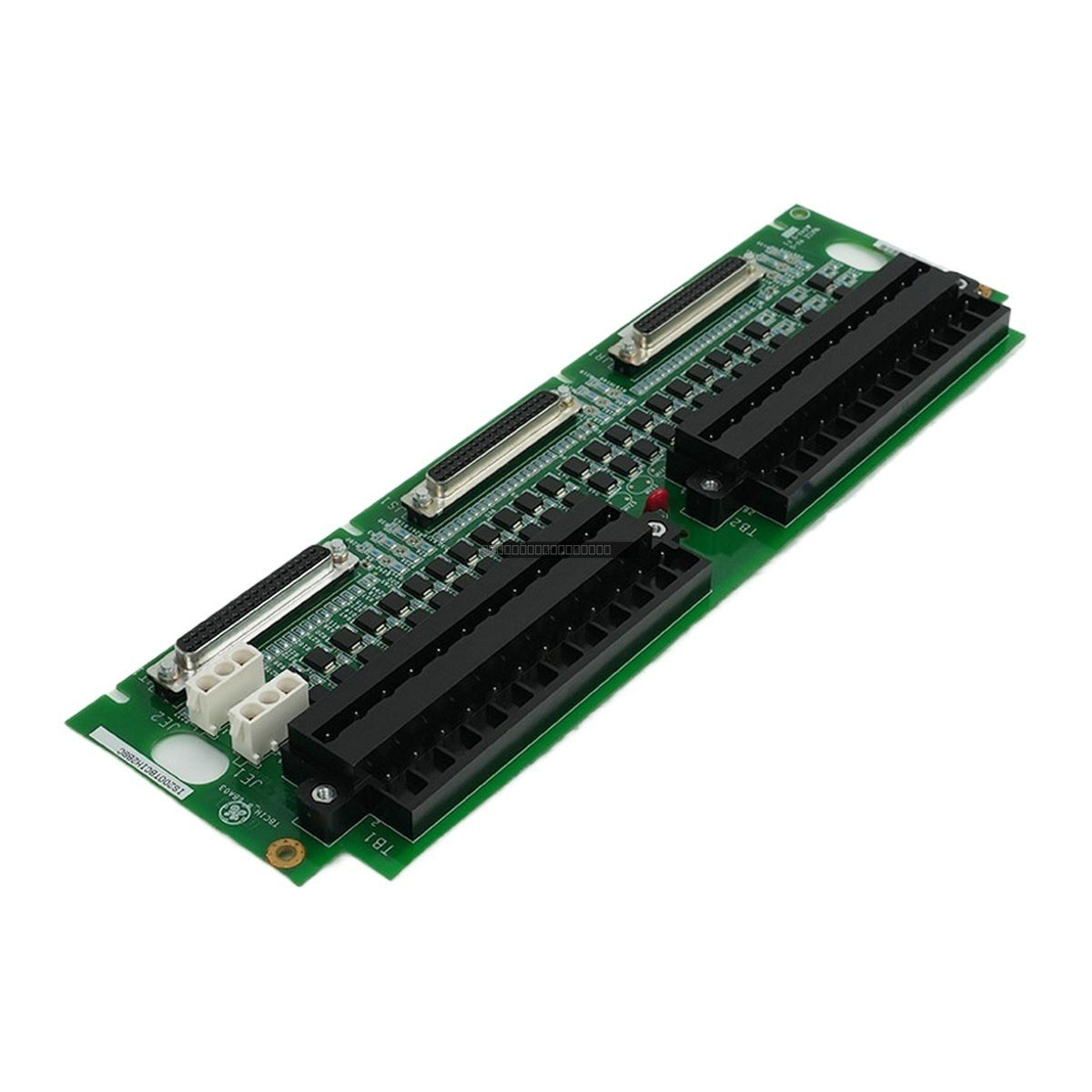

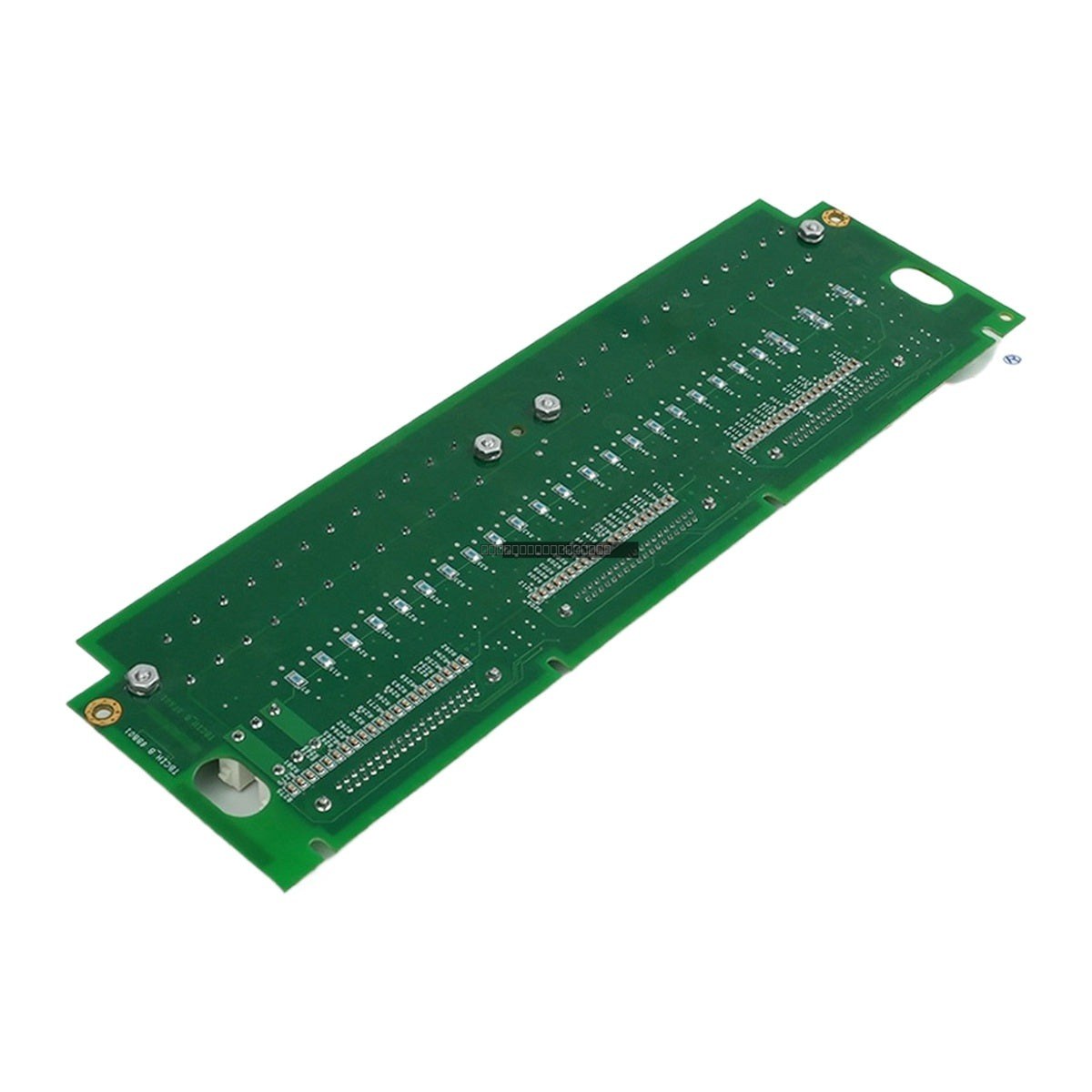

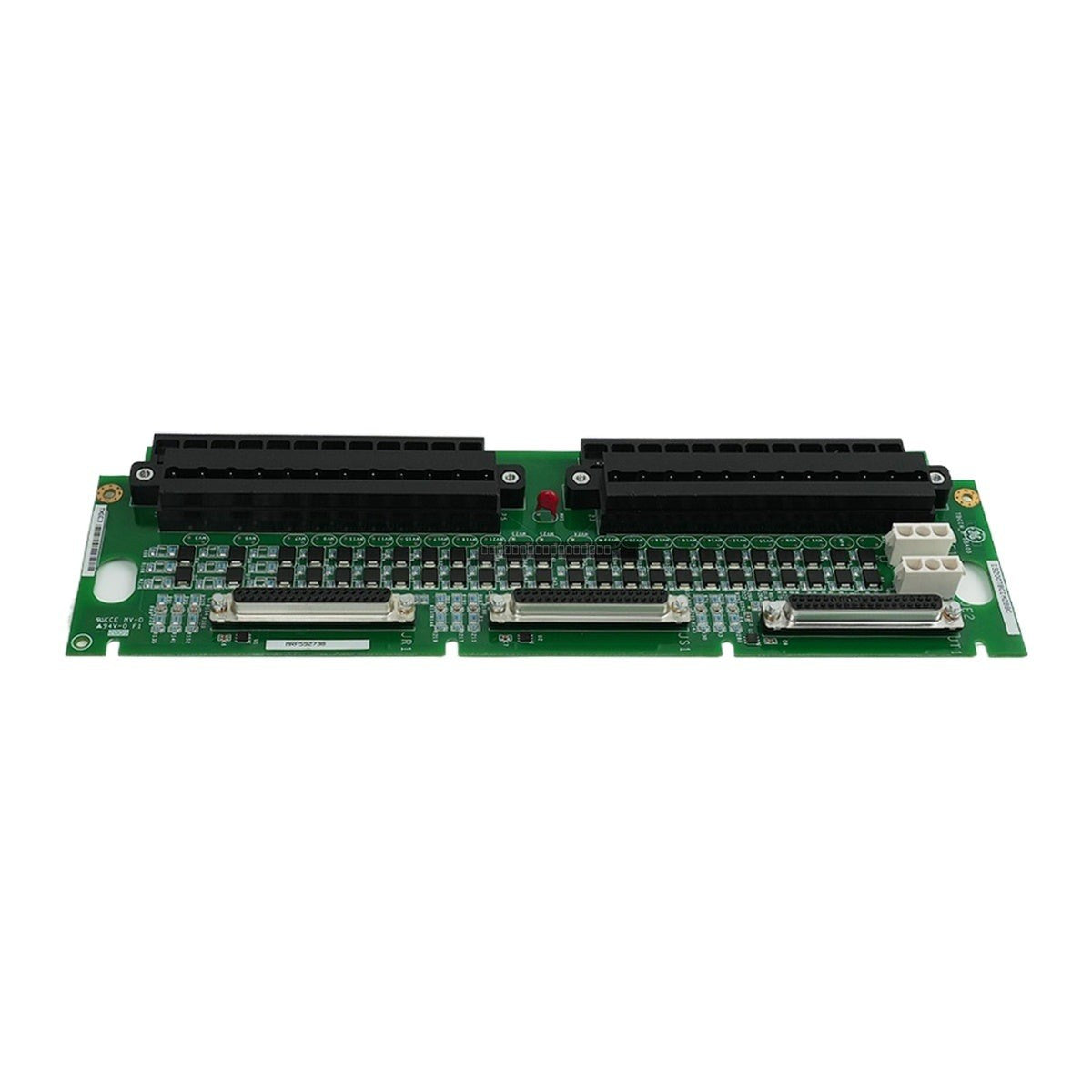

General Electric IS200TBCIH2BBC Mark VIe Input Contact Termination Board

General Electric IS200TBCIH2BBC Mark VIe Input Contact Termination Board

Description

The General Electric IS200TBCIH2BBC is a contact input terminal board designed for the Mark VIe Speedtronic control system. This component serves as a critical interface for processing field-side contact inputs,...

28 people are viewing this right now

Availability: Low stock: 3 left

SKU: IS200TBCIH2BBC
Vendor: General Electric
Category: Input Contact Termination Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS200TBCIH2BBC is a contact input terminal board designed for the Mark VIe Speedtronic control system. This component serves as a critical interface for processing field-side contact inputs, facilitating reliable signal acquisition for industrial turbine and generator control applications. The board features a robust design with conformal coating to protect against environmental contaminants, ensuring longevity in demanding industrial environments.

Features

  • Designed for integration with the Mark VIe Speedtronic series.
  • Supports 24 dry-contact input channels for comprehensive monitoring.
  • Equipped with conformal coating for enhanced protection against moisture and dust.
  • Provides reliable signal threshold detection with built-in hysteresis.
  • Compact form factor suitable for standard rack mounting configurations.

Technical Specifications

Model IS200TBCIH2BBC
Spare Model IS200TBCIH2B
Input Channels 24 dry-contact inputs
Excitation Voltage 24 V DC +/- 10%
Threshold ON >= 15 V
Threshold OFF <= 5 V
Hysteresis 2 V
Power Consumption < 10 W
Operating Temperature -30 to +65 degC (rack air)
Storage Temperature -40 to +85 degC
Relative Humidity 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
  • Handle the board using proper ESD (Electrostatic Discharge) mitigation practices to protect sensitive electronic components.
  • Verify that all field wiring is properly secured to the terminal blocks and that shielding is grounded according to site-specific electrical standards.
  • Maintain adequate airflow within the rack to ensure the board operates within the specified temperature range of -30 to +65 degC.
  • Ensure the board is firmly seated in its designated slot to maintain reliable backplane connectivity.

FAQ

What is the primary function of the IS200TBCIH2BBC?

This board acts as a termination point for field-side contact inputs, converting raw contact states into signals compatible with the Mark VIe control system.

Is this board compatible with the IS200TBCIH2B?

Yes, the IS200TBCIH2BBC is often used as a functional replacement or spare for the IS200TBCIH2B model.

What environmental conditions are required for this board?

The board is designed for industrial use with an operating temperature range of -30 to +65 degC and requires a non-condensing environment with humidity levels between 5% and 95%.
