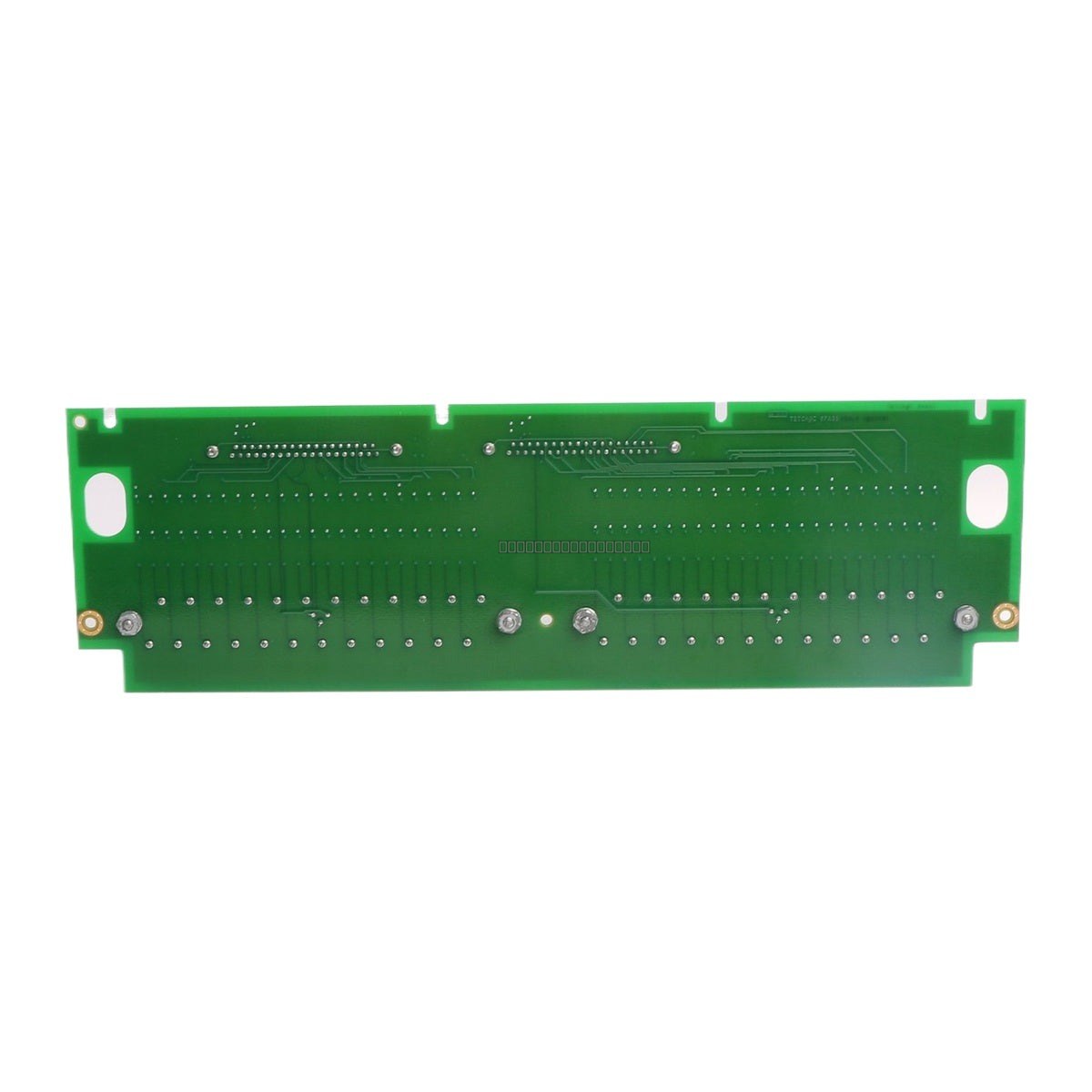

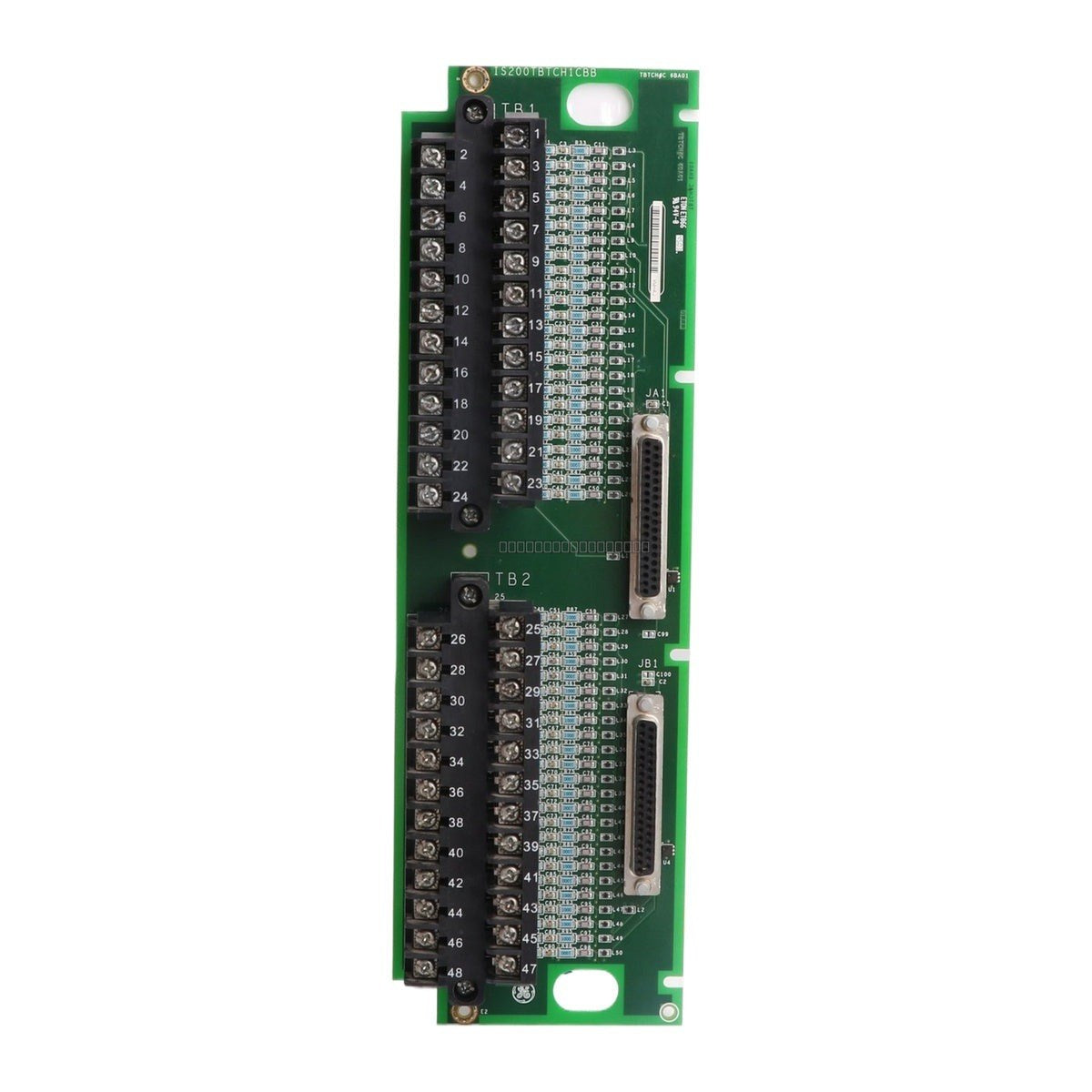

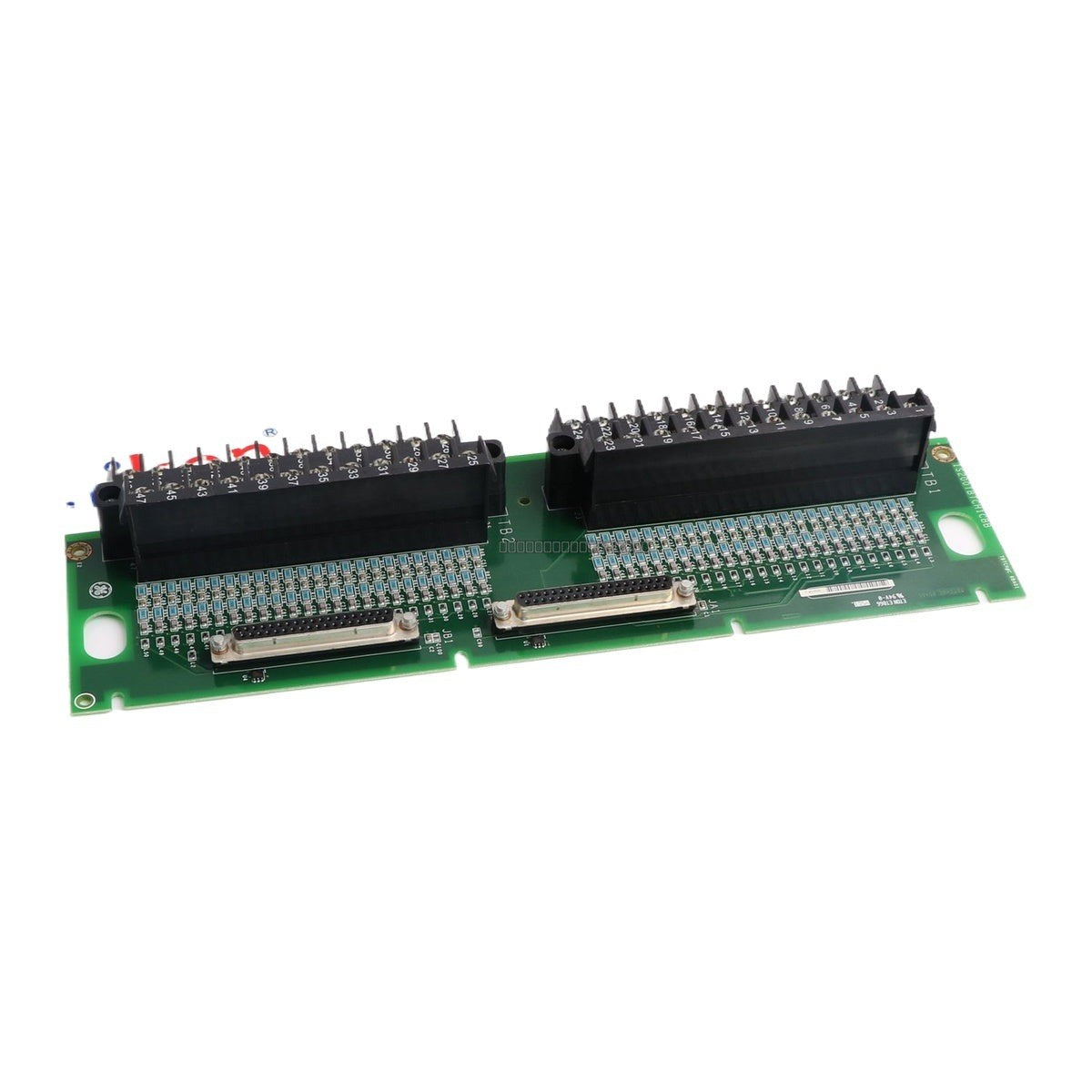

General Electric IS200TBTCH1CBB Mark VIe Thermocouple Input Terminal Board

General Electric IS200TBTCH1CBB Mark VIe Thermocouple Input Terminal Board

Description

The General Electric IS200TBTCH1CBB is a Thermocouple Input Terminal Board designed for the Mark VIe Speedtronic control system. This terminal board facilitates the connection and signal conditioning of thermocouple inputs,...

26 people are viewing this right now

Availability: Low stock: 2 left

SKU: IS200TBTCH1CBB
Vendor: General Electric
Category: Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS200TBTCH1CBB is a Thermocouple Input Terminal Board designed for the Mark VIe Speedtronic control system. This terminal board facilitates the connection and signal conditioning of thermocouple inputs, providing reliable data acquisition for industrial turbine control applications. It is engineered to support multiple thermocouple types, ensuring compatibility with various temperature sensing requirements in power generation and heavy industrial environments.

Features

  • Designed specifically for the GE Mark VIe control series.
  • Supports 24 input channels for high-density thermocouple monitoring.
  • Compatible with thermocouple types E, J, K, S, and T.
  • Standardized terminal board architecture for seamless integration with Mark VIe I/O packs.
  • Operating voltage: 24 VDC.

Technical Specifications

Model Number IS200TBTCH1CBB
Series Mark VIe / Speedtronic
Number of Channels 24
Supported Thermocouple Types E, J, K, S, T
Operating Voltage 24 VDC
Operating Temperature 0 to +45 degC
Replacement Module TBCIH2C

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the terminal board to prevent electrical damage.
  • Handle the board using ESD-safe practices to protect sensitive electronic components.
  • Verify that all thermocouple wiring is properly shielded and grounded to minimize electromagnetic interference (EMI) in the control cabinet.
  • Ensure the board is securely seated in the designated rack slot and that all terminal screws are tightened to the specified torque to maintain signal integrity.
  • Maintain adequate ventilation within the cabinet to keep the operating temperature within the specified 0 to +45 degC range.

FAQ

Is the IS200TBTCH1CBB compatible with older Mark VI systems?

This board is specifically designed for the Mark VIe series. Please consult your system documentation or the TBCI series compatibility guide to confirm if it can be used as a replacement in legacy Mark VI installations.

What thermocouple types are supported by this board?

The IS200TBTCH1CBB supports E, J, K, S, and T type thermocouples, providing flexibility for various industrial temperature measurement applications.
