General Electric IS200TRPGH2B Primary Trip Terminal Board

General Electric IS200TRPGH2B Primary Trip Terminal Board

The General Electric IS200TRPGH2B is a Primary Trip Terminal Board designed for the Mark VI Speedtronic control system. This board functions as a simplex interface, providing essential control and monitoring...

22 people are viewing this right now

Availability: In stock

SKU: IS200TRPGH2B
Vendor: General Electric
Category: Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

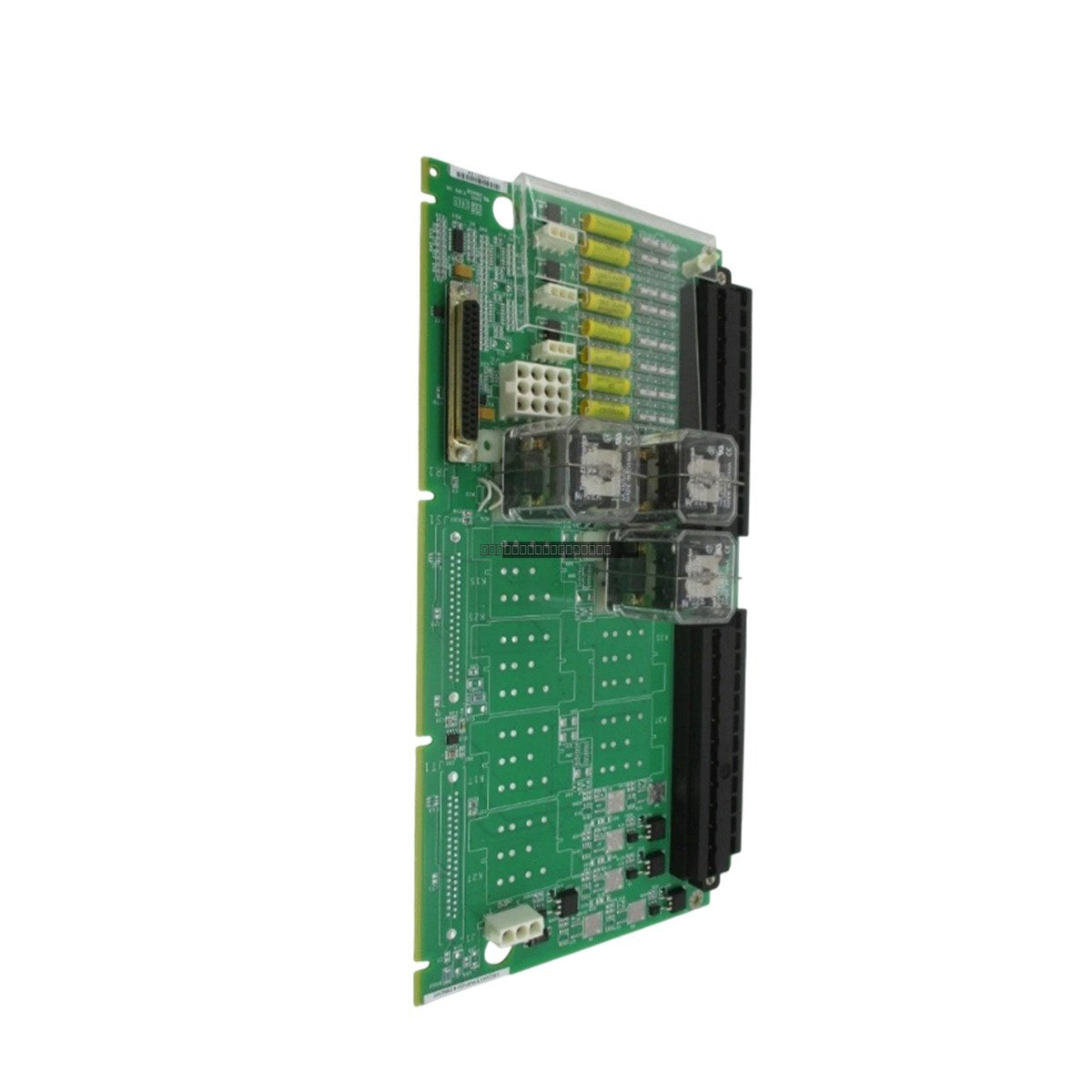

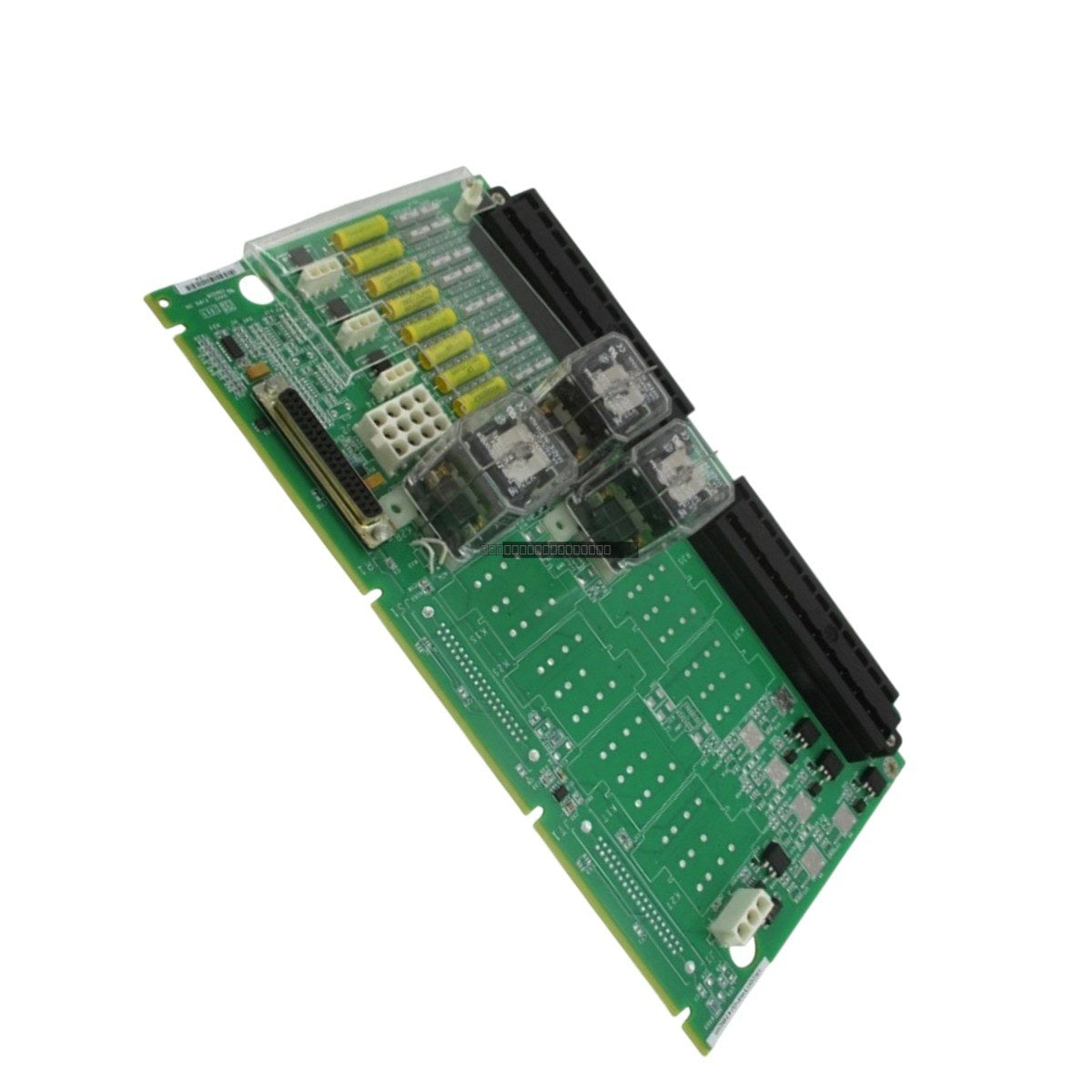

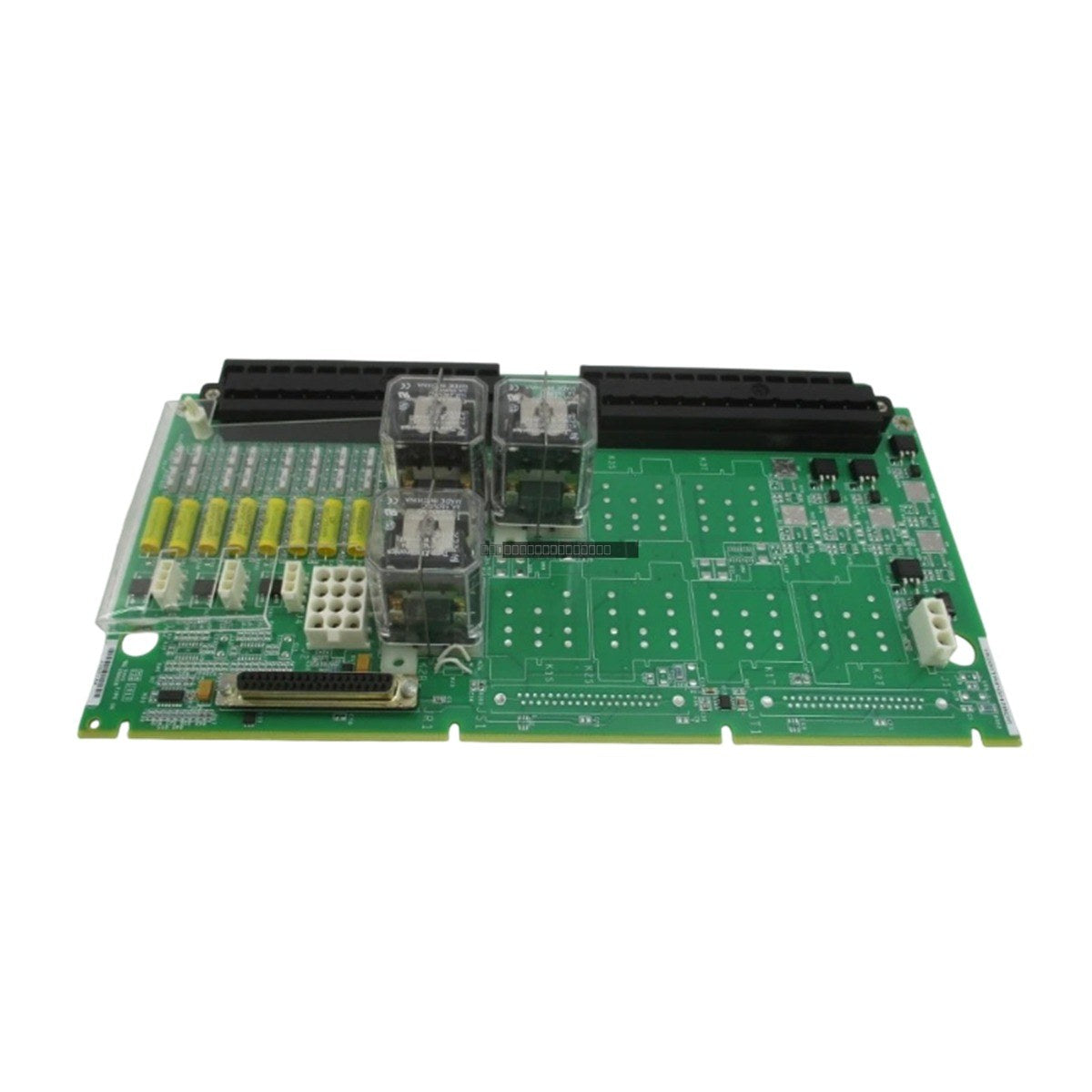

The General Electric IS200TRPGH2B is a Primary Trip Terminal Board designed for the Mark VI Speedtronic control system. This board functions as a simplex interface, providing essential control and monitoring for turbine protection solenoids. It is engineered to operate in conjunction with the TREG board to manage the primary and emergency sides of the interface to the Emergency Trip Devices (ETDs).

Features

  • Simplex version of the TRPG terminal board series.
  • Supports inputs from up to eight Geiger-Mueller flame detectors, suitable for gas turbine applications.
  • Integrated diagnostic monitoring for relay coil current and contact state feedback.
  • Tracks supply voltages (125 V DC) to ensure trip actuation power availability.
  • Pulse frequency counting for flame detection (40 ms interval).
  • Conformal PCB coating for enhanced environmental protection.

Technical Specifications

Model IS200TRPGH2B
Series Mark VI Speedtronic
Normal Operating Voltage 28 V DC
Output Contact Power 125 V DC @ 1 A or 24 V DC @ 3 A
Solenoid Voltage/Current 125 V DC @ 1 A per solenoid
Flame Input Range 0–5 V pulses
Weight 0.6 kg

Applications

  • Turbine machinery condition monitoring and fault prediction in the power industry.
  • Rotating equipment monitoring in oil extraction and pipeline compressor stations.
  • Control of large-scale turbine-driven compression units in petrochemical plants.
  • Redundant fault-tolerant control in blower systems for the metallurgical industry.

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module from the rack.
  • Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the board is securely seated in the designated Mark VI slot to ensure proper backplane communication.
  • Ensure all terminal block connections are tightened to the specified torque to prevent intermittent signal loss.
  • Maintain proper ventilation within the cabinet to prevent overheating of the terminal board components.

FAQ

What is the primary function of the IS200TRPGH2B?

The IS200TRPGH2B is a Primary Trip Terminal Board that manages the interface between the Mark VI control system and turbine protection solenoids, providing both control and diagnostic feedback.

How does this board handle flame detection?

It supports up to eight Geiger-Mueller flame detectors, measuring the frequency of incoming 0–5 V pulses over a 40 ms interval to determine flame status.

What is the difference between the H1 and H2 versions?

The H1 versions are typically used in Triple Modular Redundant (TMR) applications with voting logic, while the H2 versions, such as the IS200TRPGH2B, are designed for simplex applications.
