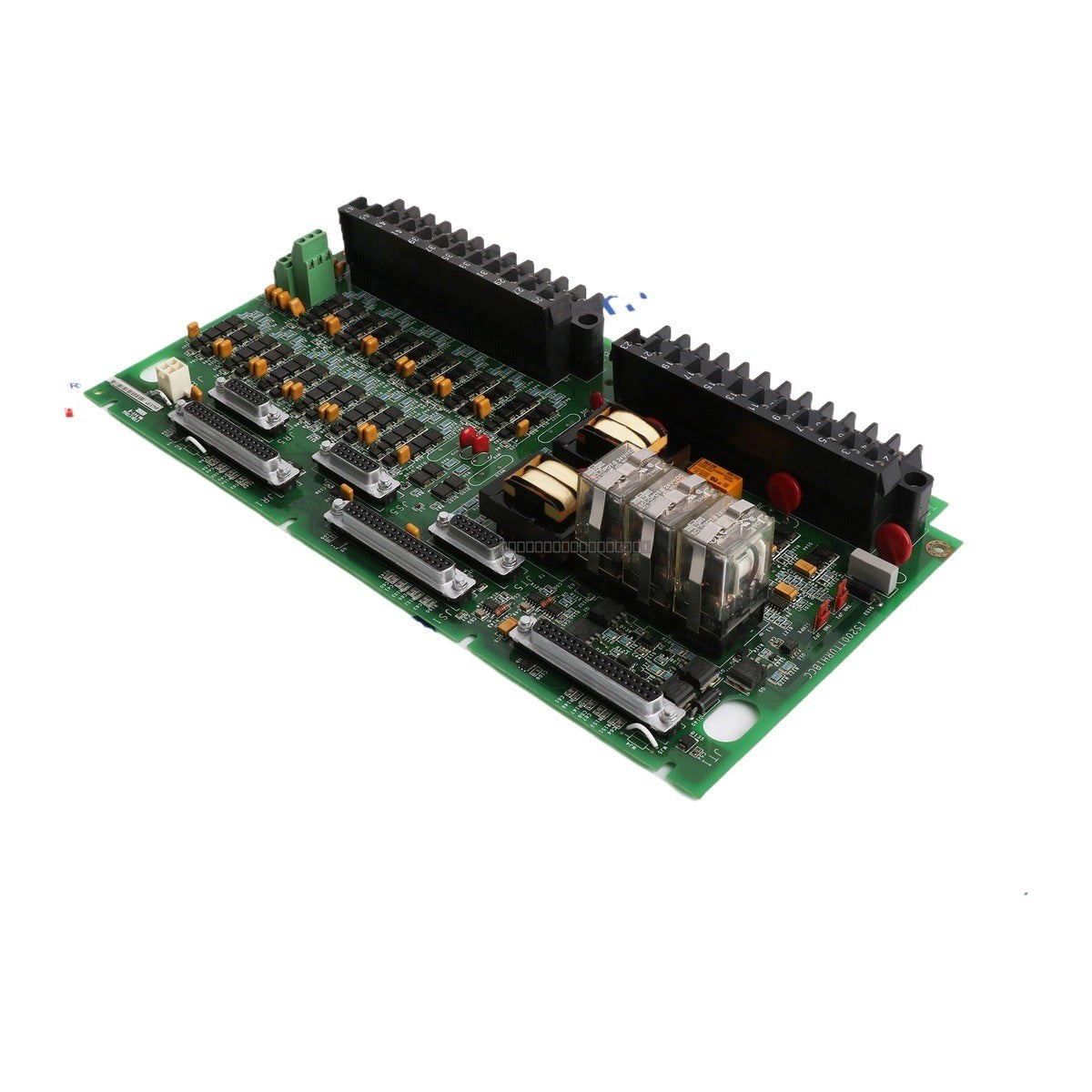

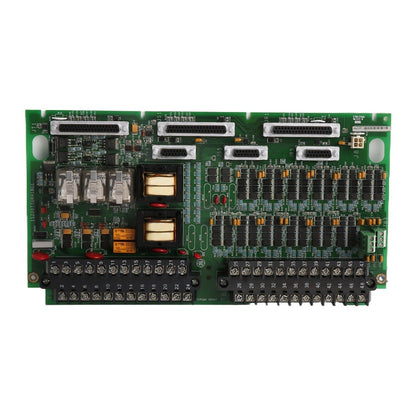

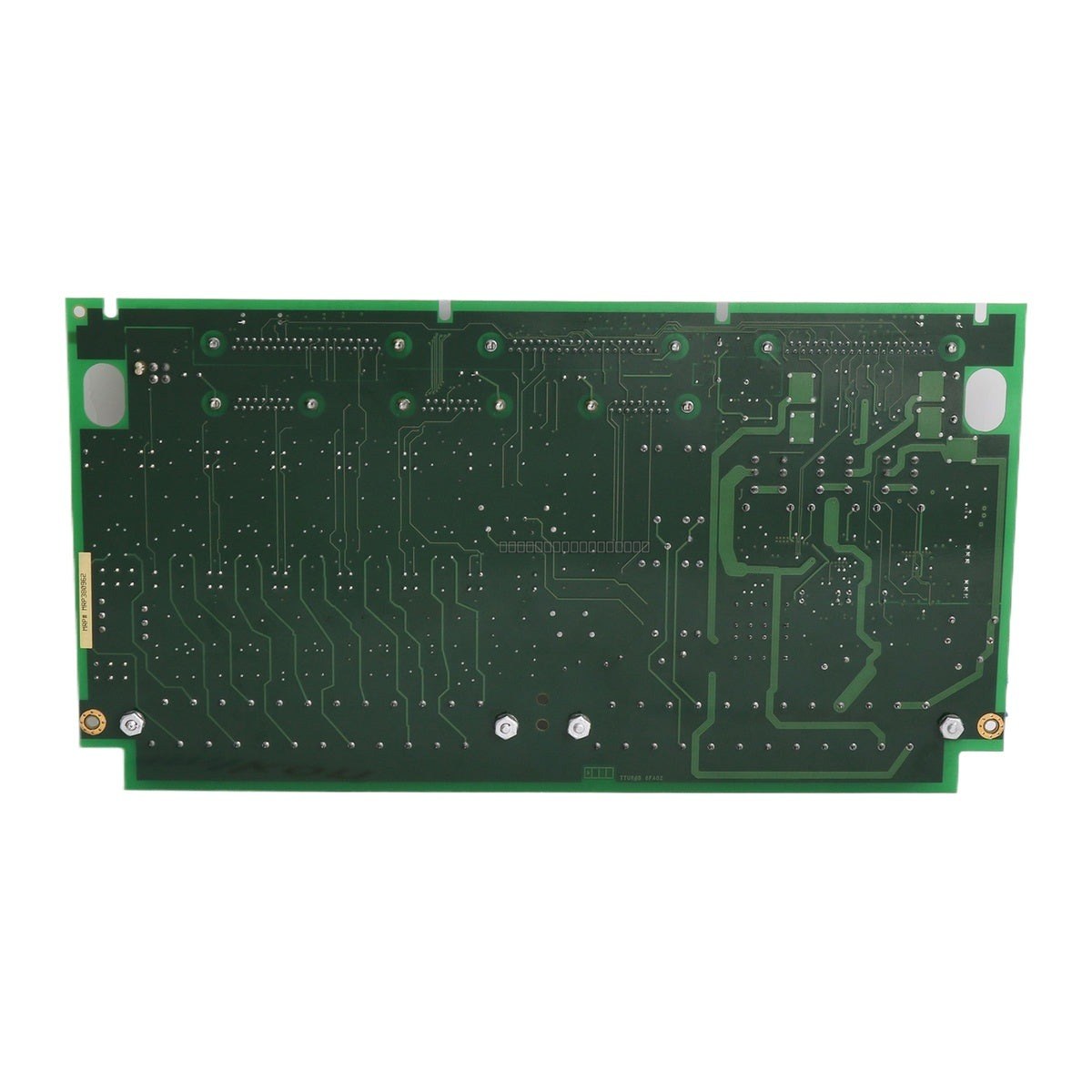

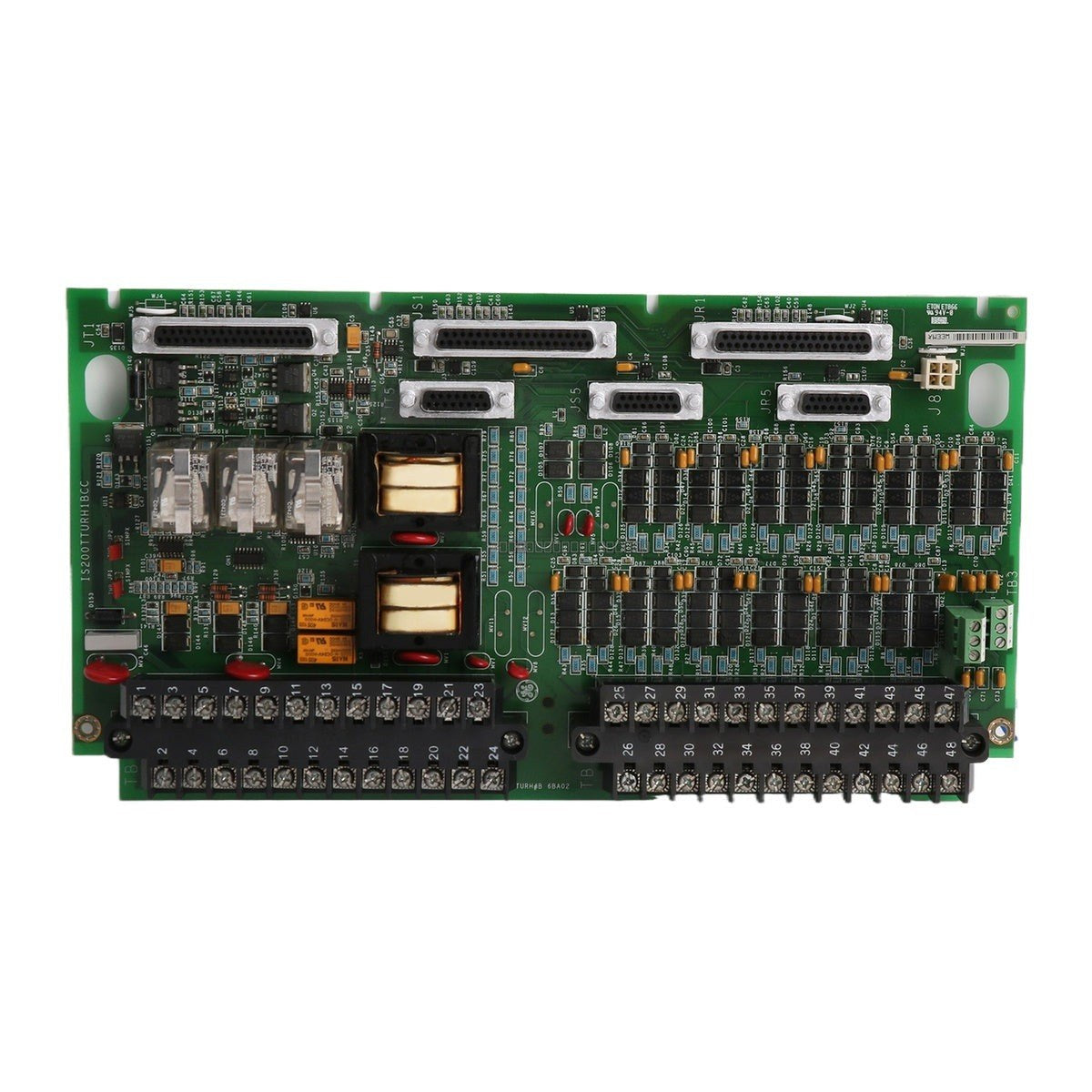

General Electric IS200TTURH1BCC Mark VIe Turbine Termination Board

General Electric IS200TTURH1BCC Mark VIe Turbine Termination Board

Description

The IS200TTURH1BCC is a termination board designed for the General Electric Mark VIe control system. This component is specifically engineered for turbine control applications, providing essential signal termination and interface...

22 people are viewing this right now

Availability: Low stock: 8 left

SKU: IS200TTURH1BCC
Vendor: General Electric
Category: Termination Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The IS200TTURH1BCC is a termination board designed for the General Electric Mark VIe control system. This component is specifically engineered for turbine control applications, providing essential signal termination and interface capabilities for turbine-related instrumentation and sensors. As part of the Mark VIe series, it supports high-reliability operation in demanding industrial environments.

Features

  • Designed for turbine device interface and signal management.
  • Utilizes surface mount technology for compact and reliable circuit integration.
  • Supports a wide MPU pulse rate range for precise turbine speed monitoring.
  • Robust operating temperature range suitable for industrial control cabinets.
  • Directly compatible with Mark VIe system architectures.

Technical Specifications

Product Model IS200TTURH1BCC
Series Mark VIe
Function Turbine Termination Board
Number of Inputs 12
Power Supply Voltage 125 V dc
Shaft Voltage 5 V dc
MPU Pulse Rate Range 2 Hz to 20 kHz
Operating Temperature -30 to 65 degC
Technology Surface Mount

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the termination board to prevent electrical damage.
  • Handle the board using proper ESD (Electrostatic Discharge) protection protocols to avoid damaging sensitive surface-mount components.
  • Verify that all field wiring is properly secured to the terminal blocks and that connections match the system wiring diagrams.
  • Ensure adequate ventilation within the cabinet to maintain the operating temperature within the specified -30 to 65 degC range.
  • Check that the board is correctly seated in the rack or mounting assembly before applying power.

FAQ

What is the primary function of the IS200TTURH1BCC?

The IS200TTURH1BCC acts as a termination board for turbine devices within the Mark VIe control system, managing signal inputs and providing the necessary interface for turbine monitoring and control.

Is this board compatible with older Mark VI systems?

The IS200TTURH1BCC is specifically designed for the Mark VIe series. Please consult your system documentation or technical manual to ensure compatibility with your specific controller configuration.

What is the required power supply for this module?

This termination board is designed to operate with a 125 V dc power supply.
