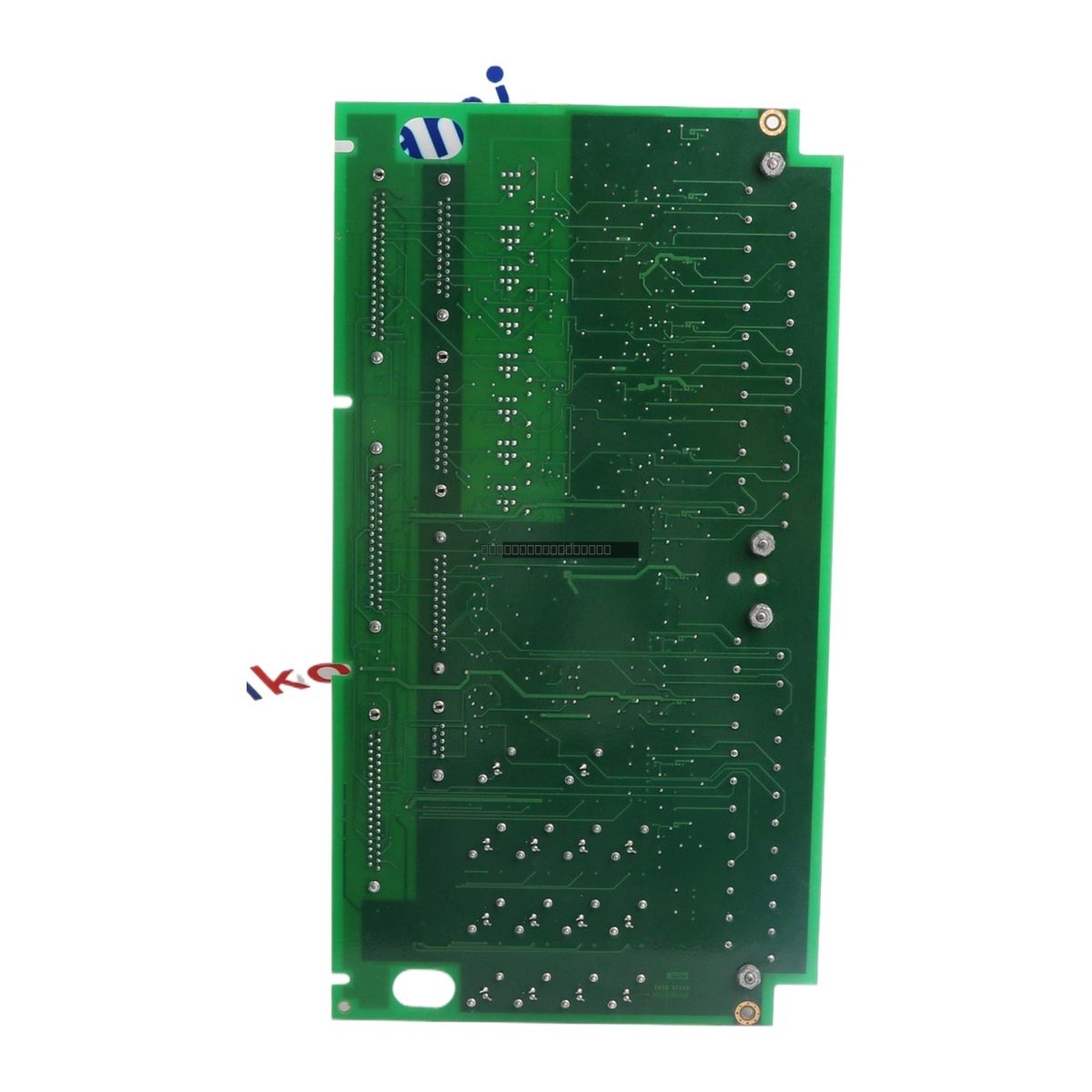

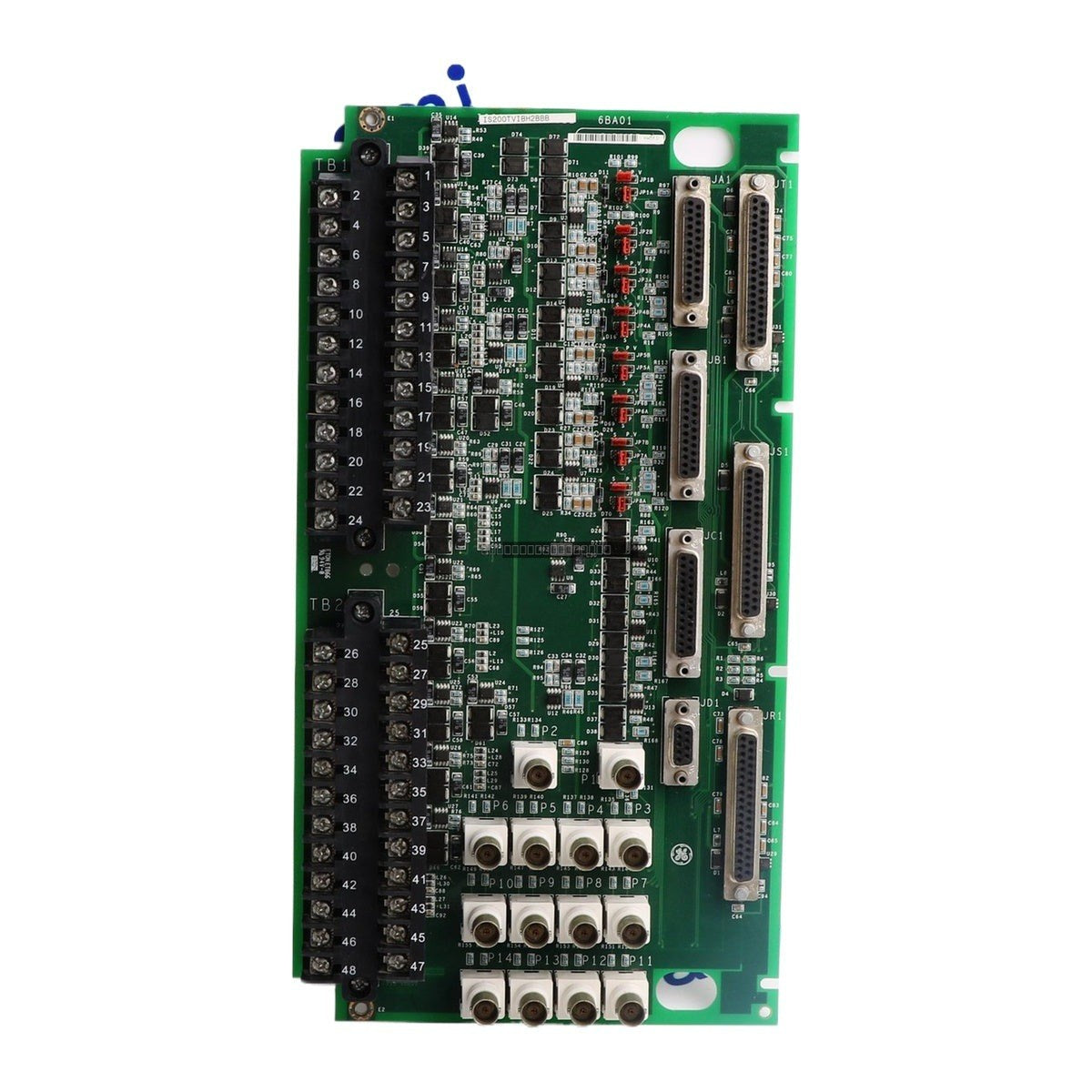

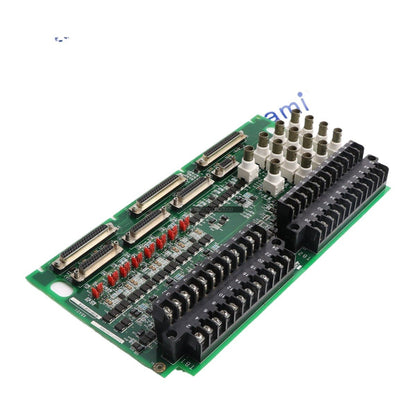

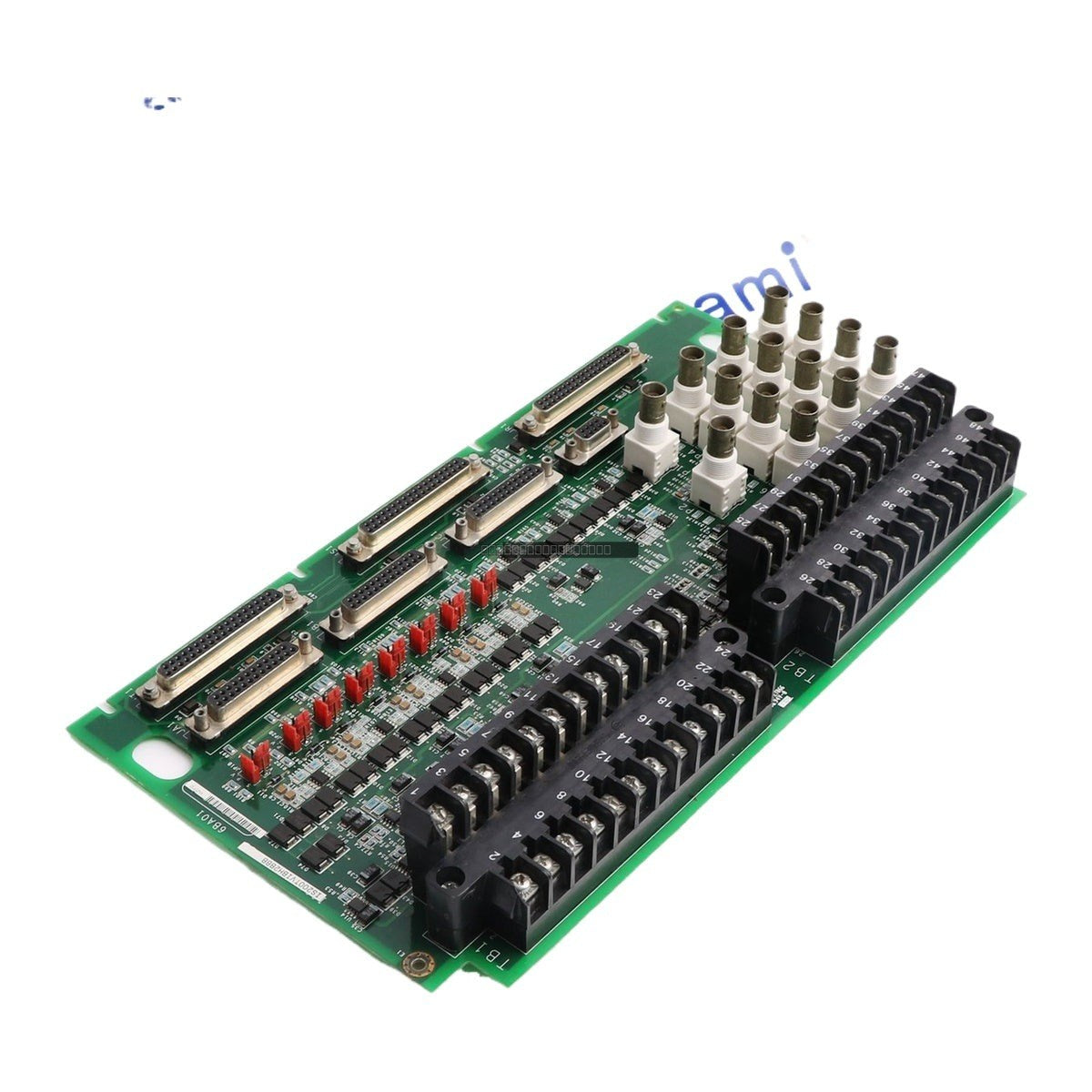

General Electric IS200TVIBH2BBB Mark VIe Vibration Terminal Board

General Electric IS200TVIBH2BBB Mark VIe Vibration Terminal Board

The General Electric IS200TVIBH2BBB is a vibration terminal board designed for use within the Mark VIe control system architecture. This component serves as a critical interface for vibration monitoring applications,...

25 people are viewing this right now

Availability: Low stock: 5 left

SKU: IS200TVIBH2BBB
Vendor: General Electric
Category: Vibration Terminal Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IS200TVIBH2BBB is a vibration terminal board designed for use within the Mark VIe control system architecture. This component serves as a critical interface for vibration monitoring applications, facilitating the connection and signal processing required for industrial machinery protection and diagnostics.

Features

  • Designed for integration with the Mark VIe series control systems.
  • Equipped with 3 trip solenoids for protective control functions.
  • Supports 13 input channels for comprehensive vibration monitoring.
  • Solenoid rated voltage and current capacity of 125 V DC.
  • Robust design suitable for standard industrial control cabinet environments.

Applications

This terminal board is primarily utilized in power generation and heavy industrial sectors where precise vibration monitoring of rotating equipment is required. It is commonly deployed in turbine control systems to ensure operational safety and to provide the necessary inputs for machinery health analysis.

Technical Specifications

Product Model IS200TVIBH2BBB
Spare Model IS200TVIBH2B
Product Type Vibration Terminal Board
Number of Channels 13
Trip Solenoids 3
Solenoid Rating 125 V DC
Operating Temperature 0 to 60 degC
Manufacturer General Electric

Installation Guidelines

  • Ensure all power is disconnected from the cabinet before attempting to install or remove the terminal board.
  • Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive electronic components.
  • Verify that the board is securely seated in the designated rack slot and that all terminal connections are tightened to the specified torque.
  • Ensure adequate ventilation within the control cabinet to maintain an operating environment between 0 and 60 degC.
  • Route signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

Is the IS200TVIBH2BBB compatible with the IS200TVIBH2B?
Yes, the IS200TVIBH2B is the designated spare model for the IS200TVIBH2BBB, indicating functional compatibility for replacement purposes.

What is the primary function of this board?
This board acts as a termination point for vibration sensors and provides the necessary interface for trip solenoid control within the Mark VIe system.
