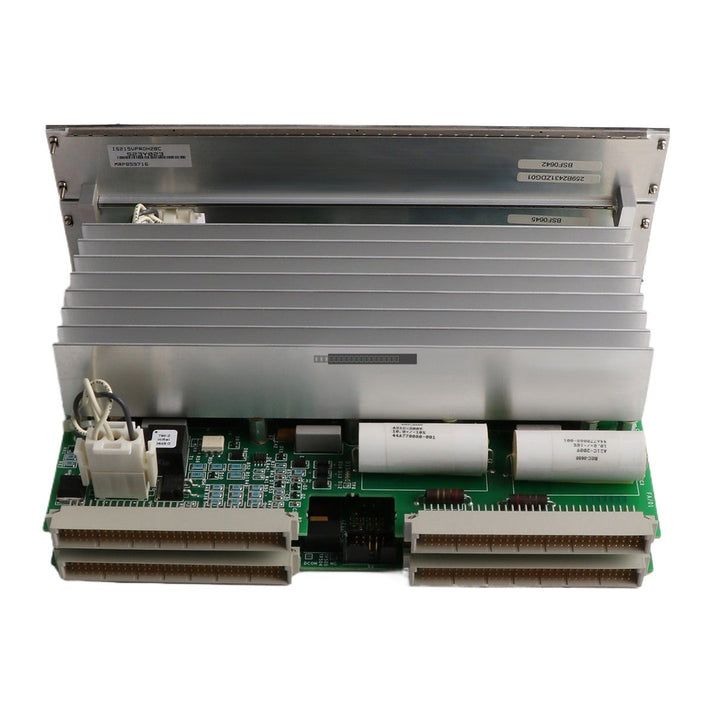

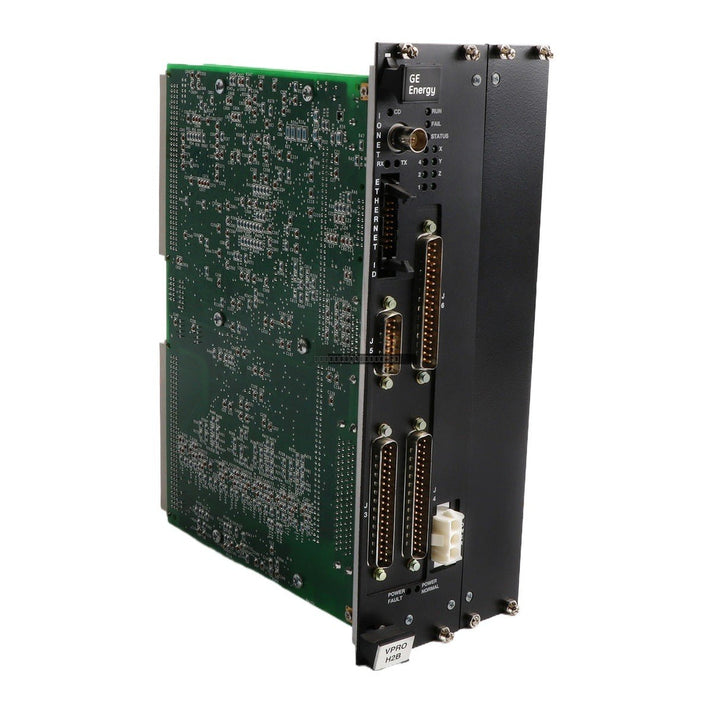

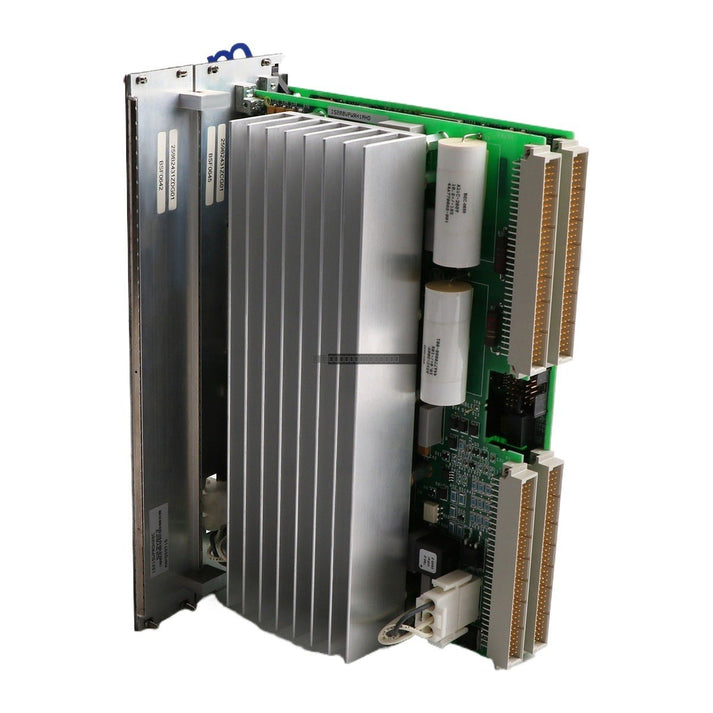

General Electric IS215VPROH2B Mark VIe Turbine Protection Module

General Electric IS215VPROH2B Mark VIe Turbine Protection Module

Description

The General Electric IS215VPROH2B is a high-reliability Turbine Protection Board (VPRO) designed for the Mark VIe Speedtronic control system. This module serves as the critical component in an independent, triple-redundant...

28 people are viewing this right now

Availability: Low stock: 2 left

SKU: IS215VPROH2B
Vendor: General Electric
Category: Turbine Protection Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS215VPROH2B is a high-reliability Turbine Protection Board (VPRO) designed for the Mark VIe Speedtronic control system. This module serves as the critical component in an independent, triple-redundant emergency overspeed protection system. It operates autonomously from the primary turbine control system to ensure fail-safe shutdown capabilities for gas, steam, and hydro turbines.

Features

  • Emergency turbine protection with triple-redundant architecture.
  • Advanced speed monitoring for precise overspeed detection.
  • Integrated synchronization logic for complex turbine control environments.
  • Extensive diagnostic coverage for system health monitoring.
  • Direct interface to trip solenoids via TREG and TRPG terminal boards.

Applications

  • Power Generation Plants: Fail-safe overspeed protection for thermal, nuclear, and hydro turbines.
  • Oil & Gas Refineries: Mechanical drive control for compressors and pumps.
  • Petrochemical Complexes: Steam turbine management in combined-cycle energy recovery systems.
  • Large-Scale Industrial Manufacturing: Power island control for steel and chemical processing.
  • Offshore Rigs: Reliable turbine-driven power and pumping in remote, harsh environments.

Technical Specifications

Model IS215VPROH2B
Function Turbine Protection Board (VPRO)
Operating Temperature -30 to 65 degC
Power Supply Voltage 125 V DC
Inputs 3
Outputs 6
Manufacturer General Electric

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the VPRO module from the VME rack.
  • Connections to terminal boards (e.g., TREG or TPRO) typically utilize 37-pin, D-type industrial cables.
  • For cable runs exceeding 20 feet, the use of shielded twisted-pair wiring is mandatory to mitigate EMI.
  • Shield drain wires must be terminated only at the end adjacent to the terminal boards to prevent ground loops.
  • Maintain adequate ventilation within the cabinet to ensure the module operates within its specified temperature range.

FAQs

What is the IS215VPROH2B?

The GE IS215VPROH2B is an Emergency Turbine Protection Board (VPRO) within the General Electric Mark VIe Speedtronic control system series.

What is the primary function of this board?

It acts as the core of an independent emergency trip system. It monitors turbine speed and provides emergency overspeed protection, operating separately from the primary control system to ensure a fail-safe shutdown.

What power supply does it require?

It operates on a 125 V DC nominal supply. It generates its own internal 5 V DC and 28 V DC for onboard logic and relay operations.

How many trip solenoids can it control?

The system supports up to three trip solenoids. These are connected between TREG and TRPG terminal boards, which the VPRO manages through 12 relays using 2-out-of-3 voting logic.
