General Electric IS215VPROH2BC Mark VIe Turbine Emergency Trip Board

General Electric IS215VPROH2BC Mark VIe Turbine Emergency Trip Board

Description

The GE IS215VPROH2BC is a critical Turbine Emergency Trip Board designed for the General Electric Mark VI and Mark VIe Speedtronic turbine control systems. This VME-based protection assembly functions as...

26 people are viewing this right now

Availability: Low stock: 6 left

SKU: IS215VPROH2BC
Vendor: General Electric
Category: Turbine Emergency Trip Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

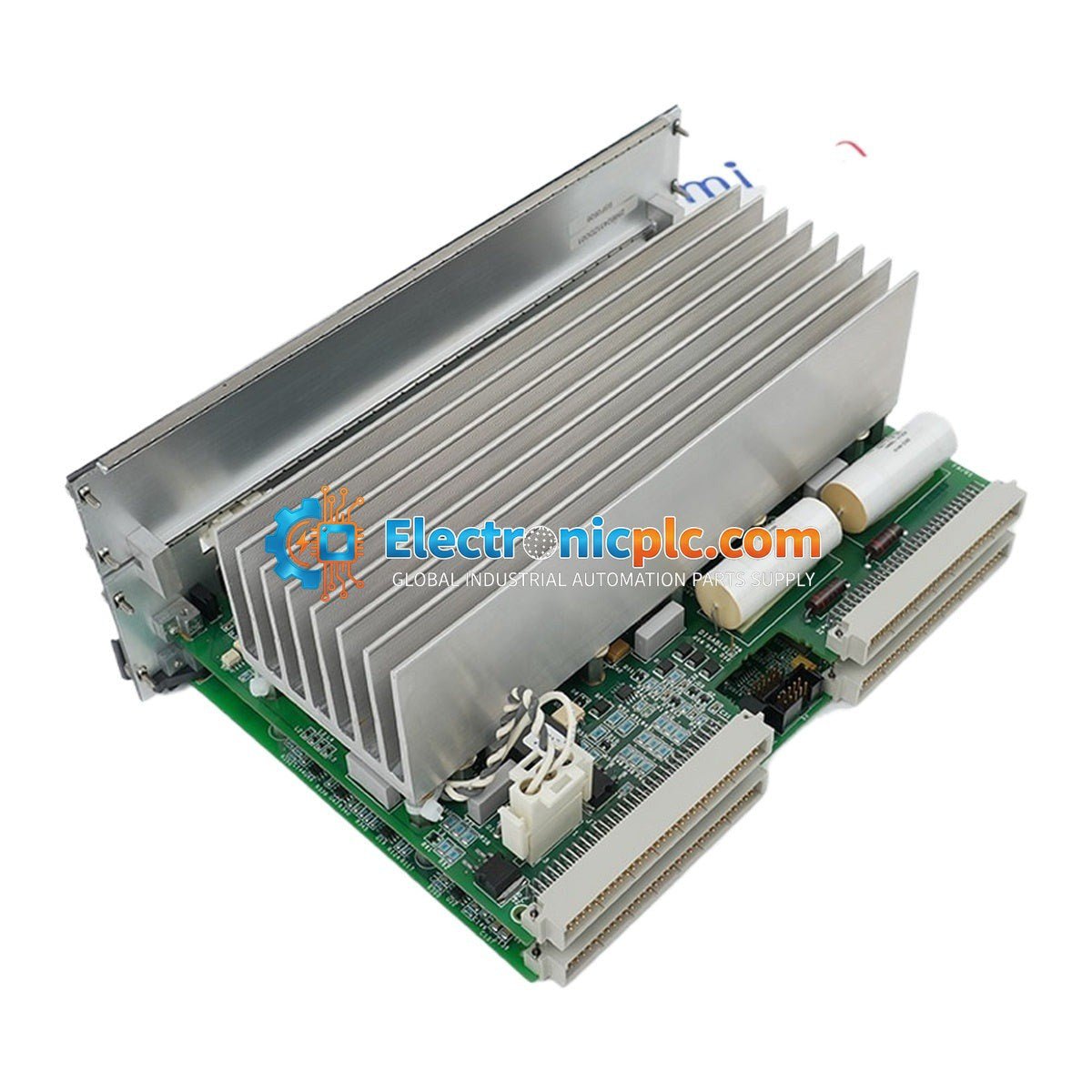

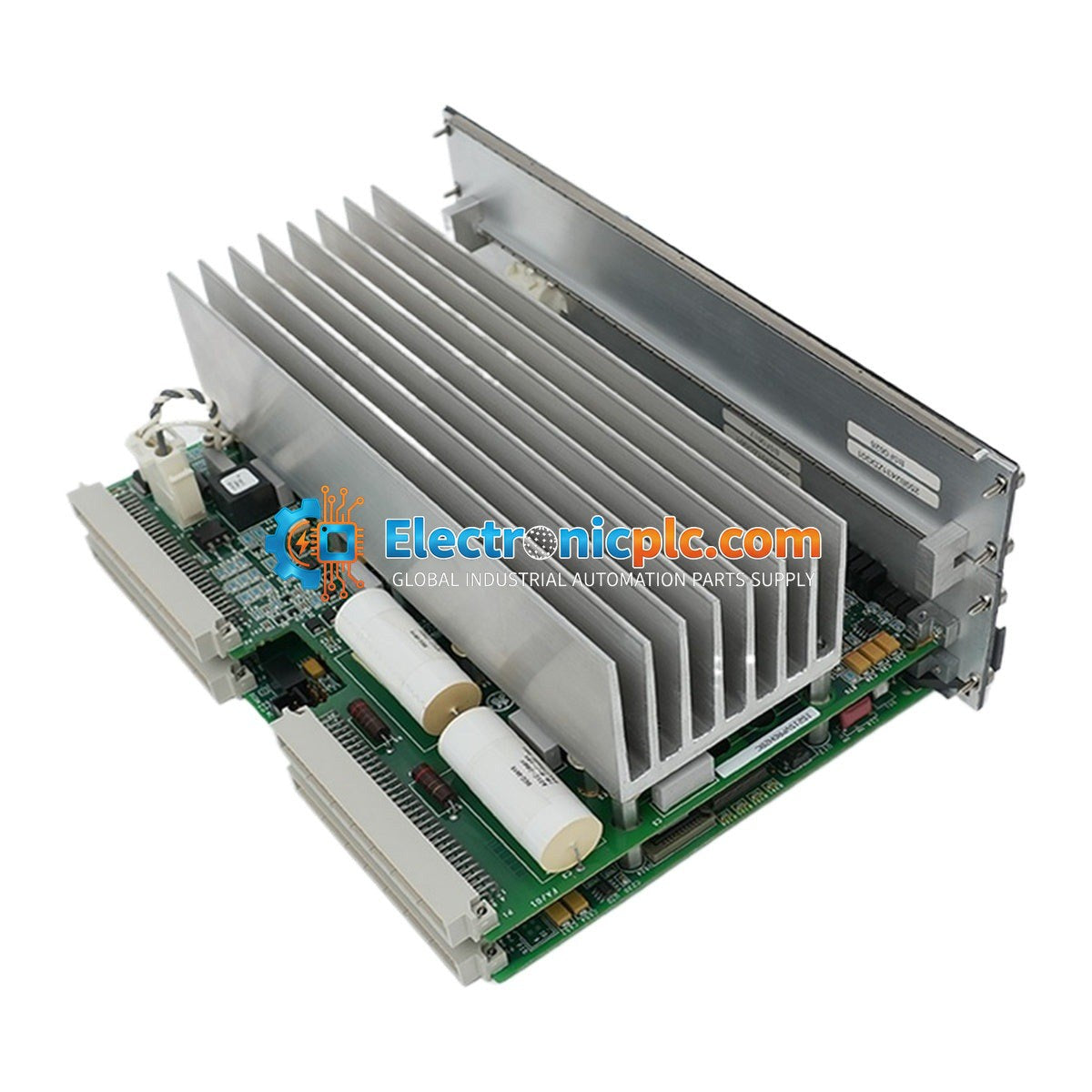

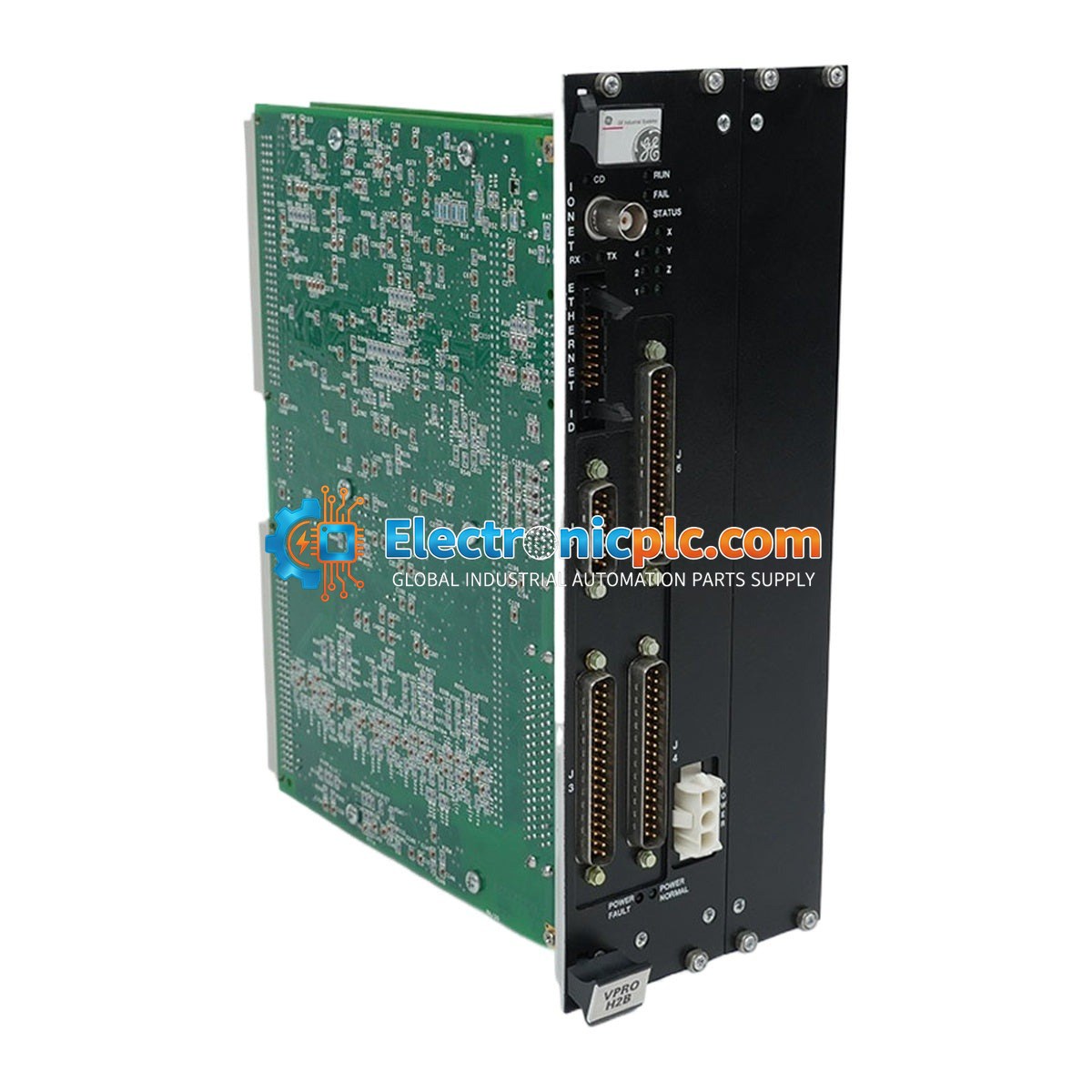

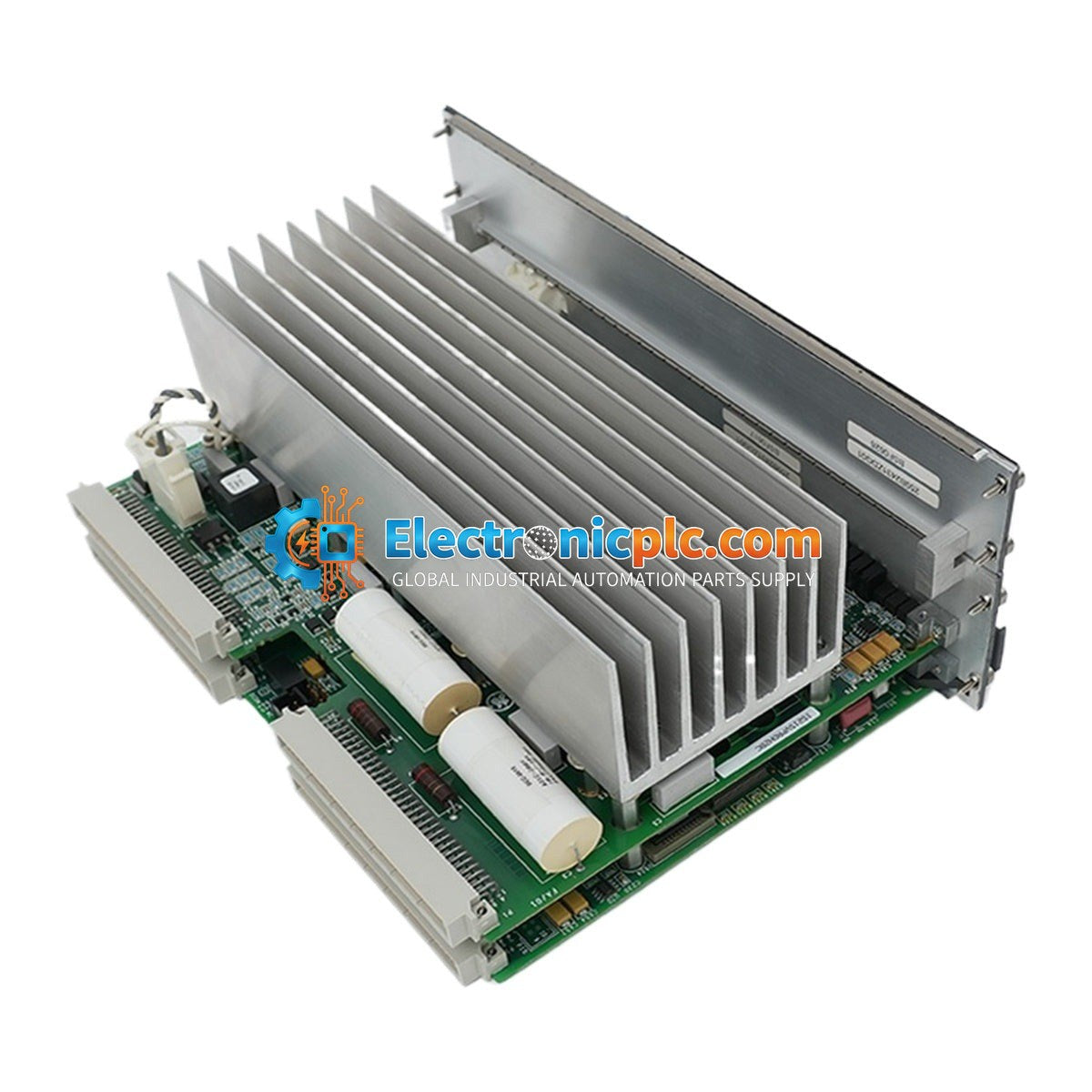

The GE IS215VPROH2BC is a critical Turbine Emergency Trip Board designed for the General Electric Mark VI and Mark VIe Speedtronic turbine control systems. This VME-based protection assembly functions as an independent safety layer, providing essential emergency overspeed protection (EOS) and emergency stop functionality for gas, steam, and wind turbines. It operates as a high-speed processor to ensure turbine integrity by monitoring speed signals and executing trip commands.

Features

  • Triple Redundant Architecture: Supports Triple Modular Redundancy (TMR) with independent X, Y, and Z sections for hardware voting and fault tolerance.
  • Comprehensive Protection: Provides emergency overspeed detection, emergency stop processing, and backup synchronization checking.
  • Integrated Diagnostics: Continuously monitors relay status, power supplies, terminal board identification, solenoid circuits, thermocouple inputs, and analog signals.
  • Onboard Power Conversion: Accepts 125 VDC input and internally generates 5 VDC and 28 VDC for electronics and solenoid drivers.
  • High-Speed Processing: Operates at a frame rate of up to 100 Hz with rapid solenoid response times.

Applications

  • Power Generation: Prevents catastrophic turbine failure in combined-cycle plants and utility grids.
  • Oil & Gas: Protects large compressors and pumps driven by industrial gas turbines.
  • Turbine Safety: Acts as a dedicated safety layer for emergency shutdown (ESD) and overspeed protection.

Technical Specifications

Model IS215VPROH2BC
Manufacturer General Electric
Power Supply 125 VDC
Internal Power 5 VDC and 28 VDC
Frame Rate Up to 100 Hz
MPU Input Sensitivity Min 27 mV peak at 2 Hz
MPU Frequency Range 2 Hz to 20 kHz
Memory 16 MB DRAM
VME Slot Occupancy 2 Slots
Operating Temp 0 degC to +50 degC
Storage Temp -40 degC to +70 degC

Installation Guidelines

  • ESD Precautions: Always use a grounded wrist strap when handling the board to prevent electrostatic discharge damage to sensitive components.
  • Power Down: Ensure the 125 VDC power source is disconnected from the PDM before inserting or removing the module from the VME rack.
  • Wiring: Connect the 125 VDC power input to the J7 connector. Use 40-pin ribbon cables for connections to TPRO/TREG terminal boards via front-panel latching connectors (J3-J6).
  • Environment: Ensure the cabinet provides adequate ventilation to maintain operating temperatures between 0 degC and 50 degC.
  • Grounding: Verify that the VME rack is properly grounded to the cabinet chassis to minimize EMI and ensure signal integrity.

FAQ

What is the primary function of the IS215VPROH2BC?

It acts as the primary Emergency Overspeed (EOS) protection for industrial turbines, monitoring speed and tripping solenoids if dangerous conditions are detected.

Does the board support TMR operation?

Yes, it supports Triple Modular Redundancy (TMR) architecture, where three independent processors perform hardware voting to improve system availability.

Can this board support a second TREG terminal board?

No, the H2B variant is designed as a lower-power version that does not support a second TREG terminal board.
