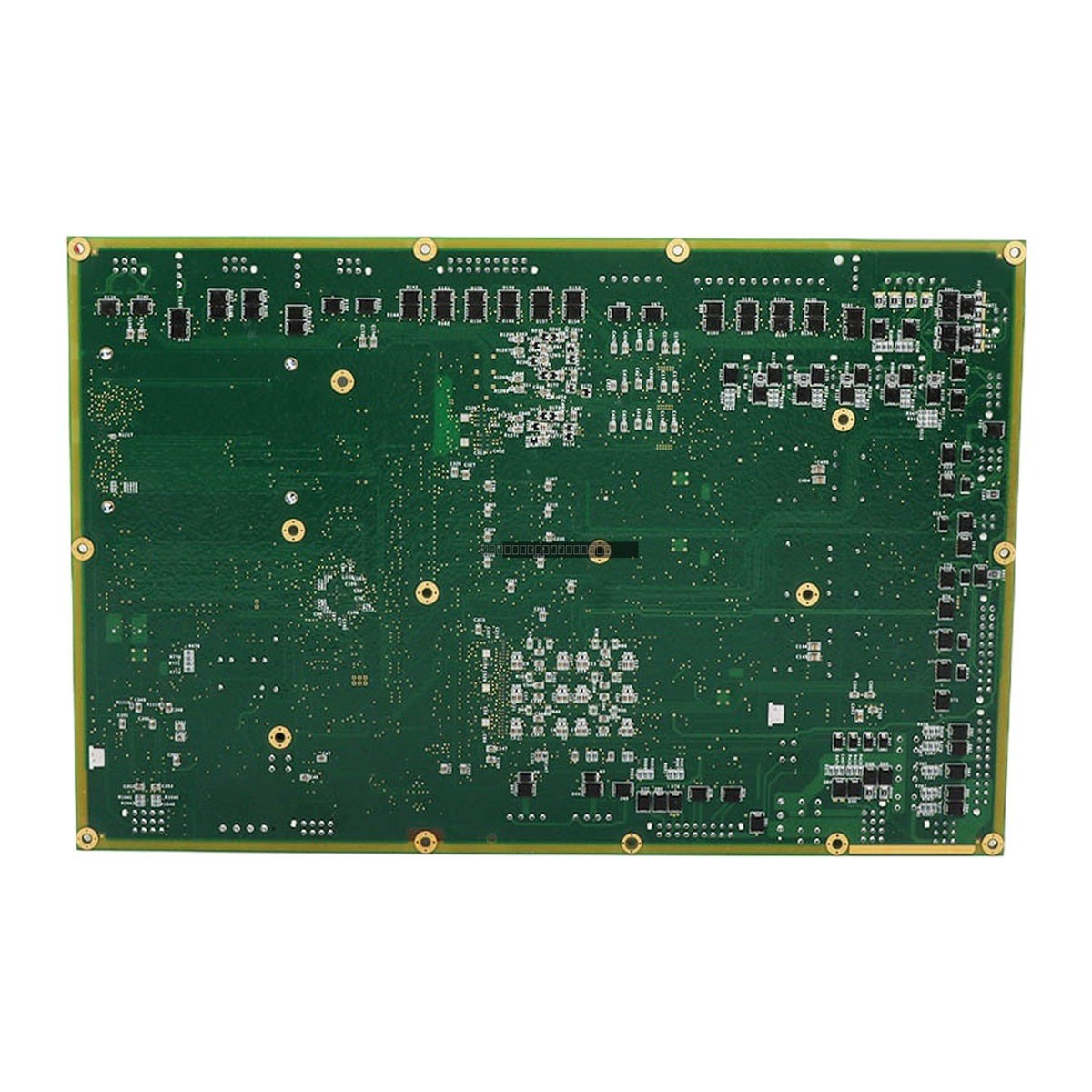

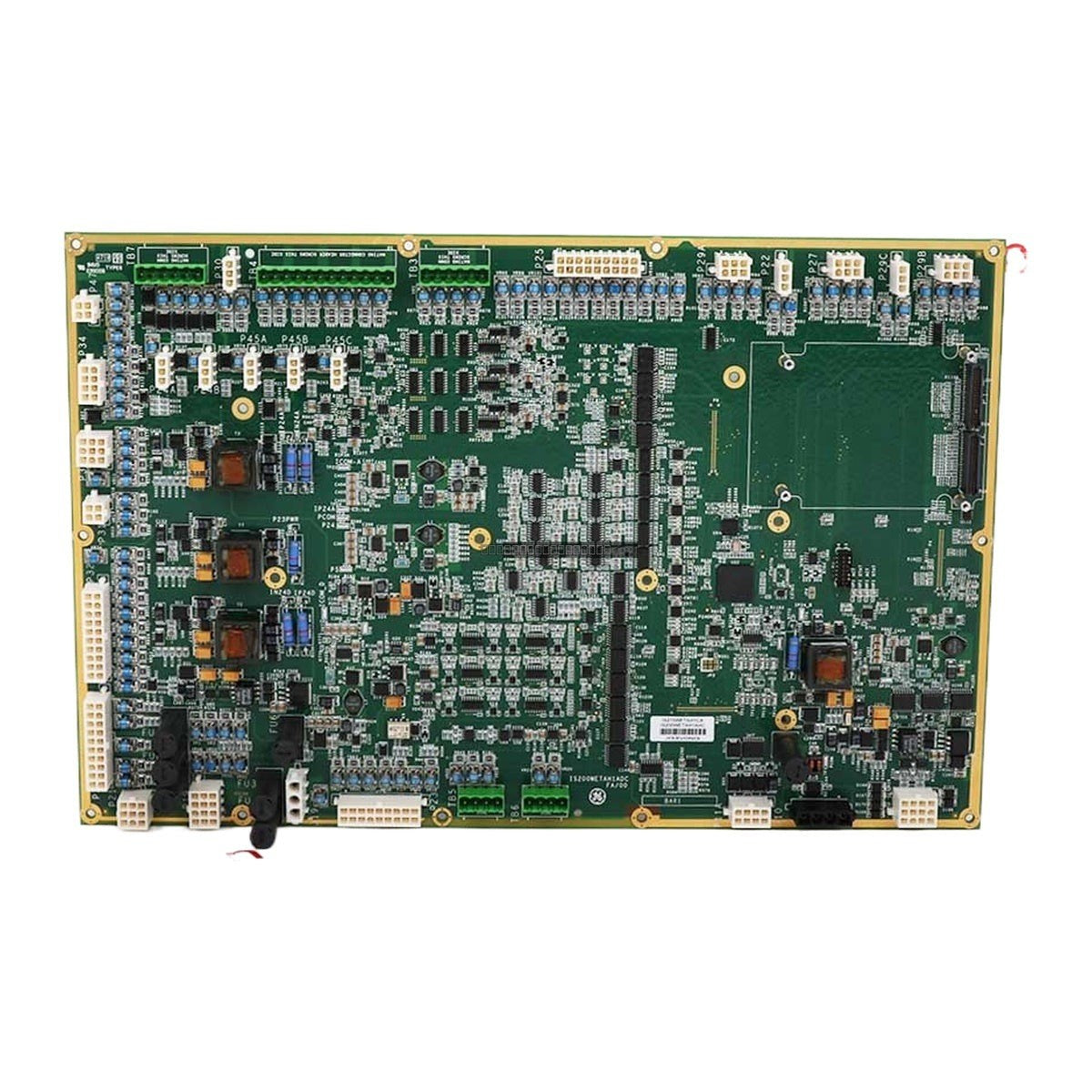

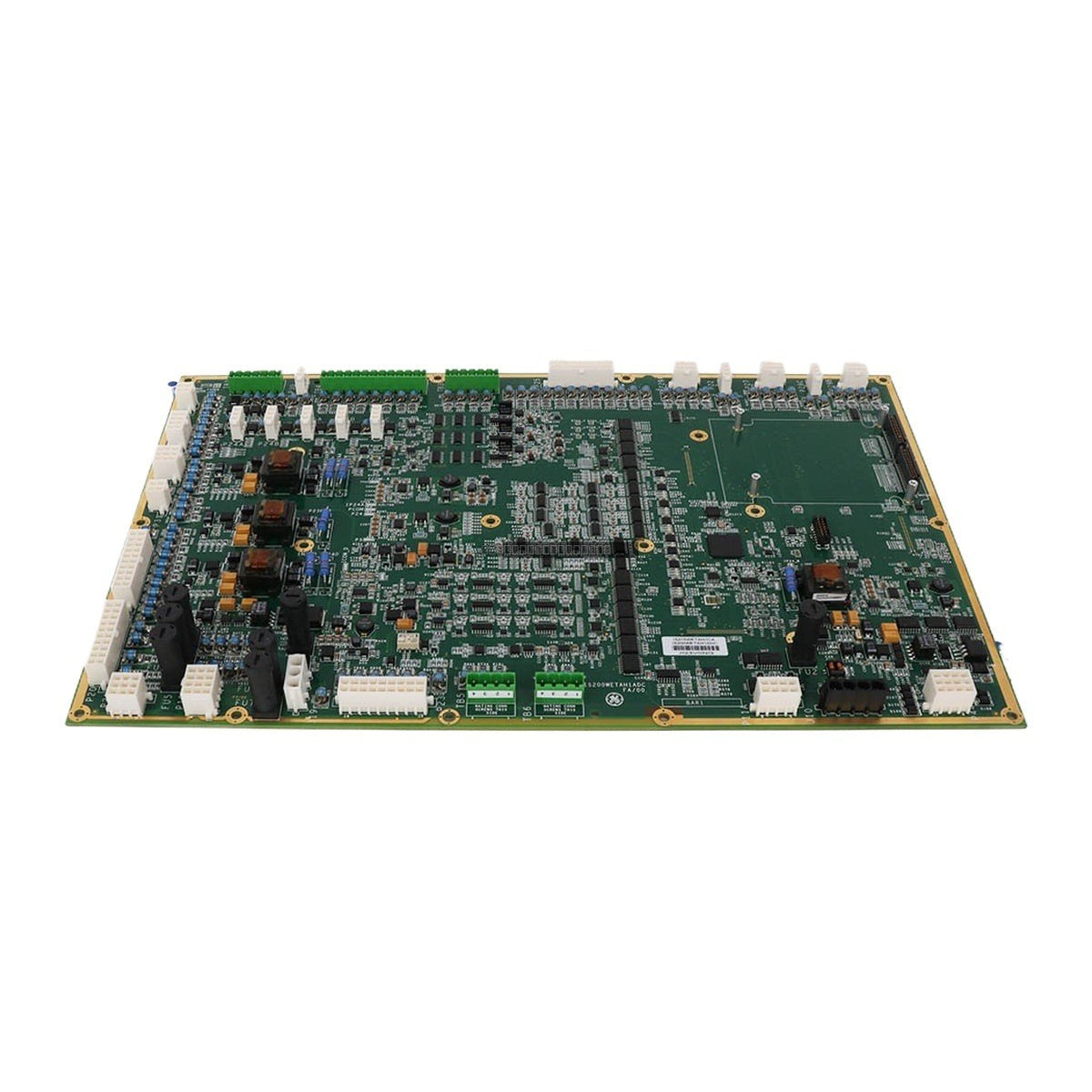

The General Electric IS215WETAH1CA is a specialized Wind Top Box A Module designed for the Mark VIe wind turbine control series. This module serves as a critical interface for data acquisition and communication, facilitating the exchange of control signals and sensor data between the turbine hub and the central control system.

Features

• Designed for integration with GE Mark VIe wind turbine control platforms.
• Features high-durability conformal PCB coating to protect against moisture, dust, and condensation in harsh nacelle environments.
• Equipped with a CANopen fieldbus interface via a DE-9 D-sub connector for reliable communication with external devices.
• Modular design allows for scalable system configurations and seamless integration with Wind Top Box B modules.
• Dual revision control system ensures strict adherence to GE quality and compatibility standards.

Applications

• Wind Energy Systems: Acts as the primary interface for nacelle and hub signal transmission to ground-based controllers.
• Power Generation: Manages critical electrical loads and protection loops.
• Industrial Automation: Provides robust connectivity within GE Mark VIe DCS environments.
• Offshore Energy: Engineered to withstand the demanding conditions of maritime and offshore power installations.

Technical Specifications

Installation Guidelines

• Ensure the module is securely mounted onto the designated backing plate or DIN rail within the Wind Top Box assembly.
• Tighten all structural retention screws to the manufacturer-specified torque to prevent loosening caused by turbine vibration.
• Maintain required clearance zones around the module vents to ensure unobstructed convective airflow and prevent localized overheating.
• Always power down the system before inserting or removing the module to prevent electrical damage.
• Handle with care using standard ESD (Electrostatic Discharge) protection practices.

FAQ

What is the primary function of the IS215WETAH1CA module?

The IS215WETAH1CA functions as a top-box controller interface, securely routing communication, sensor data, and control signals between the turbine remote hubs and the central Mark VIe control panels.

Is the IS215WETAH1CA backwards compatible with earlier revisions?

Yes, functional revisions of this module are generally designed to be backwards compatible, allowing for maintenance and upgrades without requiring a total system overhaul.

Does the module require special environmental protection?

The unit comes with a factory-applied conformal coating, which provides a necessary barrier against salt fog, conductive dust, and moisture common in onshore and offshore wind environments.
