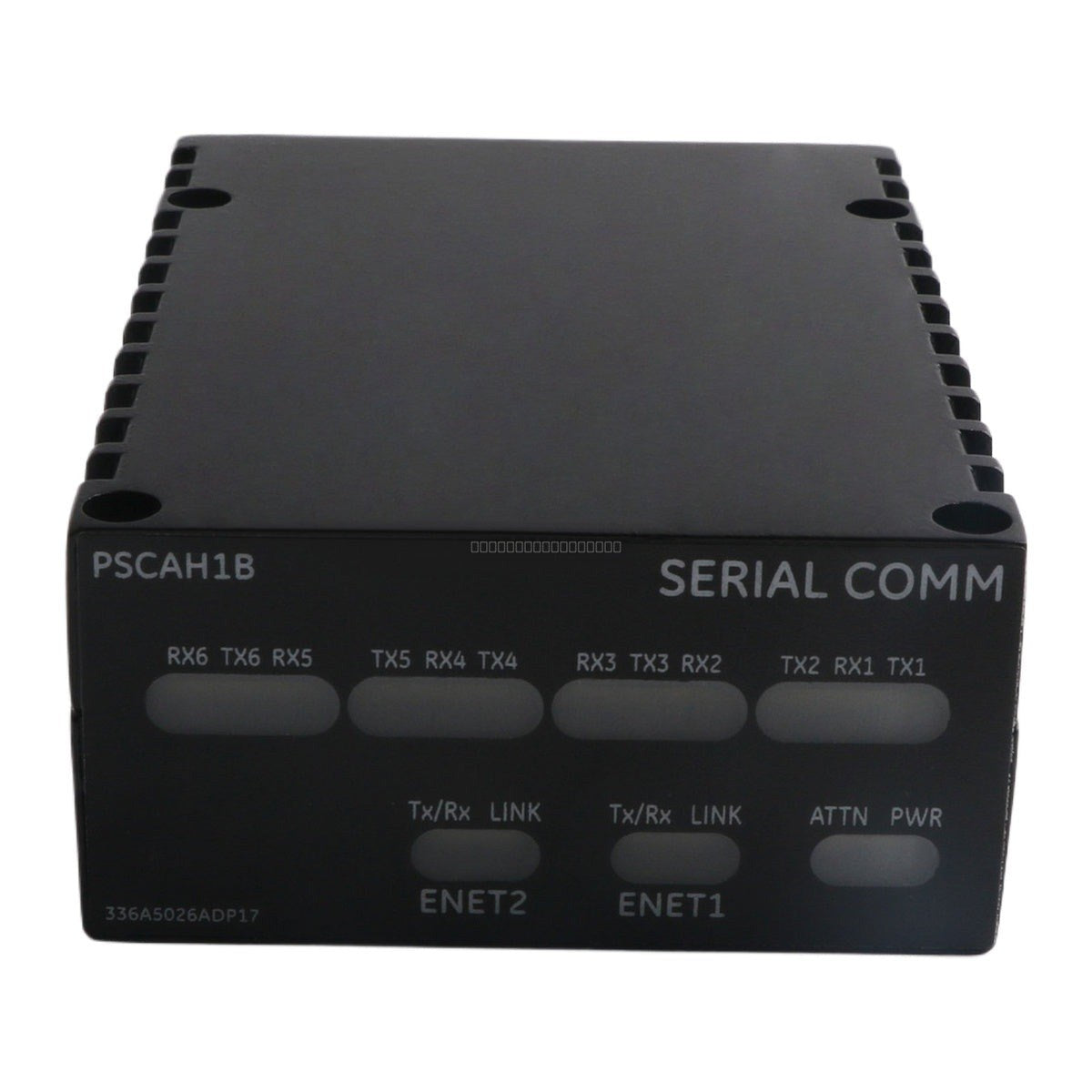

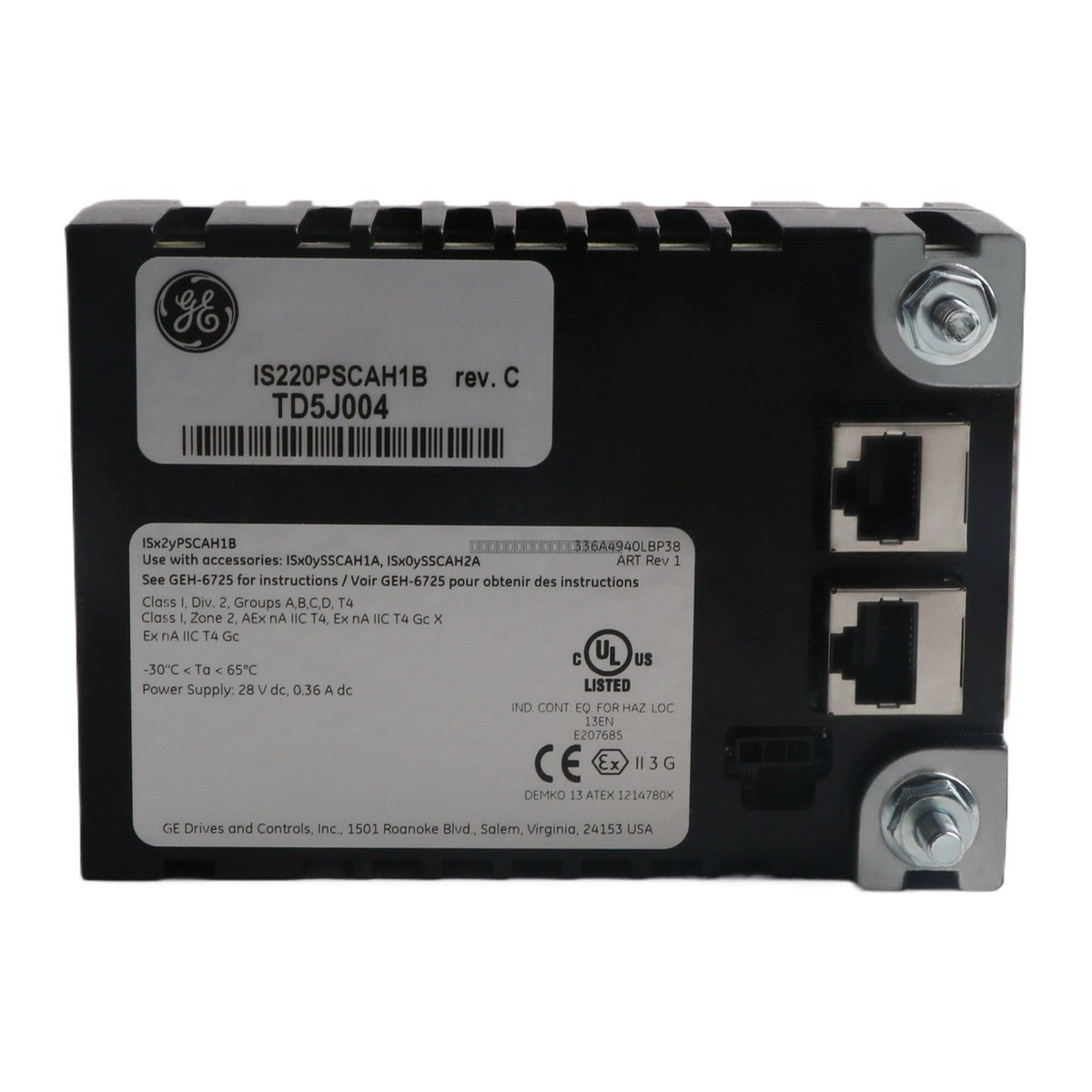

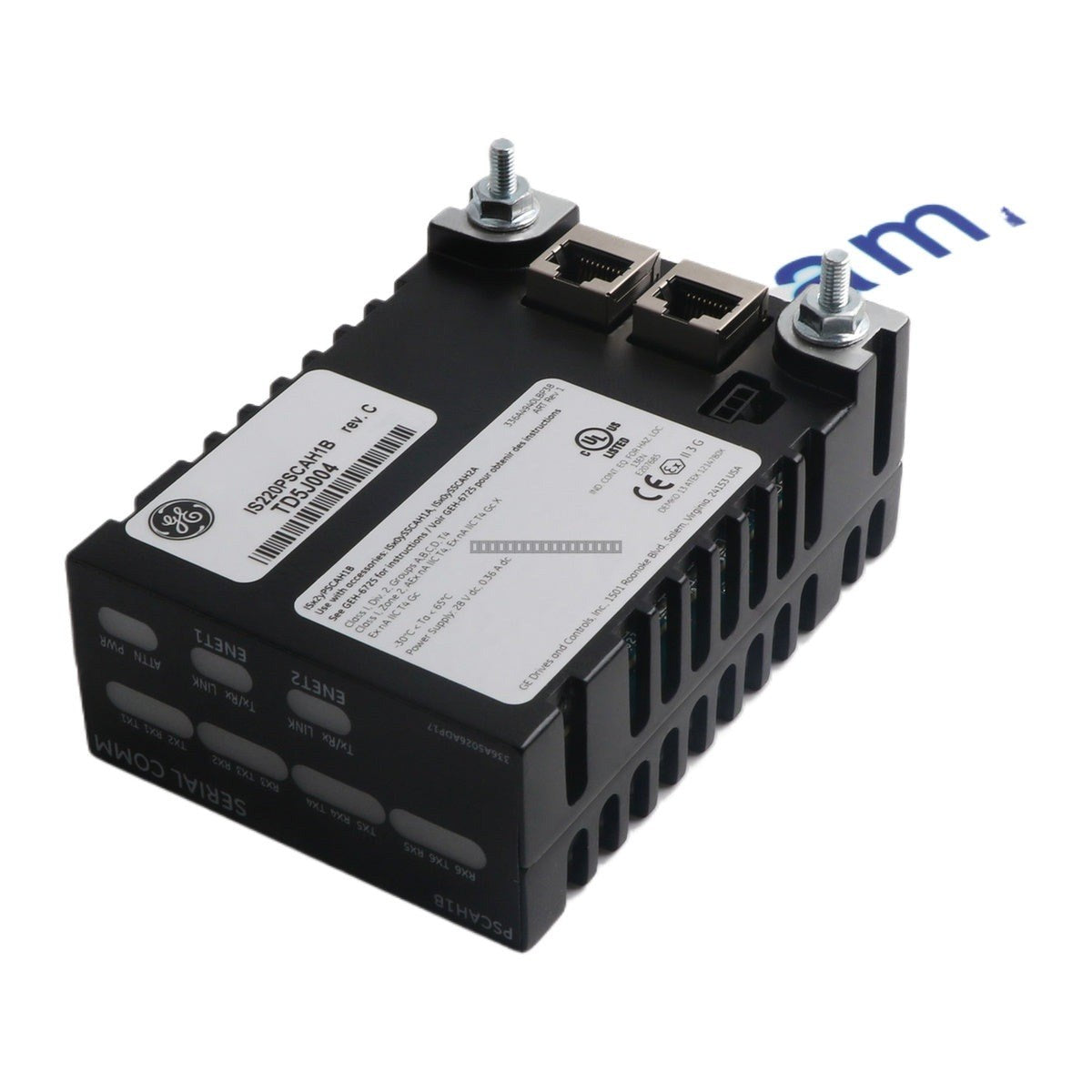

General Electric Mark VIe IS220PSCAH1B Serial Communications I/O Pack

General Electric Mark VIe IS220PSCAH1B Serial Communications I/O Pack

The General Electric IS220PSCAH1B is a Serial Modbus Communication I/O Module designed for the Mark VIe Distributed Control System (DCS). This module serves as a critical interface between I/O Ethernet...

16 people are viewing this right now

Availability: Low stock: 1 left

SKU: IS220PSCAH1B
Vendor: General Electric
Category: Serial Communications I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IS220PSCAH1B is a Serial Modbus Communication I/O Module designed for the Mark VIe Distributed Control System (DCS). This module serves as a critical interface between I/O Ethernet networks and serial communication terminal boards, facilitating seamless data exchange in industrial environments.

Features

  • Six configurable serial transceiver channels supporting RS-232, RS-422, or RS-485 half-duplex standards.
  • Dual RJ45 Ethernet connectors for network connectivity.
  • Integrated processor board compatible with the Mark VIe distributed I/O pack architecture.
  • Visual diagnostic indicators via onboard LEDs.
  • Supports Ethernet Modbus communication on Simplex Networks.
  • Hazardous location rating: Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 Gc X.

Applications

  • Power Generation: Steam turbine generators, gas turbines, and large water pumps.
  • Oil & Gas: Centrifugal and reciprocating compressors, turbine-driven pumps, and offshore platform power systems.
  • Petrochemical: Ethylene cracking gas compressors and ammonia compressors.
  • Heavy Industry: Blast furnace blowers, sintering blowers, and rolling mill main motors.
  • Maritime: Main propulsion systems and auxiliary power generation monitoring.

Technical Specifications

Model IS220PSCAH1B
Manufacturer General Electric
Series Mark VIe
Channels 6
Nominal Voltage 24V DC
Mounting DIN Rail
Frame Rate 32 Hz
Field Wiring 24 AWG min
Operating Temperature -30 to 70 degC
Technology Surface Mount

Installation Guidelines

  • Ensure the module is mechanically secured using the threaded inserts adjacent to the Ethernet ports, connecting to the terminal board-specific mounting bracket.
  • Adjust the bracket position to prevent right-angle force on the DC-62 pin connector; this adjustment is typically performed once during initial installation.
  • The module is not sensitive to Ethernet port selection; it will negotiate operation over either port. Standard practice for dual connections is to assign ENET1 to the R controller network.
  • The module features inherent soft-start capability to manage current inrush; power may be applied via the side connector without requiring prior disconnection of the power cable.

FAQ

What is the primary function of the IS220PSCAH1B?

The IS220PSCAH1B acts as a bridge between Ethernet-based control networks and serial-based field devices, enabling Modbus protocol communication over RS-232, RS-422, or RS-485 interfaces.

How are the serial channels configured?

Each of the six serial transceiver channels is configurable to support RS-232, RS-422, or RS-485 half-duplex standards, allowing for flexible integration with various legacy and modern industrial devices.
