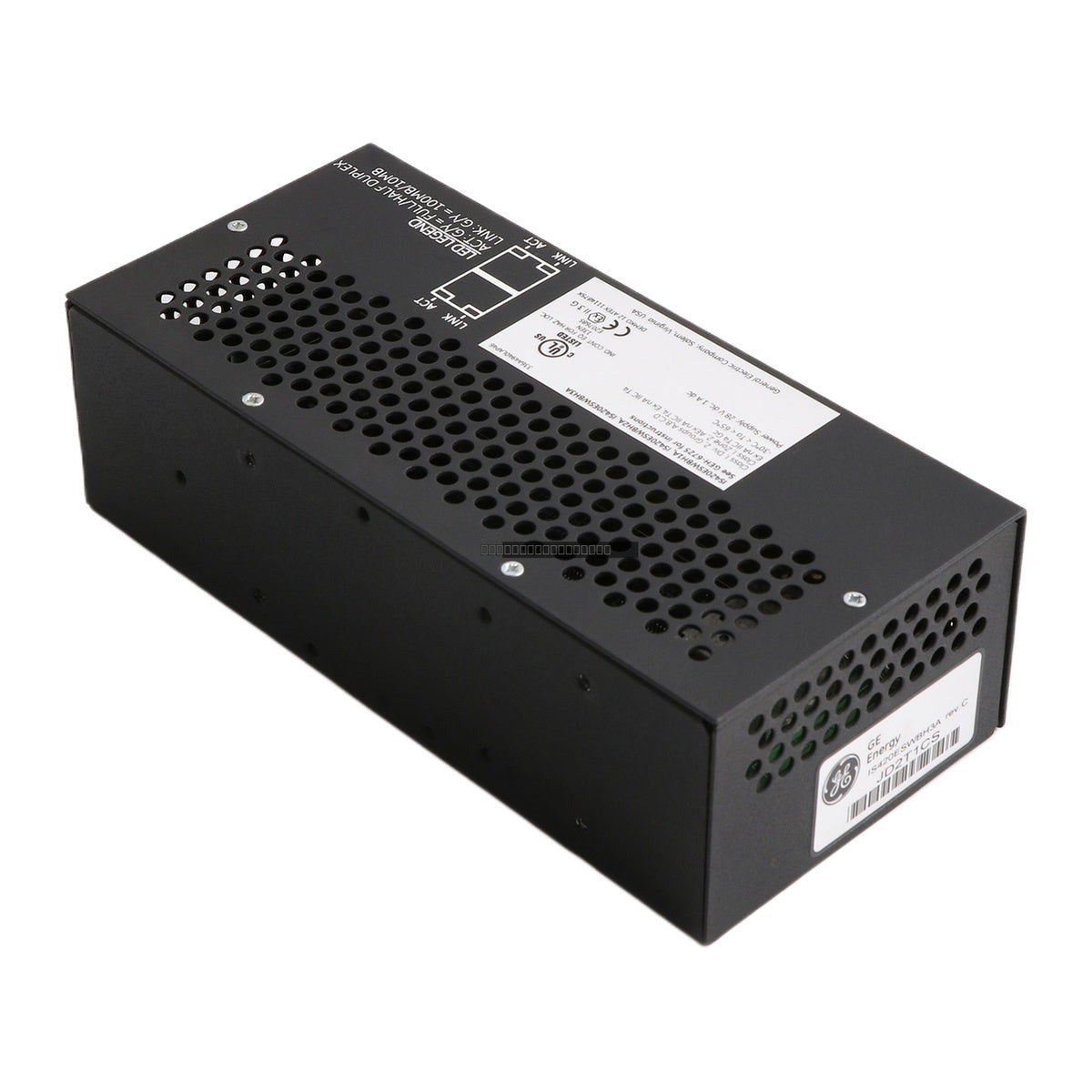

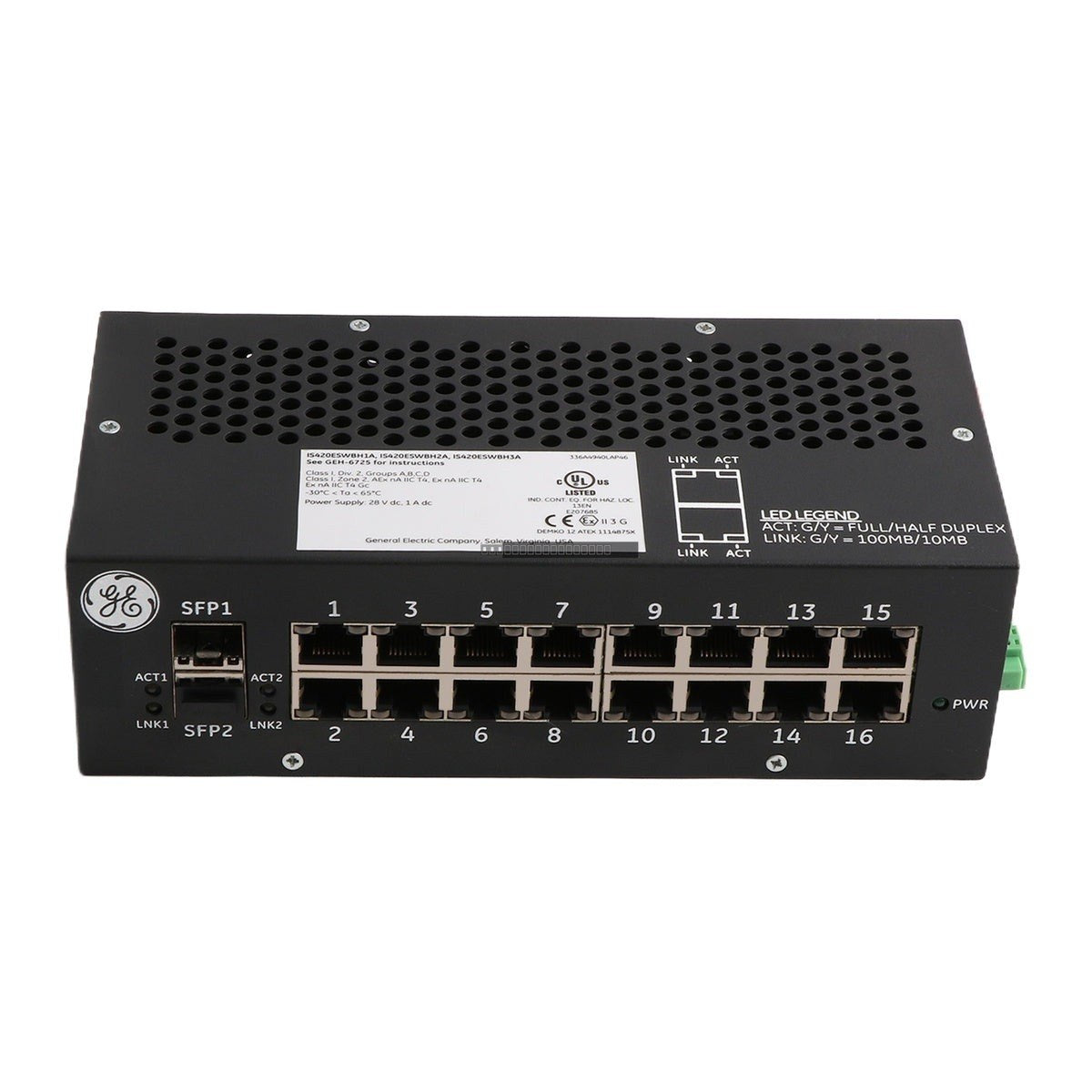

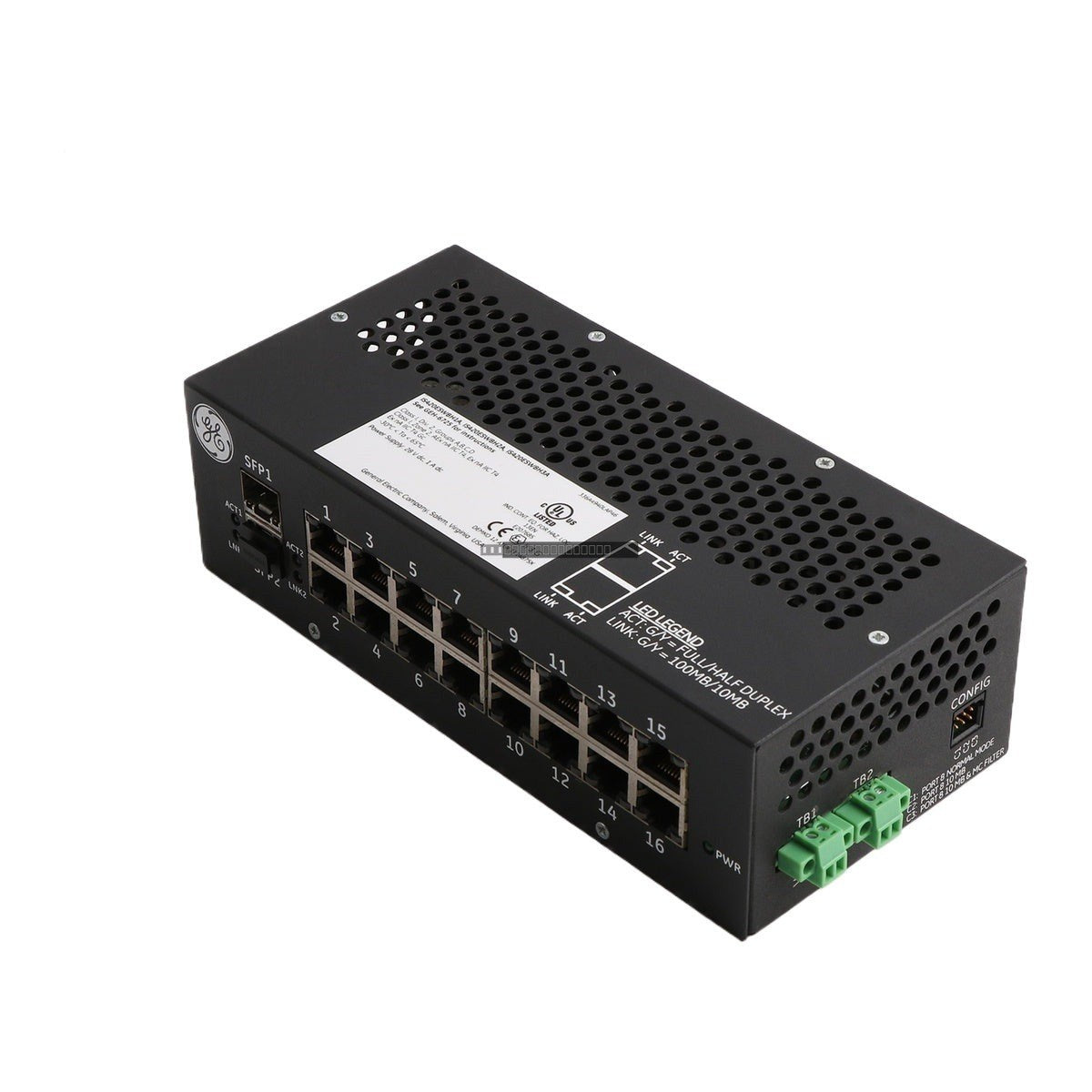

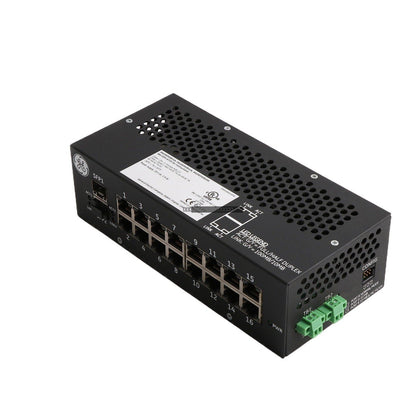

General Electric IS420ESWBH3A Mark VIe 16-Port Ethernet Switch

General Electric IS420ESWBH3A Mark VIe 16-Port Ethernet Switch

Description

The General Electric IS420ESWBH3A is a managed Ethernet switch designed specifically for the Mark VIe control system environment. This 16-port IONet switch facilitates high-speed communication within distributed control architectures, providing...

16 people are viewing this right now

Availability: Low stock: 2 left

SKU: IS420ESWBH3A
Vendor: General Electric
Category: Ethernet Switch
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IS420ESWBH3A is a managed Ethernet switch designed specifically for the Mark VIe control system environment. This 16-port IONet switch facilitates high-speed communication within distributed control architectures, providing reliable connectivity for I/O modules and controllers. It is engineered for industrial performance, supporting 10/100 Base-TX copper connections in demanding environments.

Features

  • 16-port managed Ethernet switch configuration.
  • Optimized for IONet communication within the Mark VIe platform.
  • Supports 10/100 Base-TX copper Ethernet connectivity.
  • Robust isolation rating of 1500 V dc port-to-earth for signal integrity.
  • Designed for high-reliability operation in industrial control cabinets.

Technical Specifications

Model IS420ESWBH3A
Product Type Ethernet Switch
Ports 16 x 10/100 Base-TX Copper
Power Input 24 V dc nominal
Power Consumption 12 W typical
Isolation 1500 V dc port-to-earth
Operating Temperature -40 to +75 degC
Storage Temperature -40 to +85 degC
Humidity 5 to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the module is mounted in a clean, dry, and well-ventilated control cabinet to maintain specified operating temperatures.
  • Verify that the 24 V dc power supply is stable and properly grounded before connecting the switch.
  • Use shielded twisted-pair (STP) cabling for all copper Ethernet connections to minimize electromagnetic interference (EMI).
  • Maintain proper clearance around the unit to allow for adequate airflow and heat dissipation.
  • Always disconnect power before installing or removing the module from the DIN rail or rack assembly to prevent electrical damage.
  • Ensure all port connections are secure and that the switch is properly bonded to the system ground.

FAQ

What is the primary application of the IS420ESWBH3A?
This switch is primarily used as an IONet switch within the GE Mark VIe control system to manage data traffic between controllers and I/O devices.

Does this switch support fiber optic connections?
No, the IS420ESWBH3A is designed for copper-only 10/100 Base-TX Ethernet connectivity.

What is the power requirement for this unit?
The unit operates on a nominal 24 V dc power supply and typically consumes 12 W during operation.
