Description

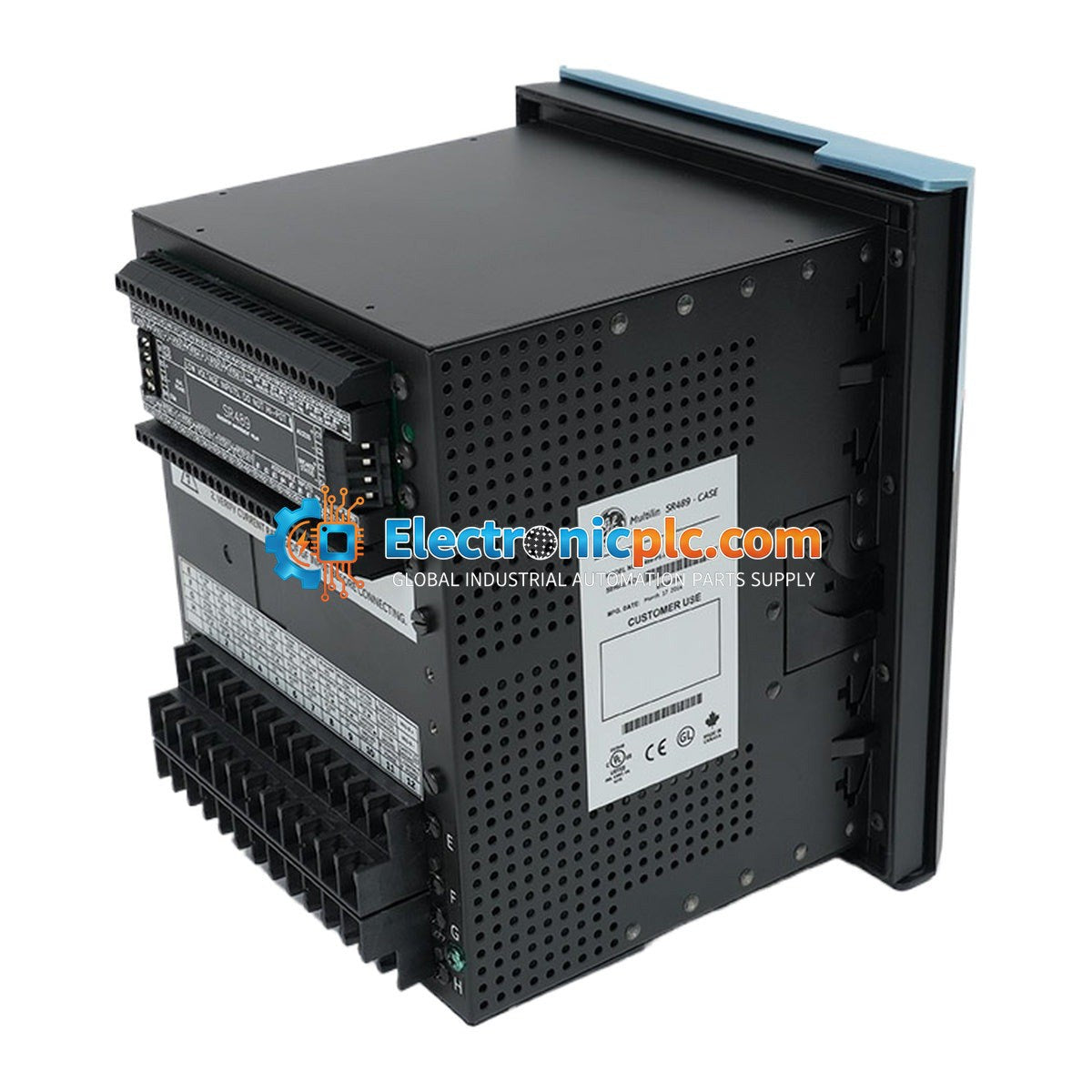

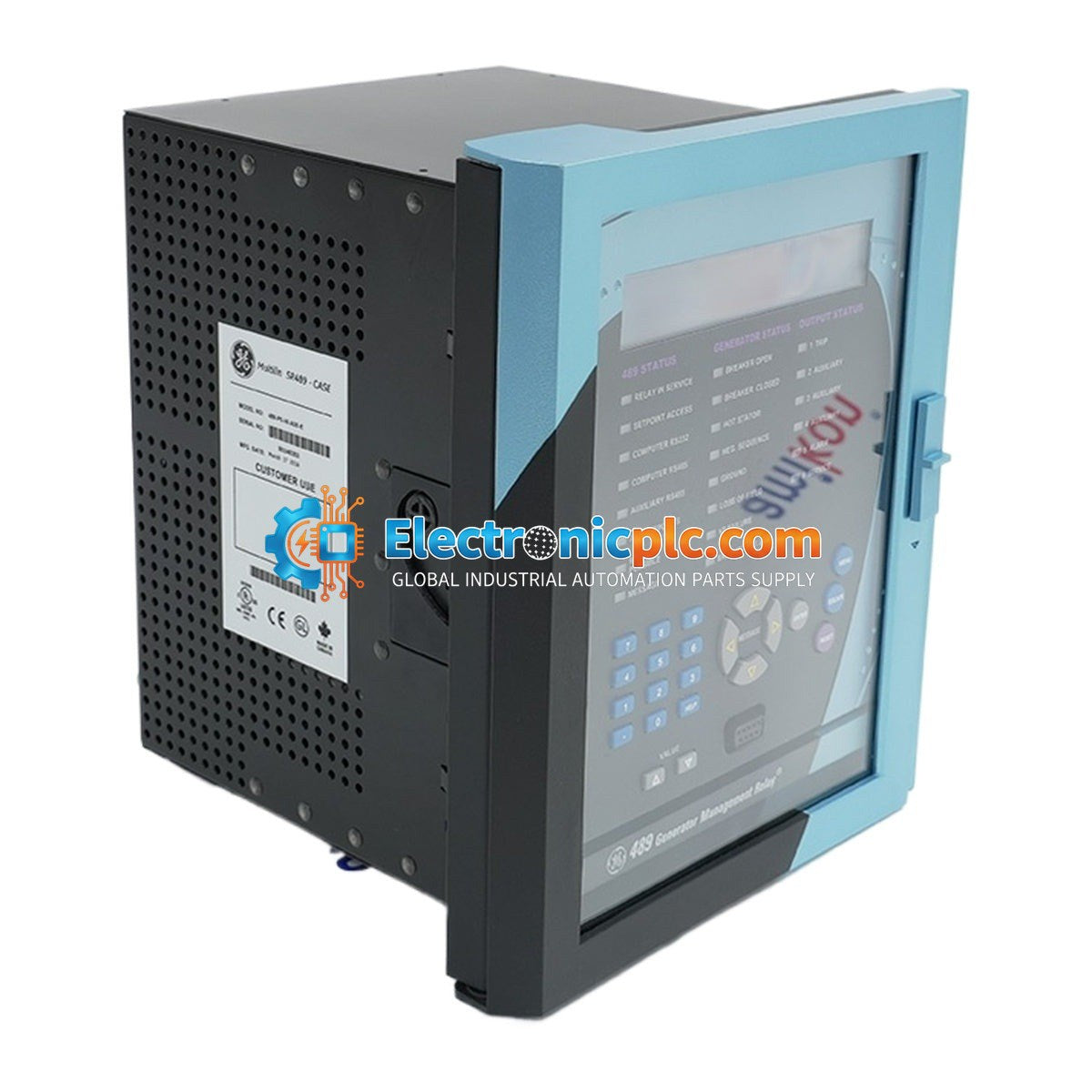

The General Electric Multilin 489-P5-HI-A20-E is a microprocessor-based generator management relay engineered for the comprehensive protection, control, and monitoring of small to medium-sized generators. As a key component of the SR family, it provides advanced features such as generator stator differential protection and detailed diagnostic logging to minimize troubleshooting time. This unit features a draw-out construction, allowing for efficient maintenance and reduced system downtime.

Features

• Comprehensive generator protection including stator differential, reverse power, overexcitation, and inadvertent energization.

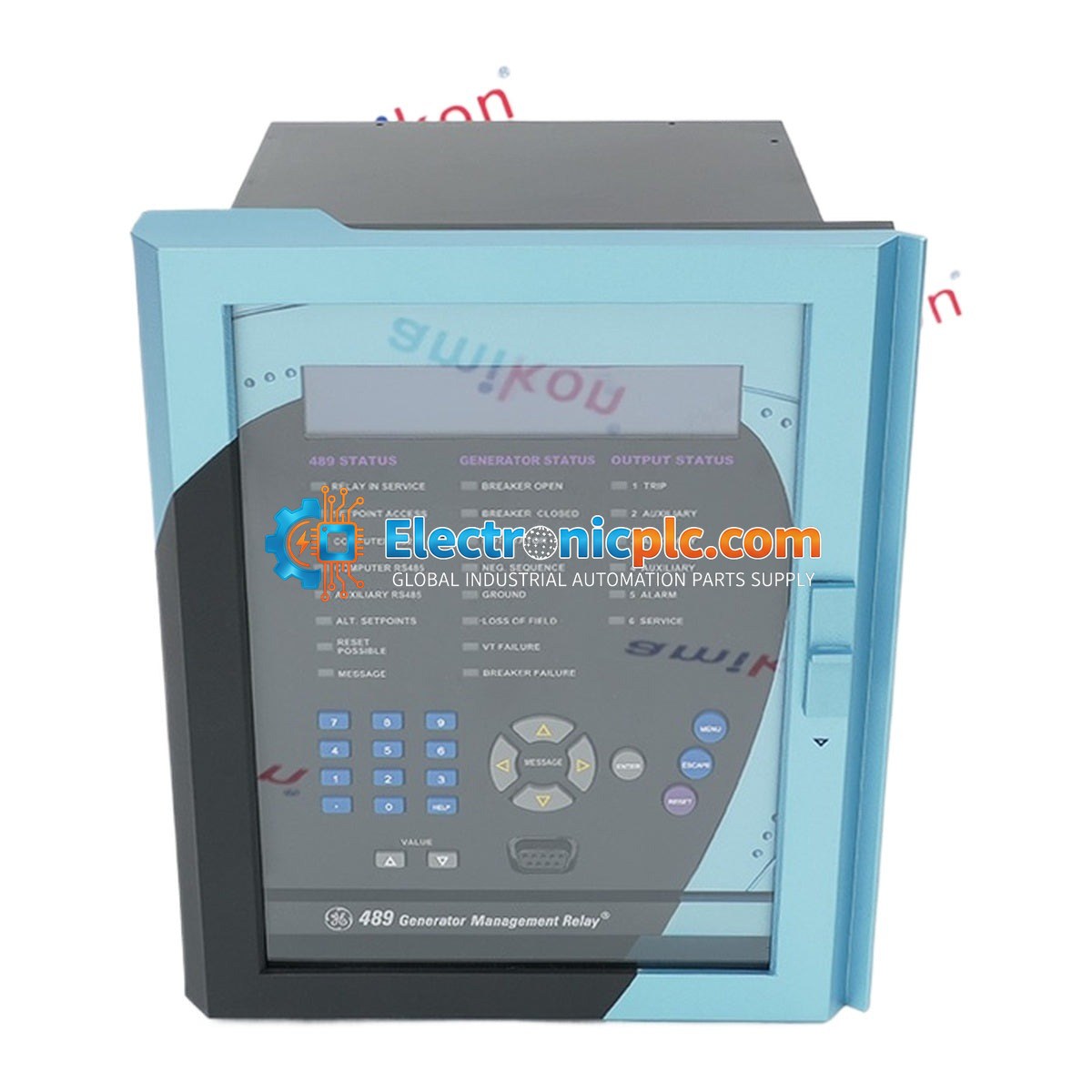

• Enhanced display unit for improved local monitoring and setpoint management.
• Supports RTD and analog inputs for monitoring critical parameters like bearing temperature and vibration.
• Integrated waveform capture, event recording, and data logging capabilities.
• Communication support via RS232, RS485, and Modbus protocols.
• Built-in waveform simulation tools for setpoint verification.

Applications

• Primary and backup protection for industrial power generation systems.
• Synchronization and protection management in cogeneration plants.
• Critical monitoring for high-demand industrial power environments.
• Stator and bearing temperature monitoring for generator health diagnostics.

Technical Specifications

Installation Guidelines

• Ensure the device is installed in a clean, dry environment protected from excessive vibration and extreme temperatures.
• Verify that the control power supply matches the 90-300 VDC or 70-265 VAC rating before energizing.
• Use shielded communication cables for RS485 connections to minimize EMI interference.
• The unit utilizes a draw-out design; ensure the chassis is properly seated and locked to maintain electrical continuity.
• Always power down the system before inserting or removing the relay module from the rack to prevent electrical arcing or damage to internal components.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module internals.

FAQs

What is the 489-P5-HI-A20-E?

The GE Multilin 489-P5-HI-A20-E is a microprocessor-based generator management relay designed for protecting, controlling, and monitoring small to medium-sized generators.

What is the function of the 489-P5-HI-A20-E?

It offers complete generator protection, including stator thermal protection, bearing over-temperature monitoring, and negative sequence overcurrent for rotor protection.

How do I view metered values?

Metered values (voltage, current, power) are available on the front panel display or via communication ports.

Does the relay support 4-wire RS485?

No, the 489-P5-HI-A20-E communicates only in 2-wire half-duplex mode.

What are the analog output ranges?

The analog outputs are 4 to 20 mA.
