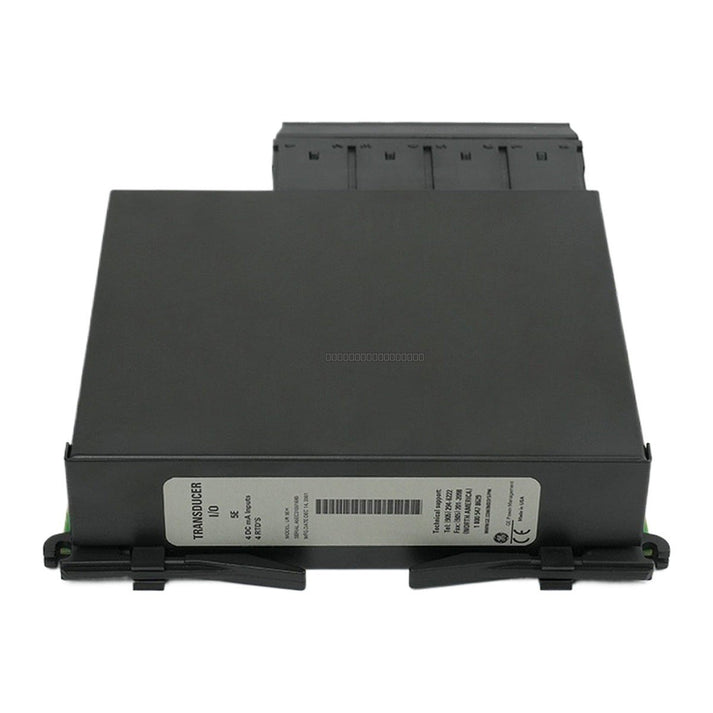

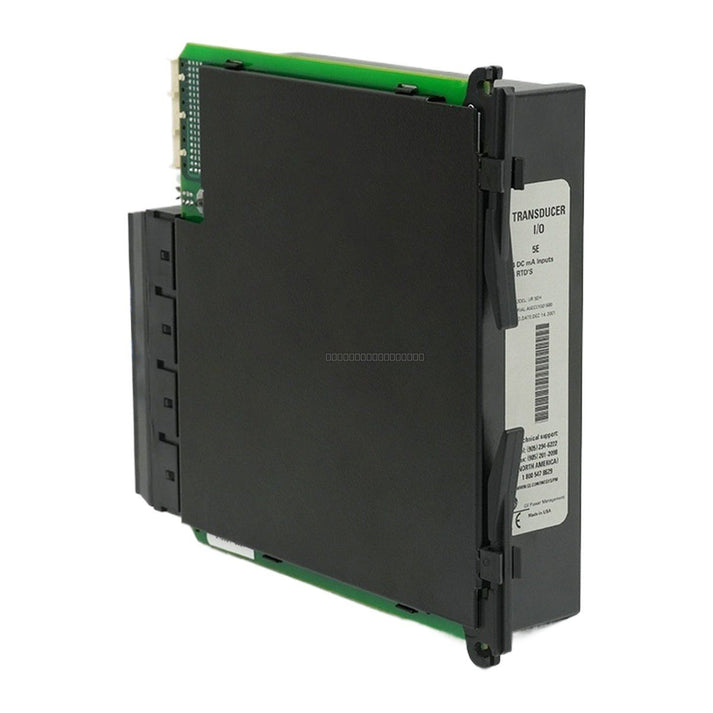

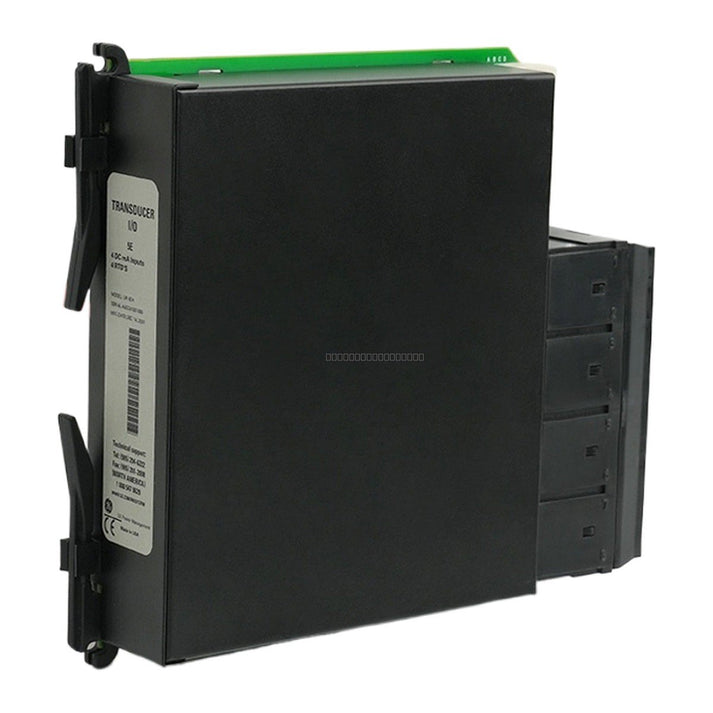

General Electric Multilin UR 5EH Transducer I/O Module

General Electric Multilin UR 5EH Transducer I/O Module

The General Electric Multilin UR 5EH is a high-performance Transducer I/O Module designed for use within the Universal Relay (UR) protection system. This horizontal unit is specifically engineered to provide...

24 people are viewing this right now

Availability: Low stock: 1 left

SKU: UR 5EH
Vendor: General Electric
Category: Transducer I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric Multilin UR 5EH is a high-performance Transducer I/O Module designed for use within the Universal Relay (UR) protection system. This horizontal unit is specifically engineered to provide reliable data acquisition for industrial monitoring applications, featuring 8 RTD inputs for precise temperature sensing.

Features

  • 8 RTD input channels for comprehensive temperature monitoring.
  • Robust industrial design suitable for harsh environments.
  • High input impedance in voltage mode (> 1 MΩ).
  • Standardized current mode input impedance (250 Ω).
  • Galvanic isolation rated at 2.5 kV RMS for signal integrity and protection.

Technical Specifications

Product Model UR 5EH
Module Type Transducer I/O Module
Input Channels 8 RTD
Voltage Mode Impedance > 1 MΩ
Current Mode Impedance 250 Ω
Maximum Input ±15 V DC or ±30 mA
Isolation 2.5 kV RMS
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC

Installation Guidelines

  • Ensure the system is powered down before installing or removing the module from the UR chassis to prevent electrical damage.
  • Verify that the module is securely seated in the designated horizontal slot and that all locking mechanisms are engaged.
  • Use shielded cabling for RTD inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Maintain proper ventilation within the cabinet to ensure the module operates within its specified temperature range of -40 degC to +70 degC.
  • Adhere to standard ESD (Electrostatic Discharge) handling procedures when touching internal circuitry or connectors.

FAQ

What type of inputs does the UR 5EH support?

The UR 5EH is a Transducer I/O module specifically configured with 8 RTD (Resistance Temperature Detector) inputs for temperature measurement.

Is this module compatible with other Universal Relay series components?

Yes, the UR 5EH is designed as a component of the General Electric Multilin UR platform. Ensure your specific relay chassis supports the horizontal I/O configuration.
