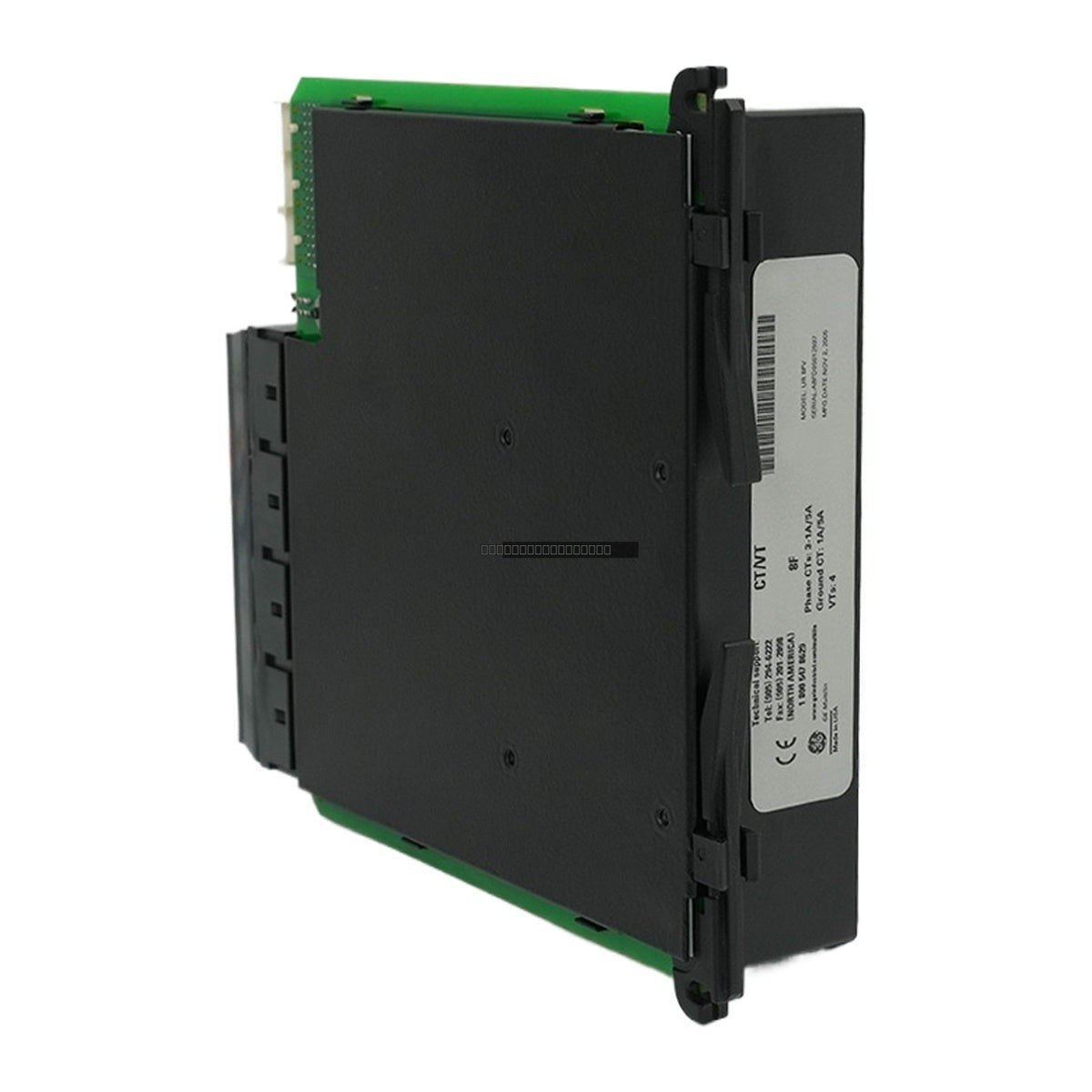

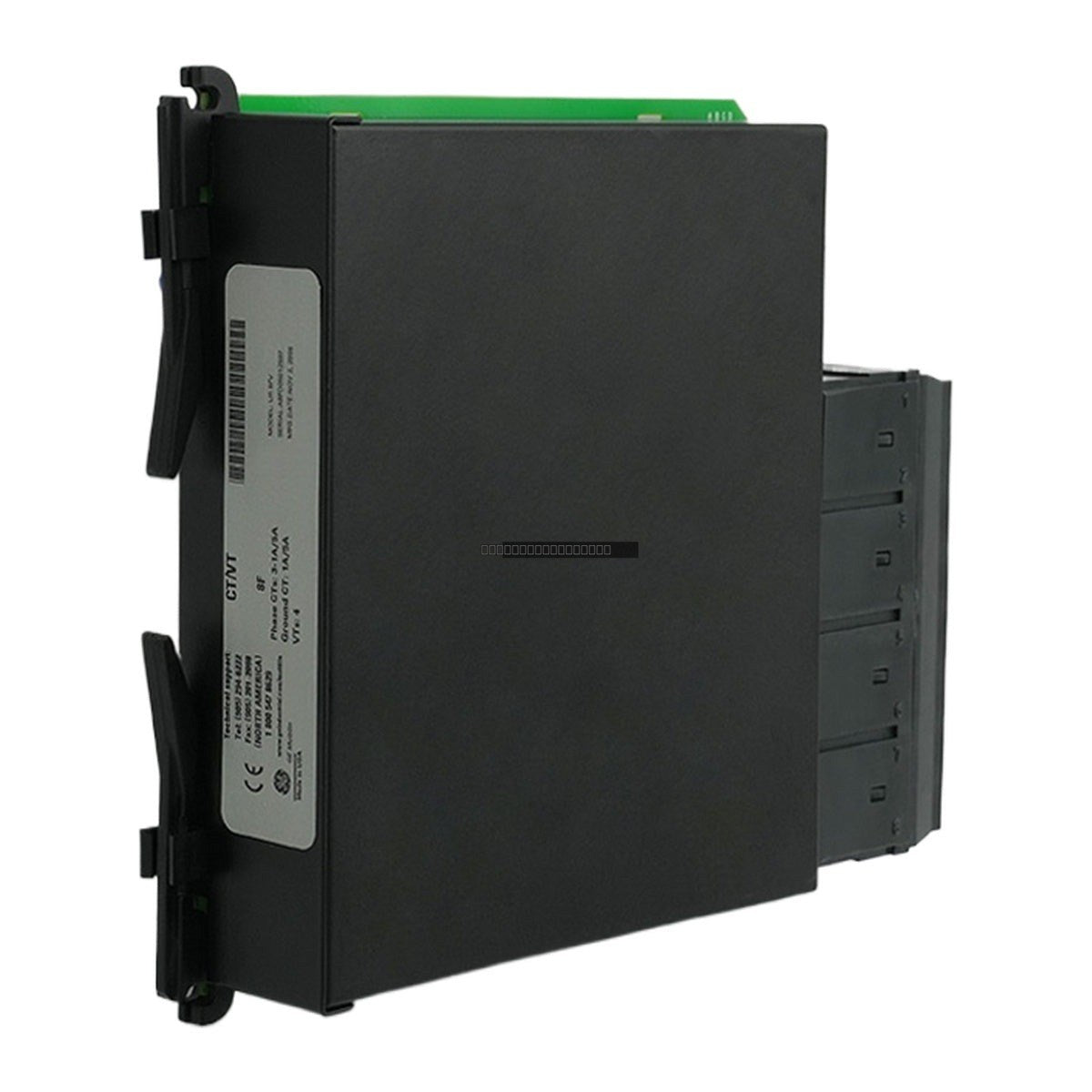

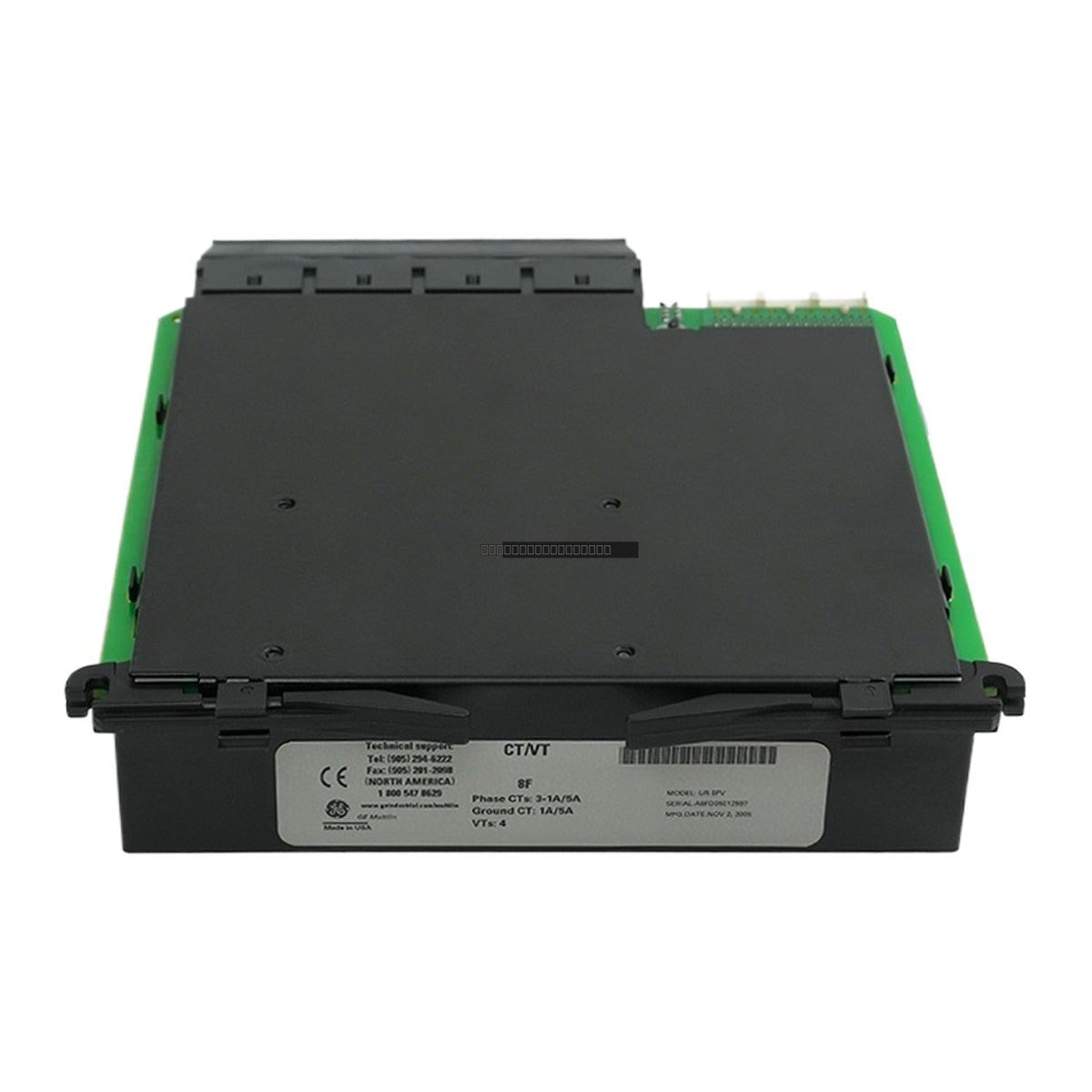

General Electric Multilin UR 8FV Relay Module

General Electric Multilin UR 8FV Relay Module

The General Electric Multilin UR 8FV is a high-performance relay module designed for the Universal Relay (UR) series, providing robust protection and control capabilities for industrial power systems. This module...

26 people are viewing this right now

Availability: Low stock: 2 left

SKU: UR 8FV
Vendor: General Electric
Category: Relay Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric Multilin UR 8FV is a high-performance relay module designed for the Universal Relay (UR) series, providing robust protection and control capabilities for industrial power systems. This module is engineered to support wide-range power supply inputs and precise measurement accuracy, ensuring reliable operation in demanding electrical environments.

Features

  • Wide-range power supply compatibility: 85-265 VAC / 100-300 VDC.
  • High-precision measurement: ±0.5% accuracy for voltage and ±1% accuracy for current inputs.
  • Integrated communication: Supports 10/100 Mbps Ethernet connectivity for seamless system integration.
  • Industrial-grade durability: Rated for reliable operation in temperatures ranging from -40 degC to +70 degC.
  • Flexible input configurations: Supports 1A or 5A current inputs and 100V or 120V voltage inputs.

Applications

This relay module is primarily utilized within the GE Multilin UR protection platform. It is suitable for utility and industrial power distribution systems, including transformer protection, generator management, and feeder protection schemes where high-speed relaying and network communication are required.

Technical Specifications

Product Model UR 8FV
Operating Voltage 85-265 VAC / 100-300 VDC
Frequency 50/60 Hz
Contact Ratings 10A at 250VAC
Communication 10/100 Mbps Ethernet
Operating Temperature -40 degC to +70 degC

Installation Guidelines

  • Ensure the system is fully de-energized before installing or removing the module from the rack.
  • Verify that the module is securely seated in the designated UR chassis slot to ensure proper backplane connection.
  • Use shielded twisted-pair cabling for Ethernet connections to minimize electromagnetic interference (EMI).
  • Maintain adequate ventilation around the chassis to prevent heat buildup, adhering to the specified operating temperature range.
  • Ensure proper grounding of the chassis to a common station ground to protect against surge transients.

FAQ

Q: Is the UR 8FV compatible with all UR series chassis?
A: The UR 8FV is designed for the GE Multilin UR platform. Please verify your specific chassis revision and firmware compatibility before installation.

Q: What is the primary function of this module?
A: This is a relay output module used for control and protection switching within the UR relay system.
