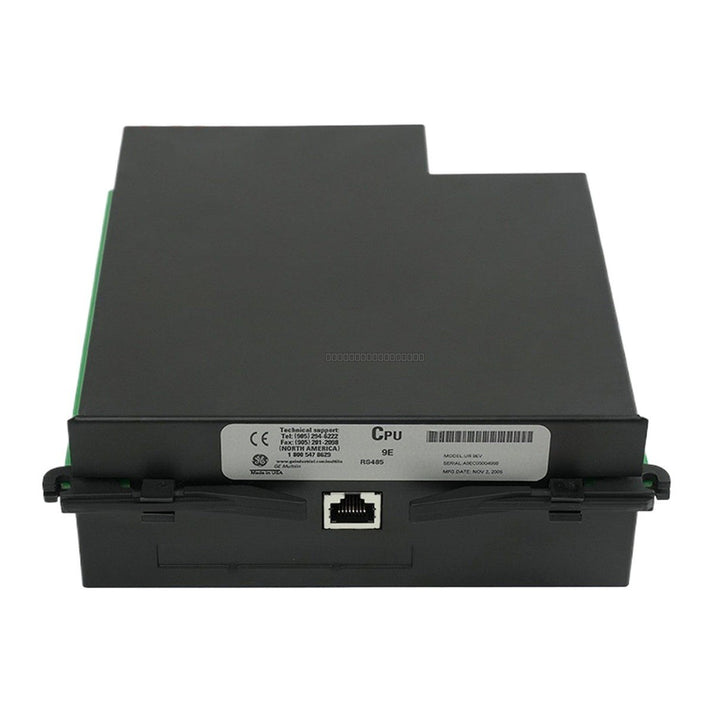

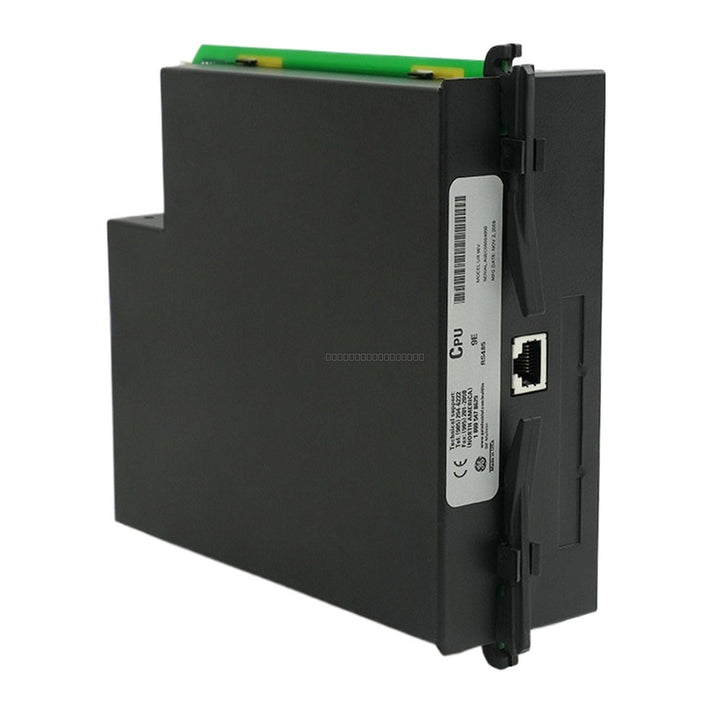

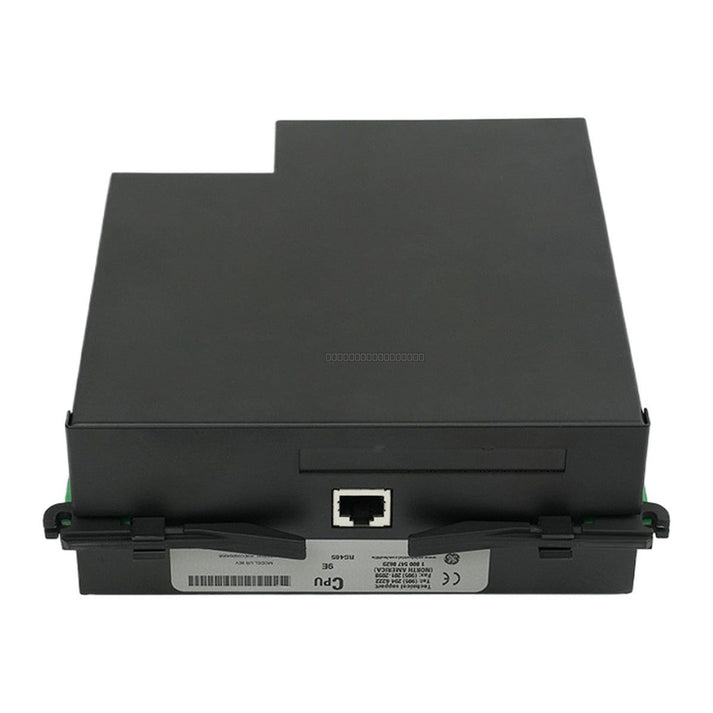

General Electric Multilin UR 9EV CPU Processor Module

General Electric Multilin UR 9EV CPU Processor Module

The General Electric Multilin UR 9EV is a high-performance CPU processor module designed for the Universal Relay (UR) platform. This module serves as the central processing unit for protection and...

26 people are viewing this right now

Availability: Low stock: 1 left

SKU: UR 9EV
Vendor: General Electric
Category: CPU Processor Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric Multilin UR 9EV is a high-performance CPU processor module designed for the Universal Relay (UR) platform. This module serves as the central processing unit for protection and control relays, providing advanced computational capabilities for demanding industrial power system applications.

Features

  • High-speed processing architecture for real-time protection and control.
  • 16-bit A/D conversion resolution for precise signal measurement.
  • Sampling rate of 64 samples per cycle to ensure accurate waveform analysis.
  • Designed for integration within the Multilin UR series relay chassis.
  • Robust thermal design suitable for harsh industrial environments.

Technical Specifications

Product Model UR 9EV
Module Type CPU Processor Module
Operating Voltage 220 V
Output Frequency 50 kHz
A/D Conversion 16-bit resolution
Sampling Rate 64 samples/cycle
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5% to 95% RH (non-condensing)

Installation Guidelines

  • Ensure the relay chassis is powered down before attempting to install or remove the UR 9EV module.
  • Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
  • Verify that the module is fully seated in the designated CPU slot and that the locking mechanisms are engaged.
  • Ensure adequate ventilation around the relay housing to maintain operating temperatures within the specified -40 degC to +70 degC range.
  • Confirm that the input voltage matches the 220 V rating before energizing the system.

FAQ

What is the primary function of the UR 9EV?

The UR 9EV is a CPU processor module used in General Electric Multilin Universal Relays to handle logic, protection algorithms, and system communication.

Is this module compatible with all UR series relays?

The UR 9EV is specific to the Multilin UR platform. Please verify your relay's specific hardware revision and compatibility requirements before installation.

What are the environmental requirements for this module?

The module is designed for industrial use with an operating temperature range of -40 degC to +70 degC and should be kept in a non-condensing environment with humidity between 5% and 95%.
