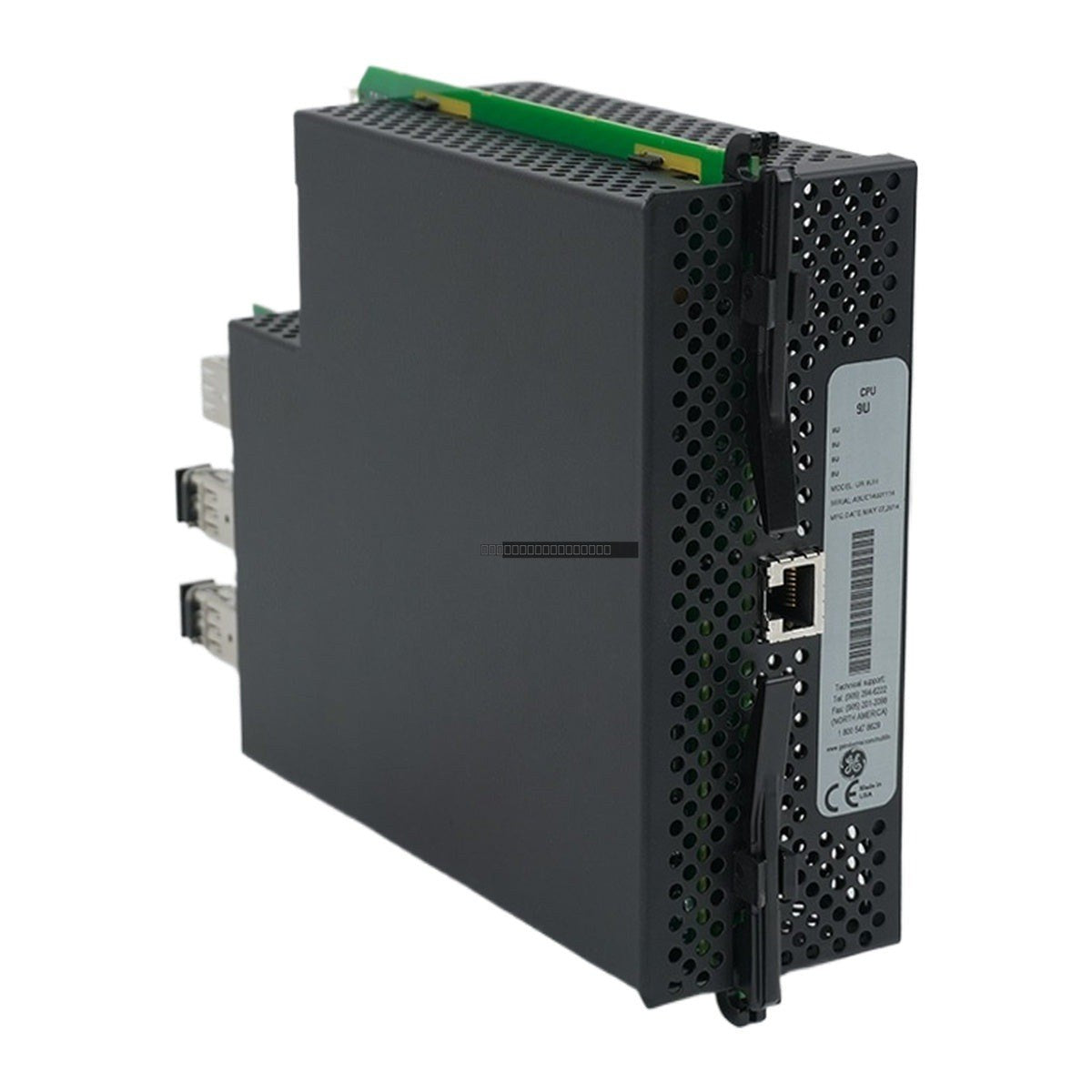

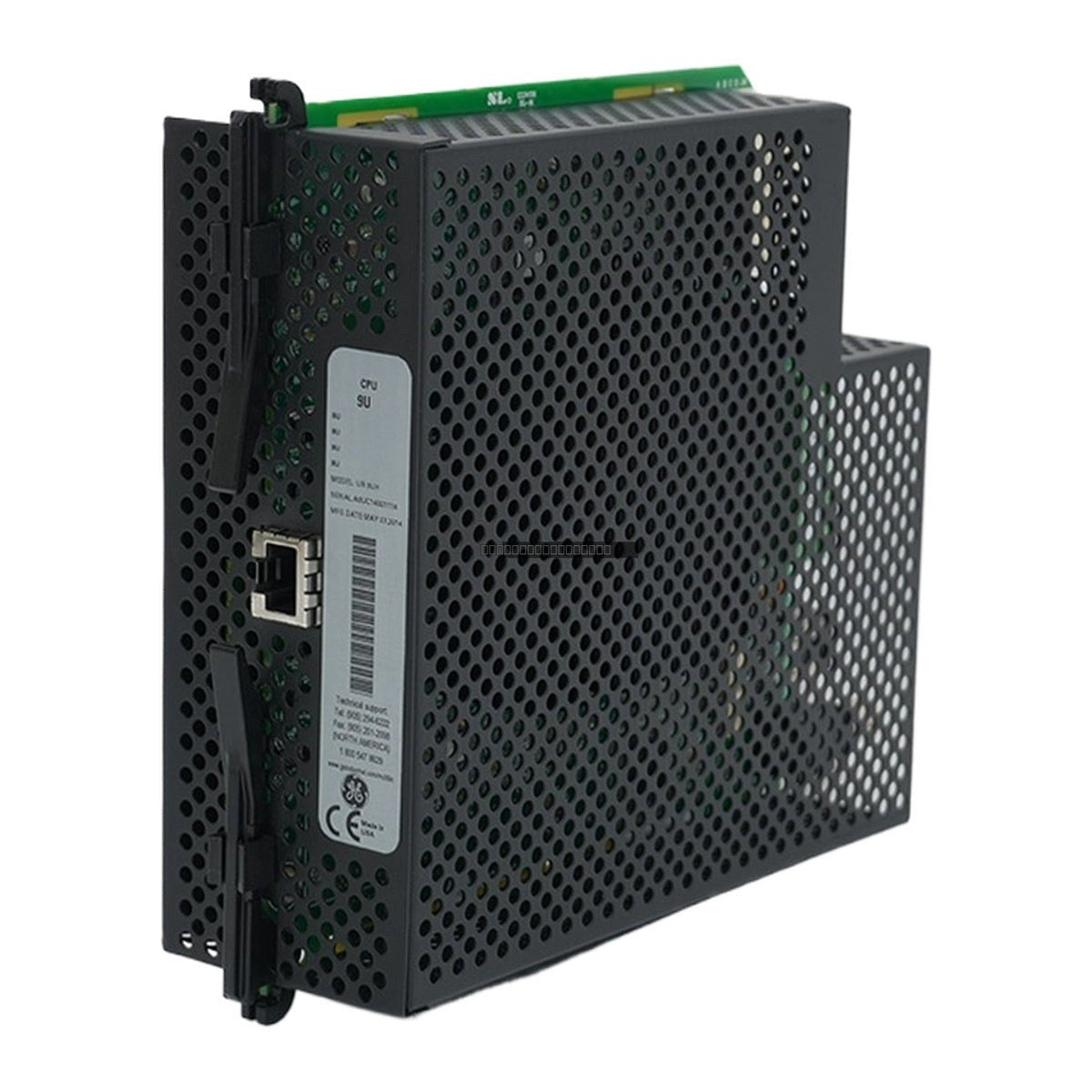

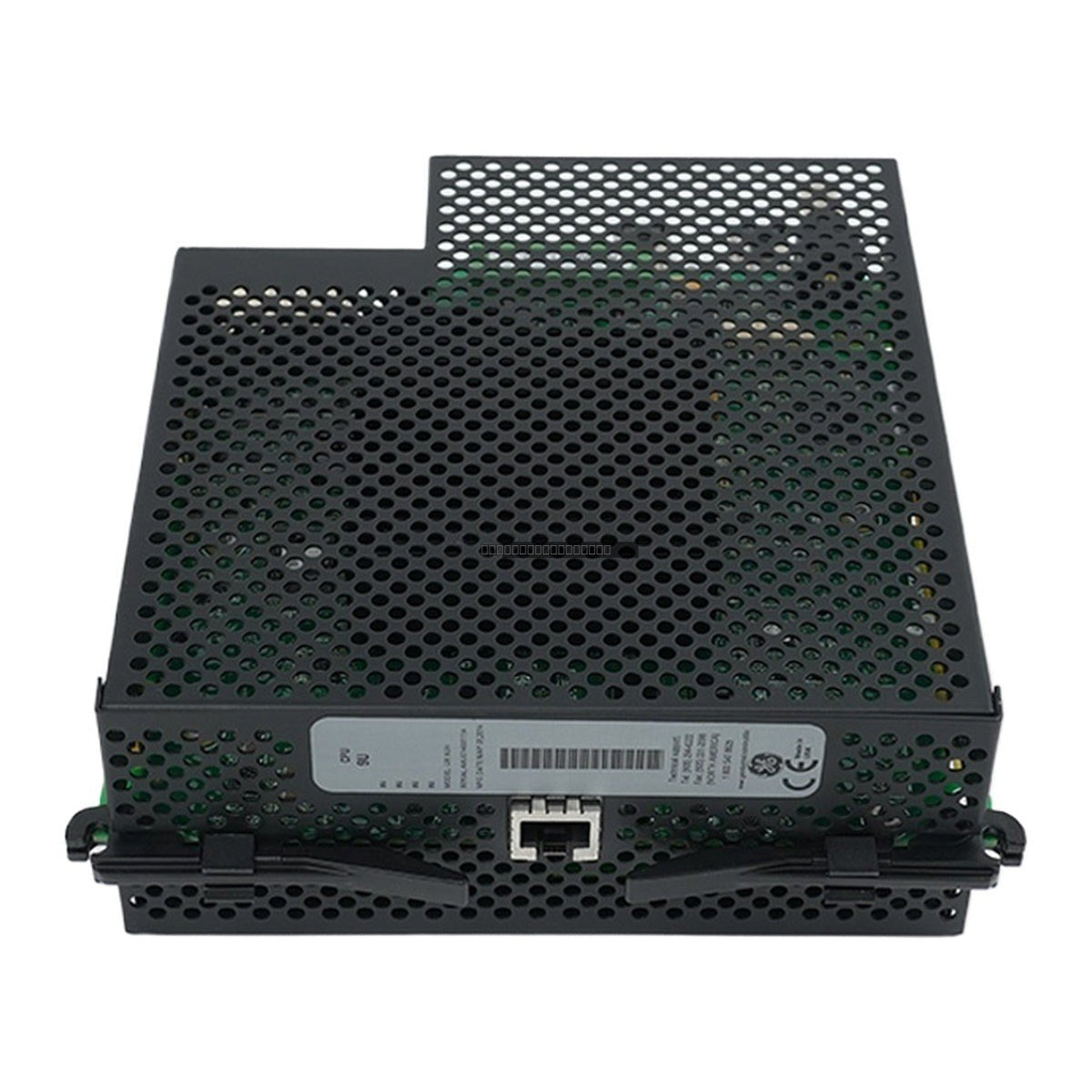

General Electric Multilin UR 9UH CPU Module

General Electric Multilin UR 9UH CPU Module

The General Electric Multilin UR 9UH is a high-performance CPU module designed for the Universal Relay (UR) platform. It functions as the central processing engine for the relay, executing critical...

26 people are viewing this right now

Availability: Low stock: 4 left

SKU: UR 9UH
Vendor: General Electric
Category: CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric Multilin UR 9UH is a high-performance CPU module designed for the Universal Relay (UR) platform. It functions as the central processing engine for the relay, executing critical protection logic, control functions, and monitoring routines essential for power system automation and protection.

Features

  • Core processing engine for UR Series relays, supporting complex protection algorithms for generators, transformers, motors, and transmission lines.
  • Integrated communication suite including one 10/100 Base-T Ethernet port (RJ45), two 100 Base-FX fiber optic ports (LC connector, multimode 1310 nm), and one RS485 serial port.
  • Supports advanced industry protocols: IEC 61850, DNP3, Modbus RTU/TCP, and IEEE C37.118 synchrophasors.
  • Enables high-speed network redundancy via Parallel Redundancy Protocol (PRP) and precise time synchronization using IEEE 1588 PTP (accuracy up to 1 microsecond).
  • Equipped with a 1 GHz embedded processor, 512 MB RAM, and 1 GB flash storage for deterministic real-time data processing.

Applications

  • Generator Protection: Monitoring voltage, frequency, and current for medium to large-scale generators.
  • Transmission Line Management: Providing distance and differential protection for grid stability.
  • Transformer and Motor Protection: Implementing thermal modeling and fault detection.
  • Substation Automation: Facilitating high-speed SCADA/DCS integration and centralized breaker control.

Technical Specifications

Model UR 9UH
Processor 1 GHz Embedded
Memory 512 MB RAM / 1 GB Flash
Ethernet Port 1 x 10/100 Base-T (RJ45)
Fiber Optic Ports 2 x 100 Base-FX (LC, Multimode 1310nm)
Serial Port 1 x RS485
Operating Temperature -40 degC to +70 degC
Storage Temperature -40 degC to +85 degC
Humidity 5% to 95% non-condensing

Installation Guidelines

  • The UR 9UH is a modular component intended for rack mounting within the standard UR relay chassis.
  • Ensure the relay is fully powered down before inserting or removing the CPU module to prevent electrical damage.
  • Verify that the input voltage matches the specific relay configuration requirements.
  • Maintain proper grounding of the chassis to ensure electromagnetic compatibility and operator safety.
  • Configuration and setpoint management are conducted via the EnerVista Launchpad software suite.

FAQ

What is the primary function of the UR9UH module?

The UR9UH acts as the central processing unit (CPU) for the Universal Relay platform. It manages the relay's internal logic, executes protection algorithms, and handles multi-protocol communication for substation automation.

Does this module support IEC 61850?

Yes, the UR9UH supports advanced communication protocols including IEC 61850, DNP3, and Modbus TCP/RTU.

Is this module compatible with older UR relay hardware?

The UR9UH is designed to maintain compatibility within the Universal Relay (UR) family, supporting various models such as the D60, F60, G60, and L90.
