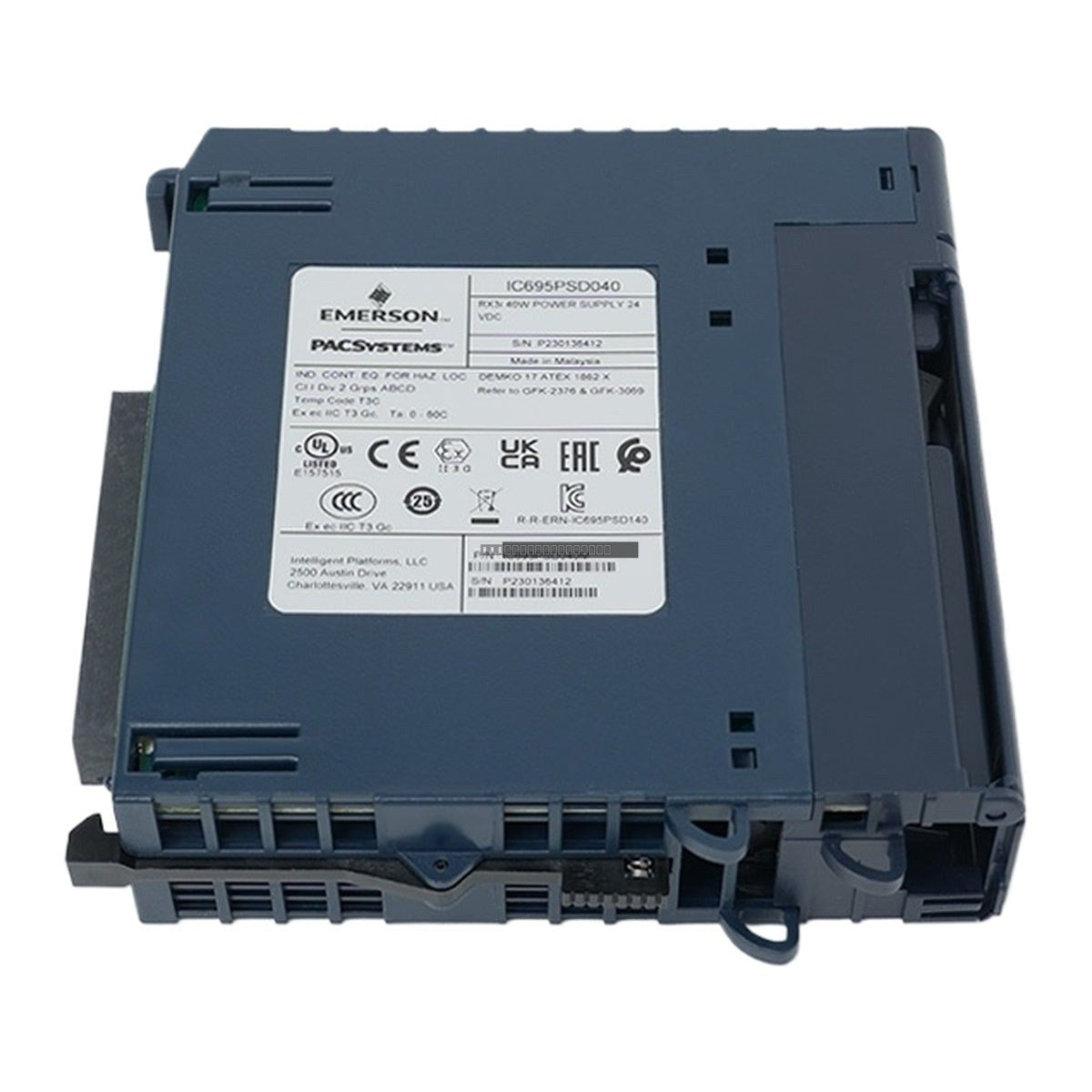

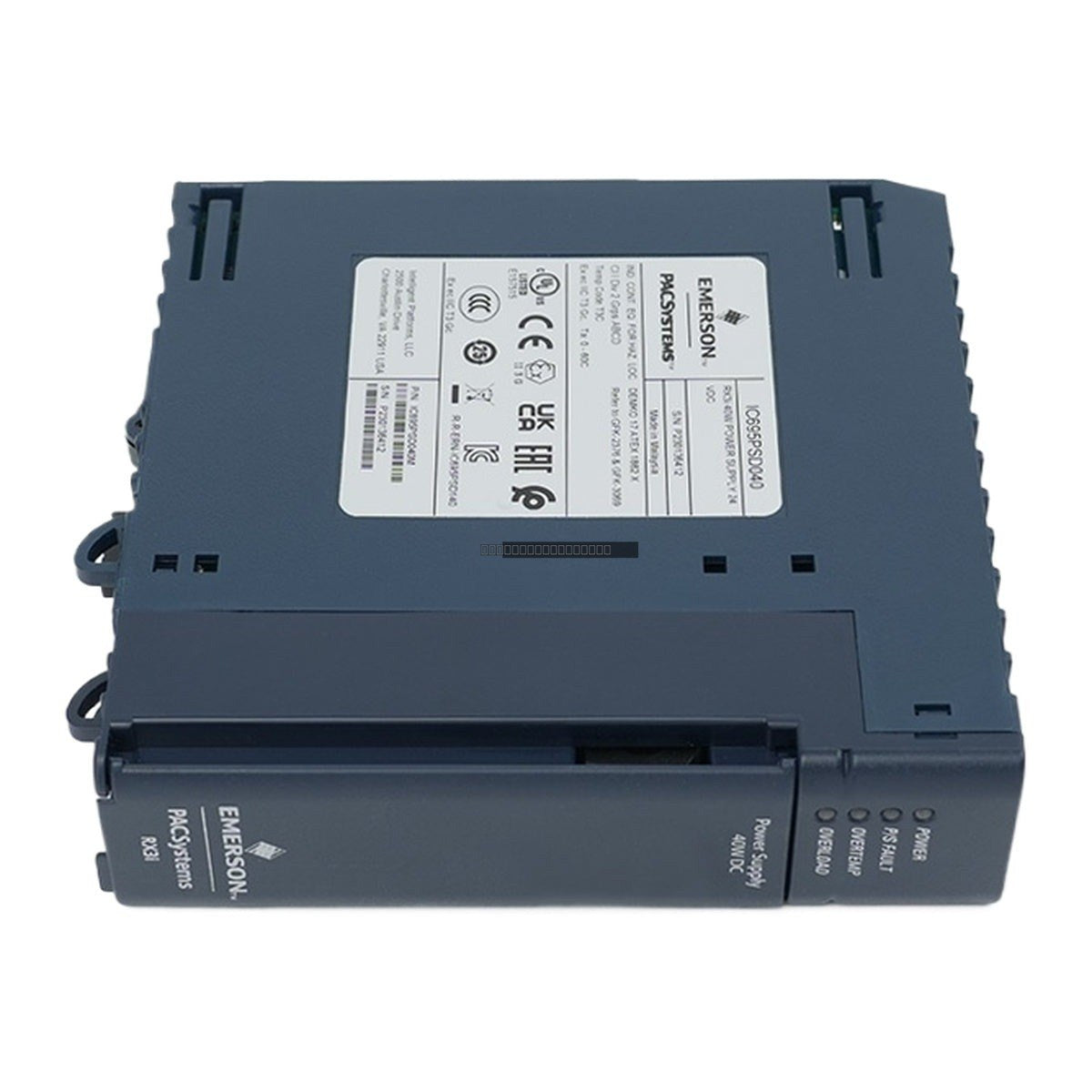

General Electric IC695PSD040M PACSystems RX3i Universal Power Supply Module

General Electric IC695PSD040M PACSystems RX3i Universal Power Supply Module

The General Electric IC695PSD040M is a high-performance Universal Power Supply module designed for the PACSystems RX3i control platform. This module is engineered to provide reliable power distribution across the RX3i...

21 people are viewing this right now

Availability: In stock

SKU: IC695PSD040M
Vendor: General Electric
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC695PSD040M is a high-performance Universal Power Supply module designed for the PACSystems RX3i control platform. This module is engineered to provide reliable power distribution across the RX3i backplane, ensuring stable operation for various I/O and processor modules within the system rack.

Features

  • Designed for seamless integration with the PACSystems RX3i Universal Backplane.
  • Occupies a single slot in the RX3i rack for efficient space utilization.
  • Provides a total output load capacity of 40 Watts.

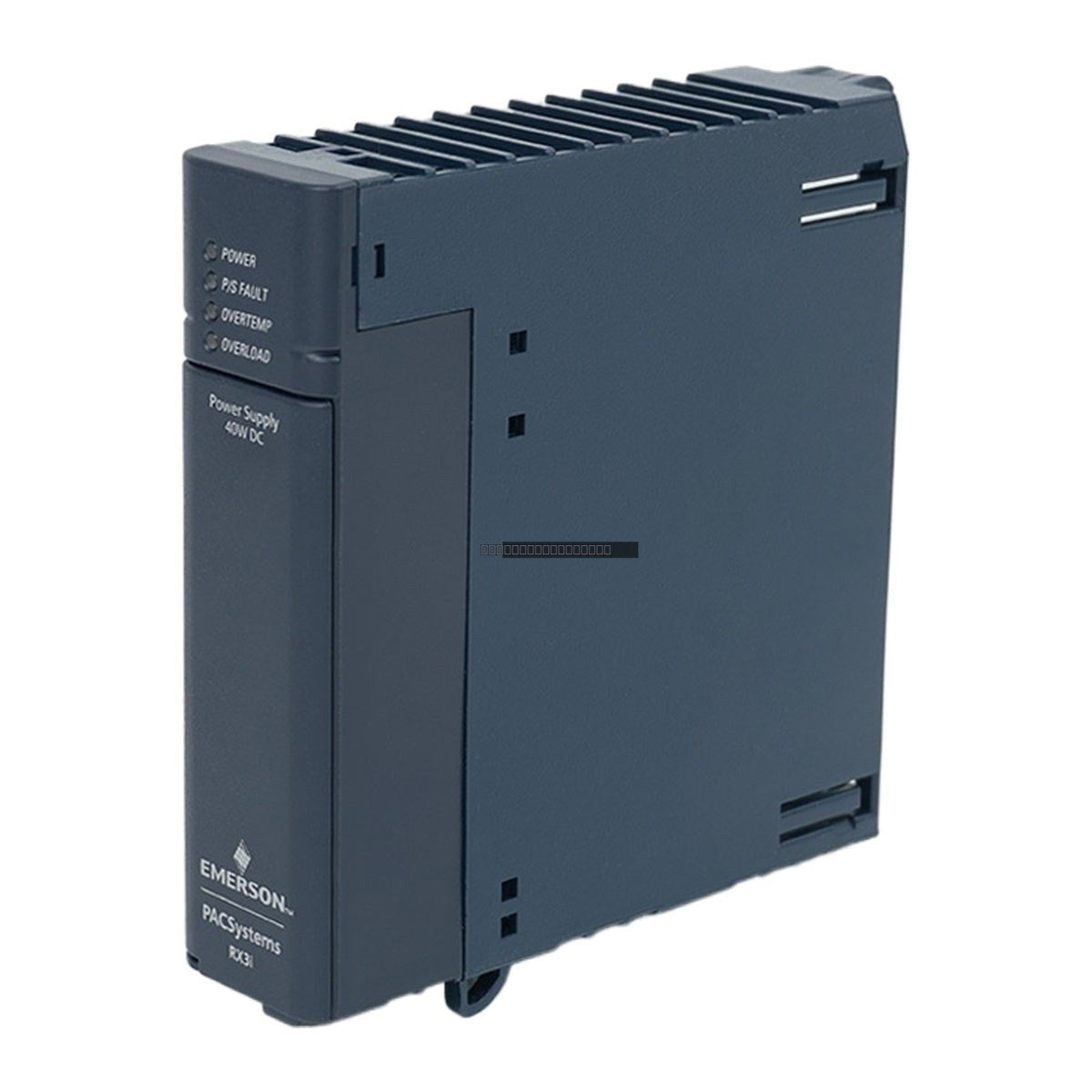

  • Integrated diagnostic indicators for Power status, Power Supply (P/S) Fault, Overload, and Overtemperature conditions.
  • Supports wire gauges ranging from 14 AWG to 22 AWG, with a capacity of one wire per terminal.

Technical Specifications

Product Model IC695PSD040M
Module Type Universal Base Power Supply
Nominal Input Voltage 24 VDC
Input Voltage Range 18 VDC to 30 VDC
Total Output Power 40 Watts
Input Power Rating 60 Watts
Slot Occupancy 1 Slot
Terminal Capacity 14 AWG to 22 AWG (1 wire per terminal)

Installation Guidelines

  • Ensure the rack is powered down before inserting or removing the power supply module to prevent electrical damage.
  • Verify that the input voltage is within the specified 18 VDC to 30 VDC range before applying power.
  • Ensure proper grounding of the RX3i backplane to minimize electromagnetic interference (EMI).
  • Maintain adequate clearance around the module to allow for proper heat dissipation and airflow.
  • Use appropriate wire gauges (14-22 AWG) and ensure terminals are tightened to the recommended torque specifications to prevent loose connections.

FAQ

What is the primary function of the IC695PSD040M?
This module serves as a universal power supply for the RX3i system, converting 24 VDC input power into the necessary voltages required by the backplane and connected modules.

How many slots does this power supply occupy?
The IC695PSD040M is designed to occupy exactly one slot in the RX3i universal backplane.

What do the diagnostic LEDs indicate?
The LEDs provide real-time status updates, specifically alerting the user to power supply faults, system overloads, or overtemperature conditions that may require maintenance.
