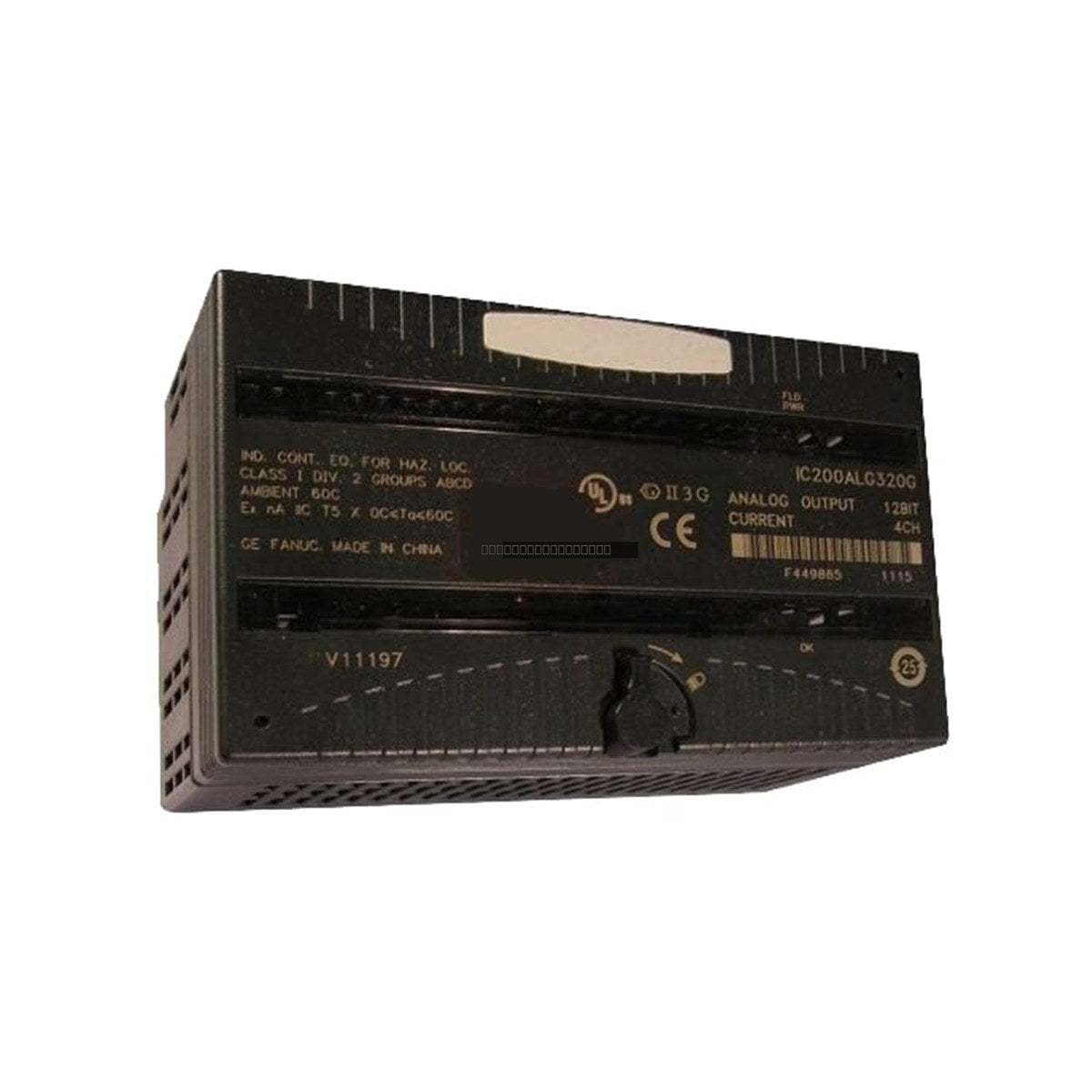

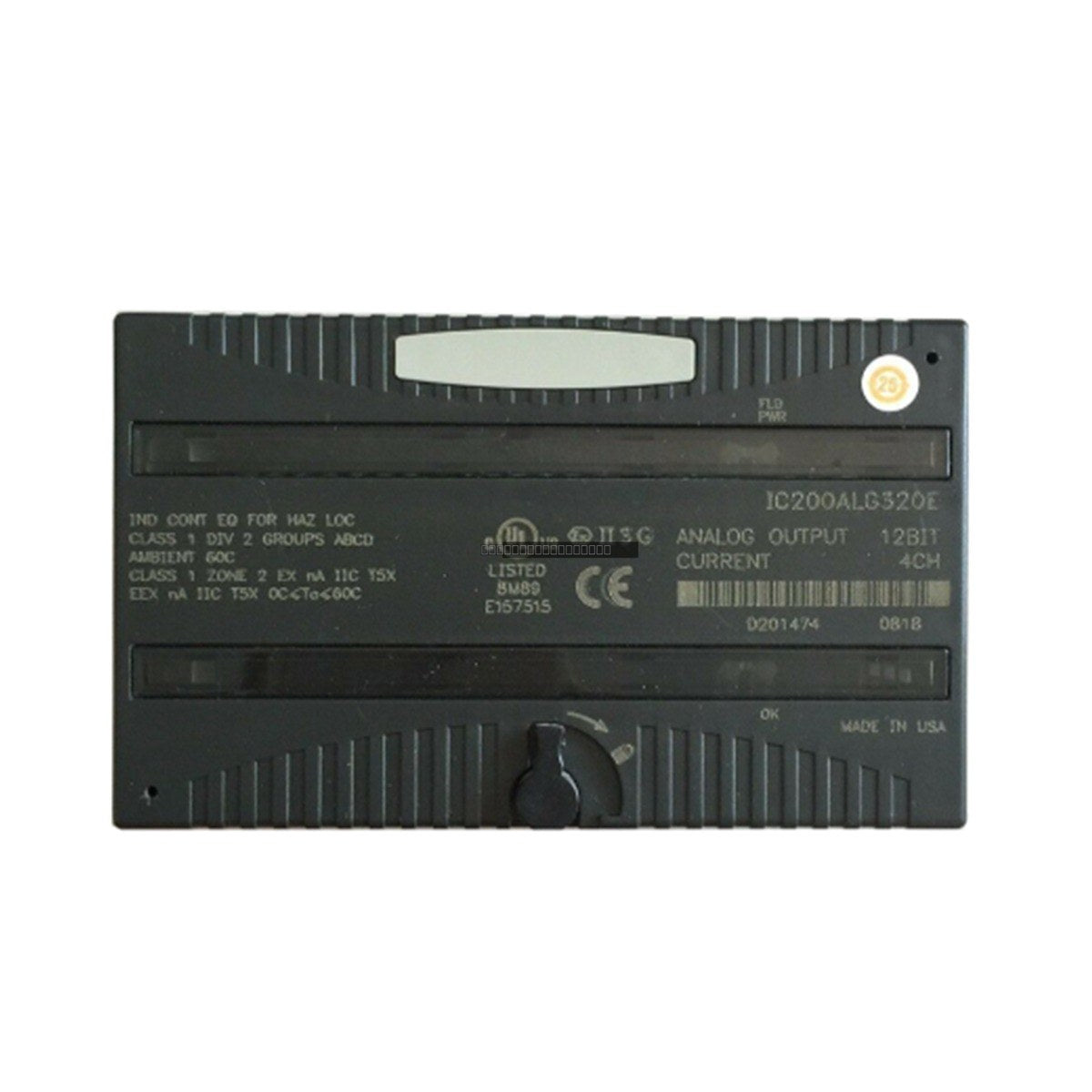

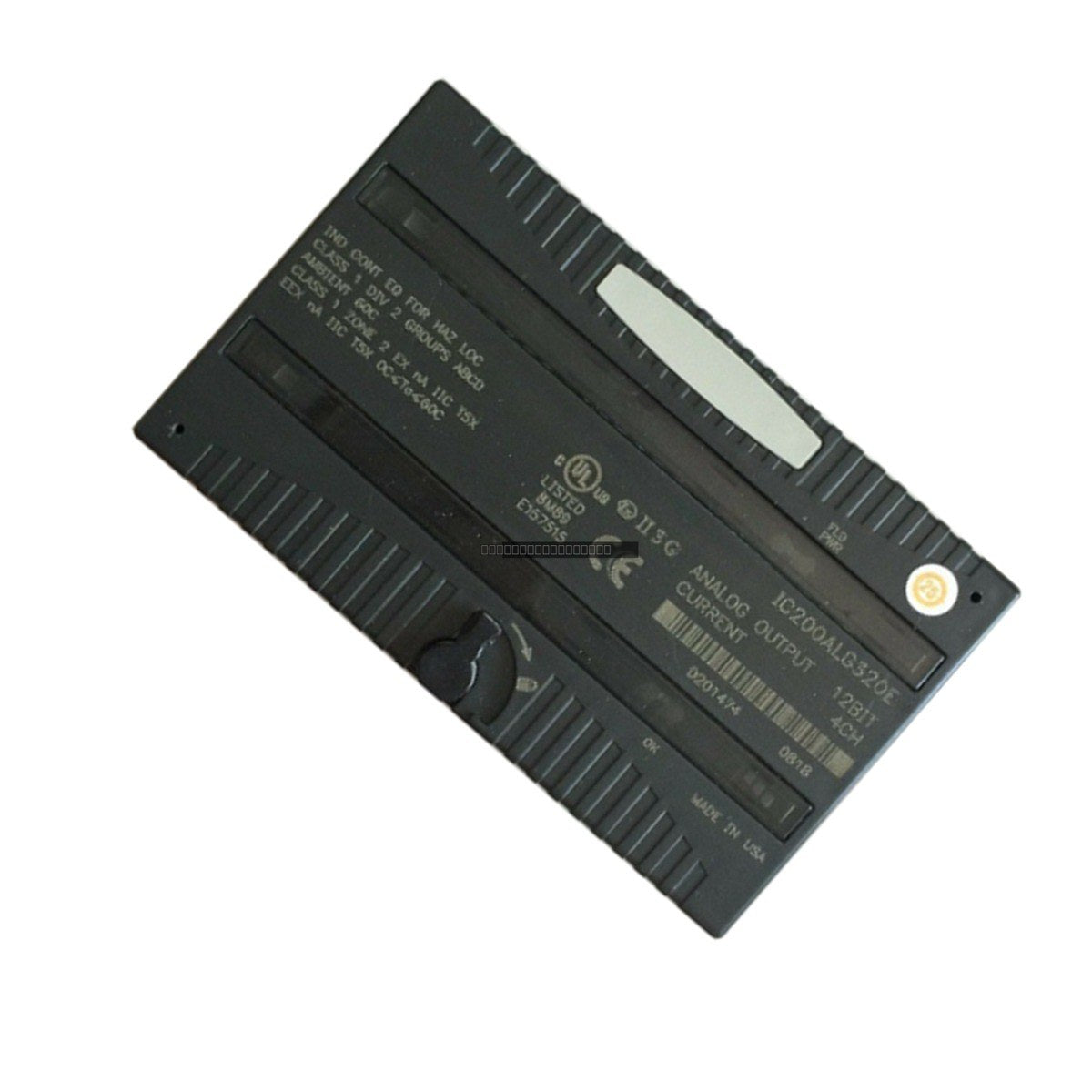

General Electric IC200ALG320J VersaMax Analog Output Module

General Electric IC200ALG320J VersaMax Analog Output Module

Description

The General Electric IC200ALG320J is a high-performance analog output module designed for the VersaMax I/O system. This module provides four single-ended analog output channels, configured as a single group, to...

21 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC200ALG320J
Vendor: General Electric
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200ALG320J is a high-performance analog output module designed for the VersaMax I/O system. This module provides four single-ended analog output channels, configured as a single group, to facilitate precise control of field devices in industrial automation environments. It is engineered to deliver reliable signal conversion and output regulation, ensuring consistent process control performance.

Features

  • Four single-ended analog output channels.
  • Supports a standard 4-20 mA current output range.
  • Fast update rate of 0.3 ms for responsive control loops.
  • Integrated LED status indicators for Field Power (FLD PWR) and module health (OK).
  • Low power consumption, drawing 50 mA from the 5V backplane bus.
  • Designed for seamless integration into the VersaMax modular I/O architecture.

Technical Specifications

Model IC200ALG320J
Manufacturer General Electric
Number of Channels 4 single-ended (one group)
Output Current Range 4 - 20 mA
Voltage Range 18 - 30 VDC
Update Rate 0.3 ms
Power Consumption 50 mA from 5V bus
Indicators FLD PWR, OK

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the I/O rack.
  • Verify that the module is fully seated in the carrier to ensure proper backplane connection.
  • Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI).
  • Maintain proper grounding practices for the I/O rack to protect against electrical noise and surges.
  • Ensure adequate ventilation in the control cabinet to maintain operating temperatures within specified limits.
  • Handle the module using ESD-safe procedures to prevent damage to sensitive internal components.

FAQ

What is the primary function of the IC200ALG320J?

This module is an analog output unit used in the VersaMax system to convert digital data from the PLC into 4-20 mA current signals for controlling field devices such as actuators, valves, or variable frequency drives.

Does this module require external power?

Yes, the module requires an external field power supply within the 18-30 VDC range to drive the analog output channels.

How are the channels configured?

The module features four single-ended channels that share a common group, providing a compact solution for multi-channel analog control.
