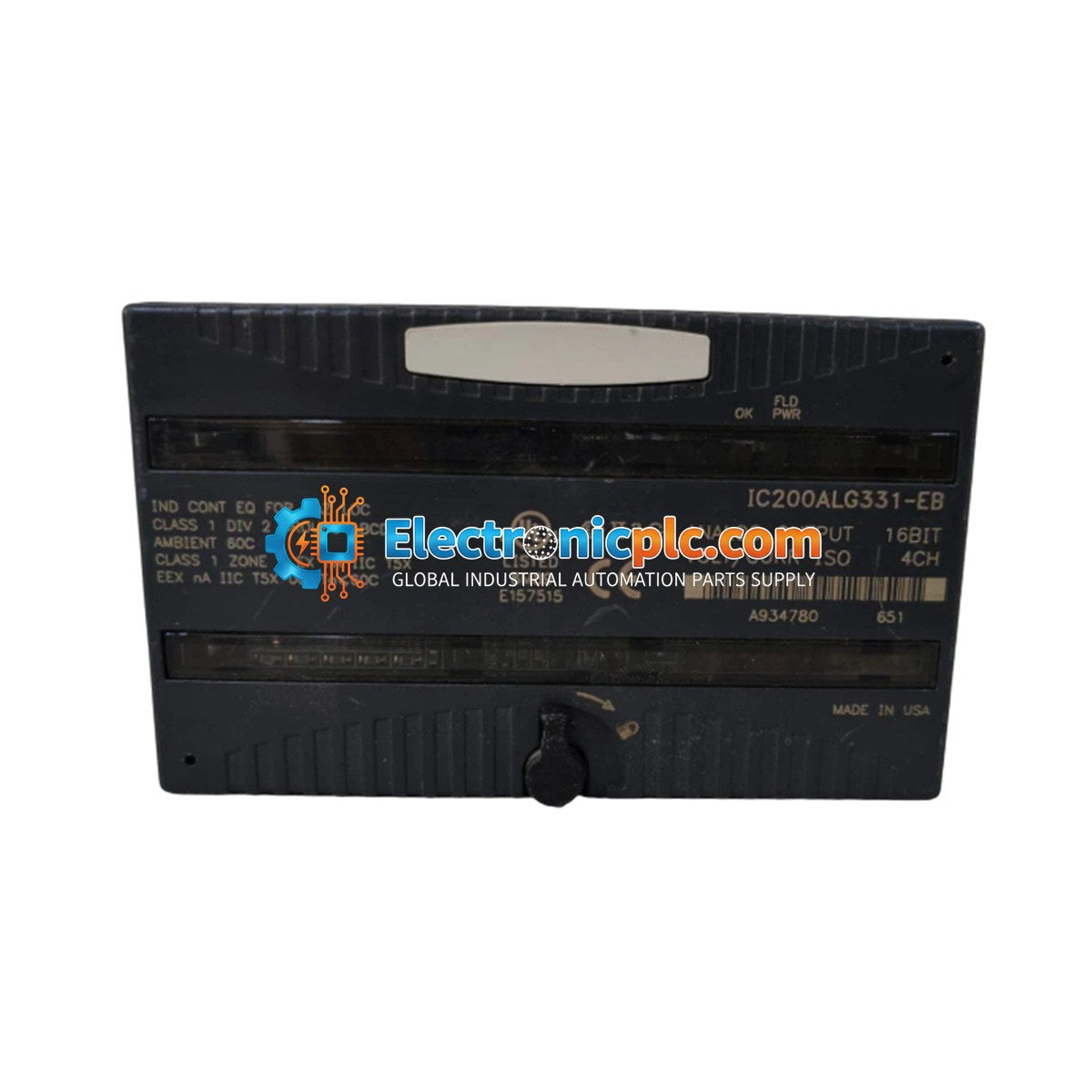

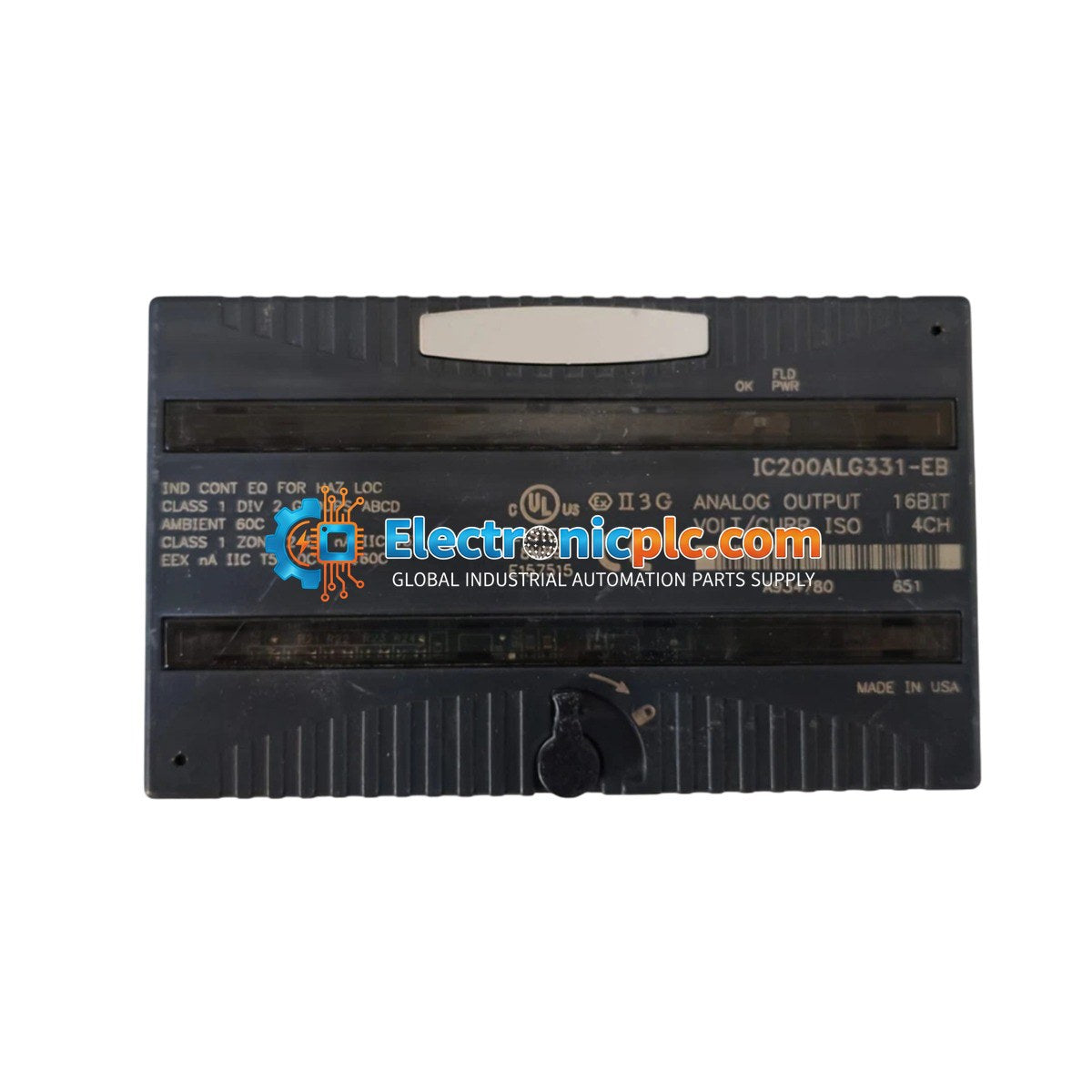

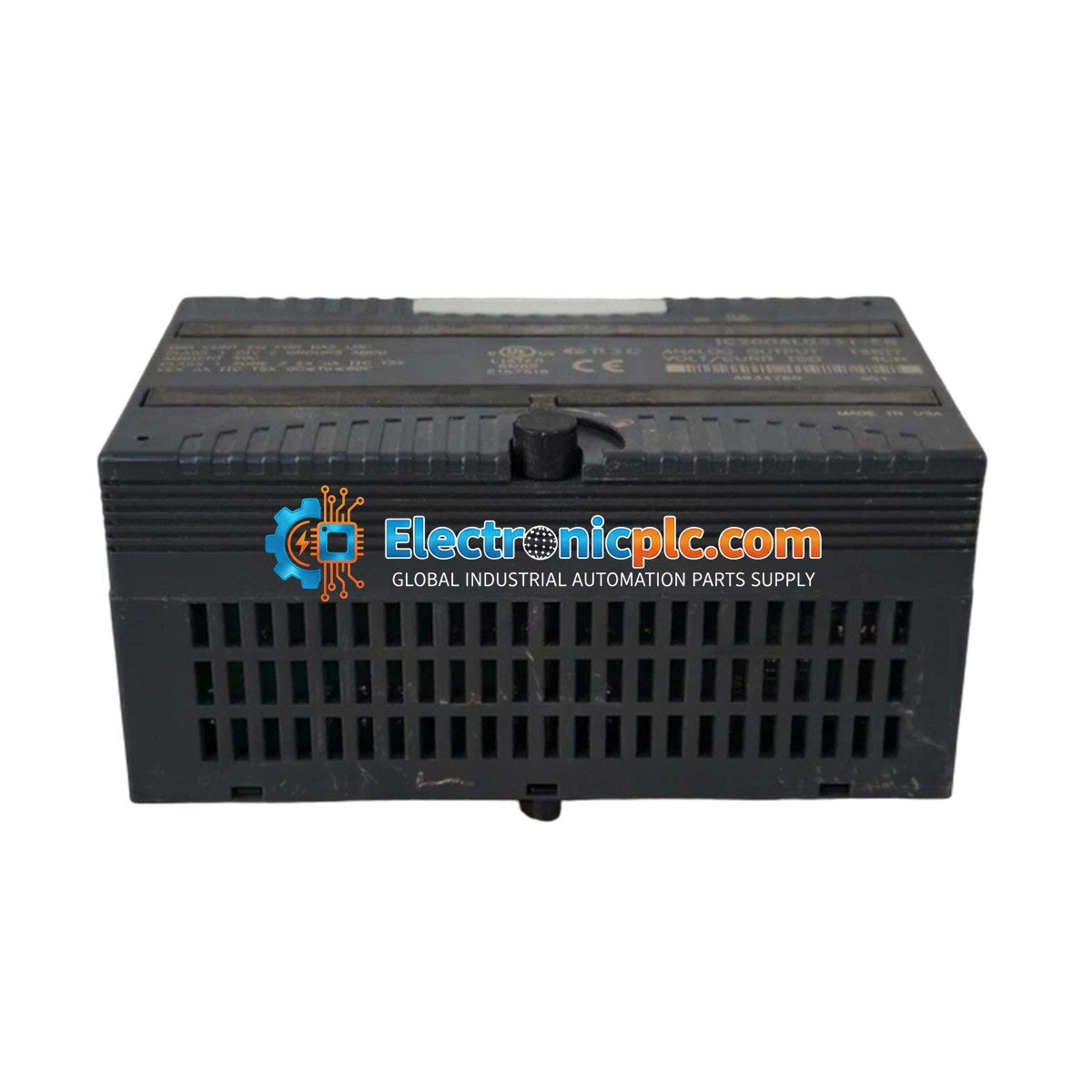

General Electric IC200ALG331-EB VersaMax 4-Channel Analog Output Module

General Electric IC200ALG331-EB VersaMax 4-Channel Analog Output Module

Description

The General Electric IC200ALG331-EB is a 4-channel analog output module designed for the VersaMax PLC system. This module provides high-precision signal conversion, supporting both voltage and current output modes to...

20 people are viewing this right now

Availability: In stock

SKU: IC200ALG331-EB
Vendor: General Electric
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200ALG331-EB is a 4-channel analog output module designed for the VersaMax PLC system. This module provides high-precision signal conversion, supporting both voltage and current output modes to interface with a wide range of industrial actuators, valves, and instrumentation. It is engineered for reliable performance in demanding automation environments, offering 16-bit digital resolution for accurate control.

Features

  • 4 independent analog output channels
  • Supports selectable output ranges: +/- 10VDC and 4-20mA (1 to 20mA)
  • High-resolution 16-bit digital-to-analog conversion
  • Fast update time of 7 milliseconds
  • Integrated LED status indicators for Field Power (FLD PWR) and Module Health (OK)
  • Optical isolation between field signals and logic circuitry

Technical Specifications

Parameter Specification
Model IC200ALG331-EB
Channels 4
Resolution 16 bits
Voltage Output Range +/- 10VDC
Current Output Range 1 to 20mA
Accuracy (at 25 degC) +/- 0.1% of full scale
External Power Supply 18 to 30VDC
Update Time 7 ms
Isolation (Input to Logic) 250VAC continuous
Isolation (Input to Ground) 1500VAC for 60 seconds
Current Consumption 100mA maximum plus load

Installation Guidelines

  • Ensure the PLC system is powered down before installing or removing the module from the I/O rack.
  • The module is designed for a single-slot footprint within the VersaMax rack system.
  • Ensure proper grounding of the I/O backplane to prevent electrical noise interference.
  • Use shielded twisted-pair cabling for analog signals to minimize EMI/RFI impact.
  • Verify that the external 18-30VDC power supply is correctly connected to the field power terminals.
  • Handle the module using ESD-safe practices to prevent damage to internal electronic components.

FAQ

What is the primary function of the IC200ALG331-EB module?

This module acts as an interface between the VersaMax PLC processor and external analog devices, converting digital data from the controller into precise voltage or current signals to drive field equipment.

Can this module be used for both voltage and current loops?

Yes, the IC200ALG331-EB is versatile and supports both +/- 10VDC voltage outputs and 1 to 20mA current outputs, configurable based on the specific application requirements.

What does the FLD PWR LED indicate?

The FLD PWR LED indicates the status of the external 18-30VDC power supply. If this LED is off, check the external power source and wiring connections to the module.
