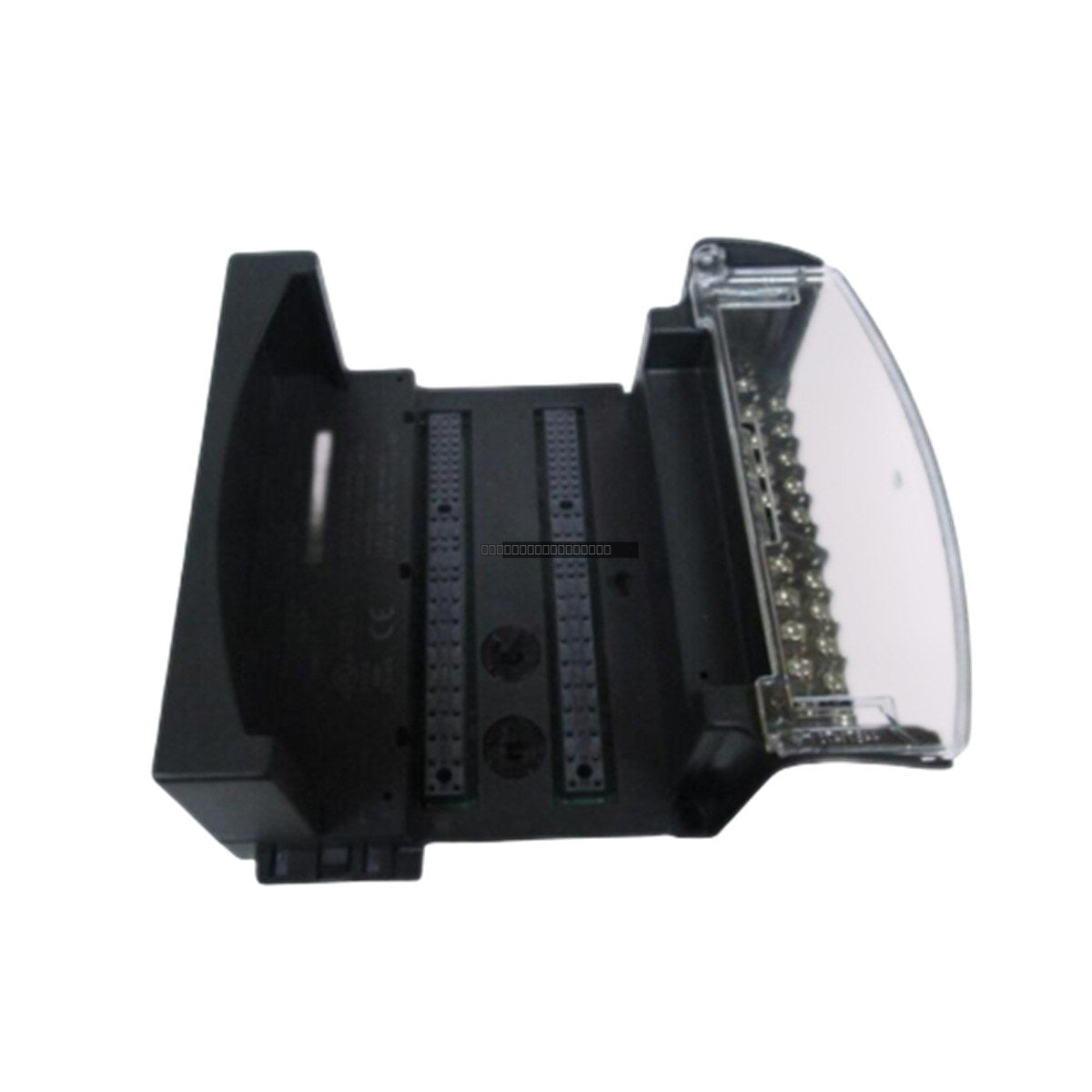

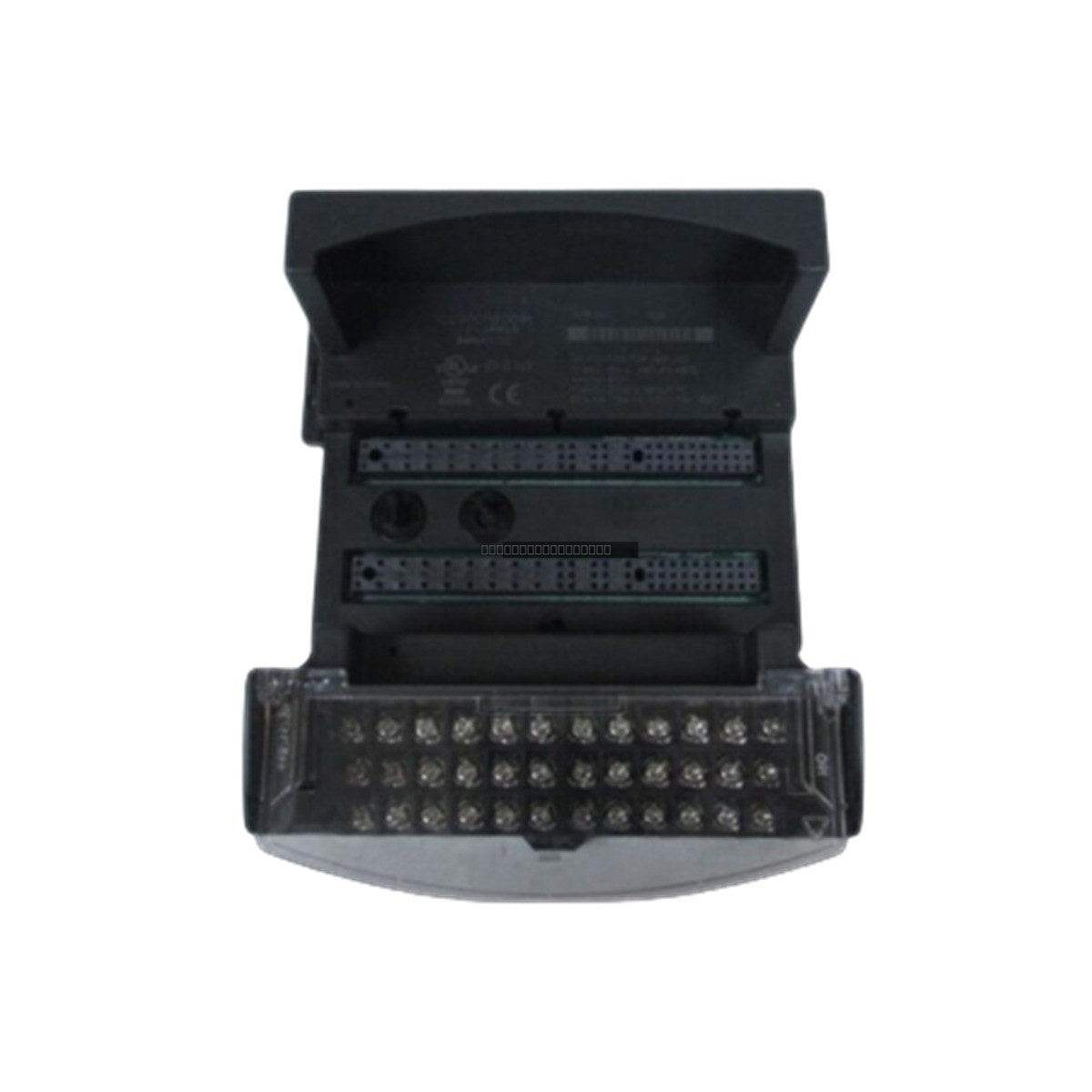

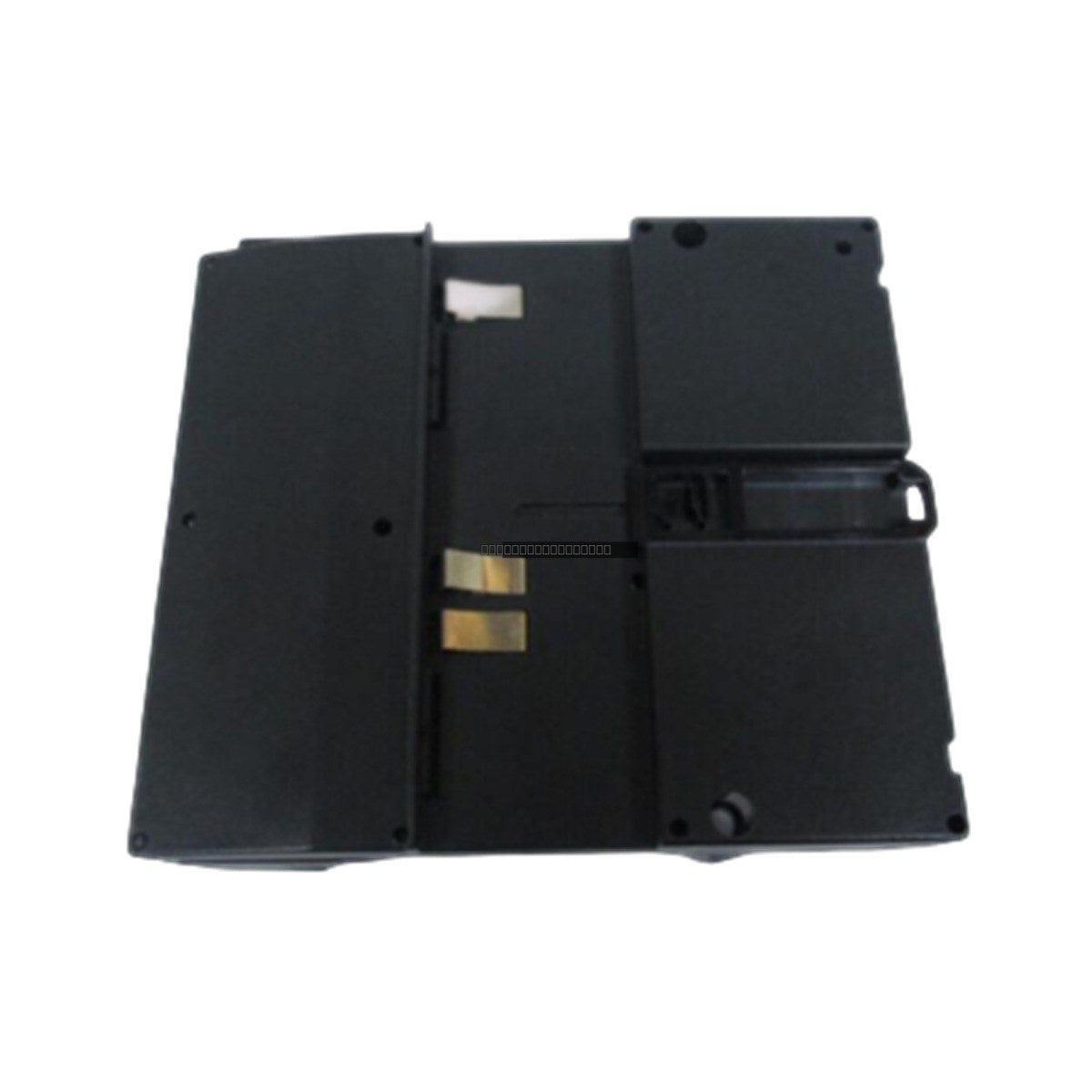

General Electric IC200CHS001A VersaMax Box-Style I/O Carrier

General Electric IC200CHS001A VersaMax Box-Style I/O Carrier

Description

The General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary mounting and electrical interface for VersaMax I/O modules, facilitating reliable...

28 people are viewing this right now

Availability: Low stock: 6 left

SKU: IC200CHS001A
Vendor: General Electric
Category: I/O Carrier
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200CHS001A is a box-style I/O carrier designed for the VersaMax PLC series. This carrier provides the necessary mounting and electrical interface for VersaMax I/O modules, facilitating reliable signal distribution and field wiring connections in industrial automation environments. It is engineered to support up to 32 I/O points, offering a compact solution for distributed or centralized control architectures.

Features

  • Supports up to 32 I/O points for high-density signal management.
  • Equipped with 36 box-style screw terminals for secure field wiring.
  • Designed for standard DIN-rail mounting, ensuring quick and efficient installation.
  • Rated for a maximum voltage of 264 VAC, accommodating a wide range of industrial control applications.
  • Robust construction suitable for demanding automation environments.

Technical Specifications

Model IC200CHS001A
Series VersaMax
Terminal Type Box-style
Terminal Count 36
Max I/O Points 32
Max Current per Point 2 Amps
Max Voltage Rating 264 VAC
Max Voltage Transients 300 VAC
Mounting DIN Rail
Terminal Torque 0.37 to 0.5 lb-ft

Installation Guidelines

  • Ensure all power to the I/O system is disconnected before installing or removing modules from the carrier.
  • Mount the carrier onto a standard 35mm DIN rail, ensuring it is securely locked in place.
  • When wiring, ensure that terminal screws are tightened to the specified torque range (0.37 to 0.5 lb-ft) to prevent loose connections and potential signal degradation.
  • Maintain proper cable routing to minimize electromagnetic interference (EMI) from high-voltage lines or high-frequency drives.
  • Verify that the total current draw of the I/O modules does not exceed the capacity of the power supply connected to the carrier.

FAQ

What is the primary function of the IC200CHS001A?
The IC200CHS001A serves as a base carrier for GE VersaMax I/O modules, providing both the mechanical mounting interface and the electrical terminal blocks for field wiring.

Can this carrier be used with all VersaMax modules?
This carrier is specifically designed for box-style I/O modules within the VersaMax family. Please verify compatibility with your specific module part number before installation.

What is the maximum current rating per point?
The carrier supports a maximum of 2 Amps per point.
