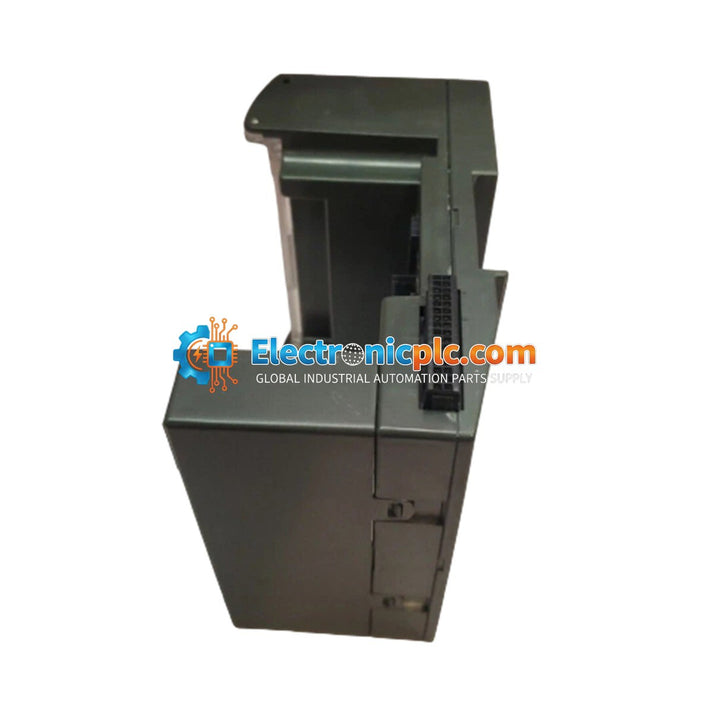

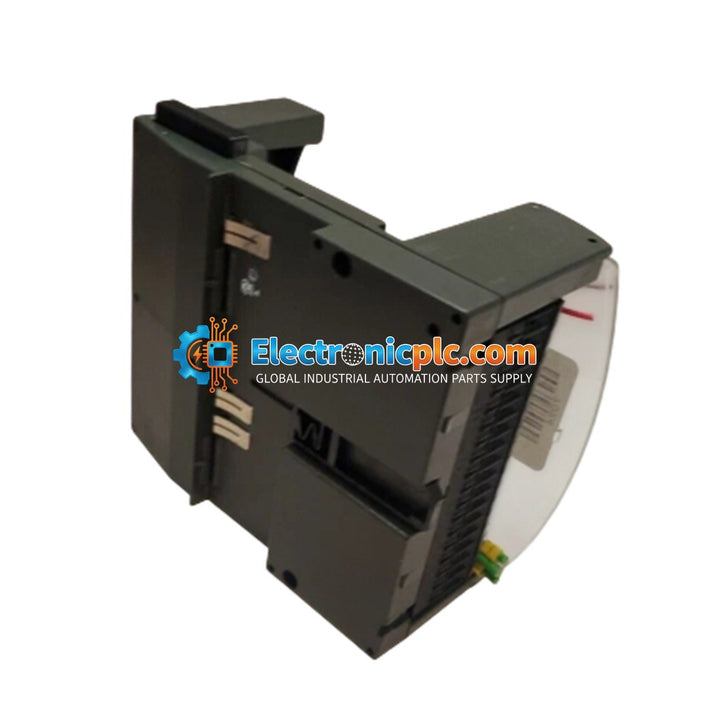

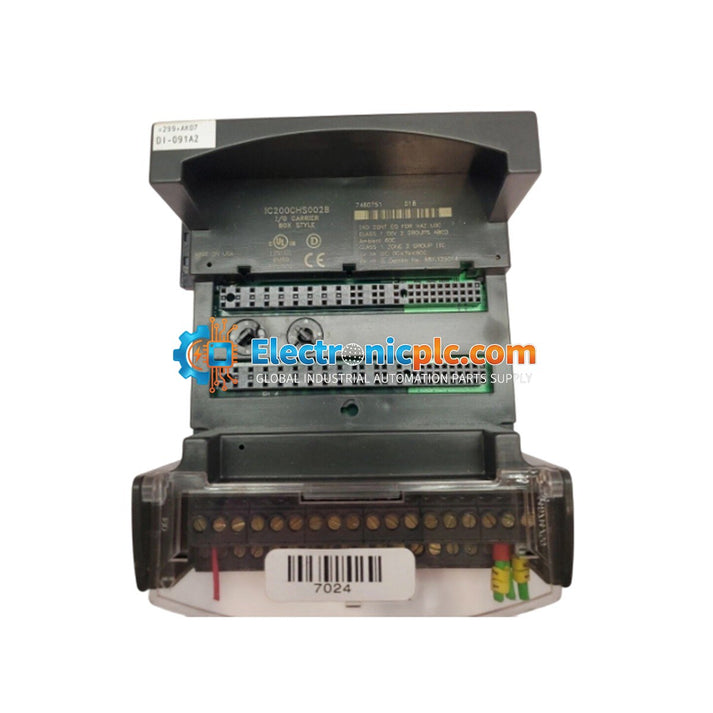

General Electric IC200CHS002B VersaMax Box-Style I/O Carrier

General Electric IC200CHS002B VersaMax Box-Style I/O Carrier

Description

The General Electric IC200CHS002B is a box-style I/O carrier designed for the VersaMax PLC system. This carrier provides the necessary physical mounting and electrical interface for VersaMax I/O modules, facilitating...

28 people are viewing this right now

Availability: Low stock: 1 left

SKU: IC200CHS002B
Vendor: General Electric
Category: I/O Carrier
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC200CHS002B is a box-style I/O carrier designed for the VersaMax PLC system. This carrier provides the necessary physical mounting and electrical interface for VersaMax I/O modules, facilitating reliable field wiring connections in industrial automation environments. It features an integrated terminal block design, allowing for direct connection of field devices to the I/O modules.

Features

  • Designed for VersaMax I/O modules
  • Box-style terminal configuration with 36 terminals
  • Supports field voltages up to 264 VAC
  • Integrated field termination for simplified wiring
  • DIN rail mountable for standard industrial enclosures
  • Supports up to 2 Amps per point current rating

Technical Specifications

Model IC200CHS002B
Product Type Box-Style I/O Carrier
Terminal Count 36
Voltage Rating 0-264 VAC
Transient Voltage Rating Up to 300 VAC
Per Point Current 2 Amps
Ground/Power Segment Current 8 Amperes
Mounting DIN Rail (Horizontal)
Compatible Wire Size AWG #14 to #22 (single); AWG #18 (two-wire)

Installation Guidelines

  • Ensure the power is disconnected from the system before installing or removing the carrier or any attached I/O modules.
  • Mount the carrier on a standard DIN rail in a horizontal orientation.
  • Maintain proper clearance for ventilation and maintenance: 2 inches (5.1 cm) at the top and bottom, and 1 inch (2.54 cm) on the sides.
  • Use appropriate wire gauges (AWG #14 to #22) to ensure secure connections and prevent overheating.
  • Follow standard ESD (Electrostatic Discharge) practices when handling the module to prevent damage to internal electronics.
  • Ensure all field wiring is properly routed and secured to minimize mechanical stress on the terminals.

FAQ

What is the primary function of the IC200CHS002B?

The IC200CHS002B acts as a base carrier for VersaMax I/O modules, providing the mechanical support and electrical terminal points required to connect field sensors and actuators to the PLC system.

Can this carrier be used with non-VersaMax modules?

No, this carrier is specifically engineered for the General Electric VersaMax series and is not compatible with other PLC I/O families.
