Description

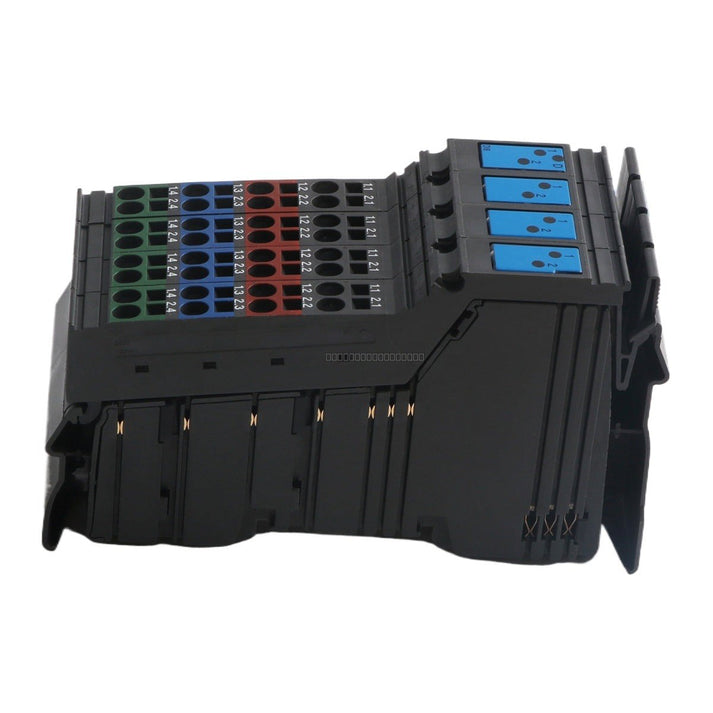

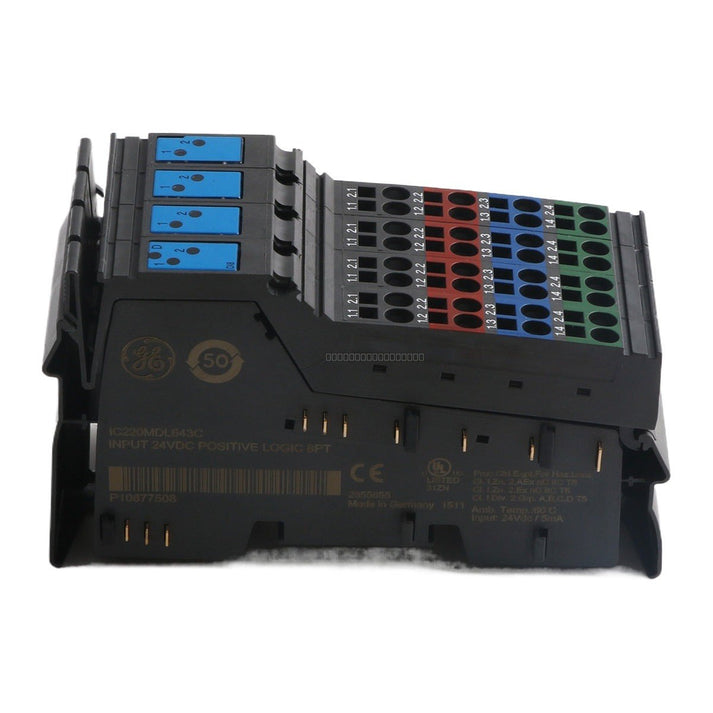

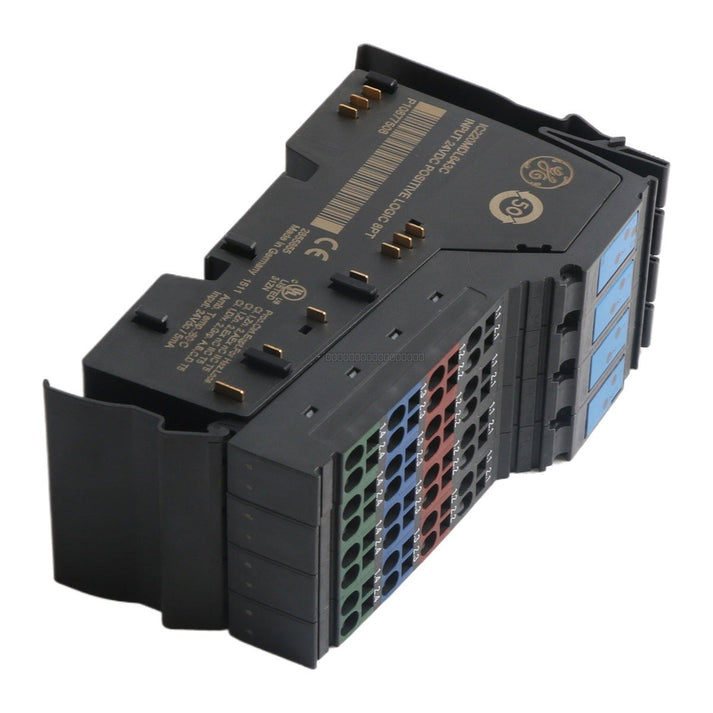

The General Electric IC220MDL643 is a VersaMax discrete input module designed for high-density industrial control applications. This module provides 16 input points, organized into two isolated groups, allowing for flexible integration within a VersaMax PLC system. It is engineered to monitor 5/12 VDC signals, providing reliable status feedback for automated processes.

Features

• 16 discrete input points for high-density signal monitoring.
• Two isolated input groups for enhanced noise immunity and circuit separation.
• Integrated LED status indicators for each individual point plus a system OK LED for rapid diagnostics.
• Low backplane power consumption of 70 mA at 5 VDC.
• Input impedance of 2.4K Ohms for standard signal compatibility.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing the module from the backplane.
• Mount the module onto the VersaMax I/O carrier, ensuring proper alignment with the backplane connector.
• Use shielded cabling for input signals to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Verify that input voltage levels do not exceed the specified 15 VDC maximum to prevent module damage.
• Maintain proper ventilation within the control cabinet to ensure the module operates within its thermal design limits.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the IC220MDL643?

This module is a discrete input interface for the GE VersaMax series, used to convert field-level DC signals into logic-level data for the PLC processor.

How are the 16 inputs organized?

The inputs are divided into two groups, which provides electrical isolation between the groups, helping to protect the PLC backplane from potential ground loops or voltage surges in the field wiring.

Does this module require external power for the inputs?

Yes, the inputs require an external 5/12 VDC source to provide the signal voltage, while the module itself draws its logic power from the VersaMax backplane.
