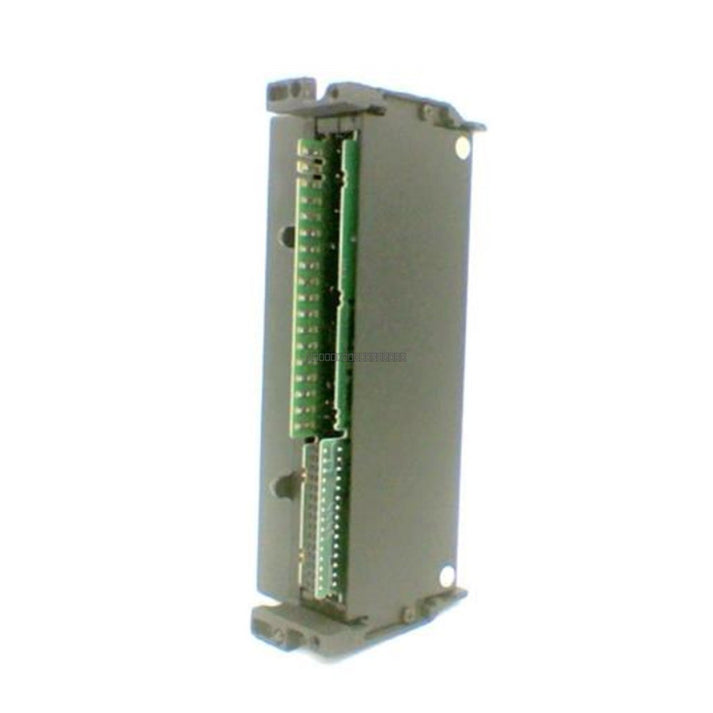

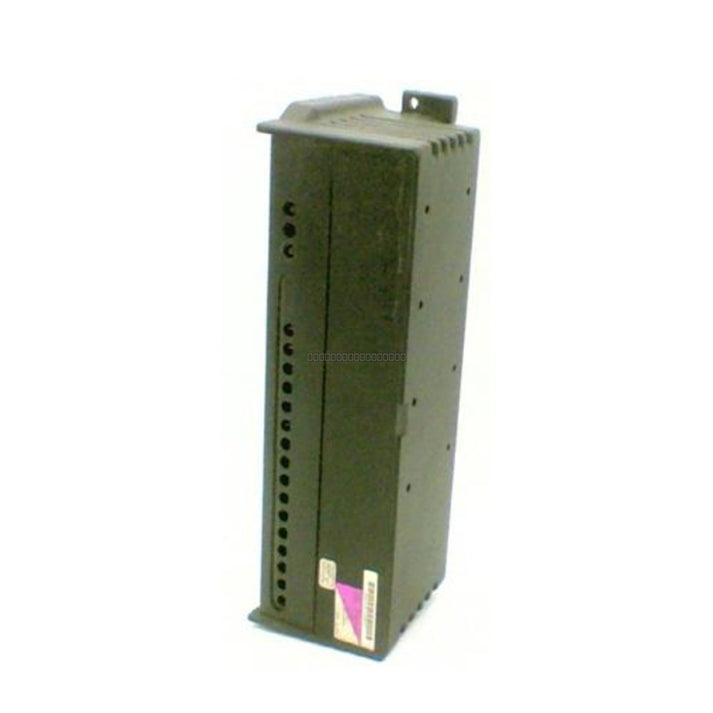

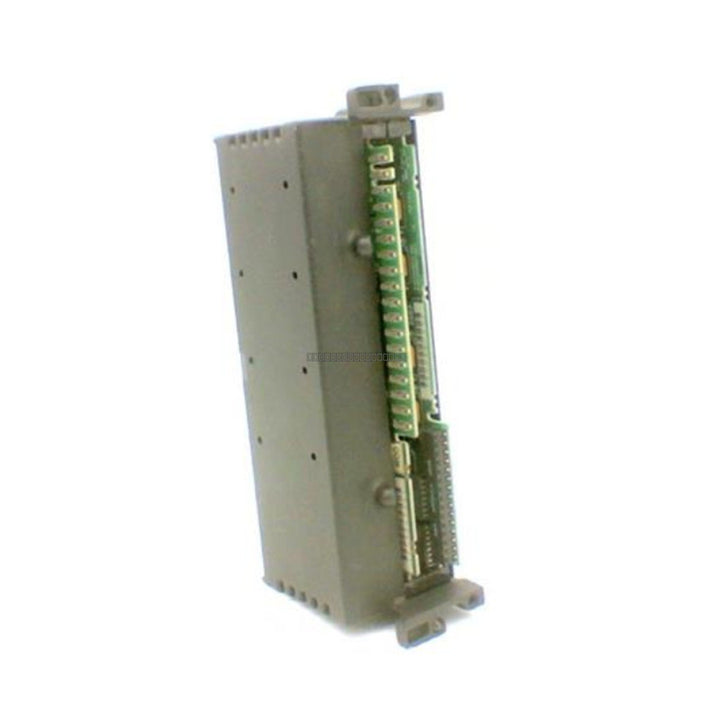

General Electric IC660EBA101 Genius I/O Electronics Assembly

General Electric IC660EBA101 Genius I/O Electronics Assembly

Description

The General Electric IC660EBA101 is a high-performance Electronics Assembly designed for the Genius I/O block system. This module provides reliable input signal processing and communication within industrial control networks, utilizing...

26 people are viewing this right now

Availability: Low stock: 5 left

SKU: IC660EBA101
Vendor: General Electric
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660EBA101 is a high-performance Electronics Assembly designed for the Genius I/O block system. This module provides reliable input signal processing and communication within industrial control networks, utilizing the established Genius protocol for seamless integration into GE automation architectures.

Features

  • Designed for the Genius I/O Block series.
  • Features 6 discrete inputs organized into 3 isolated groups.
  • Integrated LED diagnostics including 1 unit status LED and 1 input status LED.
  • Robust isolation: 1500 V rms group-to-group and block-to-block isolation.
  • Configurable input update frequencies of 400, 800, or 1600 ms.
  • Supports wide power supply ranges for both AC and DC applications.

Technical Specifications

Model IC660EBA101
Manufacturer General Electric
Input Configuration 6 inputs in 3 isolated groups
AC Supply Voltage 93-132 VAC (47-63 Hz)
DC Supply Voltage 105-145 VDC (10% ripple)
Isolation 1500 V rms
Heat Dissipation 7 Watts
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 100 degC

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the electronics assembly from the I/O block base.
  • Verify that the supply voltage matches the specified range (93-132 VAC or 105-145 VDC) to prevent damage.
  • Maintain proper ventilation within the enclosure to accommodate the 7W heat dissipation.
  • Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components.
  • Ensure all wiring is securely terminated and that isolation barriers are maintained between input groups.

FAQ

What is the primary function of the IC660EBA101?

The IC660EBA101 is an electronics assembly for a Genius I/O block, used to interface field input signals with a Genius-based control network.

What is the isolation rating for this module?

The module provides 1500 V rms isolation between groups and block-to-block, ensuring signal integrity and protection against electrical noise.

Can this module operate on DC power?

Yes, the module is designed to operate on a DC supply voltage range of 105-145 VDC with up to 10% ripple.
