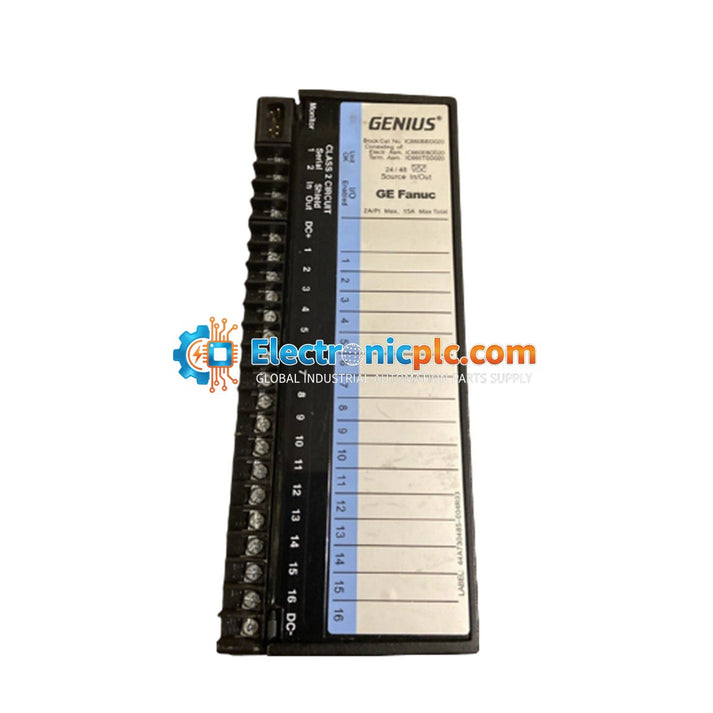

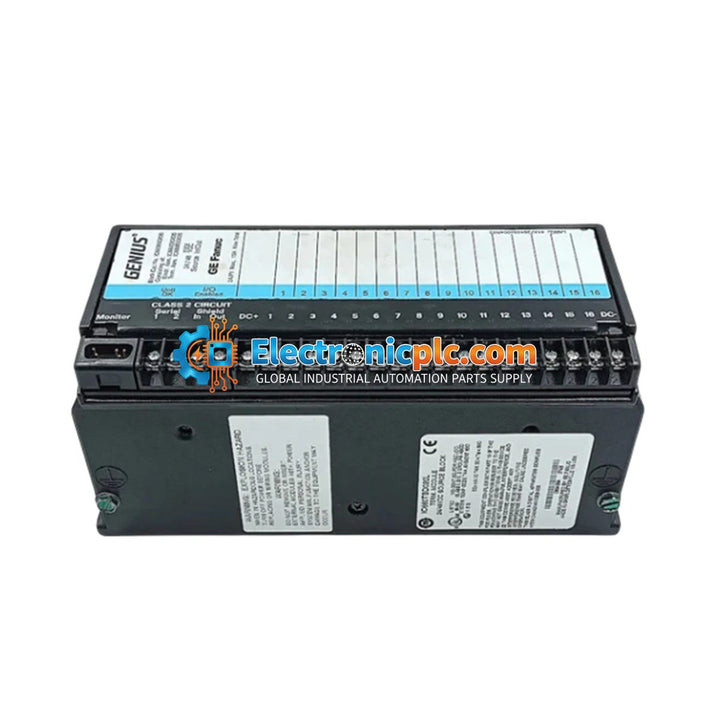

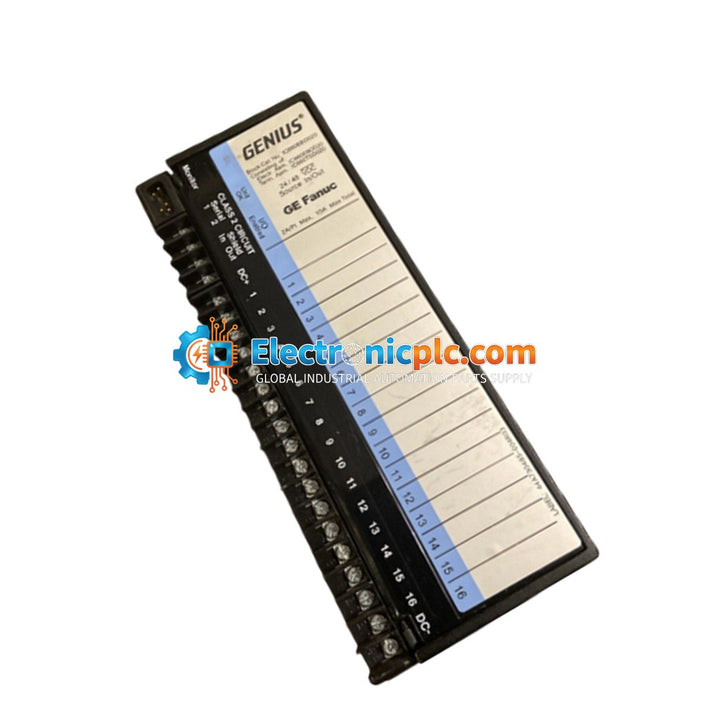

General Electric IC660EBD020 Genius Block I/O Module

General Electric IC660EBD020 Genius Block I/O Module

Description

The General Electric IC660EBD020 is a high-performance Electronics Assembly module from the Genius I/O product series. Designed for industrial automation environments, this block I/O module serves as a critical interface...

29 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC660EBD020
Vendor: General Electric
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660EBD020 is a high-performance Electronics Assembly module from the Genius I/O product series. Designed for industrial automation environments, this block I/O module serves as a critical interface for managing discrete signals within a distributed control architecture. It is engineered to provide robust signal processing and reliable communication between field devices and the primary control system.

Features

  • Sixteen (16) discrete inputs for comprehensive signal monitoring.
  • Wide operating voltage range of 18-56V DC, supporting nominal 24V DC systems.
  • High-level block-to-block isolation of 1500V to protect sensitive control circuitry from field-side transients.
  • Designed for high-reliability applications with a thermal drift specification of 70 PPM per degree Celsius.
  • Integrated heat dissipation management rated at 68.8 Watts.

Technical Specifications

Model IC660EBD020
Series Genius I/O
Module Type Electronic Assembly / Block I/O
Discrete Inputs 16
Input Voltage Range 18-56V DC
Nominal Input Voltage 24V DC
Power Requirements 150 mA / 300 mA (max)
Heat Dissipation 68.8 Watts
Operating Temperature 0 degC to 60 degC
Storage Temperature -40 degC to 100 degC
Thermal Drift 70 PPM/degC

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the module from the I/O bus.
  • Mount the module in an environment that allows for adequate ventilation, adhering to the 68.8W heat dissipation requirement.
  • Use shielded cabling for all I/O connections to minimize electromagnetic interference (EMI) in industrial settings.
  • Verify that the power supply voltage is within the 18-56V DC range before energizing the block.
  • Handle the module using proper ESD (Electrostatic Discharge) prevention techniques to avoid damaging internal electronic components.

FAQ

What is the primary function of the IC660EBD020?

The IC660EBD020 is a Genius Block I/O module used for discrete input signal acquisition within a GE Genius I/O network, allowing for distributed control of field devices.

What are the power requirements for this module?

The module operates on a DC power supply ranging from 18V to 56V, with a maximum current draw of 300 mA.

Is this module suitable for high-temperature environments?

The module is rated for an operating temperature range of 0 degC to 60 degC. It should be installed in a climate-controlled enclosure or area that does not exceed these limits to ensure long-term reliability.
