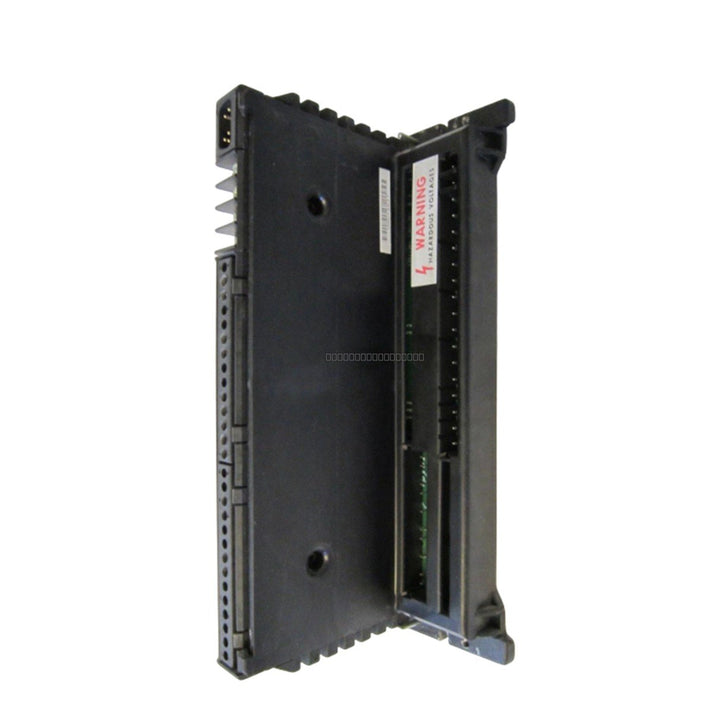

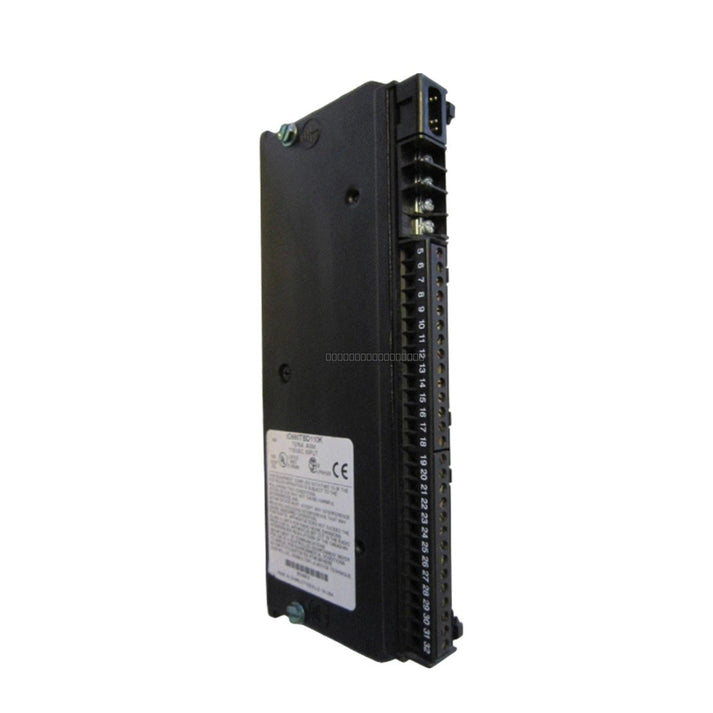

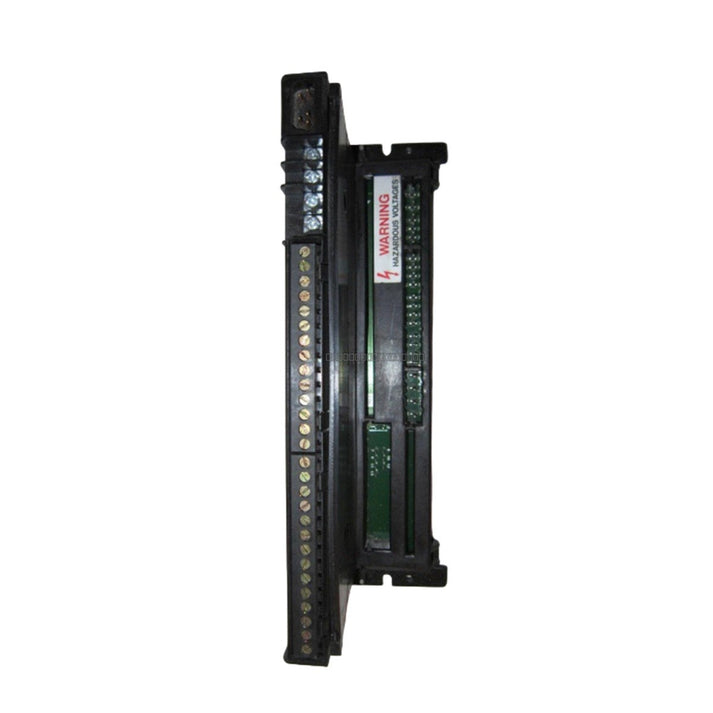

General Electric IC660TBD110 Genius Block I/O Module

General Electric IC660TBD110 Genius Block I/O Module

Description

The General Electric IC660TBD110 is a Genius Block I/O module designed for industrial automation control systems. This module provides 16 input circuits, specifically engineered for 115 VAC operation within the...

18 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC660TBD110
Vendor: General Electric
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660TBD110 is a Genius Block I/O module designed for industrial automation control systems. This module provides 16 input circuits, specifically engineered for 115 VAC operation within the Genius I/O series. It serves as a reliable interface for monitoring AC signal states in distributed control environments.

Features

  • 16-circuit input capacity for high-density signal monitoring.
  • Designed for 115 VAC nominal operation with an operating range of 93 to 132 VAC.
  • Supports standard industrial power frequencies from 47 to 63 Hz.
  • Robust isolation rating of 1500 Volts between input and ground for enhanced system protection.
  • Optimized for integration within the GE Genius I/O distributed architecture.

Technical Specifications

Product Model IC660TBD110
Block Type 16-circuit Input Module
Rated Voltage 115 VAC
Operating Voltage Range 93 to 132 VAC
Frequency 47 to 63 Hz
Power Supply Dropout Time 1 cycle
Input to Ground Isolation 1500 Volts
Maximum Heat Dissipation 28 Watts
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the module from the I/O bus.
  • Mount the block in a location that allows for adequate airflow to manage the 28W maximum heat dissipation.
  • Verify that the input voltage levels match the module's specified operating range (93-132 VAC) to prevent damage.
  • Ensure proper grounding of the module chassis to maintain the 1500V isolation integrity.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the primary function of the IC660TBD110?

The IC660TBD110 is a 16-point AC input block used in the GE Genius I/O system to interface field-level 115 VAC signals with a programmable controller or host system.

What is the operating voltage range for this module?

The module is designed to operate within a voltage range of 93 to 132 VAC at a frequency of 47 to 63 Hz.
