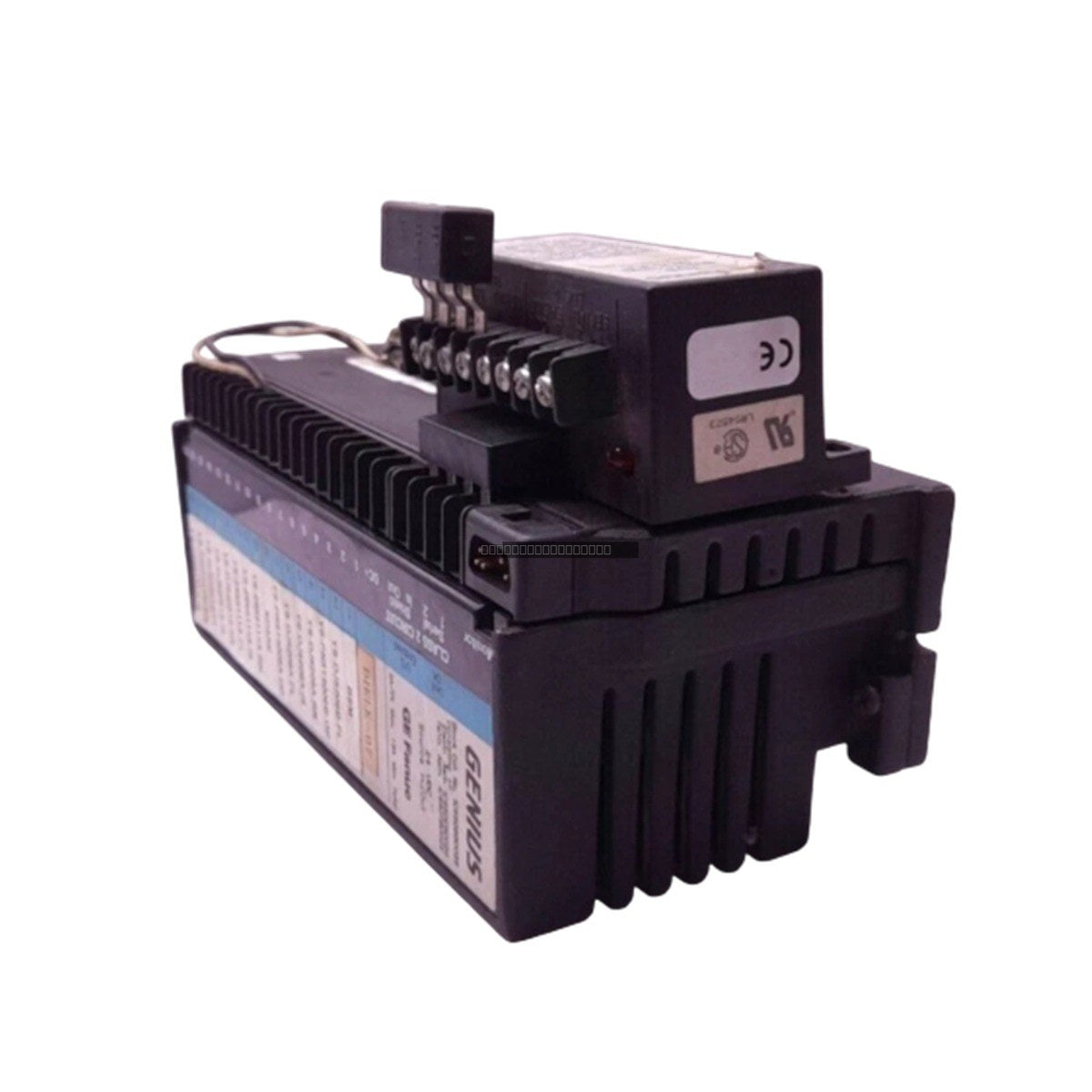

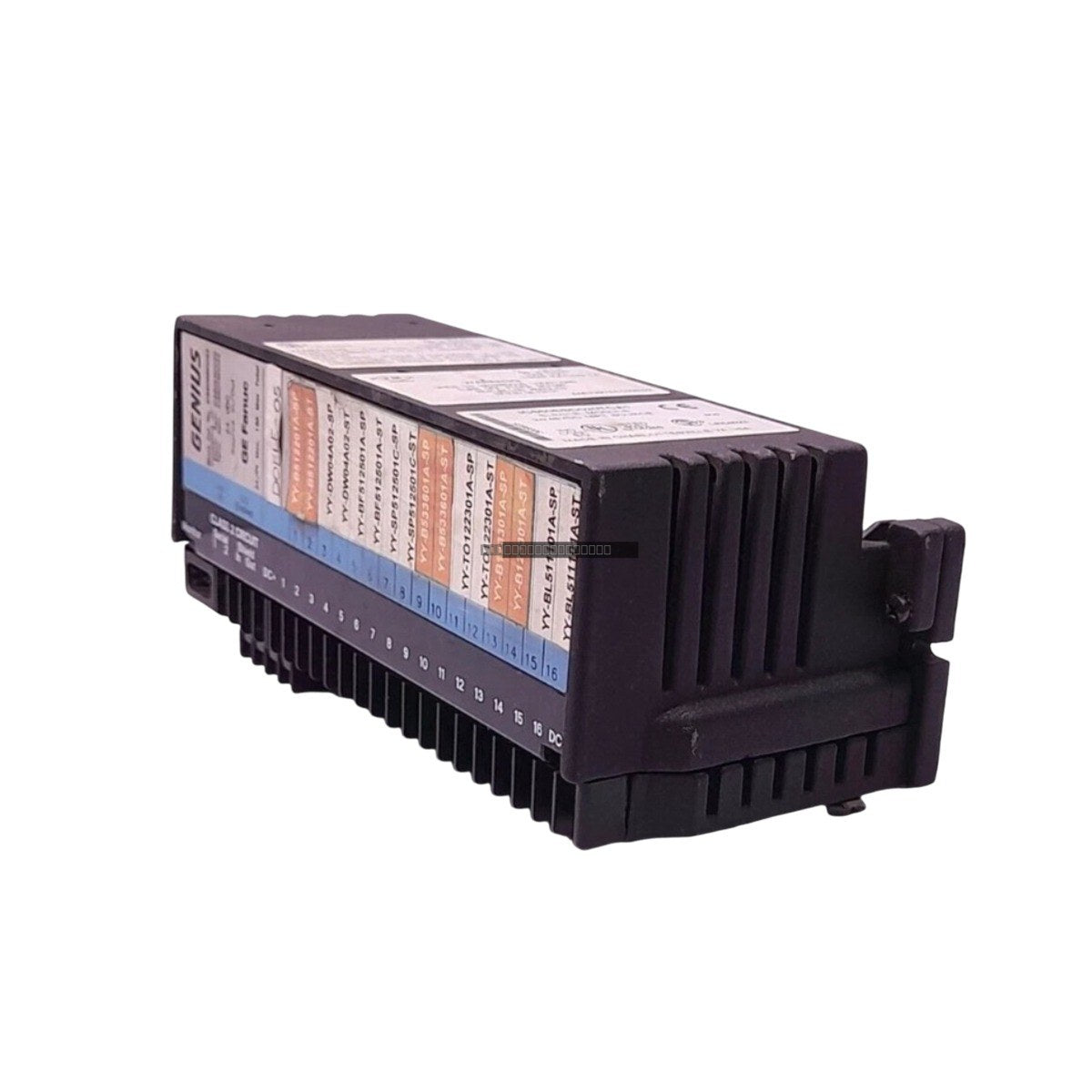

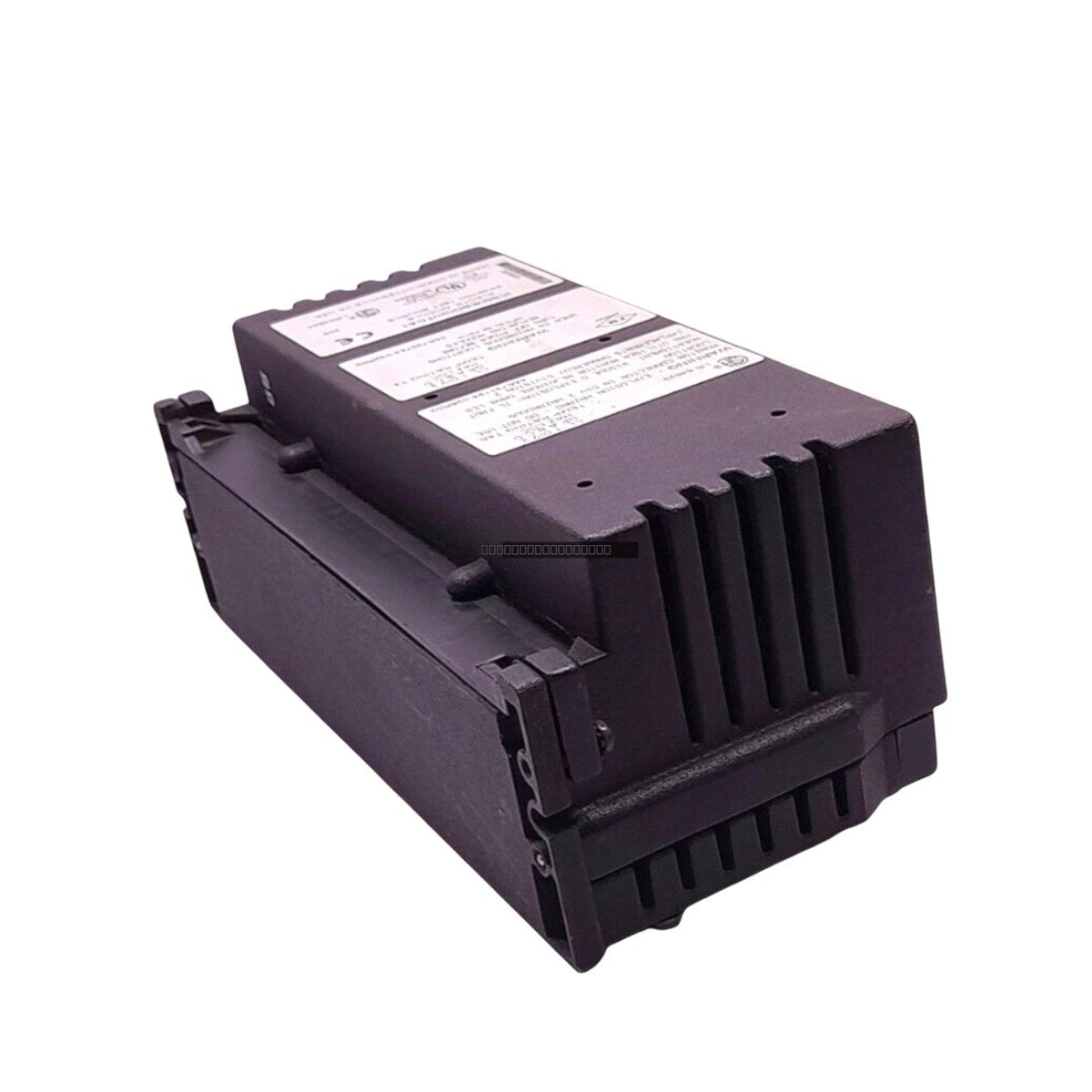

General Electric IC660BBD022 Genius I/O Block Module

General Electric IC660BBD022 Genius I/O Block Module

Description

The General Electric IC660BBD022 is a 16-point Source I/O block designed for operation within the Genius I/O distributed control system. This module provides reliable signal processing and control for industrial...

22 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC660BBD022
Vendor: General Electric
Category: I/O Block Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660BBD022 is a 16-point Source I/O block designed for operation within the Genius I/O distributed control system. This module provides reliable signal processing and control for industrial automation environments, supporting 24/48 VDC input and output applications. It is engineered to facilitate robust communication via the Genius protocol, serving as a critical interface between field devices and the PLC controller.

Features

  • 16 Source I/O circuits grouped with one common.
  • Integrated diagnostic capabilities including open wire detection, overtemperature monitoring, and failed switch reporting.
  • Output diagnostics feature short circuit, overload, and no-load detection.
  • Supports a maximum inrush current of 10 Amperes for up to 10 ms.
  • Configurable input filter time ranging from 5 ms to 100 ms.
  • Visual status indicators for Unit OK and I/O Enabled states.

Technical Specifications

Model Number IC660BBD022
Spare Model 6240BP10411
Input Voltage Range 18-30 VDC
Output Current 2 Amperes per circuit
Isolation 1500V (Block to Block) for one minute
Operating Temperature 0 to 60 degC
Storage Temperature -40 to 100 degC
Heat Dissipation 68.8 Watts at 2A load
Humidity 5-95% non-condensing

Installation Guidelines

  • Ensure the module is installed in a location meeting the specified 0-60 degC operating temperature range.
  • Always disconnect power before installing or removing the module from the Genius I/O network to prevent electrical damage.
  • Maintain proper grounding practices to minimize EMI interference, as the module requires stable common reference for I/O circuits.
  • Verify that the communication cabling follows standard Genius protocol routing requirements to ensure signal integrity.
  • Observe ESD safety precautions when handling the module to protect internal circuitry.

FAQ

What type of diagnostics does the IC660BBD022 provide?

The module includes comprehensive diagnostics for both inputs and outputs. Input diagnostics cover open wire, overtemperature, and failed switch conditions. Output diagnostics include short circuit, overload, no load, failed switch, and overtemperature monitoring.

What is the input filter time for this module?

The input filter time is configurable, allowing for a range between 5 ms and 100 ms to suit specific application noise-rejection requirements.
