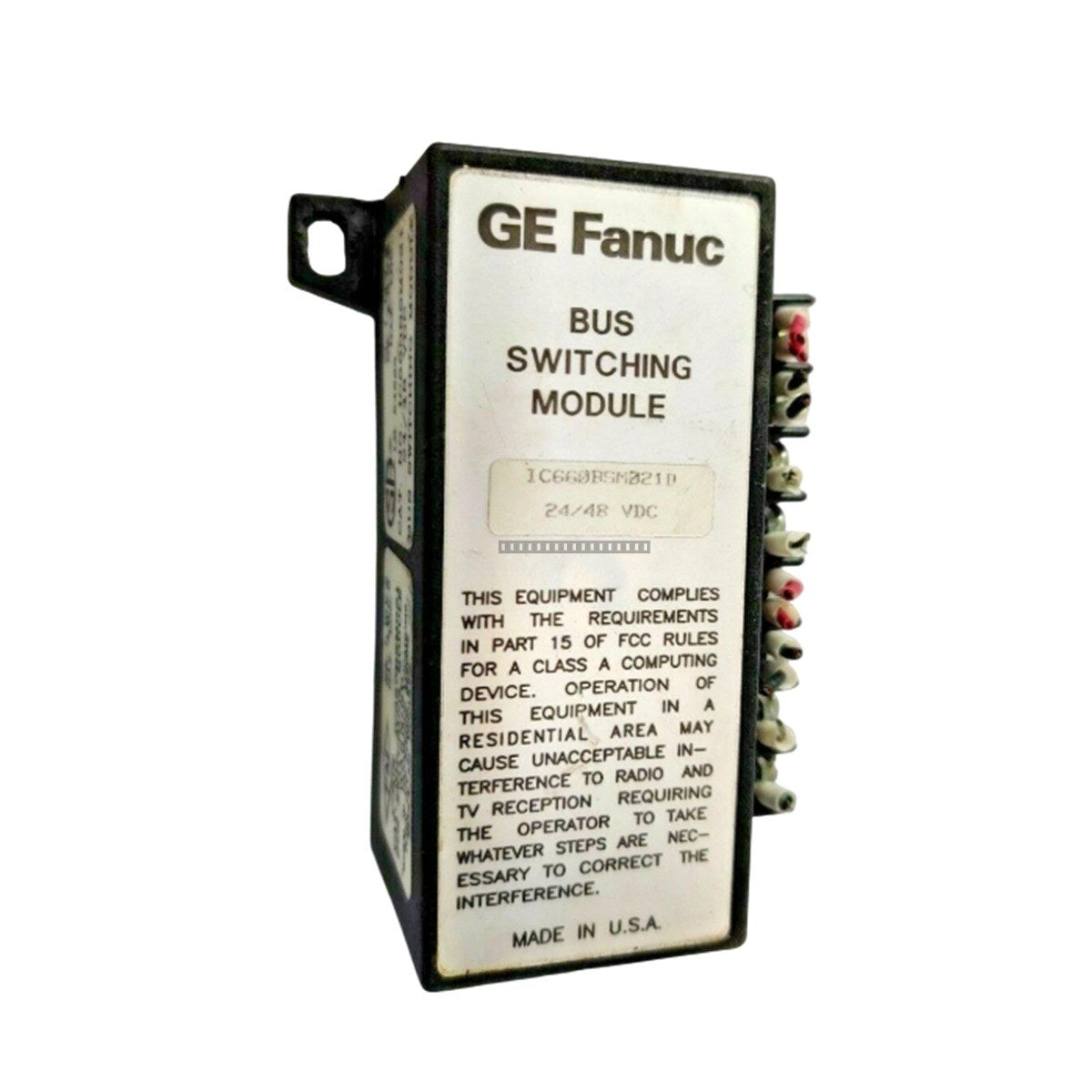

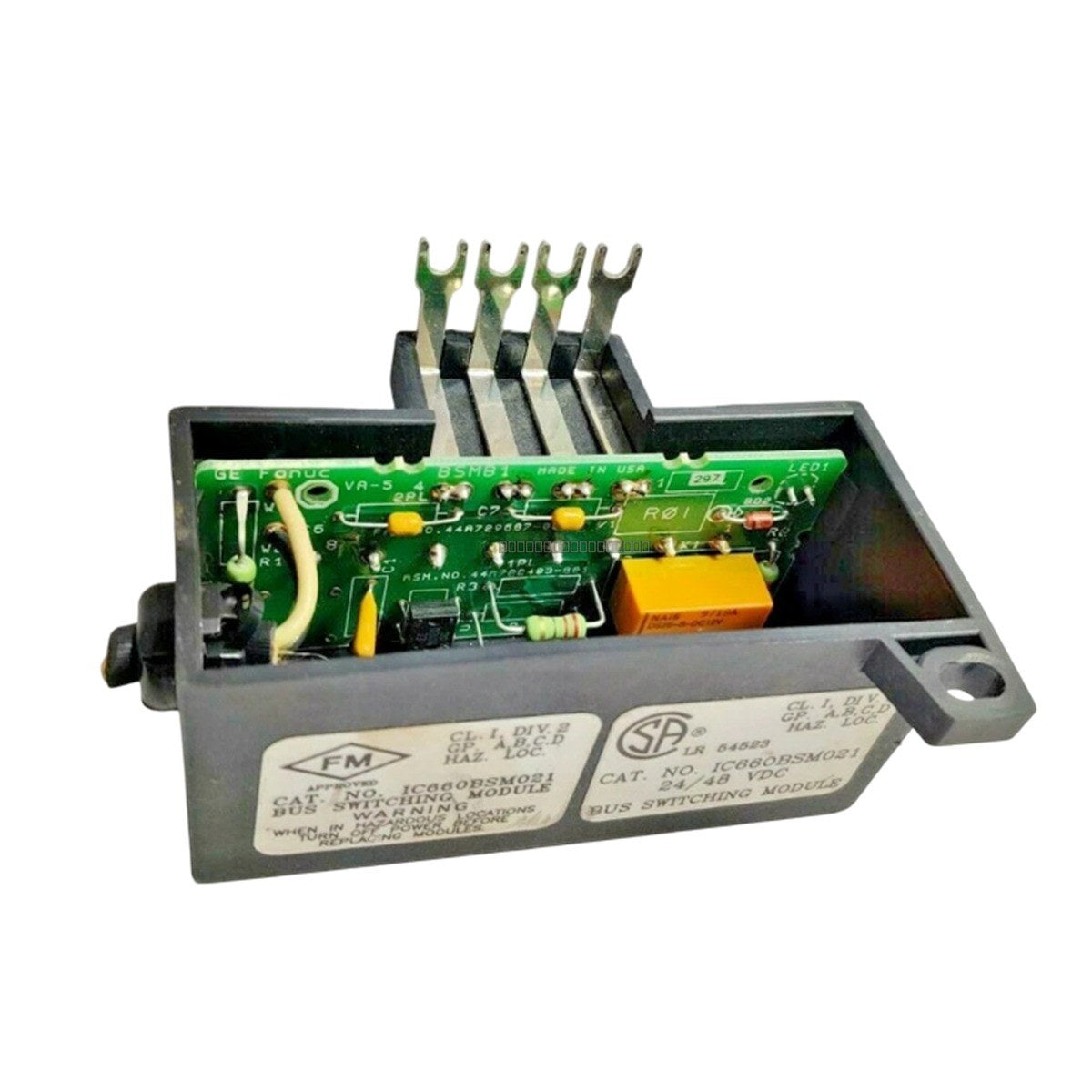

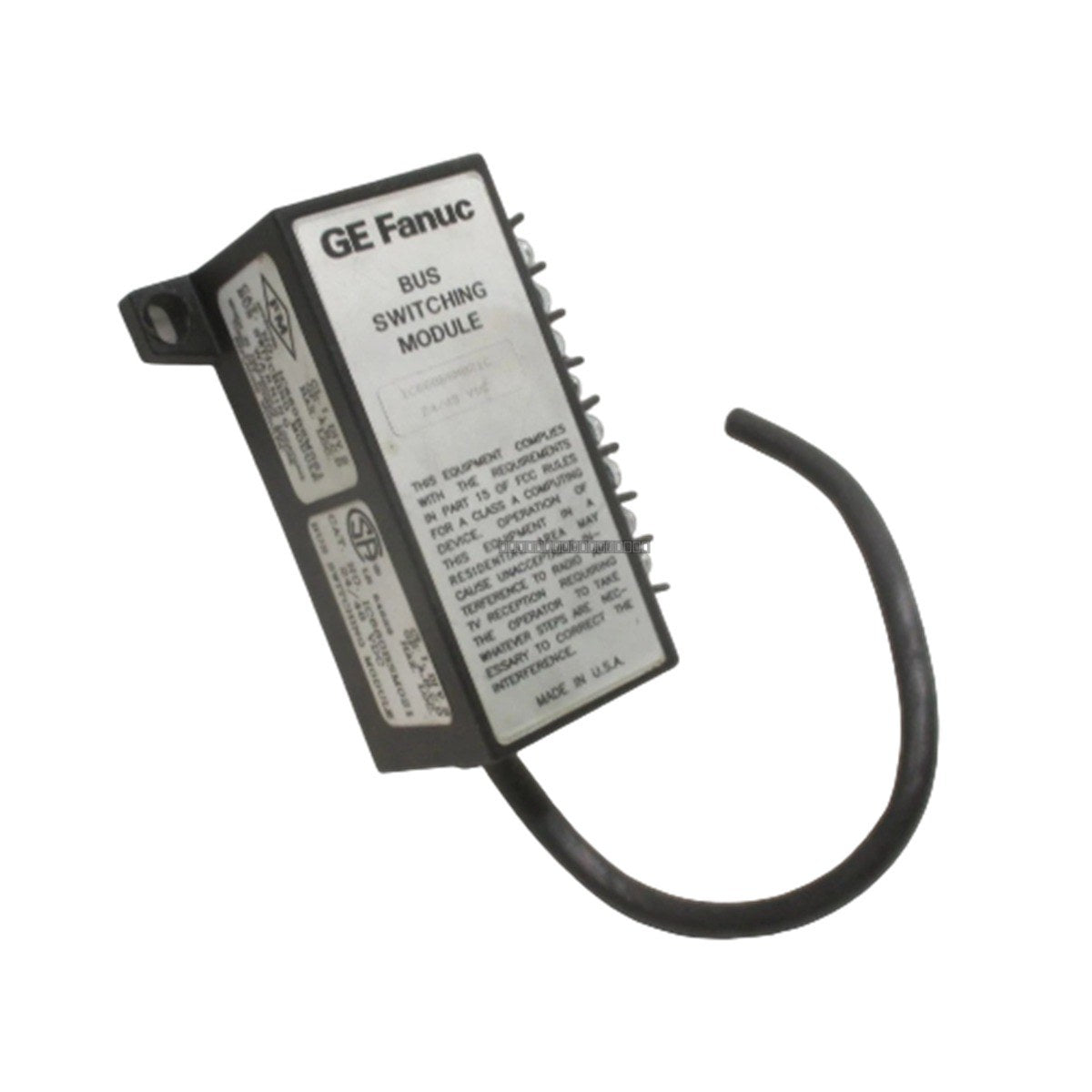

General Electric IC660BSM021 Genius I/O Bus Switching Module

General Electric IC660BSM021 Genius I/O Bus Switching Module

The General Electric IC660BSM021 is a 24/48 VDC Genius I/O Bus Switching Module (BSM) designed to enhance communication reliability in industrial automation systems. It allows Genius I/O blocks to interface...

22 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC660BSM021
Vendor: General Electric
Category: Bus Switching Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The General Electric IC660BSM021 is a 24/48 VDC Genius I/O Bus Switching Module (BSM) designed to enhance communication reliability in industrial automation systems. It allows Genius I/O blocks to interface with two independent serial buses simultaneously, providing a redundant communication path in the event of a primary bus failure.

Features

  • Connects Genius I/O blocks to dual communications cables.
  • Supports up to 8 discrete or analog I/O blocks per BSM.
  • Scalable system design allows up to 30 I/O blocks on a single dual-bus configuration using multiple BSMs.
  • Controlled by a Genius I/O block; can be forced or unforced via CPU or Hand-held Monitor.
  • Integrated LED indicator for active bus status.
  • Automatic default to Bus A when de-energized.

Applications

  • Automotive assembly and painting lines.
  • Power generation control systems requiring high availability.
  • Water treatment and chemical processing plants.
  • Steel and aluminum smelting environments.
  • Oil and gas exploration and high-integrity shutdown systems.

Technical Specifications

Model IC660BSM021
Operating Voltage 18 to 56 VDC
Maximum Current Draw 60 mA at 48 VDC
I/O Capacity Up to 8 discrete/analog blocks
Switching Time Less than 20 ms
Configuration Handheld Monitor or CPU
Tariff Code 8537101190

Installation Guidelines

  • Ensure the system is powered down before installing or removing the BSM.
  • Mount the module in a location that allows for adequate ventilation and access to the status LED.
  • Use shielded cabling for serial bus connections to minimize EMI interference.
  • Verify that the BSM is properly configured via the CPU or Hand-held Monitor before commissioning.
  • Ensure proper grounding of the I/O system to maintain signal integrity.

FAQ

What is the primary function of the IC660BSM021?

The IC660BSM021 is used to connect Genius I/O blocks to a dual bus configuration. If one communication bus fails, the BSM allows the system to switch to the backup bus to maintain operational continuity.

How many I/O blocks can one BSM handle?

A single IC660BSM021 module can connect up to eight (8) discrete or analog Genius I/O blocks to a dual bus.

What happens if the module is de-energized?

In its default state, when de-energized, the module automatically connects the I/O blocks to Bus A.
