Product Overview

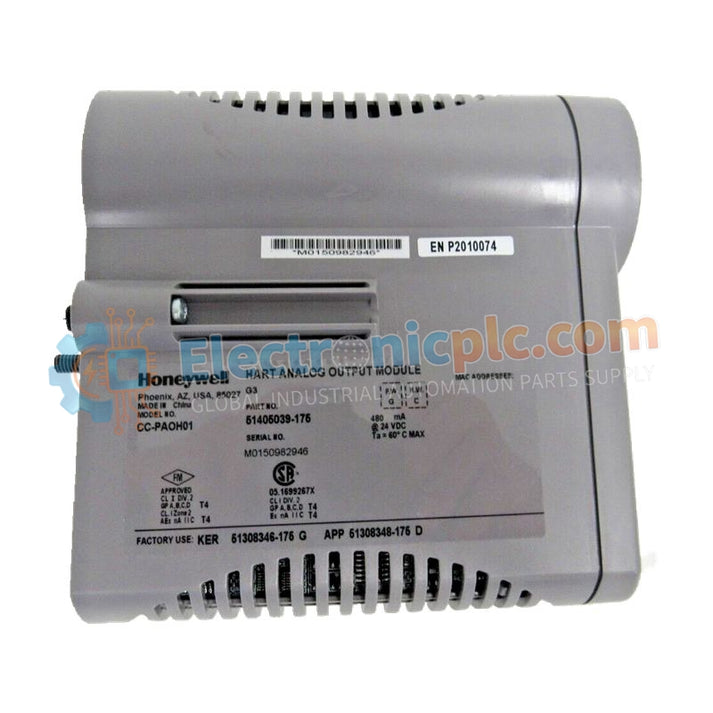

The Honeywell CC-PAOH01 (Part Number: 51405039-175) serves as a high-precision analog output interface for the Experion PKS Distributed Control System (DCS). This module is designed to drive final control elements, such as control valves and actuators, by converting digital controller commands into high-level analog current or voltage signals. It integrates onboard HART communication, enabling the system to transmit digital configuration and diagnostic data over the standard 4-20 mA loop. We offer this hardware as 100% Brand New and Original factory stock.

Technical Specifications

Engineering Advantages

• Extreme Environment Resilience: The NEMA 4X and IP66 ratings ensure the module can be installed in harsh processing areas where moisture, dust, and corrosive elements often damage standard electronics.

• Wide Thermal Range: Operating reliably from -40°C to 85°C, the module eliminates the need for costly cabinet cooling or heating systems in outdoor or unconditioned environments.

• High-Speed Control Loops: With a 100 Hz sampling rate, the module rapidly updates final control elements, maintaining stability in high-speed applications such as pressure or flow control.

• Streamlined Smart Device Management: HART transparency allows engineers to calibrate smart positioners and retrieve valve diagnostics remotely, reducing manual field inspections and minimizing downtime.

• Precision Actuation: The 12-bit resolution, combined with ±0.1% accuracy, provides precise control, making it ideal for high-value chemical dosing and refined fuel blending applications.

FAQs

Does the CC-PAOH01 support both voltage and current outputs simultaneously?

The module supports either 4-20 mA or 0-10 V output, but the specific output channel must be configured based on the field actuator's requirements.

Is this module compatible with non-HART actuators?

Yes. While the CC-PAOH01 provides HART capabilities, it also functions perfectly with standard 4-20 mA analog actuators that do not require digital communication.

How does the 51405039-175 part number relate to the CC-PAOH01?

CC-PAOH01 is the functional model identifier, while 51405039-175 refers to the specific hardware assembly version. Both numbers confirm this is a high-level analog output module for the Experion platform.

What is the benefit of the NEMA 4X rating for a DCS module?

The NEMA 4X rating signifies excellent resistance to corrosion and hose-directed water, making it suitable for installation in local control panels within wash-down areas or coastal facilities.
