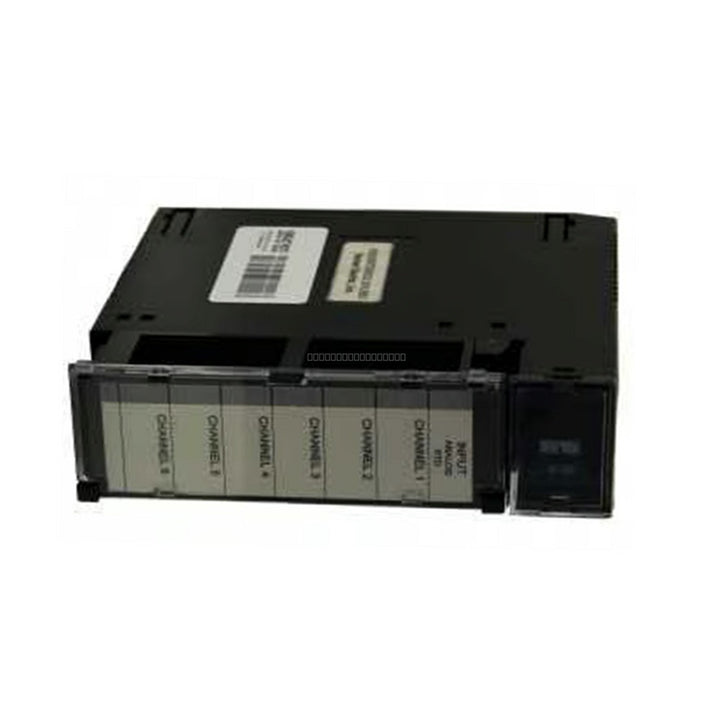

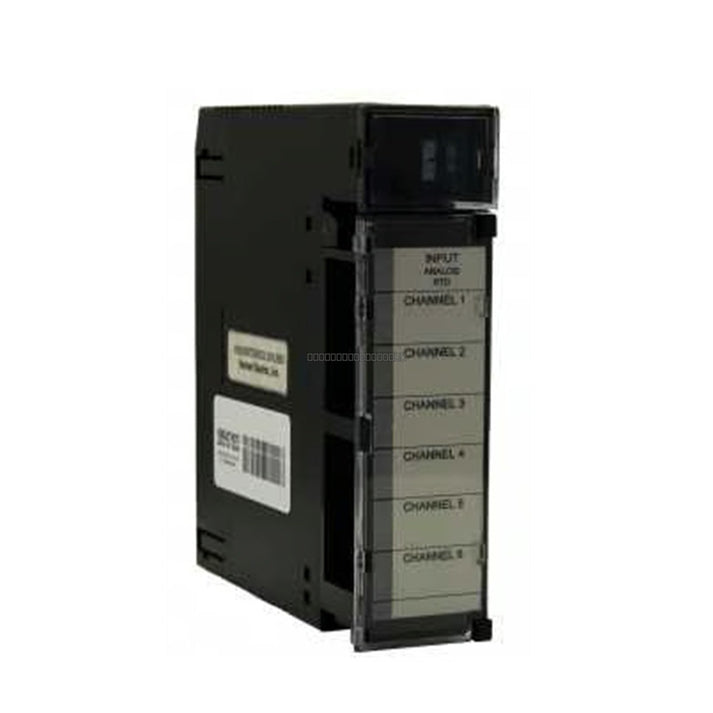

General Electric HE693RTD600 90-30 Series 6-Channel RTD Input Module

General Electric HE693RTD600 90-30 Series 6-Channel RTD Input Module

Description

The HE693RTD600 is a high-precision 6-channel Resistance Temperature Device (RTD) input module designed for the GE Fanuc Series 90-30 PLC platform. This module enables direct connection of various RTD sensors,...

24 people are viewing this right now

Availability: Low stock: 7 left

SKU: HE693RTD600
Vendor: General Electric
Category: RTD Input Module
