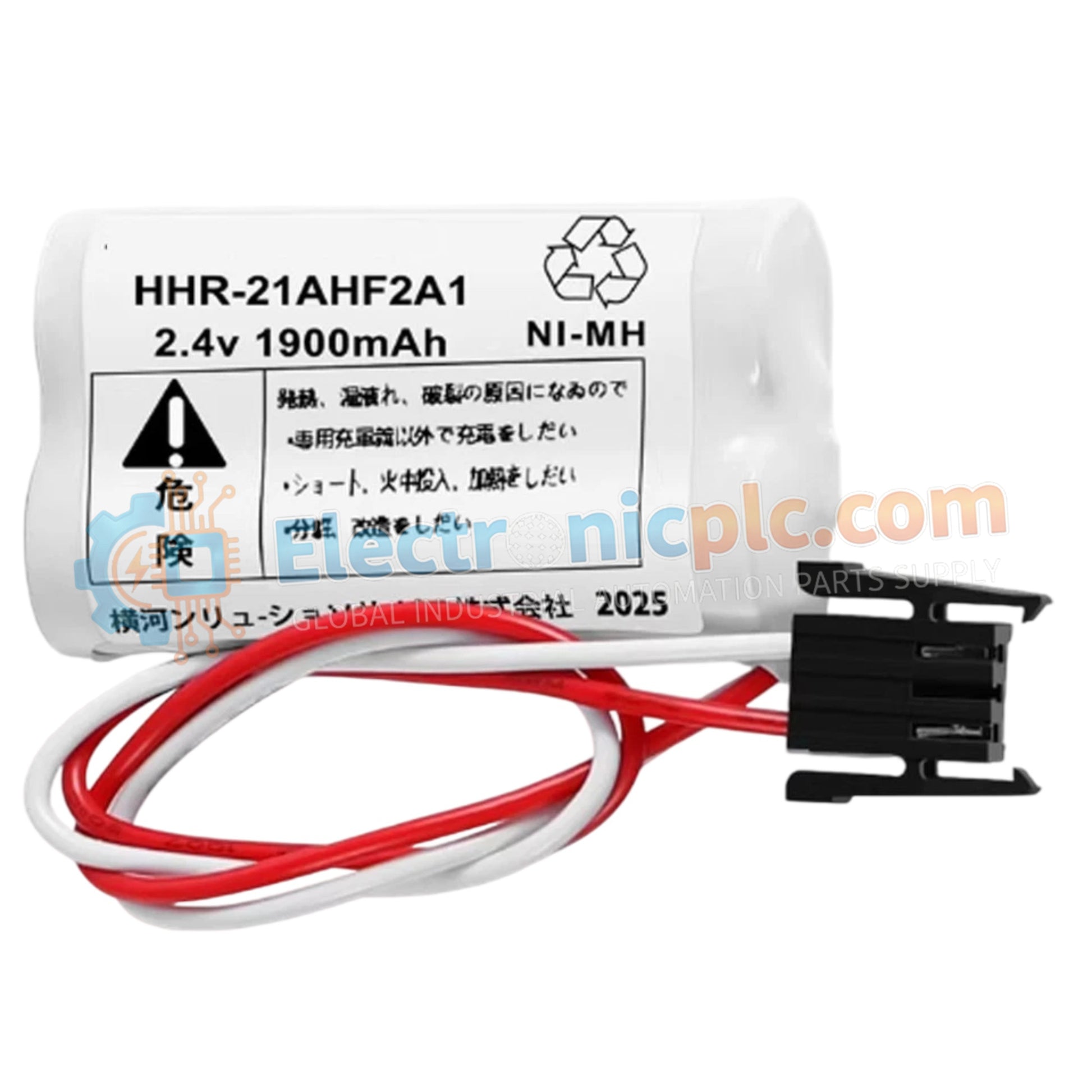

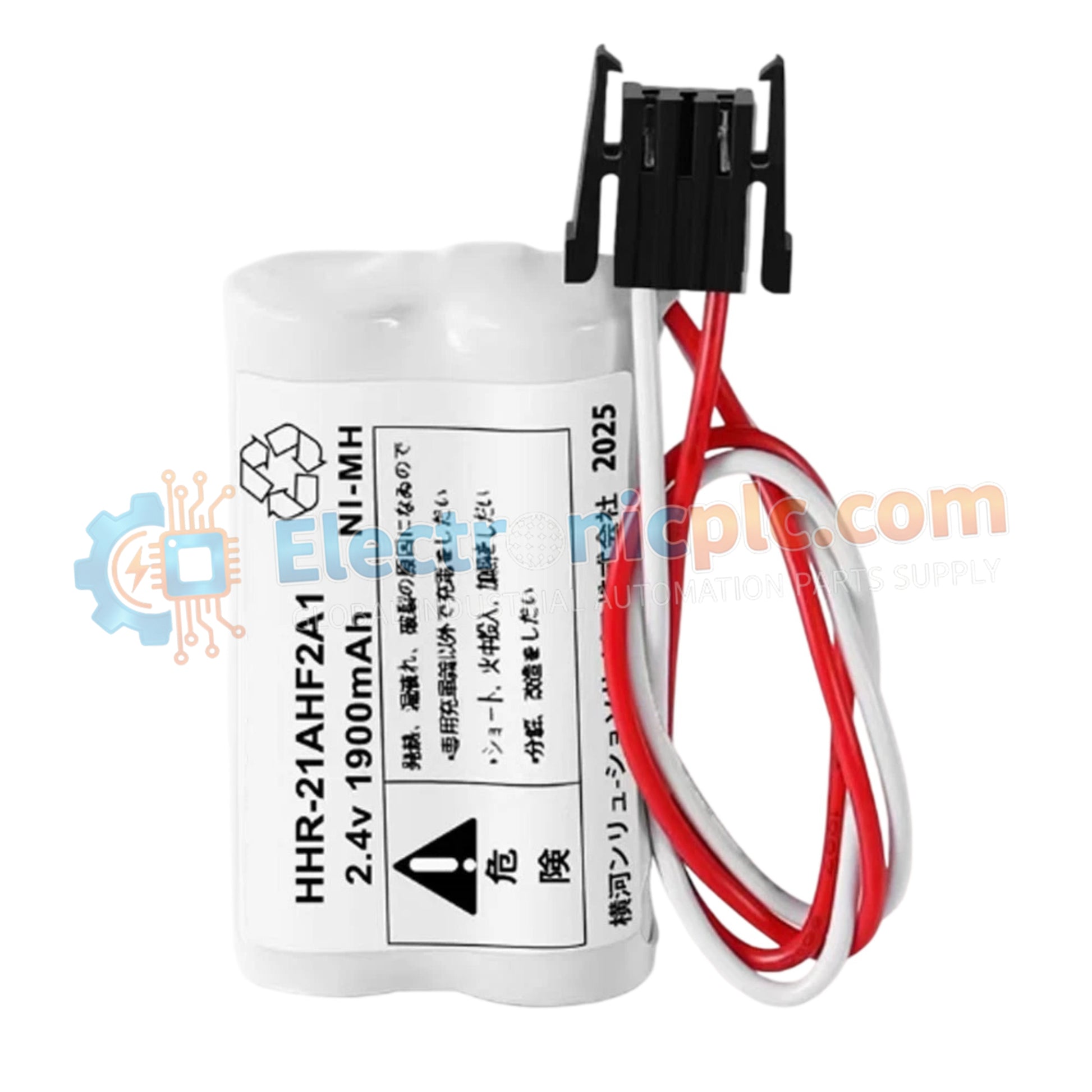

HHR-21AHF2A1 (S9548FA) Battery Pack YOKOGAWA

HHR-21AHF2A1 (S9548FA) Battery Pack YOKOGAWA

The YOKOGAWA HHR-21AHF2A1 (S9548FA) operates as a dedicated power storage component, providing reliable backup energy for volatile memory and real-time clock (RTC) modules within Distributed Control Systems (DCS) and associated...

16 people are viewing this right now

Availability: Low stock: 50 left

SKU: HHR-21AHF2A1 (S9548FA)
Vendor: Yokogawa
Category: Battery Pack
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The YOKOGAWA HHR-21AHF2A1 (S9548FA) operates as a dedicated power storage component, providing reliable backup energy for volatile memory and real-time clock (RTC) modules within Distributed Control Systems (DCS) and associated industrial instrumentation platforms.

Hardware Specifications

Parameter Specification
Model HHR-21AHF2A1 (S9548FA)
Brand YOKOGAWA
Origin japan
Voltage 2.4 V
Capacity 1900 mAh
Chemistry Ni-MH (Nickel-Metal Hydride)
Cycle Life > 600 charge cycles

Industrial System Power Backup

The HHR-21AHF2A1 serves as a mission-critical component for maintaining system integrity during primary power losses. It is specifically engineered to provide the stable discharge characteristics required by DCS controller nodes to retain critical configuration data, process logs, and system time-keeping functionality. The robust chemistry supports high-reliability operation across extended deployment intervals, ensuring that the control system maintains essential state awareness during unexpected site-wide electrical interruptions.

Frequently Asked Questions (FAQ)

Q: What is the shelf life of this battery pack if stored as a spare?

A: Like all Ni-MH batteries, the HHR-21AHF2A1 will experience self-discharge over time. Store in a cool, dry environment (ideally 15°C to 25°C) and conduct periodic inspections. It is recommended to perform a maintenance charge if the battery has been in storage for an extended period.

Q: How do I know when the battery requires replacement?

A: The DCS engineering station will typically trigger a system alarm or status flag when the battery voltage drops below the operational threshold. Replace the battery pack immediately upon receiving a "Low Battery" warning to prevent the loss of volatile memory.

Field Installation Guidelines

  • Handling: Observe standard electrostatic discharge (ESD) precautions when handling the battery pack and connecting it to the controller assembly.
  • Replacement: Perform the battery replacement while the control station is powered (if the system architecture permits "hot-swapping" the battery backup module) to prevent data loss. Always refer to the specific controller’s maintenance manual for the correct sequence of operations.
  • Storage: Dispose of exhausted battery packs in accordance with local environmental and hazardous waste regulations. Do not incinerate or attempt to recharge non-rechargeable cells, and avoid short-circuiting the terminals.
  • Mounting: Ensure the battery connector is fully seated to prevent intermittent contact. Secure the battery pack in the designated chassis housing to protect it from mechanical vibration or shock during cabinet operation.
