The Schneider Electric 140CPU53414 serves as the primary computational engine for the Modicon Quantum automation platform. This high-performance processor module executes complex control logic and coordinates massive data exchanges across...
Availability: Low stock: 94 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

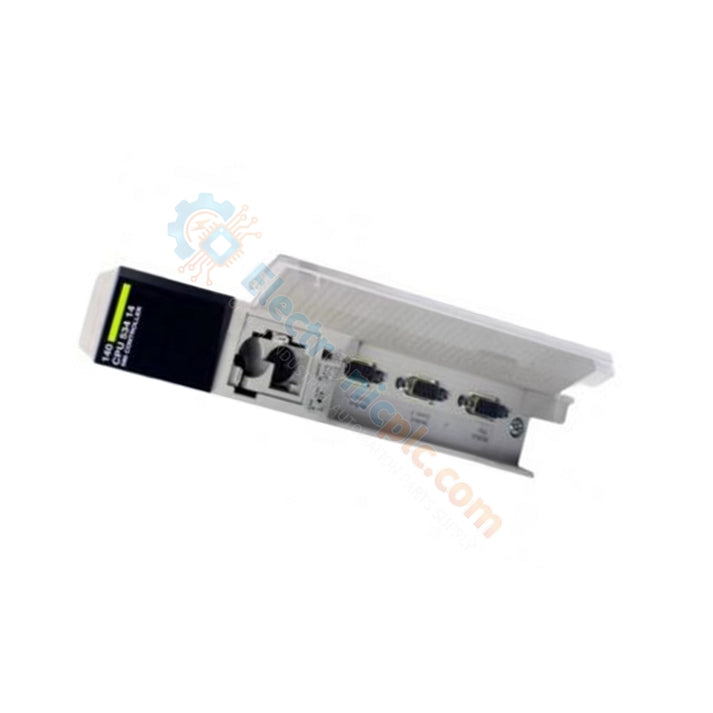

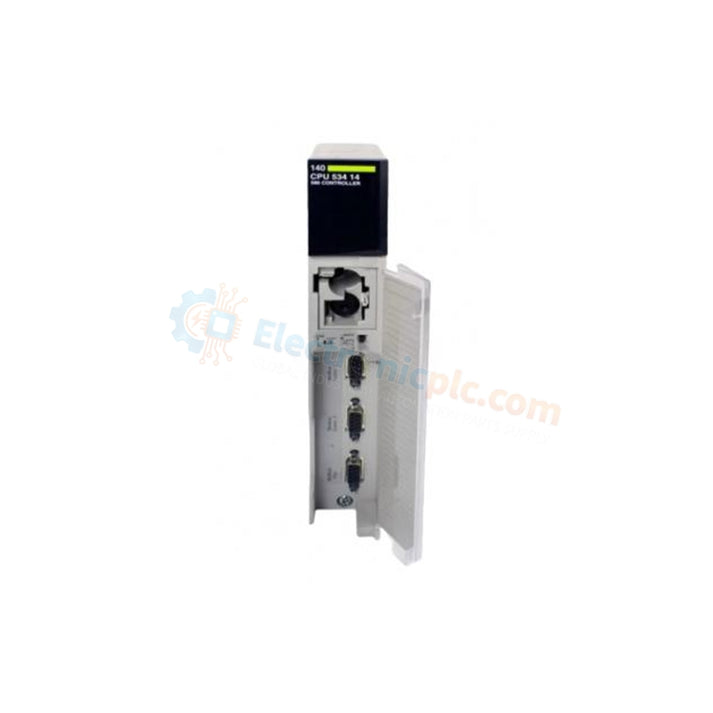

The Schneider Electric 140CPU53414 serves as the primary computational engine for the Modicon Quantum automation platform. This high-performance processor module executes complex control logic and coordinates massive data exchanges across local, remote, and distributed I/O architectures. Utilizing a powerful processor with an integrated mathematical coprocessor, it handles computationally intensive tasks in power generation, petrochemical, and heavy manufacturing sectors. We deliver this unit as 100% Brand New and Original, ensuring peak performance for your critical automation infrastructure.
| Parameter | Specification |
| Manufacturer | Schneider Electric |
| Model Number | 140CPU53414 |
| Series | Modicon Quantum |
| Processor Type | 80486 / 586-class with Math Coprocessor |
| Memory Capacity | 4 MB SRAM / 2972 kB Internal RAM |
| Logic Solve Time | 0.1 to 0.5 ms per K Instruction |
| I/O Capacity | Up to 8,000 I/O points |
| Communication Ports | 2 x Modbus (RS-232), 1 x Modbus Plus (MB+) |
| Logic Capacity | 64K Words Ladder Logic |
| Register Capacity | 64K Discrete / 96K Extended Registers |
| Bus Current Requirement | 1250 mA |
| Operating Temperature | 0°C to 60°C |
| Battery Type | 3 V Lithium (1200 mAh) |
Accelerated Logic Execution: The 140CPU53414 utilizes a high-clock-speed processor to solve logic at rates as fast as 0.1 ms per thousand instructions. This rapid processing eliminates bottlenecks in high-speed manufacturing and turbine control applications where timing is critical.
Massive Memory Footprint: With 4MB of SRAM, this module provides the capacity needed for extensive data logging, complex recipe management, and large-scale PID loops. It comfortably hosts large ladder logic programs that smaller processors cannot accommodate.
Seamless Network Integration: Dual Modbus RS-232 ports and an integrated Modbus Plus (MB+) interface enable direct connection to HMIs, SCADA systems, and peer-to-peer PLC networks. This eliminates the need for additional communication bridge modules in many configurations.
Robust Diagnostic Capabilities: The CPU constantly monitors system health via an adjustable software watchdog timer (250 ms default). It identifies internal hardware faults or logic loops instantly, triggering safe-state protocols to protect expensive field assets and machinery.
Does this CPU module require a separate memory card?
The 140CPU53414 features 4MB of onboard SRAM, which supports most standard logic and data storage requirements. However, you should check your specific application's need for external flash memory for backup or executive firmware storage.
How does the 140CPU53414 handle power loss?
The module includes a 3V lithium battery that retains the user program and register data in the volatile RAM during power outages. Always replace the battery according to the maintenance schedule to prevent data loss.
Can I use this module in a Modicon Quantum Hot Standby system?
Yes, the 140CPU53414 supports high-availability configurations. When paired with a second identical CPU and a Hot Standby bridge, it provides seamless failover for mission-critical processes where downtime is not an option.
