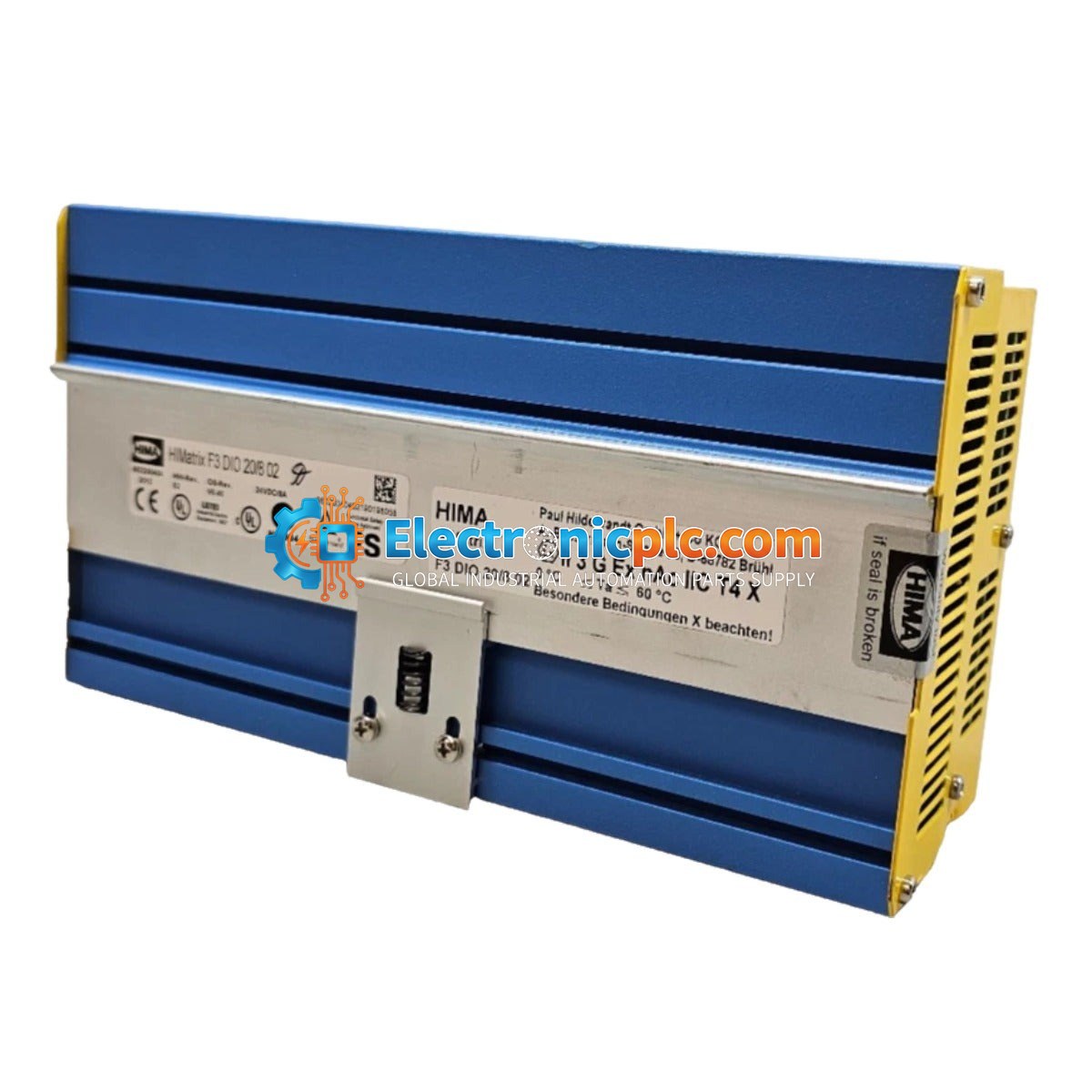

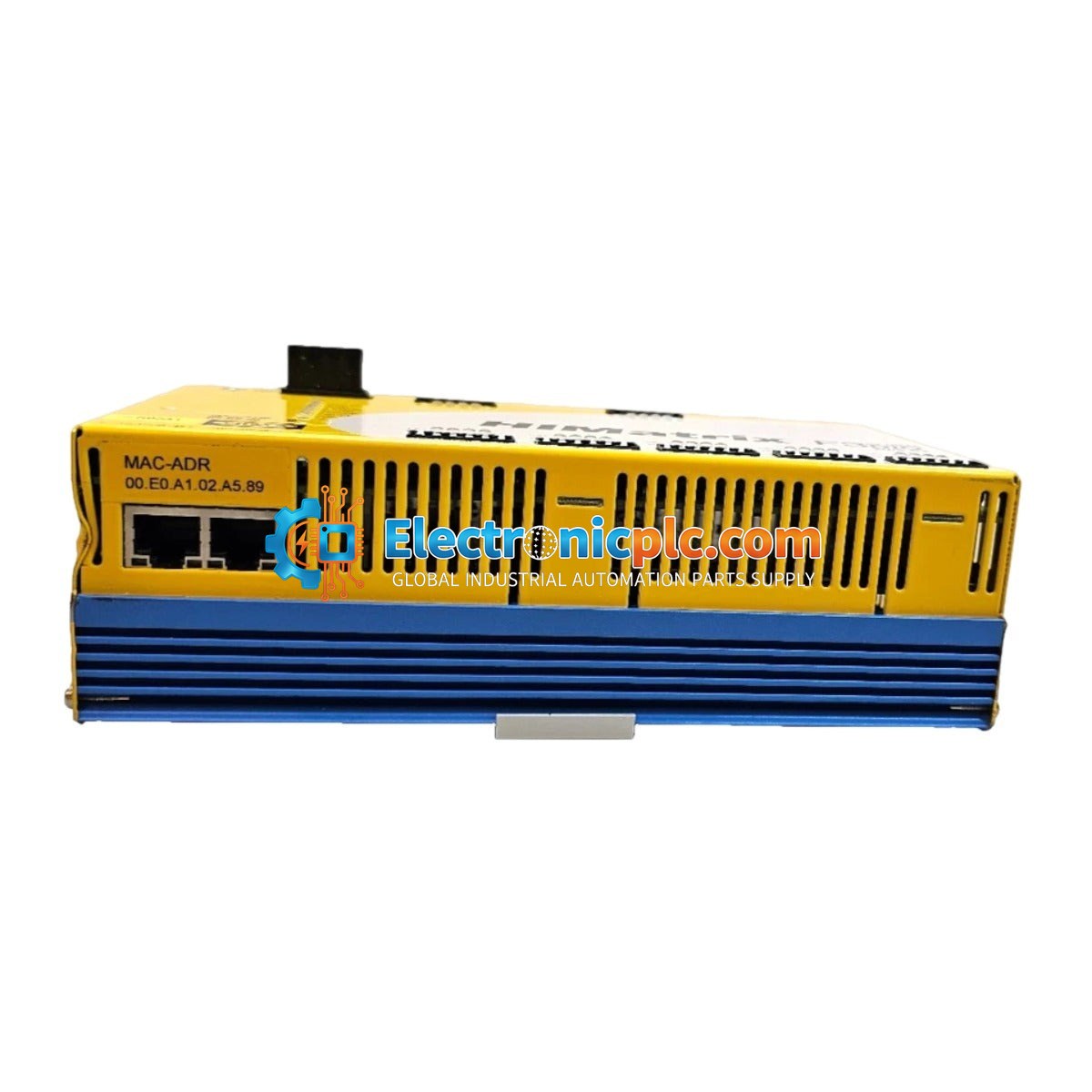

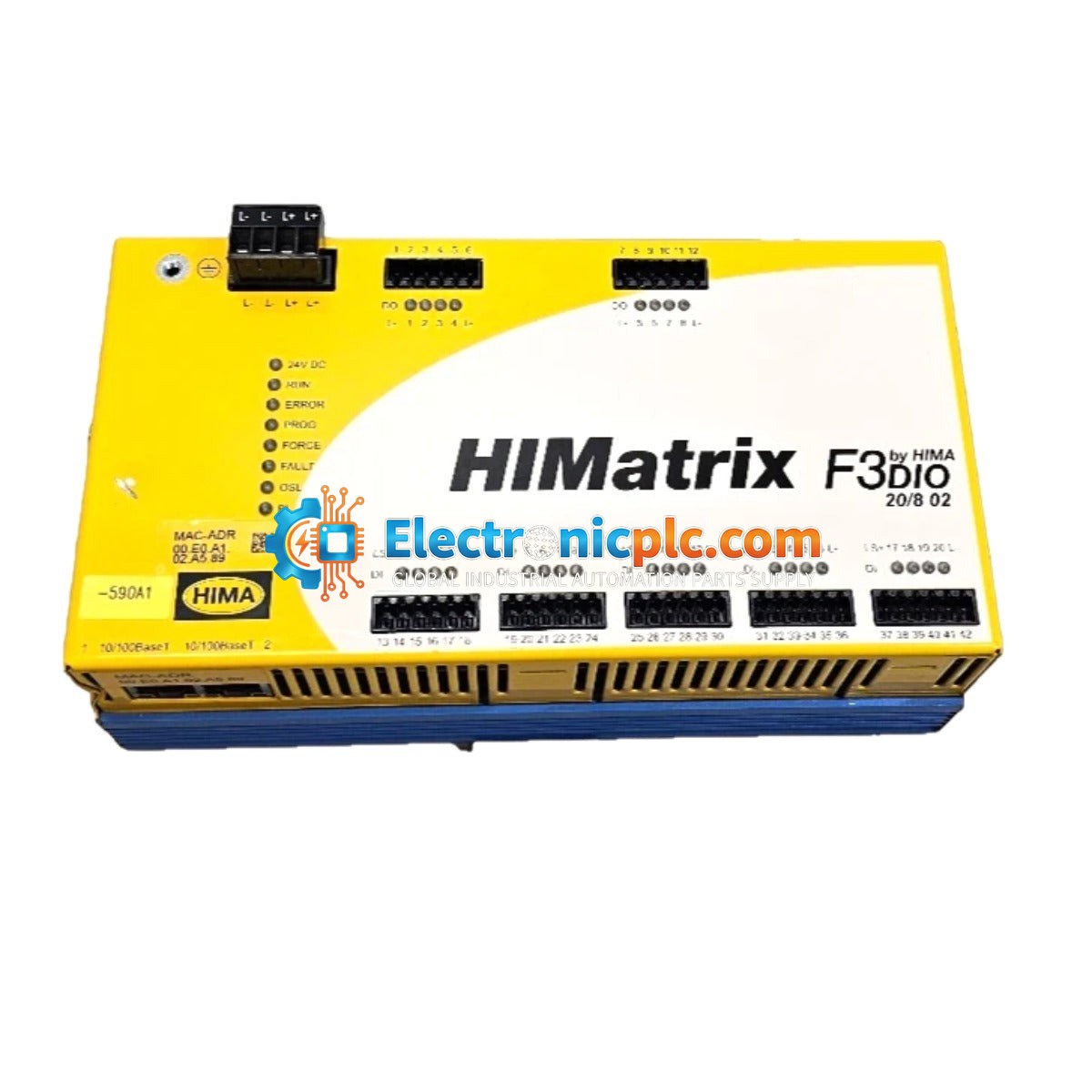

HIMA F3 DIO 20/8 02 Himatrix I/O Module

HIMA F3 DIO 20/8 02 Himatrix I/O Module

Description

The HIMA F3 DIO 20/8 02 is a high-performance remote I/O module designed for the Himatrix safety system. This module provides a robust interface for safety-critical applications, offering 20 digital...

29 people are viewing this right now

Availability: Low stock: 9 left

SKU: F3 DIO 20/8 02
Vendor: HIMA
Category: I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The HIMA F3 DIO 20/8 02 is a high-performance remote I/O module designed for the Himatrix safety system. This module provides a robust interface for safety-critical applications, offering 20 digital inputs with configurable line control and 8 digital outputs. It features an integrated 2-port switch for 100 BASE-TX communication, supporting Safe Ethernet protocols to ensure reliable data transmission within industrial automation environments.

Features

  • 20 Digital Inputs with configurable line monitoring capabilities.
  • 8 Digital Outputs for control and signaling.
  • Integrated 2-port switch for seamless network integration.
  • Supports 100 BASE-TX Safe Ethernet communication.
  • Designed for high-availability safety applications.

Technical Specifications

Product Model F3 DIO 20/8 02
Operating Voltage 24 VDC (-15% to +20%)
Digital Inputs 20
Digital Outputs 8
Communication 2-port switch, 100 BASE-TX, Safe Ethernet
Response Time >= 10 ms
Operating Temperature 0 degC to +60 degC
Storage Temperature -40 degC to +85 degC
External Fuse 10 A time-lag
Supply 5 x 20 V / 100 mA

Installation Guidelines

  • Ensure the module is installed in a clean, dry environment protected from excessive dust and moisture.
  • Always power down the system before inserting or removing the I/O module to prevent electrical damage.
  • Use appropriate shielded cabling for Safe Ethernet connections to minimize EMI interference.
  • Ensure proper grounding of the module chassis to the system backplane or DIN-rail as per HIMA installation standards.
  • Verify that the external fuse (10 A time-lag) is correctly installed to protect the module circuitry.
  • Maintain adequate clearance around the module to allow for proper ventilation and cooling.

FAQ

What is the primary function of the F3 DIO 20/8 02?

This module serves as a remote I/O unit for the HIMA Himatrix system, providing digital input and output connectivity with integrated Safe Ethernet communication for safety-related control tasks.

Does this module require a backup battery?

No, the F3 DIO 20/8 02 does not utilize a back-up battery.

Is this module compatible with standard Ethernet?

The module is designed for Safe Ethernet communication via its integrated 2-port switch (100 BASE-TX). Ensure your network infrastructure is configured to support HIMA safety communication protocols.
