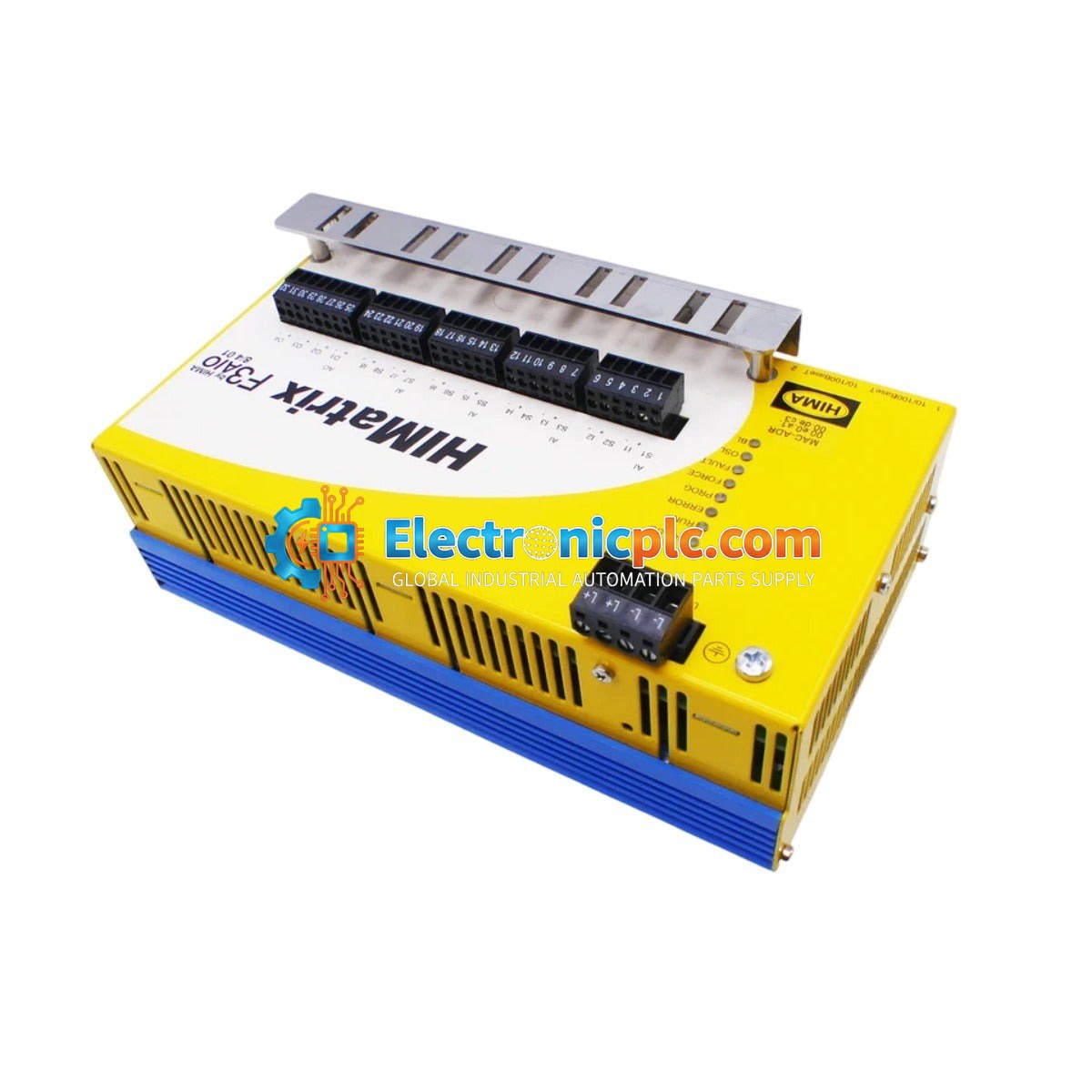

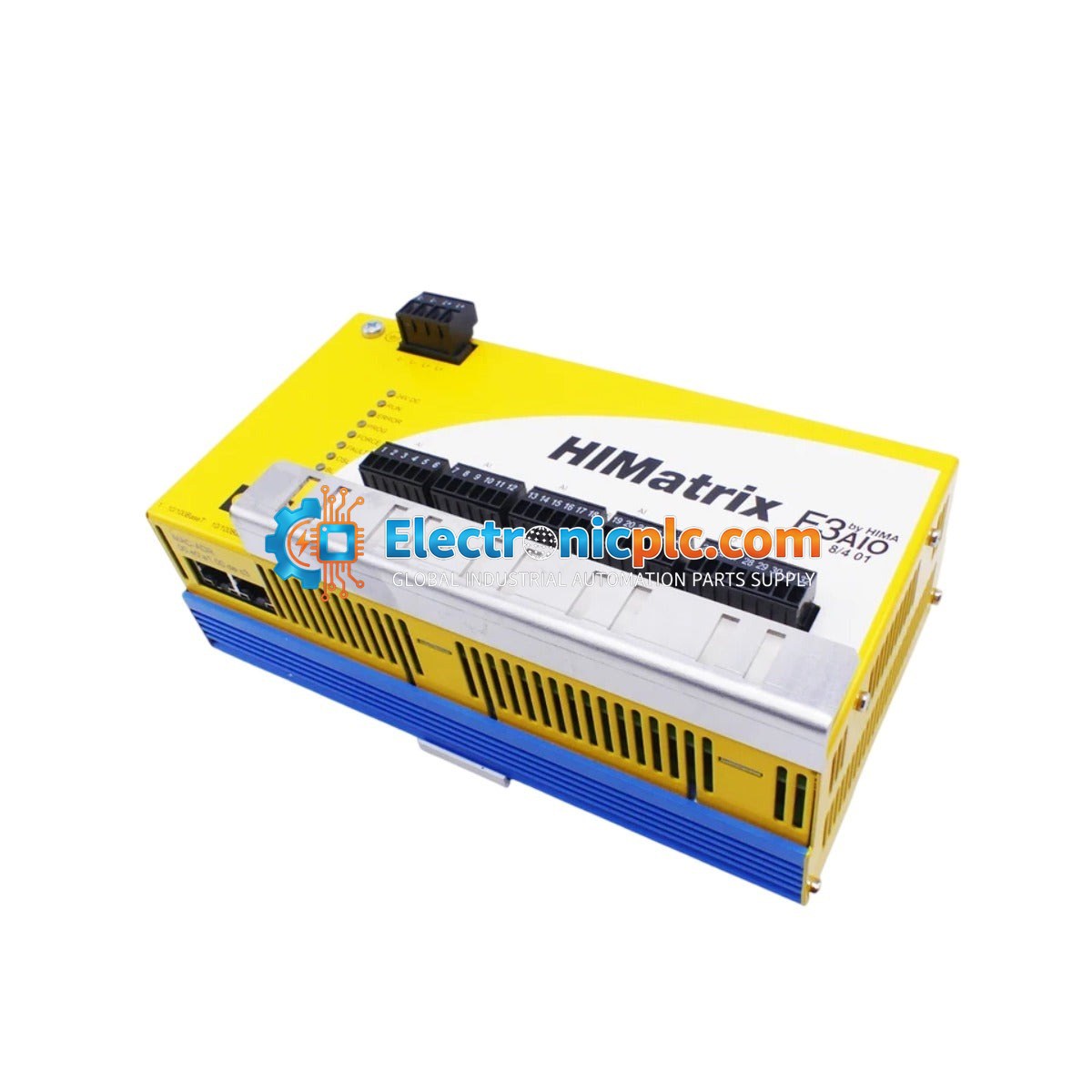

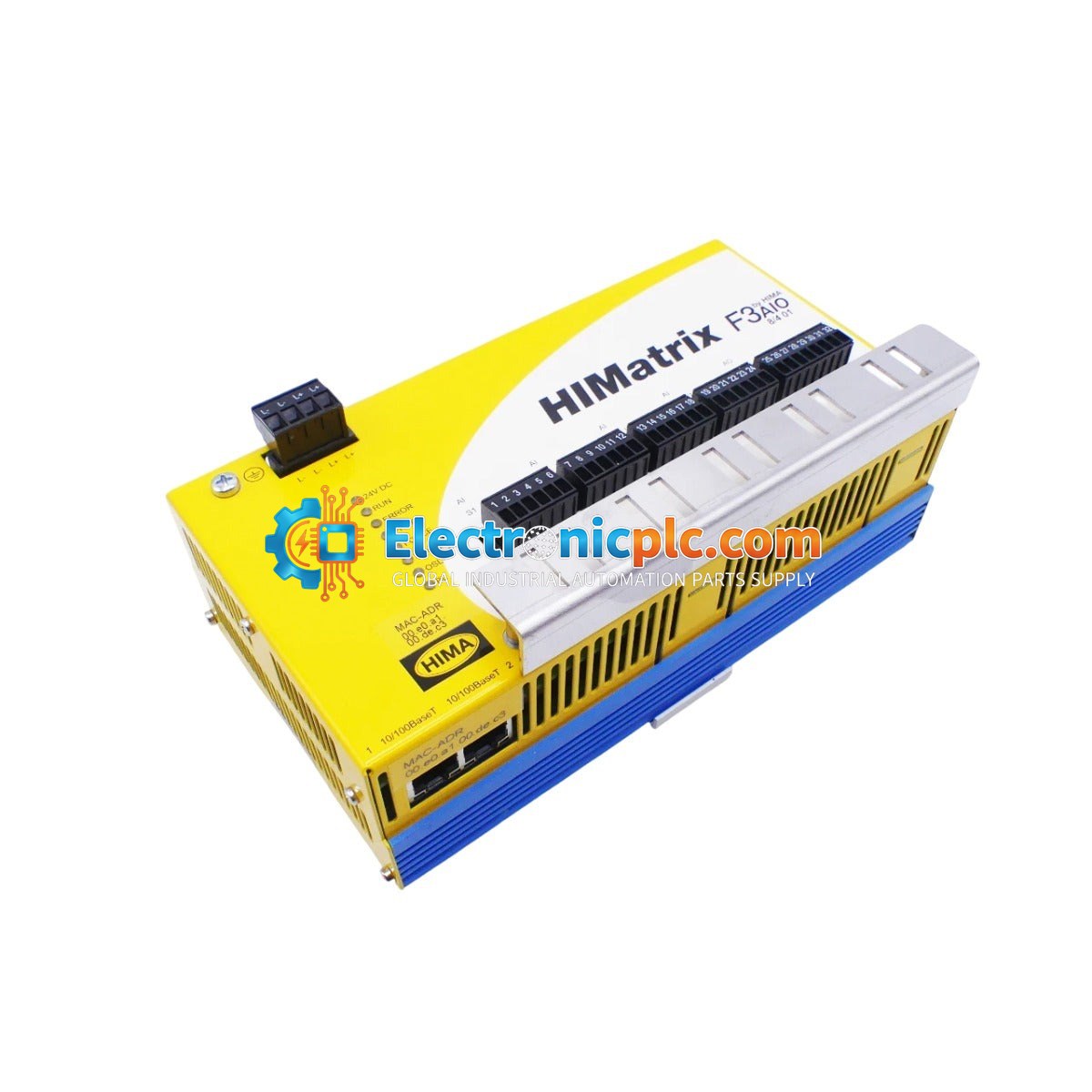

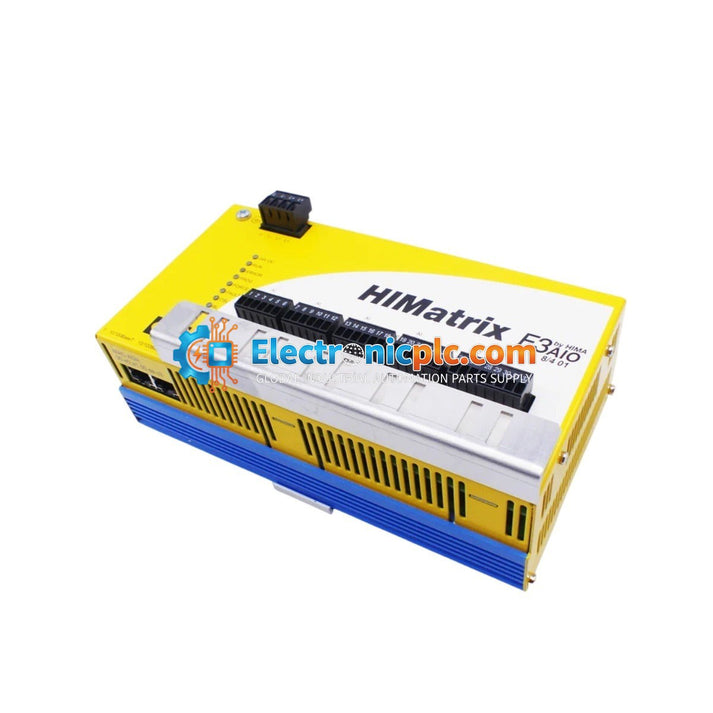

HIMA F3 AIO 8/4 01 Himatrix Safety Remote I/O Module

HIMA F3 AIO 8/4 01 Himatrix Safety Remote I/O Module

Description

The HIMA F3 AIO 8/4 01 is a high-performance safety-related remote I/O module designed for the Himatrix system. This module provides integrated analog signal processing capabilities, specifically engineered for safety-critical...

16 people are viewing this right now

Availability: Low stock: 3 left

SKU: F3 AIO 8/4 01
Vendor: HIMA
Category: Safety I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The HIMA F3 AIO 8/4 01 is a high-performance safety-related remote I/O module designed for the Himatrix system. This module provides integrated analog signal processing capabilities, specifically engineered for safety-critical industrial automation environments. It facilitates the reliable acquisition of analog input signals and the control of analog output devices, ensuring system integrity and functional safety compliance.

Features

  • Safety-rated analog I/O module for Himatrix systems.
  • 8 analog input channels with high input resistance.
  • 4 analog output channels with configurable voltage/current parameters.
  • 12-bit digital resolution for precise signal conversion.
  • Supports standard 4...20 mA process signal ranges.
  • Robust design suitable for harsh industrial conditions.

Technical Specifications

Product Model F3 AIO 8/4 01
Number of Inputs 8
Input Resistance > 2 MΩ
Input Signal Source Resistance ≤ 500 Ω
Digital Resolution 12-bit
Number of Supply Outputs 8
Nominal Voltages 8.2 VDC / 26 VDC (switchable)
Voltage Tolerance ± 5 %
Nominal Current Range 4...20 mA
Operating Current Range 0...21 mA
Max Load Impedance 600 Ω

Installation Guidelines

  • Ensure the system power is completely disconnected before installing or removing the module from the rack.
  • Mount the module in a clean, dry environment with adequate ventilation to maintain operating temperatures.
  • Use shielded cables for all analog signal connections to minimize electromagnetic interference (EMI).
  • Ensure proper grounding of the module chassis to the system common ground to maintain safety integrity.
  • Verify that all terminal connections are secure and that wire gauges comply with local electrical standards.
  • Handle the module using ESD-safe practices to prevent damage to internal electronic components.

FAQ

Is the F3 AIO 8/4 01 compatible with other HIMA systems?

This module is specifically designed for the HIMA Himatrix series. Please consult your system documentation or HIMA configuration software to ensure compatibility with your specific controller CPU and backplane.

What is the primary function of the switchable nominal voltages?

The 8.2 VDC / 26 VDC switchable voltage allows the module to interface with a variety of field sensors and transmitters, providing the necessary loop power for different instrumentation requirements.
