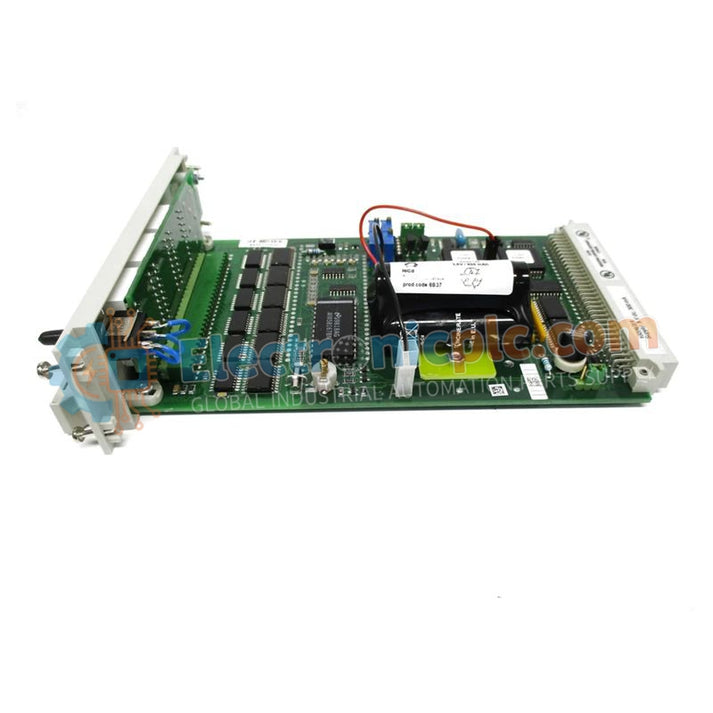

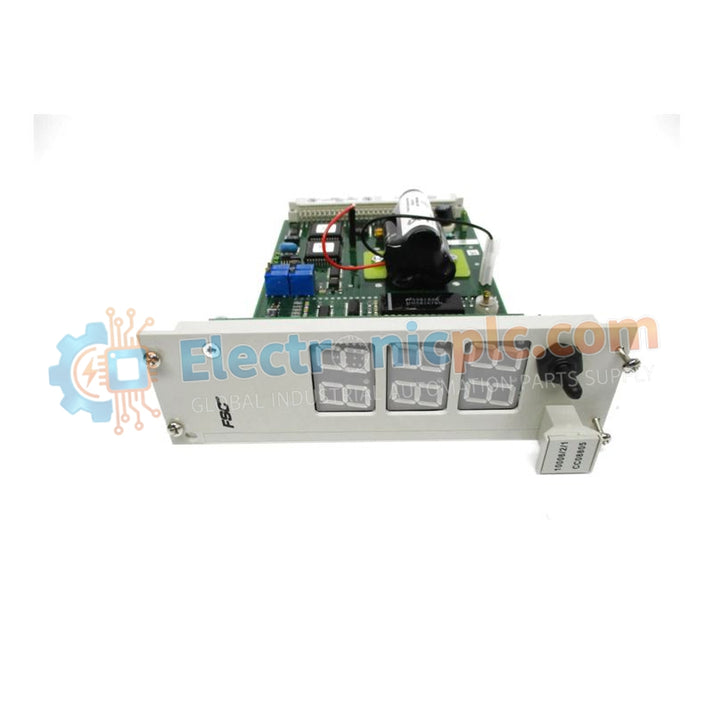

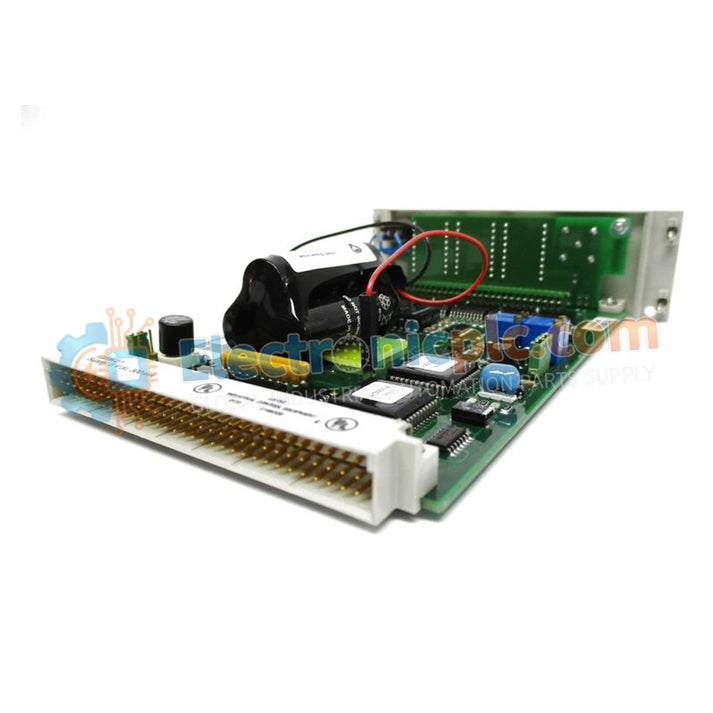

Honeywell 10006/2/1 FSC Diagnostic and Battery Module

Honeywell 10006/2/1 FSC Diagnostic and Battery Module

Product Overview

The Honeywell 10006/2/1 Diagnostic and Battery Module (DBM) is a vital component in the Fail-Safe Control (FSC) system. It performs two key functions: monitoring the health of the safety controller and providing...

25 people are viewing this right now

Availability: Low stock: 50 left

SKU: 10006/2/1
Vendor: Honeywell
Category: Diagnostic and Battery Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell 10006/2/1 Diagnostic and Battery Module (DBM) is a vital component in the Fail-Safe Control (FSC) system. It performs two key functions: monitoring the health of the safety controller and providing battery backup to preserve volatile memory and time settings during power disruptions. Supplied as 100% brand new, original equipment to maintain compliance with CE, TÜV, and UL certifications.

Technical Specifications

Specification Details
Model Number 10006/2/1
Power Requirements 5 VDC @ 300 mA
Ripple Content < 50 mV p-p
Backup Capacity 0.5 Ah
Time Drift < 1 sec/day
Space Requirements 8 TE (8 HP), 3 HE (3U)
Software Compatibility Version 2.90 and above
Weight 0.24 kg
Condition 100% Brand New, Original

Engineering Advantages

  • Memory Preservation:
    The 0.5 Ah backup ensures critical logic and event logs are retained during power loss, preventing data loss and costly re-programming.

  • Precision Timekeeping:
    Time drift is less than 1 second/day, providing accurate timestamps for post-trip analysis.

  • Strict Power Integrity:
    Ripple content is <50 mV p-p, ensuring stable power to sensitive circuits and preventing false errors.

  • System Health Transparency:
    Continuous monitoring detects early hardware issues, helping maintenance teams address problems before they lead to downtime.

FAQs

  • How often should I replace the battery?
    The battery is monitored, but we recommend replacement every 2–3 years to maintain sufficient backup capacity.

  • Is it compatible with all FSC software versions?
    It requires software version 2.90 or higher. Verify your system firmware before installation.

  • Does it need a dedicated slot?
    Yes, the DBM occupies 8 TE (horizontal) and 3 HE (vertical) space. Ensure your rack has available 3U space.

  • What happens if the DBM detects a fault?
    The module sends a diagnostic status to the CPU, triggering an alarm or diagnostic code in Honeywell Safety Builder to alert operators.
