Product Overview

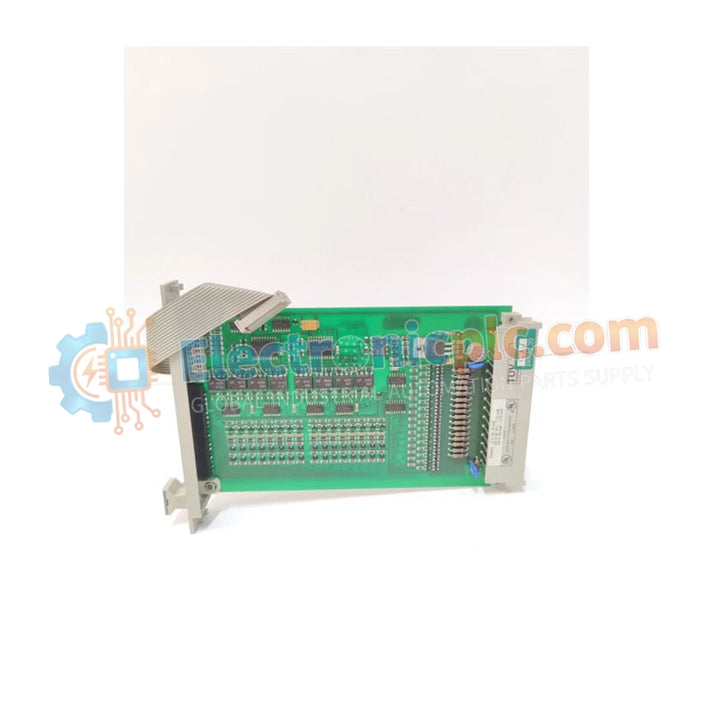

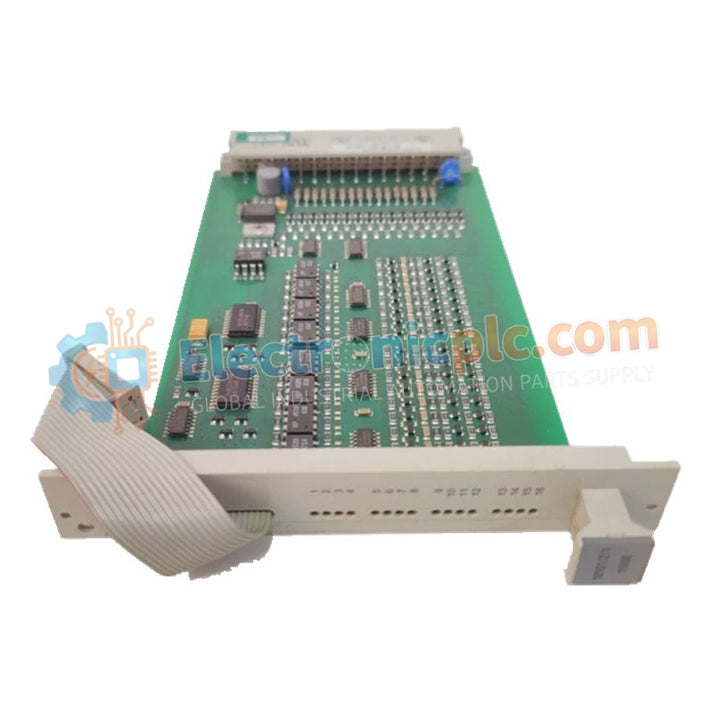

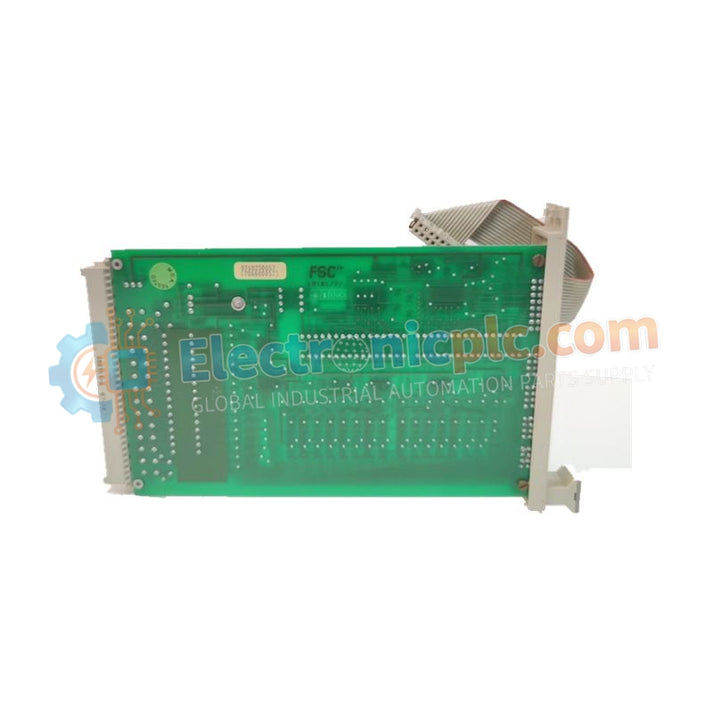

The Honeywell 10102/2/1 serves as a high-integrity Analog Input Module within the Fail-Safe Control (FSC) system architecture. This module monitors critical process variables in environments where system failure poses significant risks to personnel and equipment. It provides continuous diagnostics and ensures a predetermined safe state upon detecting a fault. We supply this unit as 100% brand new, original factory stock to guarantee maximum reliability in mission-critical applications.

Technical Specifications

Engineering Advantages

• High-Density Form Factor:
  The slim 2.5 cm width allows engineers to maximize cabinet density, significantly reducing the footprint of the safety system in crowded control rooms.

• Electromagnetic Interference (EMI) Shielding:
  The module incorporates robust internal shielding to maintain signal integrity in high-voltage industrial environments, preventing nuisance trips caused by electrical noise.

• Simplified Hot-Swap Maintenance:
  The mechanical design permits rapid module replacement during live operations without interrupting the rest of the safety loop, minimizing process downtime.

• Integrated Self-Diagnostics:
  The internal circuitry constantly verifies hardware health, identifying internal component failures before they impact the safety function of the plant.

FAQs

• Does this module support 4-20mA standard signaling?
  Yes, the 10102/2/1 interfaces with standard industrial transmitters, converting 4-20mA signals into digital data for the FSC processor while maintaining fail-safe logic.

• What defines the "Fail-Safe" state for this specific unit?
  Upon detecting an internal hardware error or a loss of power, the module forces the input data to a predefined safety value, triggering the system's protective logic to secure the process.

• Can this module replace older 10102 series revisions?
  The 10102/2/1 maintains backwards compatibility with most legacy FSC racks. However, engineers should verify the specific firmware version of the Central Controller to ensure seamless communication.

• Does the unit require periodic calibration?
  Honeywell designs these modules for long-term stability. While the internal diagnostics monitor drift, we recommend following your facility's annual safety loop validation protocols to ensure end-to-end accuracy.
