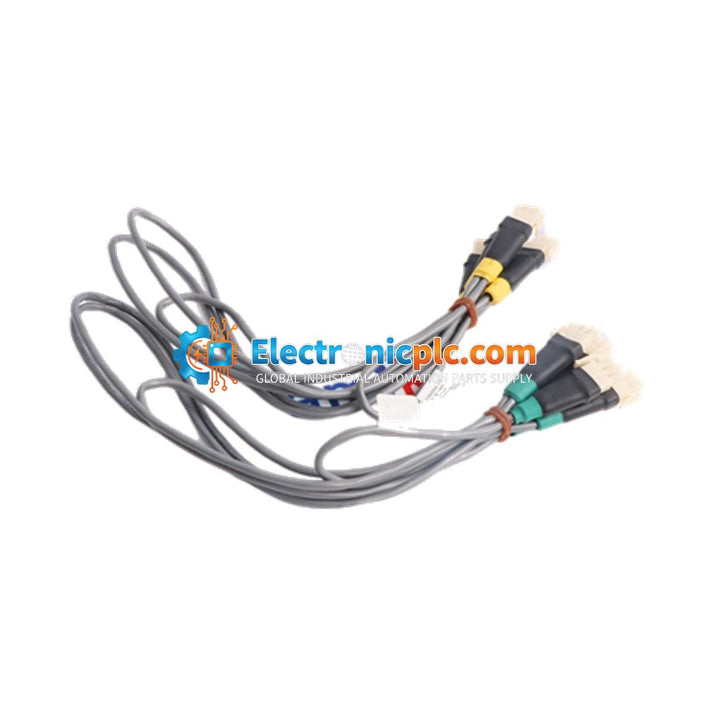

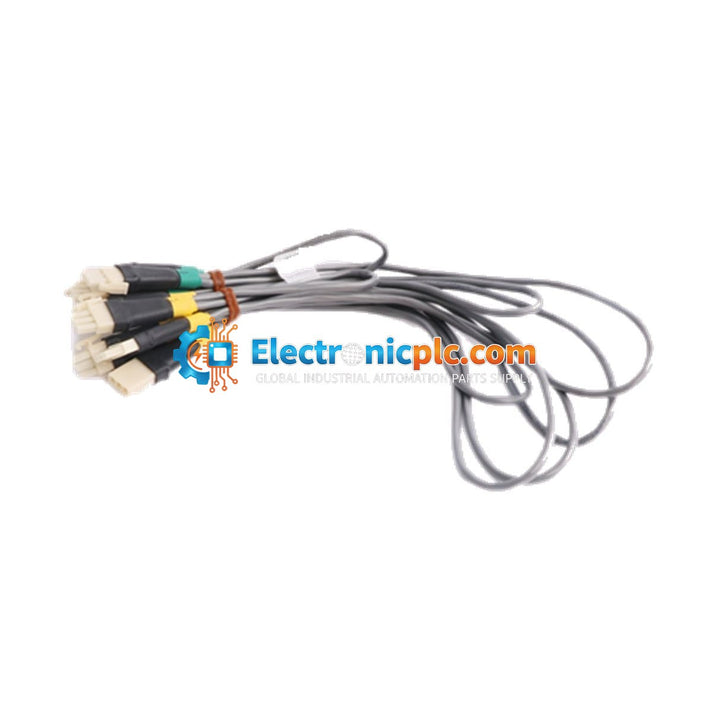

Honeywell 51155506-110 Experion LX Relay Cable Assembly

Honeywell 51155506-110 Experion LX Relay Cable Assembly

Description

The Honeywell 51155506-110 is a specialized relay cable assembly designed for use within the Experion LX control system architecture. This cable assembly serves as a critical interface component for Digital...

20 people are viewing this right now

Availability: Low stock: 10 left

SKU: 51155506-110
Vendor: Honeywell
Category: Cable Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 51155506-110 is a specialized relay cable assembly designed for use within the Experion LX control system architecture. This cable assembly serves as a critical interface component for Digital Output (DO) source configurations, facilitating reliable signal transmission between control hardware and field-level relay devices. With a total length of 10.0 meters, it provides the necessary reach for distributed I/O cabinet layouts.

Features

  • Designed for Digital Output (DO) source applications.
  • 10.0-meter cable length for flexible installation in control cabinets.
  • Constructed with 18 AWG conductors for robust signal integrity.
  • Rated for 300V AC/DC operation, suitable for standard industrial control voltages.
  • High insulation resistance and dielectric strength for enhanced reliability in harsh environments.

Technical Specifications

Model 51155506-110
Cable Length 10.0 Meters
Application DO (Source) Relay Cable Assembly
Wire Gauge 18 AWG
Voltage Rating 300V AC/DC
Current Rating 5A per conductor
Insulation Resistance >=100M Ohm at 500V DC
Dielectric Strength 1000V AC for 1 min
Operating Temperature -40 degC to +85 degC

Installation Guidelines

  • Ensure all power is disconnected from the I/O modules and relay boards before connecting or disconnecting the cable assembly.
  • Route the cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
  • Verify that the connector pins are properly aligned and fully seated to ensure a secure electrical connection.
  • Maintain appropriate bend radii during installation to prevent internal conductor fatigue or insulation damage.
  • Use cable ties or wire management ducts to secure the cable, ensuring it does not obstruct airflow or access to other system components.

FAQ

What is the primary use of the 51155506-110 cable?
This cable is specifically designed as a relay cable assembly for Digital Output (DO) source applications within the Honeywell Experion LX system.

Can this cable be used in high-temperature environments?
Yes, the cable is rated for operation in temperatures ranging from -40 degC to +85 degC, making it suitable for most industrial control room and cabinet environments.
