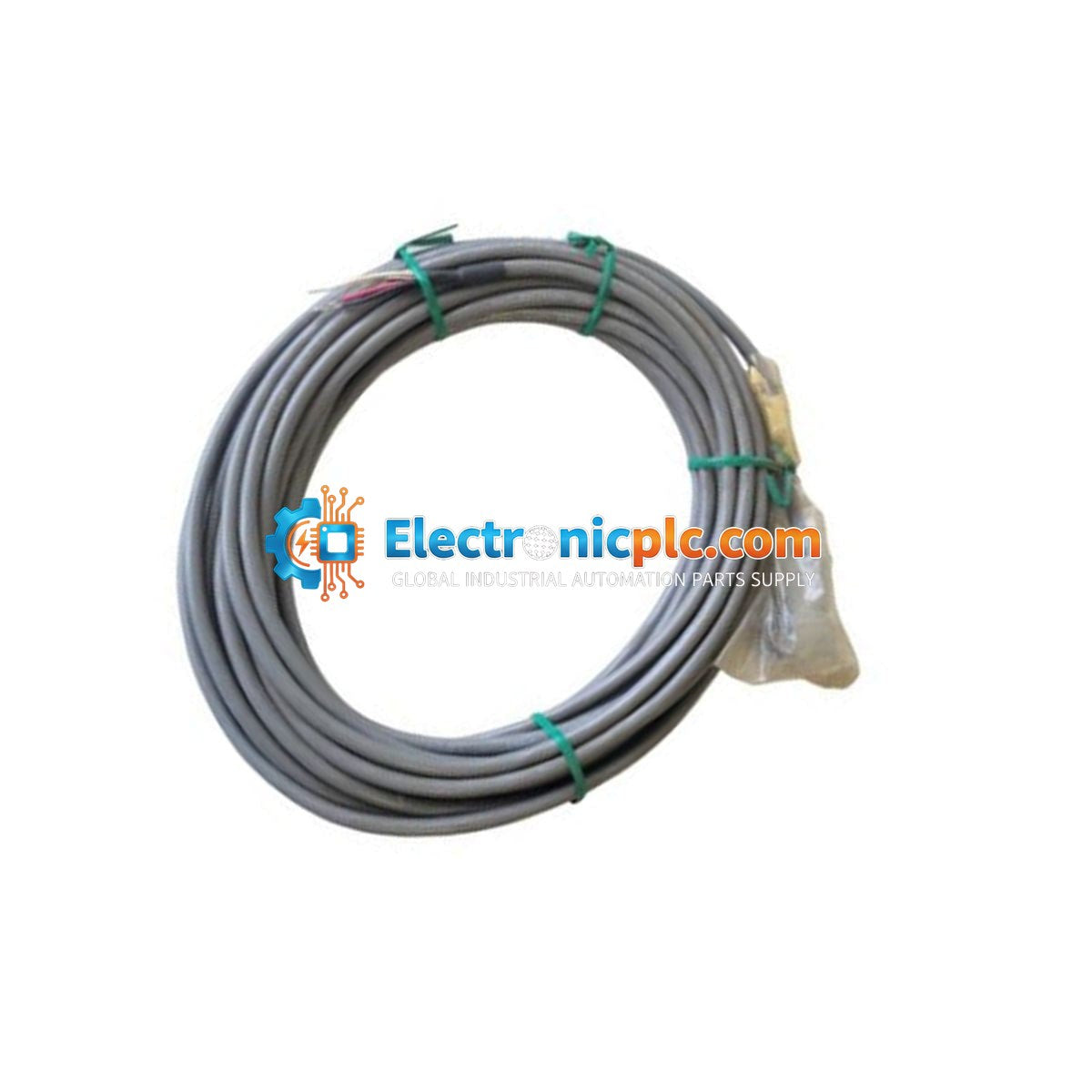

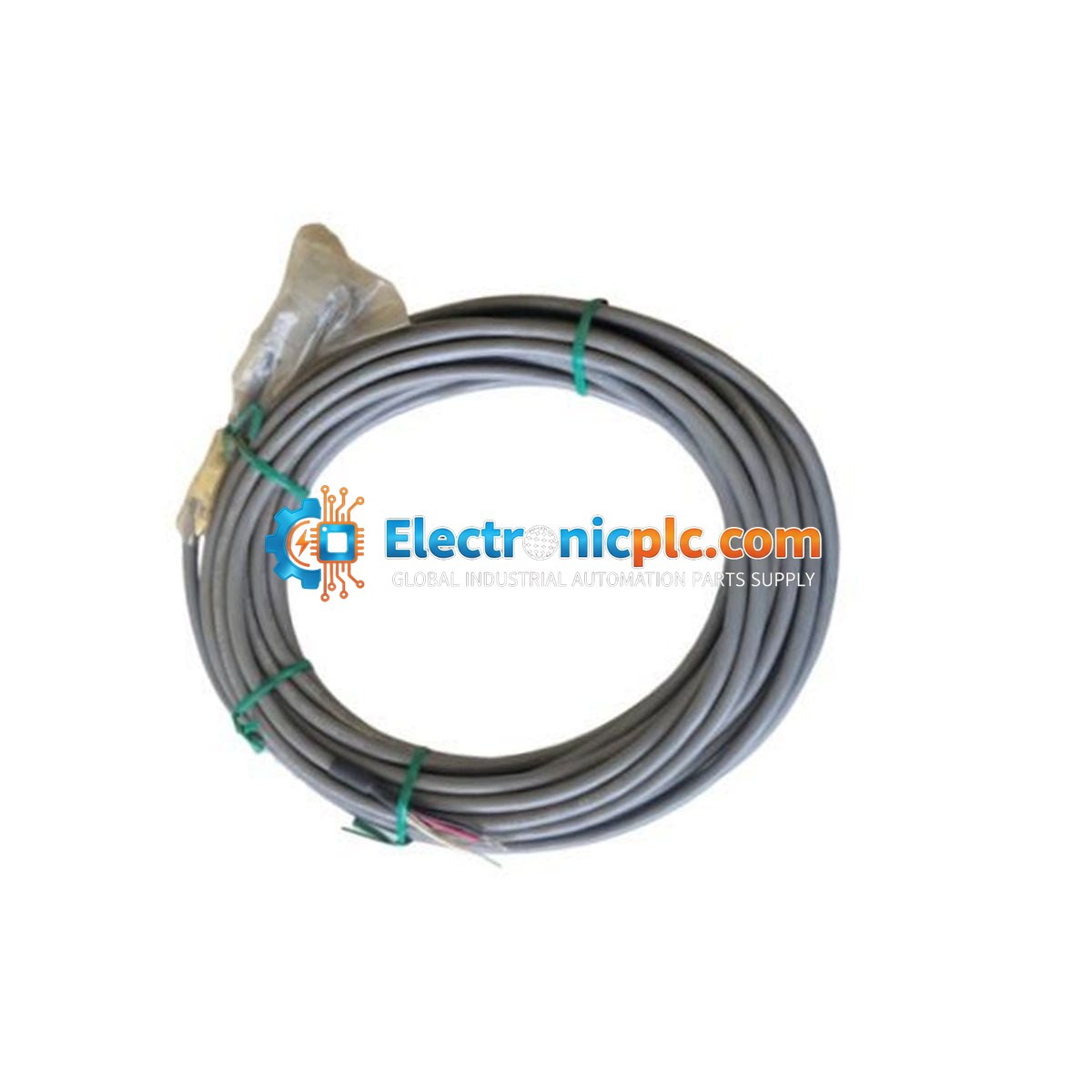

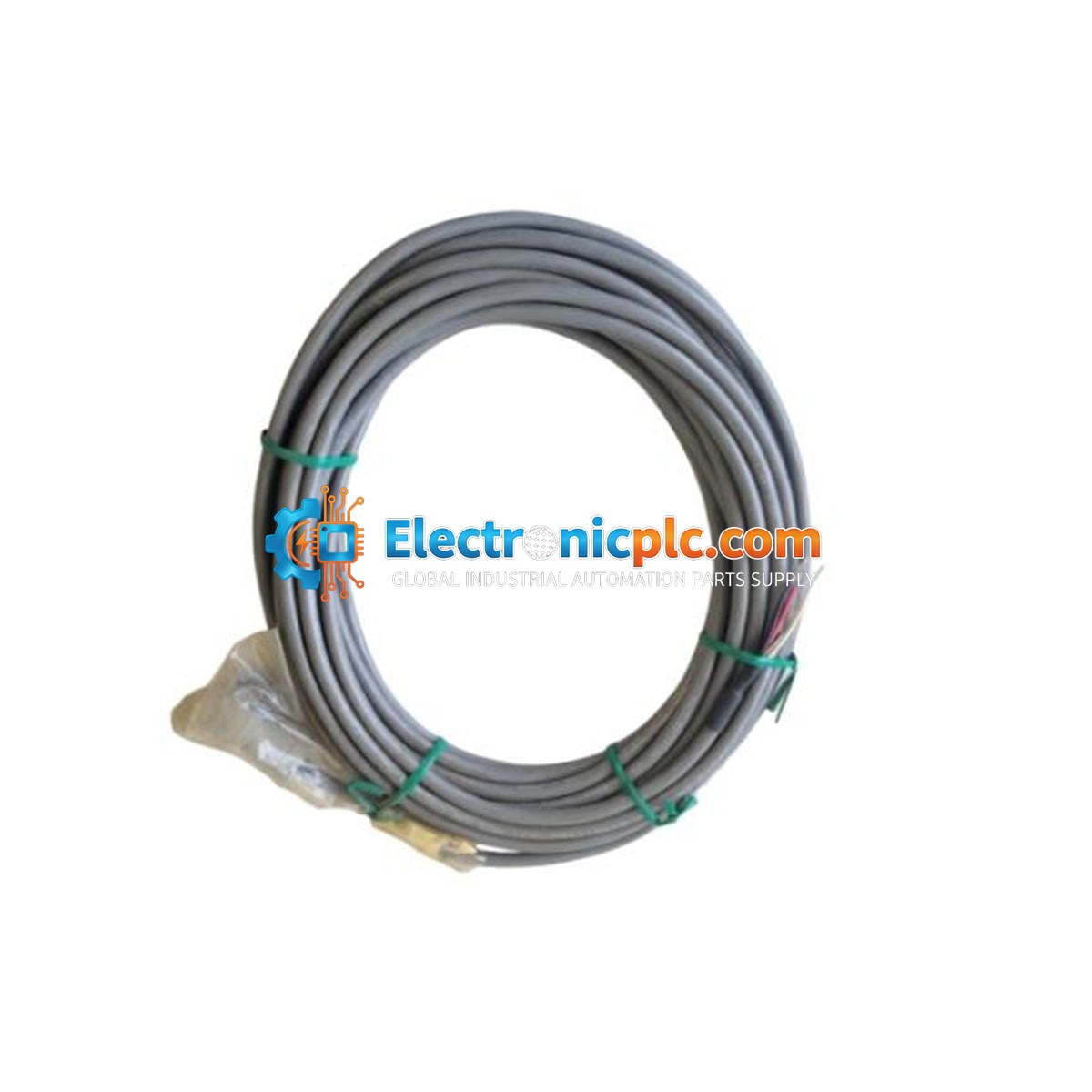

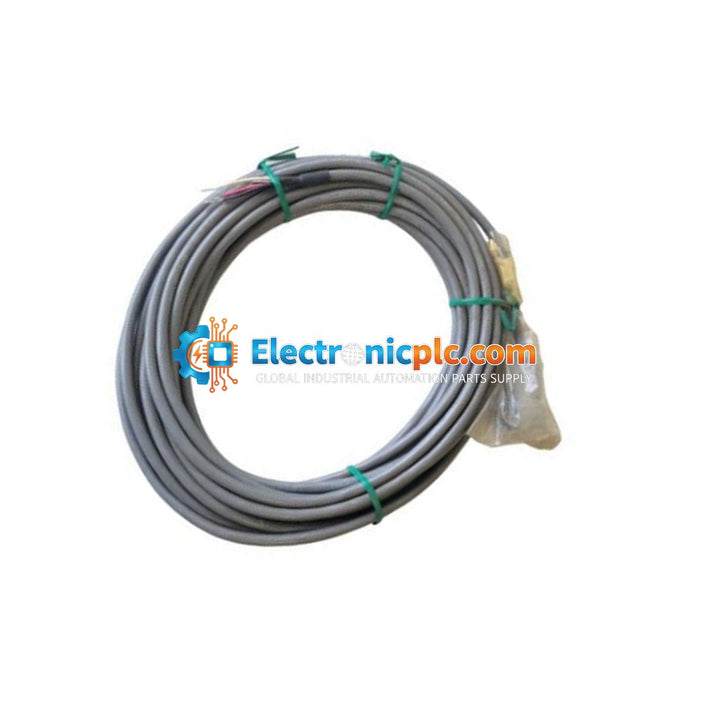

Honeywell 51155506-130 Relay Cable Assembly

Honeywell 51155506-130 Relay Cable Assembly

Description

The Honeywell 51155506-130 is a specialized relay cable assembly designed for use within the Experion LX distributed control system. This cable assembly is engineered to facilitate reliable signal transmission for...

25 people are viewing this right now

Availability: Low stock: 3 left

SKU: 51155506-130
Vendor: Honeywell
Category: Relay Cable Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 51155506-130 is a specialized relay cable assembly designed for use within the Experion LX distributed control system. This cable assembly is engineered to facilitate reliable signal transmission for Digital Output (DO) source applications, ensuring robust connectivity between control hardware and field relay interfaces.

Features

  • Designed for integration with Honeywell Experion LX systems.
  • Supports Digital Output (DO) source configurations.
  • Constructed for industrial durability with a 30.0-meter length.
  • High dielectric strength for secure operation in industrial environments.

Technical Specifications

Product Model 51155506-130
Cable Length 30.0 Meters
Application Digital Output (DO) Source
Dielectric Strength 1000V AC for 1 minute
Conductor Resistance <=25 Ohm/km (typical)
Operating Temperature -40 degC to +85 degC
Storage Temperature -50 degC to +90 degC
Humidity Resistance 90% RH (non-condensing)

Installation Guidelines

  • Ensure all power is disconnected from the associated I/O modules before connecting or disconnecting the cable assembly.
  • Route cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
  • Verify that the cable length is sufficient for the intended path without placing undue mechanical stress on the connectors.
  • Inspect connectors for debris or damage prior to insertion; ensure firm seating to prevent intermittent signal loss.
  • Maintain proper bend radii during installation to prevent internal conductor fatigue.

FAQ

What is the primary application for the 51155506-130 cable?

This cable is specifically designed for Digital Output (DO) source applications within the Honeywell Experion LX control architecture.

What is the total length of this cable assembly?

The 51155506-130 assembly is 30.0 meters in length.
