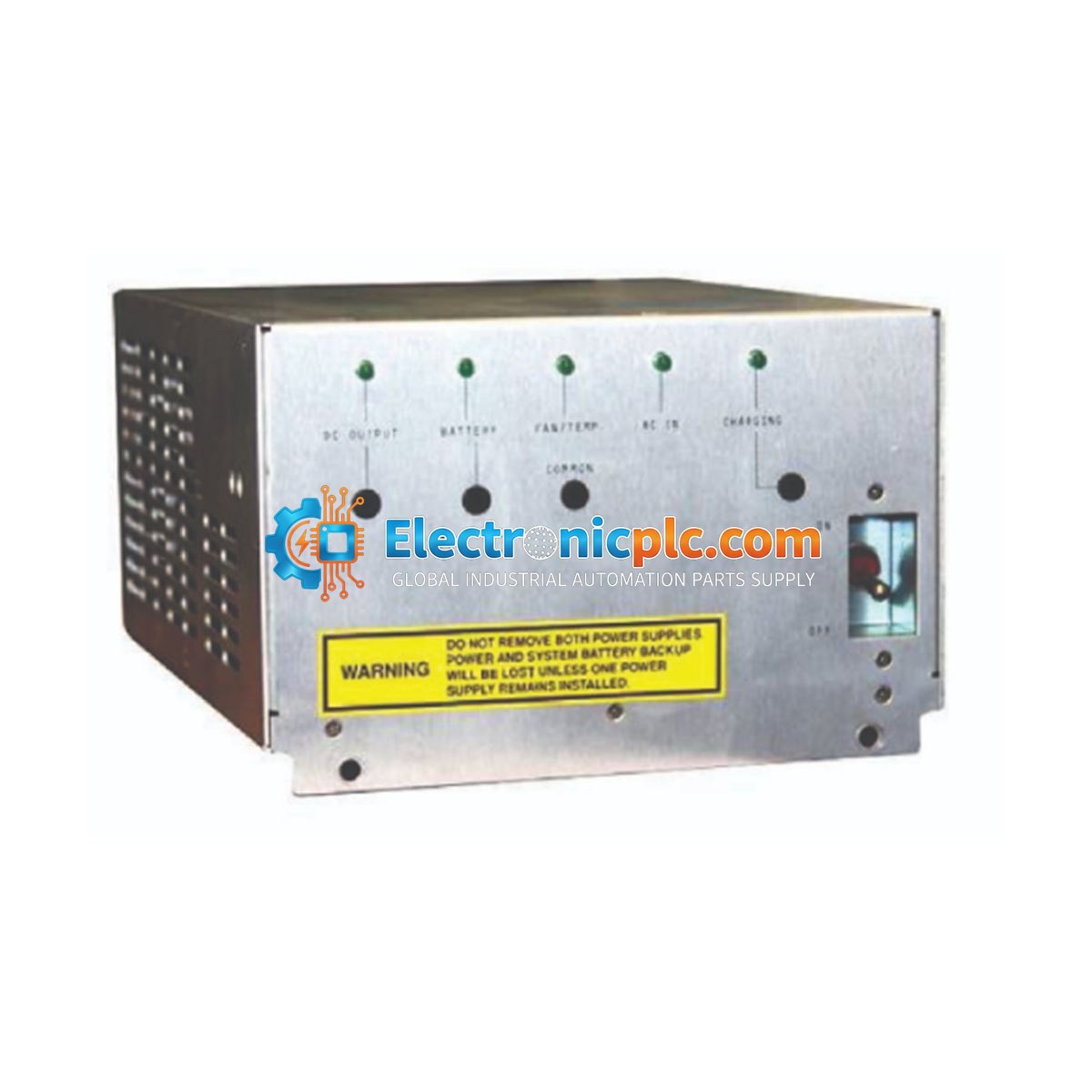

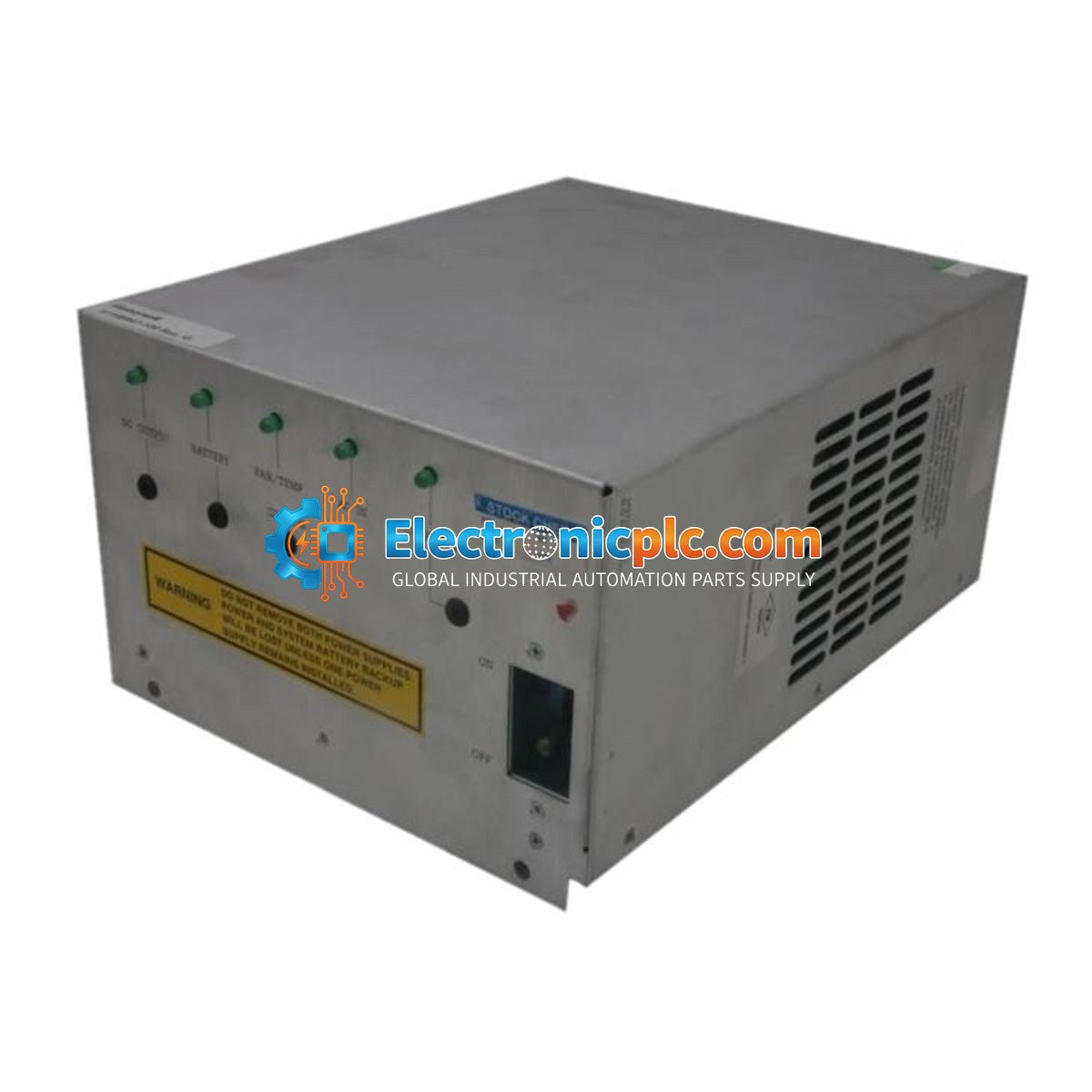

Honeywell 51198947-100 HPM Power Supply

Honeywell 51198947-100 HPM Power Supply

Description

The Honeywell 51198947-100 is an industrial-grade AC/DC power supply module engineered for use in Honeywell UCN-based control cabinets, including PM, APM, and HPM architectures. This module serves as a critical...

20 people are viewing this right now

Availability: Low stock: 7 left

SKU: 51198947-100
Vendor: Honeywell
Category: Power Supply Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Honeywell 51198947-100 is an industrial-grade AC/DC power supply module engineered for use in Honeywell UCN-based control cabinets, including PM, APM, and HPM architectures. This module serves as a critical power conversion unit, transforming wide-range AC input or 48 VDC battery input into regulated DC power required for reliable distributed control system (DCS) operation. It is designed for continuous duty in demanding environments such as power generation, refineries, and petrochemical facilities, ensuring stable voltage output despite fluctuating mains conditions.

Features

  • Dual-input architecture supporting 85 to 264 VAC or 48 VDC battery input.
  • Integrated battery charging circuit for hybrid power configurations and backup systems.
  • Supports parallel operation for N+1 redundancy and load sharing in mission-critical applications.
  • Provides a dedicated 6 VAC, 35 mA line-frequency synchronization signal for UCN system timing.
  • Robust construction designed to withstand industrial electrical noise and transient disturbances.

Applications

This power supply is specifically designed for Honeywell DCS installations, providing essential power to controllers and I/O modules. It is ideal for applications requiring high availability and seamless transition between primary AC power and secondary DC battery backup.

Technical Specifications

Model 51198947-100
Input Voltage 85 to 264 VAC or 48 VDC
Output Voltage (AC) 25.25 VDC
Output Voltage (DC) 24.25 VDC
Output Current 10 A continuous
Power Rating 550 W
Auxiliary Output 6 VAC, 35 mA (line-frequency sync)
Operating Temperature -20 to 55 deg C (full load); derating 0.5 A/deg C up to 65 deg C

Installation Guidelines

  • Ensure the module is installed in a clean, dry environment within the specified temperature range.
  • Always disconnect all power sources (AC and DC) before inserting or removing the module from the cabinet.
  • Ensure proper grounding of the chassis to mitigate EMI and maintain signal integrity.
  • When configuring for parallel operation, ensure all modules are wired according to the specific DCS cabinet documentation to enable proper load sharing.
  • Maintain adequate clearance around the module to allow for proper convective cooling, especially when operating near the upper temperature limits.

FAQ

Is this module compatible with all Honeywell UCN systems?

The 51198947-100 is designed for PM, APM, and HPM architectures. Please verify your specific cabinet revision and power requirements against the module's output specifications before installation.

Does this unit support redundancy?

Yes, the module is engineered to support parallel operation, allowing for N+1 redundancy and increased system capacity in mission-critical DCS environments.
